AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE92..WG

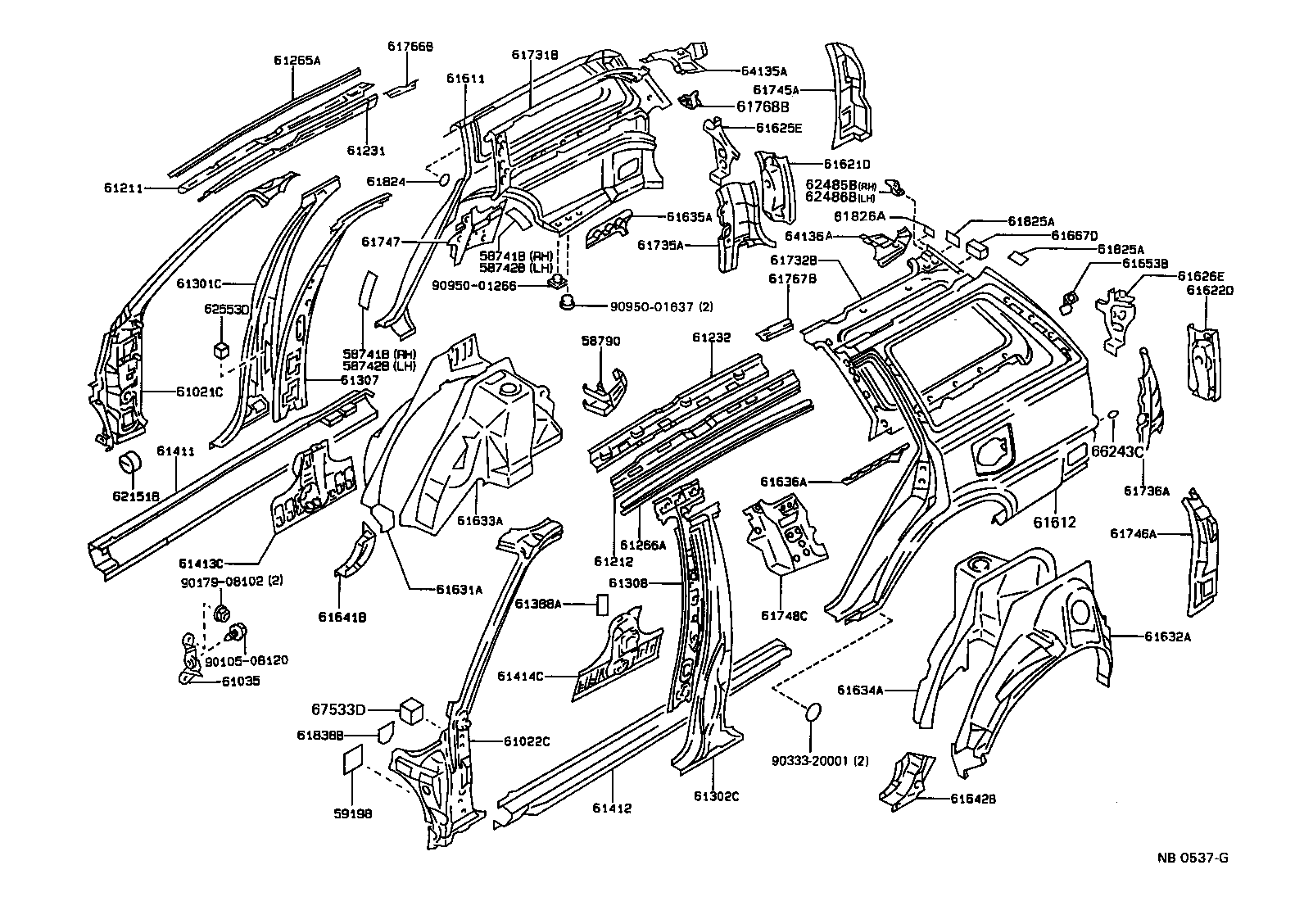

Click highlighted areas on diagram

diagram 58741B 58741B 58742B 58742B 58790 59198 61021C 61022C 61035 61211 61212 61231 61232 61265A 61266A 61301C 61302C 61307 61308 61388A 61411 61412 61413C 61414C 61611 61612 61621D 61622D 61625E 61626E 61631A 61632A 61633A 61634A 61635A 61636A 61641B 61642B 61653B 61667D 61731B 61732B 61735A 61736A 61745A 61746A 61747 61748C 61766B 61767B 61768B 61824 61825A 61825A 61826A 61838B 62151B 62485B 62486B 62553D 64135A 64136A 66243C 67533D 9010508120 9017908102 9033320001 9095001266 9095001637
Part # Description Qty Price
58741B - PROTECTOR, QUARTER PANEL, RH
58741-12060

AE9#..WG

FR

 1
58741-13010

AE9#..WG

RR

 1
58741-12040

AE9#..WG

FR

 1
58741-12040

AE9#..WG

W(MUD GUARD)

 1
58741-12060

AE9#..WG

W(MUD GUARD)

 1
58741B - PROTECTOR, QUARTER PANEL, RH
58741-12060

AE9#..WG

FR

 1
58741-13010

AE9#..WG

RR

 1
58741-12040

AE9#..WG

FR

 1
58741-12040

AE9#..WG

W(MUD GUARD)

 1
58741-12060

AE9#..WG

W(MUD GUARD)

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58741-12060

AE9#..WG

W(MUD GUARD)

 1
58742-12040

AE9#..WG

W(MUD GUARD)

 1
58742-12040

AE9#..WG

FR

 1
58743-12010

AE9#..WG

RR

 1
58741-12060

AE9#..WG

FR

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58741-12060

AE9#..WG

W(MUD GUARD)

 1
58742-12040

AE9#..WG

W(MUD GUARD)

 1
58742-12040

AE9#..WG

FR

 1
58743-12010

AE9#..WG

RR

 1
58741-12060

AE9#..WG

FR

 1
59198 - SEAL, NOISE SHUTTER
59198-12010

AE9#

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61035-12040

AE9#

 1
61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH
61301-12190

AE9#

 1
61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH
61302-12250

AE9#

 1
61388A - PLATE, CENTER BODY PILLAR END, RH
61388-12010

AE9#

 2
61411 - PANEL, ROCKER, OUTER RH
61411-12370

AE9#

 1
61412 - PANEL, ROCKER, OUTER LH
61412-12360

AE9#

 1
61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH
61413-12040

AE9#

 1
61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH
61414-12060

AE9#

 1
61612 - PANEL, QUARTER, LH
61602-13910

AE92..WG

 2
61641B - GUSSET, QUARTER WHEEL HOUSE, RH
61641-12040

AE92..CBR;AE9#..(DX,SR5,STD)..EFI

 1
61642B - GUSSET, QUARTER WHEEL HOUSE, LH
61642-12040

AE92..CBR;AE9#..(DX,SR5,STD)..EFI

 1
61667D - SEAL, QUARTER PANEL
61667-12050

AE92;AE95..SED

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-12020

AE92

W(SUN ROOF)

 4
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE9#

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE9#

 2
61838B - PLATE, NOISE CONTROL, NO.5
61838-12010

AE9#

 2
62151B - PAD, COWL SIDE SILENCER
62151-12100

AE9#

 4
62553D - PAD, PILLAR, NO.3
62553-12120

AE9#

 2
67533D - PAD, FRONT DOOR LOWER FRAME GARNISH, RH
67533-12010

AE9#

 2
Common parts
90105-08120
90179-08102
90333-20001
90950-01266
90950-01637
