AE92L-AWHDUA (1987)
Toyota Corolla Jpp
Production
Oct 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )AE92..WG

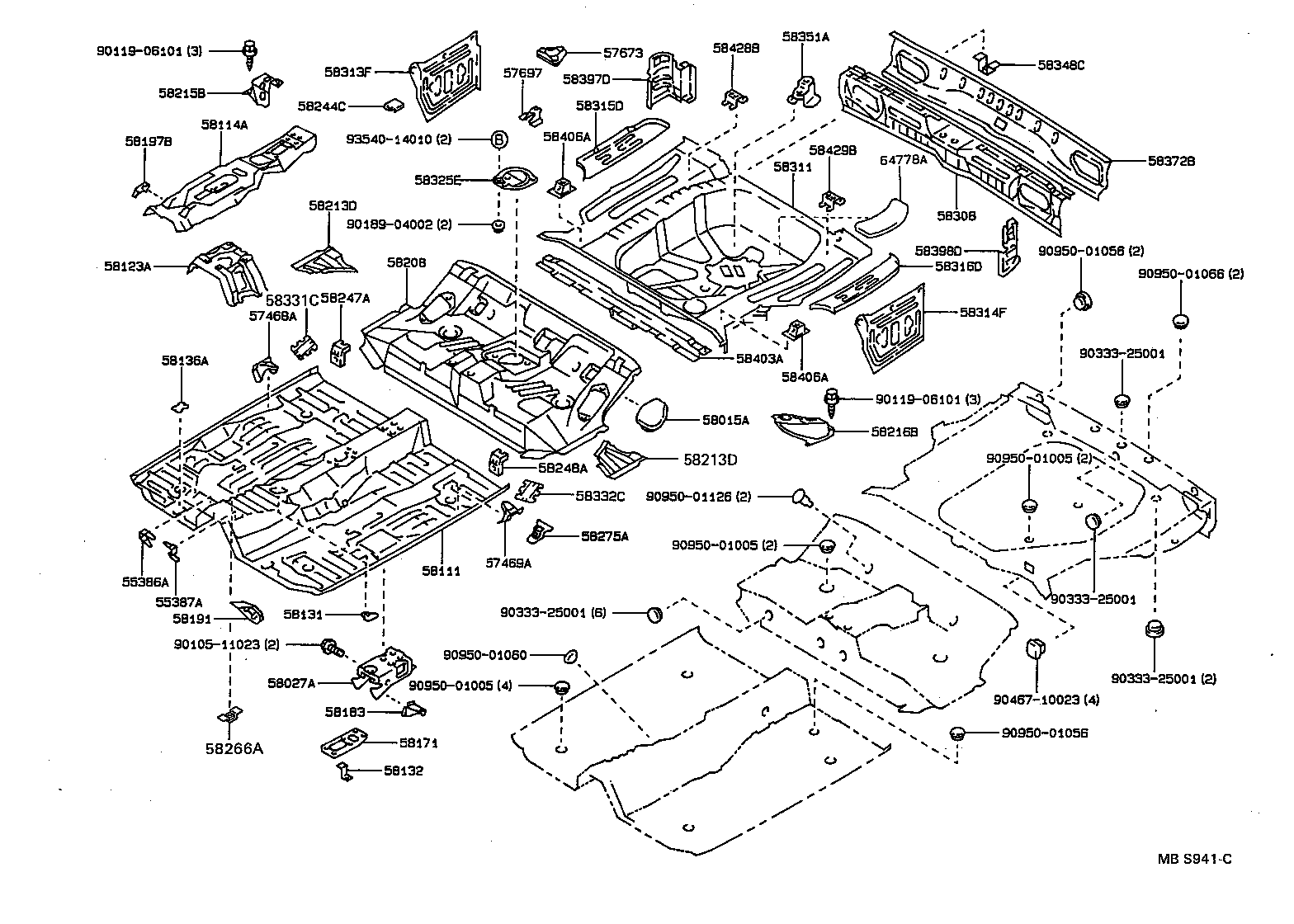

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55386A - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-12040 |
AE92 |
1 | ||
| 55387A - BRACKET, COMPUTER MOUNTING, NO.2 | ||||
| 55387-12020 |
AE92 |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-12030 |
AE92 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-12030 |
AE92 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57607-12020 |
AE92..WG;AE92..LE..CBR |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-12020 |
AE92..CBR;AE9#..(DX,SR5,STD)..EFI |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-12020 |
AE92..CBR;AE92..(DX,STD)..EFI |
2 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12050 |
AE92 |
1 | ||
| 58027-12030 |
AE92 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12200 |
AE92 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-12050 |
AE92 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-12040 |
AE92 |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-12060 |
AE92 |
1 | ||
| 58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 | ||||
| 58132-32010 |
AE92 |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12020 |
AE92 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12080 |
AE92 |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-12090 |
AE92 RH |
1 | ||
| 58184-12110 |
AE92 LH |
1 | ||
| 58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET | ||||
| 58197-12010 |
AE9# |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-12170 |
AE92..LE;AE92..WG REAR SPLIT FOLD DOWN SEAT |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-12020 |
AE92..CBR;AE92..(DX,STD)..EFI RH |
1 | ||
| 58214-12010 |
AE92..CBR;AE92..(DX,STD)..EFI LH |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-12020 |
AE92..CBR;AE92..(DX,STD)..EFI RH |
1 | ||
| 58214-12010 |
AE92..CBR;AE92..(DX,STD)..EFI LH |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-16010 |
AE92 |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-16010 |
AE92 |
1 | ||
| 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-16030 |
AE92..CBR;AE92..(DX,STD)..EFI |
4 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
AE9# |
3 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12120 |
AE92 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12020 |
AE92 |
1 | ||
| 58348C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58348-12010 |
AE92 |
1 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-12020 |
AE92 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12050 |
AE9# |
2 | ||
| Common parts | ||||
| 90105-11023 | ||||
| 90119-06101 | ||||
| 90189-04002 | ||||
| 90333-25001 | ||||
| 90467-10023 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01066 | ||||
| 90950-01126 | ||||
| 93540-14010 | ||||
