AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

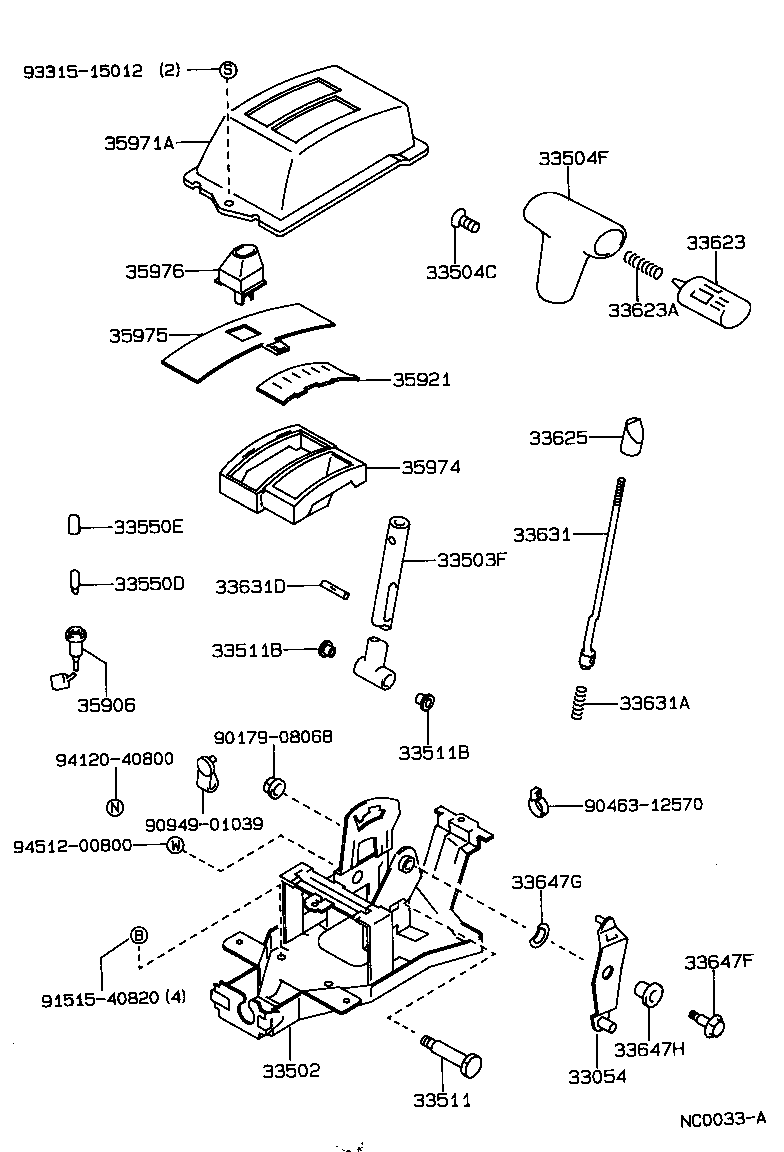

ILLUST NO. 1 OF 2(8708-8908)3FC

Click highlighted areas on diagram

diagram 33054 33502 33503F 33504C 33504F 33511 33511B 33511B 33550D 33550E 33623 33623A 33625 33631 33631A 33631D 33647F 33647G 33647H 35906 35921 35971A 35974 35975 35976 9017908068 9046312570 9094901039 9151540820 9331515012 9412040800 9451200800
Part # Description Qty Price
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33054-12050

AE9#..ATM

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-12310

AE92..ATM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-12310

AE92..3FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

AE9#..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12150D0

AE92..3FC..USA

MAROON,MAROON,TRIM3#

 1
33542-12150E0

AE92..3FC

DARK BEIGE,DARK BEIGE,TRIM4#

 1
33542-12150J0

AE92..3FC

DARK BLUE,DARK BLUE,TRIM8#

 1
33542-1215003

AE92..3FC..CBR;AE92..3FC..STD;AE92..WG..3FC..EFI

SHADOW GRAY,TRIM1#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-20240

AE9#..ATM

 1
33511B - BUSH (FOR CONTROL SHAFT)
90386-11010

AE9#..ATM

 2
33511B - BUSH (FOR CONTROL SHAFT)
90386-11010

AE9#..ATM

 2
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

AE9#..ATM

12V 3.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-09004

AE9#..ATM

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1208003

AE92..3FC

SHADOW GRAY,TRIM1#

 1
33623-1208005

AE92..3FC..USA;AE92..SED..3FC..CND

DARK BEIGE,TRIM4#

 1
33623-1208004

AE92..3FC..USA;AE92..SED..3FC..CND

DARK BLUE,TRIM8#

 1
33623-1208003

AE92..WG..3FC

SHADOW GRAY

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

AE9#..ATM

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-22020

AE92..3FC

 1
33631 - ROD, DETENT
33631-12100

AE92..3FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08017

AE92..3FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003

AE9#..ATM

 1
33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT)
90119-08606

AE9#..ATM

 1
33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT)
90206-12002

AE9#..ATM

 1
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-12029

AE9#..ATM

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-10020

AE92..3FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12290

AE9#..ATM

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-1215003

AE9#..ATM

SHADOW GRAY,TRIM1#

 1
35971-1215005

AE9#..ATM

DARK BEIGE,TRIM4#

 1
35971-12150E0

AE92..4FC;AE95..WG..4FC;AE92..3FC..USA;AE95..SED..4FC..USA

DARK BEIGE,TRIM4#

 1
35971-1215003

AE95..4FC;AE92..SED..ATM;AE92..WG..3FC..USA

SHADOW GRAY,TRIM1#

 1
35971-1215004

AE9#..ATM

DARK BLUE,TRIM8#

 1
35971-12150J0

AE92..4FC;AE95..WG..4FC;AE92..3FC..USA;AE95..SED..4FC..USA

DARK BLUE,TRIM8#

 1
35971-1215003

AE92..4FC;AE95..WG..4FC;AE92..3FC..USA;AE95..SED..4FC..USA

SHADOW GRAY,TRIM1#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12120

AE9#..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12160

AE9#..ATM

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-12020

AE92..3FC

 1
Common parts
90179-08068
90463-12570
90949-01039
91515-40820
93315-15012
94120-40800
94512-00800
