AE92L-AEPNUK (1987)
Toyota Corolla Jpp

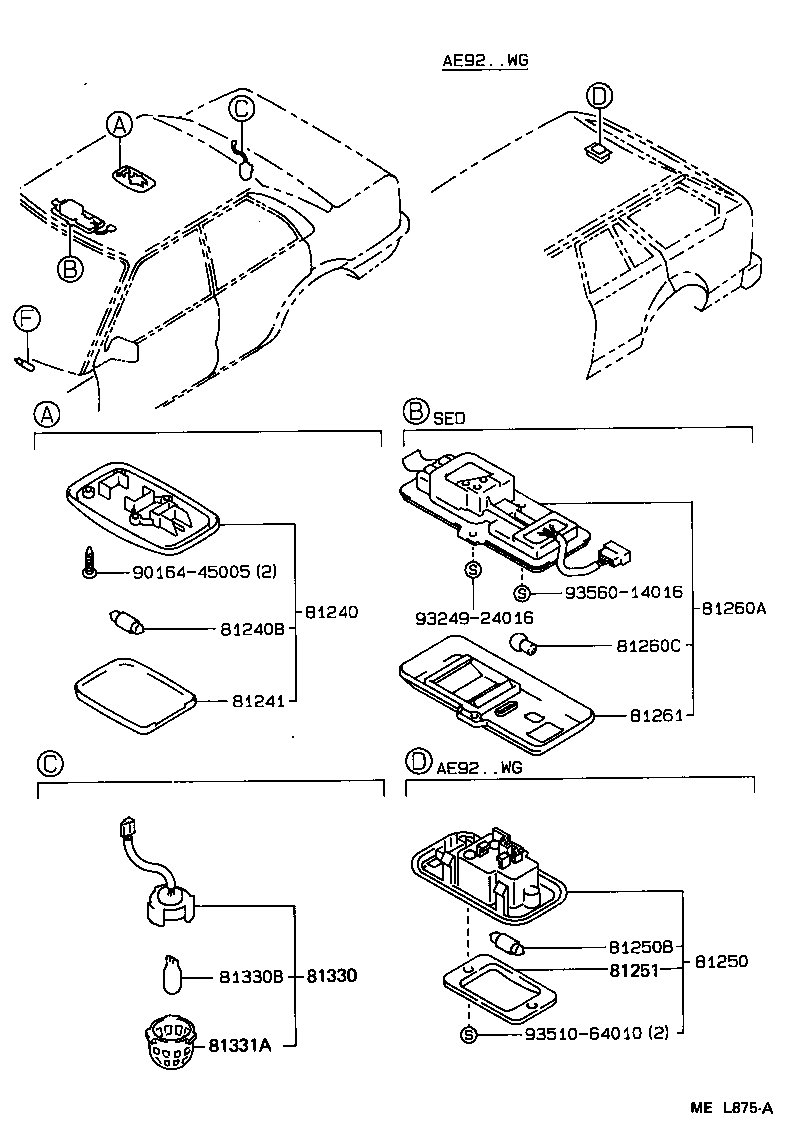

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1202003 |
AE9# LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1202004 |
AE9# LIGHT BLUE,TRIM8# |
1 | ||
| 81240-1202002 |
AE9#..SED MAROON,TRIM3# |
1 | ||
| 81240-1202005 |
AE9# LIGHT BEIGE,TRIM4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AE9# 12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
AE9# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-1604002 |
AE9#..SED MAROON,TRIM3# |
1 | ||
| 81260-1604004 |
AE9#..SED LIGHT BLUE,TRIM8# |
1 | ||
| 81260-1604003 |
AE9#..SED LIGHT GRAY,TRIM1# |
1 | ||
| 81260-1604005 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81260-1604004 |
AE92..LE;AE9#..SED..DX..USA LIGHT BLUE,TRIM8# |
1 | ||
| 81260-16040E0 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
AE95;AE92..SED..(DX,LE) 12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2006102 |
AE9#..SED MAROON,TRIM3# |
1 | ||
| 81261-2006114 |
AE9#..SED LIGHT BLUE,TRIM8# |
1 | ||
| 81261-2006105 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81261-2006113 |
AE9#..SED LIGHT GRAY,TRIM1# |
1 | ||
| 81261-20061E0 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81261-2006114 |
AE92..LE;AE9#..SED..DX..USA LIGHT BLUE,TRIM8# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-22031 |
AE92..LE |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
AE92..LE 12V 3.8W |
1 | ||
| 81331A - COVER, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-22030 |
AE92..LE |
1 | ||
| Common parts | ||||
| 90164-45005 | ||||
| 93249-24016 | ||||
| 93510-64010 | ||||
| 93560-14016 | ||||

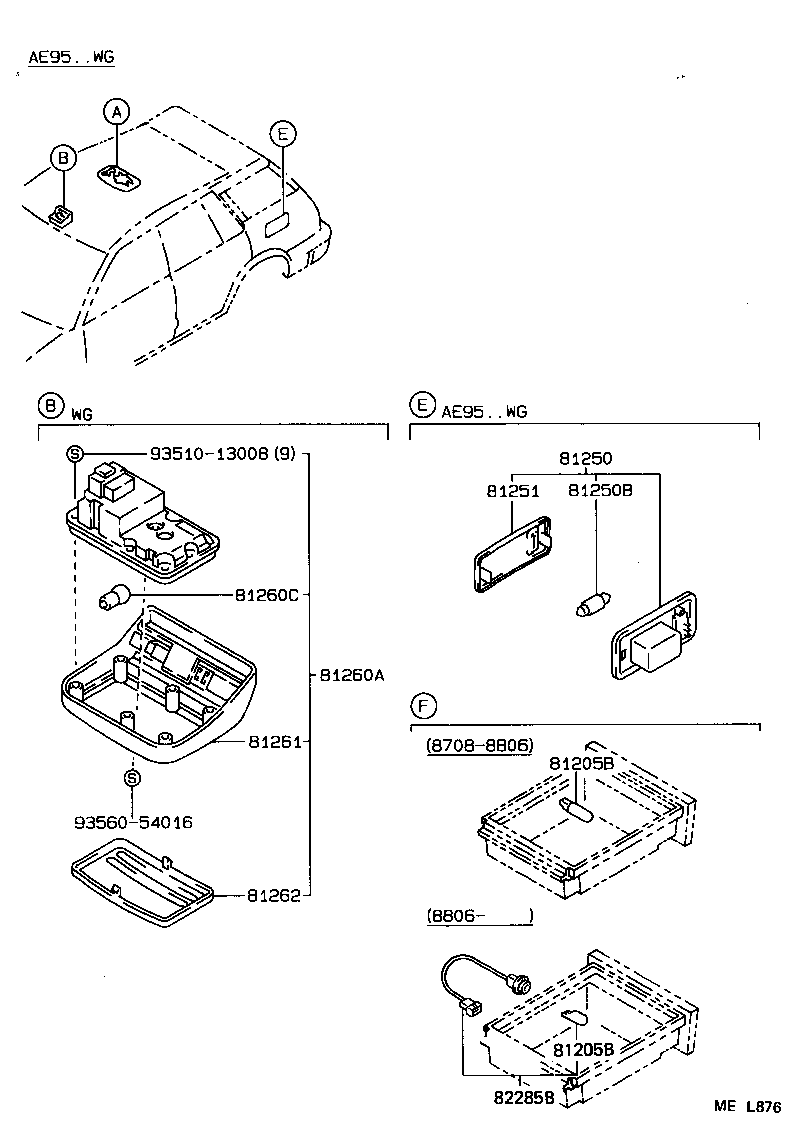

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
AE9# 14V 1.4W |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
AE9# 14V 1.4W |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-1604002 |
AE9#..SED MAROON,TRIM3# |
1 | ||
| 81260-1604004 |
AE9#..SED LIGHT BLUE,TRIM8# |
1 | ||
| 81260-1604003 |
AE9#..SED LIGHT GRAY,TRIM1# |
1 | ||
| 81260-1604005 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81260-1604004 |
AE92..LE;AE9#..SED..DX..USA LIGHT BLUE,TRIM8# |
1 | ||
| 81260-16040E0 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
AE95;AE92..SED..(DX,LE) 12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2006102 |
AE9#..SED MAROON,TRIM3# |
1 | ||
| 81261-2006114 |
AE9#..SED LIGHT BLUE,TRIM8# |
1 | ||
| 81261-2006105 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81261-2006113 |
AE9#..SED LIGHT GRAY,TRIM1# |
1 | ||
| 81261-20061E0 |
AE9#..SED LIGHT BEIGE,TRIM4# |
1 | ||
| 81261-2006114 |
AE92..LE;AE9#..SED..DX..USA LIGHT BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 93510-13008 | ||||
| 93560-54016 | ||||
