AE92L-AEPNUK (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )AE92 ; (8808- )AE95..SED

Click highlighted areas on diagram

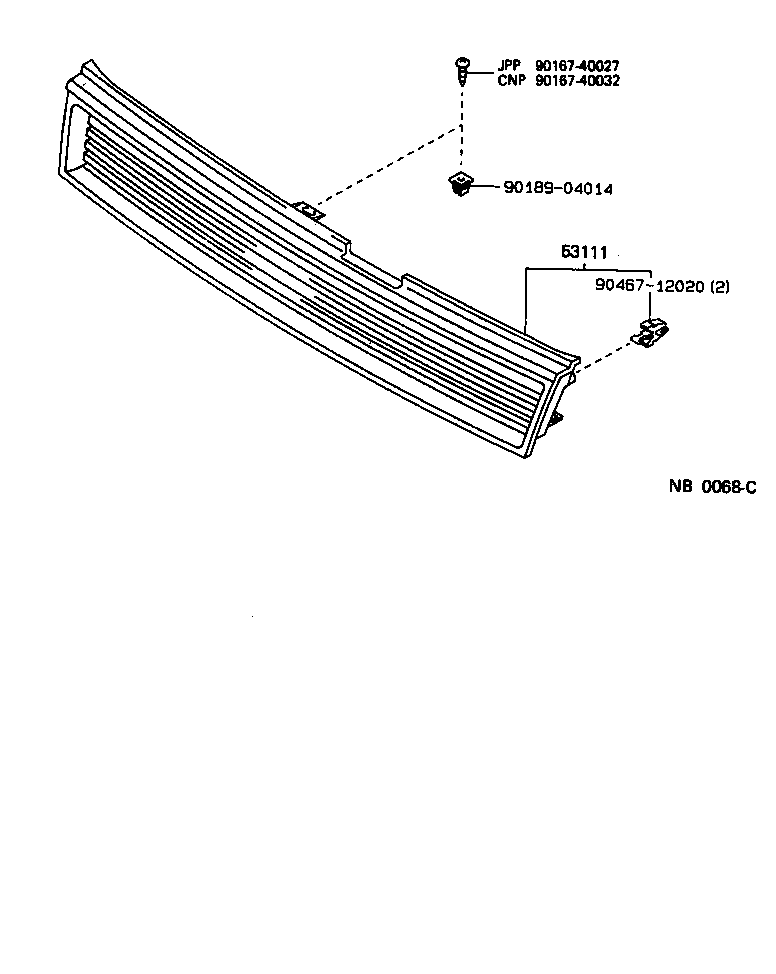

diagram 53111 9016740027 9016740032 9018904014 9046712020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-12670

AE92..LE

 1
Common parts
90167-40027
90167-40032
90189-04014
90467-12020
