AE92L-AEPNUA (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708-8908)

Click highlighted areas on diagram

ARMREST

diagram 74210 74215A 74215A 74220 74230 74240 74811B 74811B 9016360006 9016360006 9016460014 9016460014 9016740027 9018906139 9018906139 9018906139 9018906139 9356054016
Part # Description Qty Price
74215A - BASE, DOOR ARMREST RH
74215-12020

AE9#..LE,SR5

 4
74215A - BASE, DOOR ARMREST RH
74215-12020

AE9#..LE,SR5

 4
74811B - HANDLE, DOOR PULL
74811-1204002

AE92..LE

MAROON,TRIM3#

 4
74811-1204004

AE9#..LE,SR5

DARK BLUE,TRIM8#

 4
74811-1204003

AE9#..LE,SR5

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE9#..LE,SR5

DARK BEIGE,TRIM4#

 4
74811B - HANDLE, DOOR PULL
74811-1204002

AE92..LE

MAROON,TRIM3#

 4
74811-1204004

AE9#..LE,SR5

DARK BLUE,TRIM8#

 4
74811-1204003

AE9#..LE,SR5

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE9#..LE,SR5

DARK BEIGE,TRIM4#

 4
Common parts
90163-60006
90164-60014
90167-40027
90189-06139
93560-54016

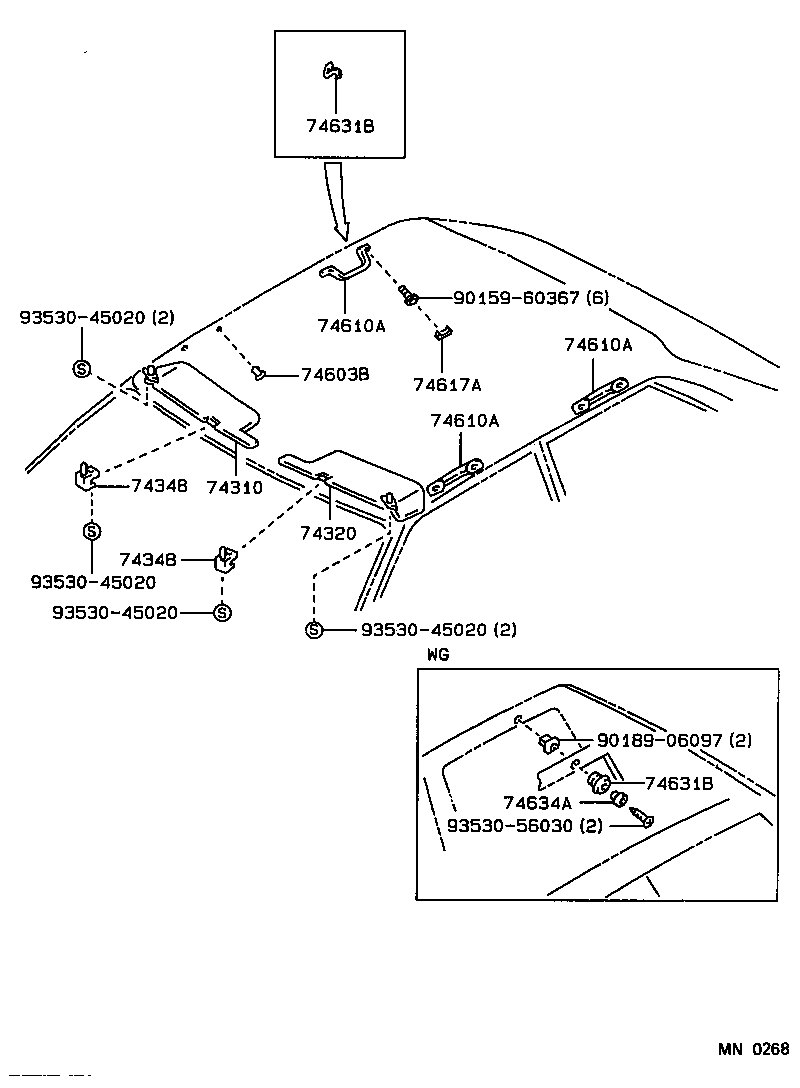

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348 74348 74603B 74610A 74610A 74610A 74617A 74631B 74631B 74634A 9015960367 9018906097 9353045020 9353045020 9353045020 9353045020 9353056030
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-1A03002

AE92..LE

MAROON,TRIM3#

 1
74310-1A03003

AE92..LE

LIGHT GRAY,TRIM1#

 1
74310-1A03005

AE92..LE

LIGHT BEIGE,TRIM4#

 1
74310-1A03004

AE92..LE

LIGHT BLUE,TRIM8#

 1
74310-1A030E2

AE92..LE

LIGHT BEIGE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-1265002

AE92..LE

MAROON,TRIM3#

 1
74320-1265003

AE92..LE

LIGHT GRAY,TRIM1#

 1
74320-1265005

AE92..LE

LIGHT BEIGE,TRIM4#

 1
74320-1265004

AE92..LE

LIGHT BLUE,TRIM8#

 1
74320-12650E2

AE92..LE

LIGHT BEIGE,TRIM4#

 1
74348 - HOLDER, VISOR
74348-1202003

AE9#

LIGHT GRAY,TRIM1#

 2
74348-1202005

AE9#

LIGHT BEIGE,TRIM4#

 2
74348 - HOLDER, VISOR
74348-1202003

AE9#

LIGHT GRAY,TRIM1#

 2
74348-1202005

AE9#

LIGHT BEIGE,TRIM4#

 2
74603B - CLIP (FOR ASSIST GRIP)
90467-06048D0

AE9#..SED

MAROON,TRIM3#

 2
90467-06048E0

AE95;AE92..SED

LIGHT BEIGE,TRIM4#

 2
90467-0604833

AE95;AE92..SED

LIGHT GRAY,TRIM1#

 2
90467-0604834

AE95;AE92..SED

LIGHT BLUE,TRIM8#

 2
90467-0604825

AE95;AE92..SED

LIGHT BEIGE,TRIM4#

 2
90467-0604802

AE9#..SED

MAROON,TRIM3#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-1202002

AE9#..SED

W(SUN ROOF),MAROON,TRIM3#

 3
74610-1202003

AE9#..SED

W(SUN ROOF),LIGHT GRAY,TRIM1#

 3
74610-1202004

AE9#..SED

W(SUN ROOF),LIGHT BLUE,TRIM8#

 3
74610-1202005

AE9#..SED

W(SUN ROOF),LIGHT BEIGE,TRIM4#

 3
74610-1601004

AE9#..DX,LE,SR5

LIGHT BLUE,TRIM8#

 3
74610-1601002

AE9#..SED..(DX,LE)

MAROON,TRIM3#

 3
74610-1601003

AE9#..DX,LE,SR5

LIGHT GRAY,TRIM1#

 3
74610-1601005

AE9#

LIGHT BEIGE,TRIM4#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1202002

AE9#..SED

W(SUN ROOF),MAROON,TRIM3#

 3
74610-1202003

AE9#..SED

W(SUN ROOF),LIGHT GRAY,TRIM1#

 3
74610-1202004

AE9#..SED

W(SUN ROOF),LIGHT BLUE,TRIM8#

 3
74610-1202005

AE9#..SED

W(SUN ROOF),LIGHT BEIGE,TRIM4#

 3
74610-1601004

AE9#..DX,LE,SR5

LIGHT BLUE,TRIM8#

 3
74610-1601002

AE9#..SED..(DX,LE)

MAROON,TRIM3#

 3
74610-1601003

AE9#..DX,LE,SR5

LIGHT GRAY,TRIM1#

 3
74610-1601005

AE9#

LIGHT BEIGE,TRIM4#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1202002

AE9#..SED

W(SUN ROOF),MAROON,TRIM3#

 3
74610-1202003

AE9#..SED

W(SUN ROOF),LIGHT GRAY,TRIM1#

 3
74610-1202004

AE9#..SED

W(SUN ROOF),LIGHT BLUE,TRIM8#

 3
74610-1202005

AE9#..SED

W(SUN ROOF),LIGHT BEIGE,TRIM4#

 3
74610-1601004

AE9#..DX,LE,SR5

LIGHT BLUE,TRIM8#

 3
74610-1601002

AE9#..SED..(DX,LE)

MAROON,TRIM3#

 3
74610-1601003

AE9#..DX,LE,SR5

LIGHT GRAY,TRIM1#

 3
74610-1601005

AE9#

LIGHT BEIGE,TRIM4#

 3
74617A - PLUG, ASSIST GRIP
74617-1601002

AE9#..SED..(DX,LE)

MAROON,TRIM3#

 6
74617-1601024

AE9#..DX,LE,SR5

DEEP BLUE,TRIM8#

 6
74617-1601020

AE9#

LIGHT BEIGE,TRIM4#

 6
74617-1601053

AE9#..DX,LE,SR5

LIGHT GRAY,TRIM1#

 6
74631B - HOOK, COAT
74631-1401012

AE92..SED

MAROON,TRIM3#

 1
74631-1401010

AE92..SED

LIGHT GRAY,TRIM1#

 1
74631-2004015

AE95;AE92..SED

LIGHT BEIGE,TRIM4#

 1
74631-1401034

AE92..SED

DEEP BLUE,TRIM8#

 1
74631-1401055

AE92..SED

LIGHT BEIGE,TRIM4#

 1
74631B - HOOK, COAT
74631-1401012

AE92..SED

MAROON,TRIM3#

 1
74631-1401010

AE92..SED

LIGHT GRAY,TRIM1#

 1
74631-2004015

AE95;AE92..SED

LIGHT BEIGE,TRIM4#

 1
74631-1401034

AE92..SED

DEEP BLUE,TRIM8#

 1
74631-1401055

AE92..SED

LIGHT BEIGE,TRIM4#

 1
Common parts
90159-60367
90189-06097
93530-45020
93530-56030
