AE92L-AEPNUA (1987)
Toyota Corolla Jpp

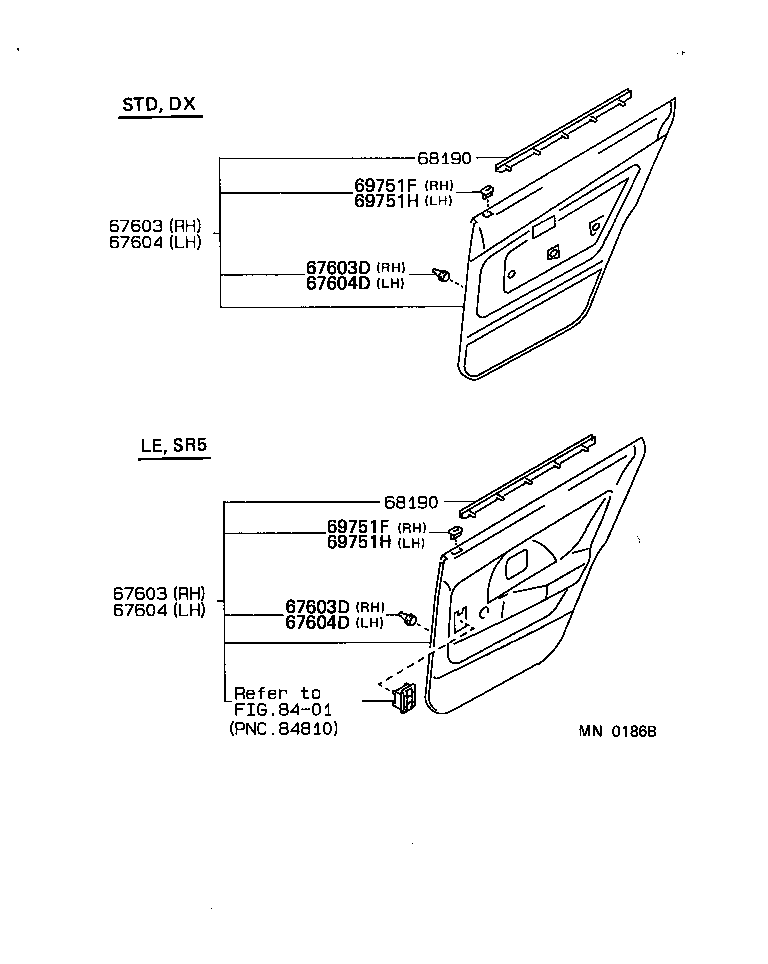

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A01005 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A01002 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67630-1A01004 |
AE92..LE W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67630-1A34002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67630-1A34005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A010J0 |
AE92..LE W(*PW & *EL),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A34004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 67630-1A34003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A010E0 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A010D0 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67630-1A01003 |
AE92..LE W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A340J0 |
AE92..LE DARK BLUE,TRIM8# |
1 | ||
| 67630-1A340E0 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A340D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A01005 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A01002 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67630-1A01004 |
AE92..LE W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67630-1A34002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67630-1A34005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A010J0 |
AE92..LE W(*PW & *EL),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A34004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 67630-1A34003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A010E0 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A010D0 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67630-1A01003 |
AE92..LE W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A340J0 |
AE92..LE DARK BLUE,TRIM8# |
1 | ||
| 67630-1A340E0 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A340D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92..LE |
7 | ||
| 67771-12040 |
AE92..LE |
7 | ||
| 67771-89104 |
AE92..LE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92..LE W(*PW & *EL),RED |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92..LE |
7 | ||
| 67771-12040 |
AE92..LE |
7 | ||
| 67771-89104 |
AE92..LE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92..LE W(*PW & *EL),RED |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A01004 |
AE92..LE W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67640-1A01002 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67640-1A01005 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A01003 |
AE92..LE W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A33002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67640-1A33004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 67640-1A010E0 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A010J0 |
AE92..LE W(*PW & *EL),DARK BLUE,TRIM8# |
1 | ||
| 67640-1A010D0 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67640-1A330E0 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A330J0 |
AE92..LE DARK BLUE,TRIM8# |
1 | ||
| 67640-1A330D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A01004 |
AE92..LE W(*PW & *EL),BLUE,TRIM8# |
1 | ||
| 67640-1A01002 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67640-1A01005 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A01003 |
AE92..LE W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A33002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67640-1A33004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 67640-1A010E0 |
AE92..LE W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A010J0 |
AE92..LE W(*PW & *EL),DARK BLUE,TRIM8# |
1 | ||
| 67640-1A010D0 |
AE92..LE W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67640-1A330E0 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A330J0 |
AE92..LE DARK BLUE,TRIM8# |
1 | ||
| 67640-1A330D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92..LE W(*PW & *EL),RED |
6 | ||
| 67771-12050 |
AE92..LE |
7 | ||
| 67771-12040 |
AE92..LE |
7 | ||
| 67771-89104 |
AE92..LE W(*PW & *EL),WHITE |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92..LE W(*PW & *EL),RED |
6 | ||
| 67771-12050 |
AE92..LE |
7 | ||
| 67771-12040 |
AE92..LE |
7 | ||
| 67771-89104 |
AE92..LE W(*PW & *EL),WHITE |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12140 |
AE92..LE |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12140 |
AE92..LE |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201005 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201004 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-32010J0 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| 69751-32010E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#..LE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-12040E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201005 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201004 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-32010J0 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| 69751-32010E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#..LE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-12040E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#..LE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201004 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201005 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-32010J0 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#..LE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040E0 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201004 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| 69751-3201005 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010D0 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 69751-32010J0 |
AE9#..LE,SR5 DARK BLUE,TRIM8# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12510 |
AE9#..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12510 |
AE9#..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12140 |
AE92;AE95..SED |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12140 |
AE92;AE95..SED |
1 | ||
| 67383 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH | ||||
| 67383-12030 |
AE9# |
1 | ||
| 67384 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH | ||||
| 67384-12030 |
AE9# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12140 |
AE9#..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12140 |
AE9#..SED |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-12210 |
AE9# |
2 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-12010 |
AE92..SED |
1 | ||
| 67857-12010 |
AE9# |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-12010 |
AE9# |
1 | ||
| 67858-12010 |
AE92..SED |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE95;AE92..SED |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE95;AE92..SED |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12290 |
AE9#..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12290 |
AE9#..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12190 |
AE9#..SED *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12190 |
AE9#..SED *TT,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-12390 |
AE9#..SED *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-12390 |
AE9#..SED *TT,T=3.5 |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12090 |
AE9#..SED |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12010 |
AE9#..SED |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12200 |
AE9#..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12190 |
AE9#..SED |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-22020 |
AE9# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12040 |
AE9# |
2 | ||
| Common parts | ||||
| 90119-06383 | ||||
| 90151-50013 | ||||
| 90333-35004 | ||||
| 90950-01336 | ||||
| 91655-40616 | ||||
