AE92L-AEMNUA (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )SED

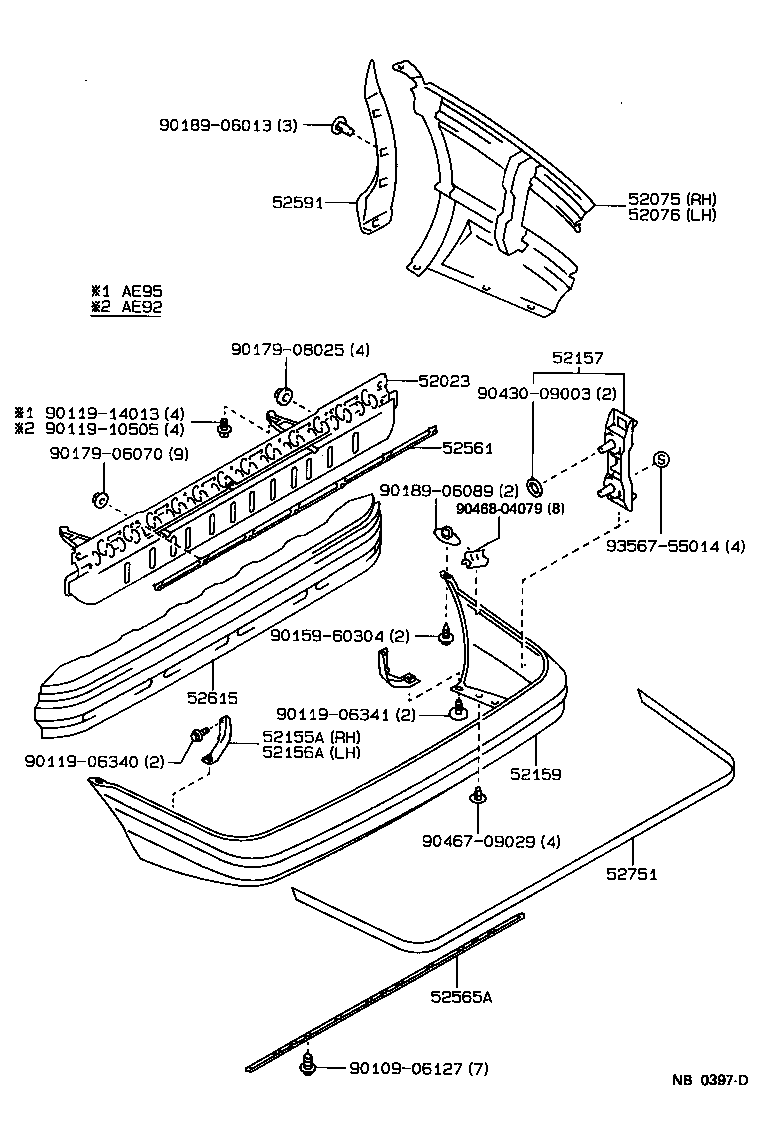

Click highlighted areas on diagram

diagram 52023 52075 52076 52155A 52156A 52157 52159 52561 52565A 52591 52615 52751 9010906127 9011906340 9011906341 9011910505 9011914013 9015960304 9017906070 9017908025 9018906013 9018906089 9043009003 9046709029 9046804079 9356755014
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-12120

AE92..SED

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-12010

AE9#..SED

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-12010

AE9#..SED

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12150

AE9#..SED

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12140

AE92..SED

 1
52157 - SUPPORT, REAR BUMPER SIDE, NO.2
52157-12130

AE9#..SED

 2
52159 - COVER, REAR BUMPER
52159-12917

AE92..LE

TREATED FOR PAINTING

 1
52159-12840

AE92..LE

W(MOULDING)

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-12070

AE9#..SED

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12170

AE9#..SED

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12050

AE9#..SED

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-12080

AE9#..SED

 1
52751 - MOULDING, REAR BUMPER
52751-12130

AE92..LE;AE92..SED..DX..USA..EFI

 1
Common parts
90109-06127
90119-06340
90119-06341
90119-10505
90119-14013
90159-60304
90179-06070
90179-08025
90189-06013
90189-06089
90430-09003
90467-09029
90468-04079
93567-55014
