AE92L-AEMNUA (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )AE92 ; (8808- )AE95..SED

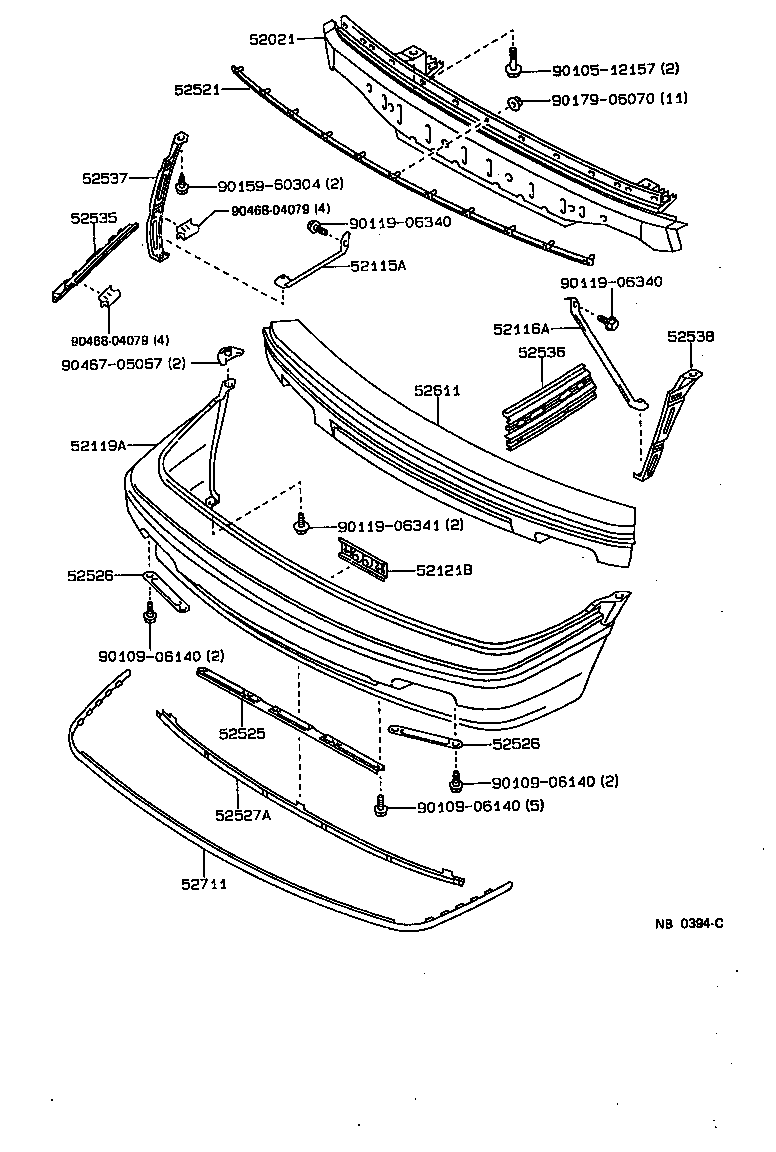

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52121B 52521 52525 52526 52526 52527A 52535 52536 52537 52538 52611 52711 9010512157 9010906140 9010906140 9010906140 9011906340 9011906340 9011906341 9015960304 9017906070 9046705057 9046804079 9046804079
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12150

AE92;AE95..SED

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12260

AE92;AE95..SED

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12200

AE92;AE95..SED

 1
52119A - COVER, FRONT BUMPER
52119-1A170

AE92..LE

W(MOULDING)

 1
52119-1A900

AE92..LE

TREATED FOR PAINTING

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-12110

AE9#

 2
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-12080

AE92;AE95..SED

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-16050

AE9#

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12030

AE9#

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12030

AE9#

 2
52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2
52527-12020

AE92;AE95..SED

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-12030

AE92;AE95..SED

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-12030

AE92;AE95..SED

 1
52537 - RETAINER, FRONT BUMPER END, RH
52537-12020

AE92;AE95..SED

 1
52538 - RETAINER, FRONT BUMPER END, LH
52538-12010

AE92;AE95..SED

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12110

AE92;AE95..SED

 1
52711 - MOULDING, FRONT BUMPER
52711-12110

AE92..LE;AE92..SED..DX..USA..EFI

 1
Common parts
90105-12157
90109-06140
90119-06340
90119-06341
90159-60304
90179-06070
90467-05057
90468-04079
