AE92L-AEHDUK (1987)
Toyota Corolla Jpp
Production
Aug 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

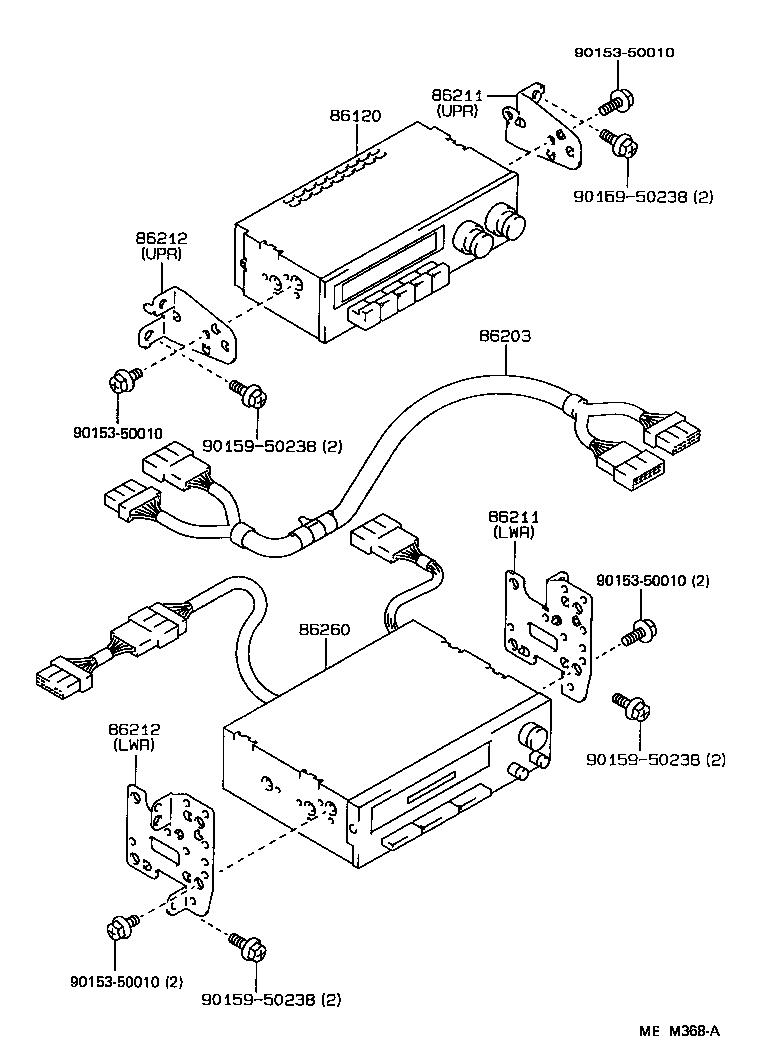

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16371 |
AE95..DX;AE92..SED..USA;AE92..SED..DX..CND AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ) |
1 | ||
| 86120-12430 |
AE95;AE92..DX..USA;AE92..SED..DX..CND AM/FM MPX ETR 2 SPEAKER |
1 | ||
| 86120-16560 |
AE95;AE92..SED AM/FM MPX ETR CASSETTE 4 SPEAKER |
1 | ||
| 86120-32330 |
AE9#..DX MATSUSHITA,AM/FM MPX ETR 2 SPEAKER |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-12210 |
AE9#..(DX,LE)..CND 13P-13P |
1 | ||
| 86203-12210 |
AE92..SED;AE92..WG..CND 13P-13P |
1 | ||
| 86203-12210 |
AE9#..CND 13P-13P |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12220 |
AE9# LWR |
1 | ||
| 86211-12210 |
AE9# UPR |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12220 |
AE9# LWR |
1 | ||
| 86211-12210 |
AE9# UPR |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12200 |
AE9# LWR |
1 | ||
| 86212-12190 |
AE9# UPR |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12200 |
AE9# LWR |
1 | ||
| 86212-12190 |
AE9# UPR |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-20170 |
AE92..CND;AE92..DX..USA W(DOLBY) |
1 | ||
| 86260-20170 |
AE9#..CND W(DOLBY) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||
