AE92L-AEHDUK (1987)
Toyota Corolla Jpp
Production
Aug 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

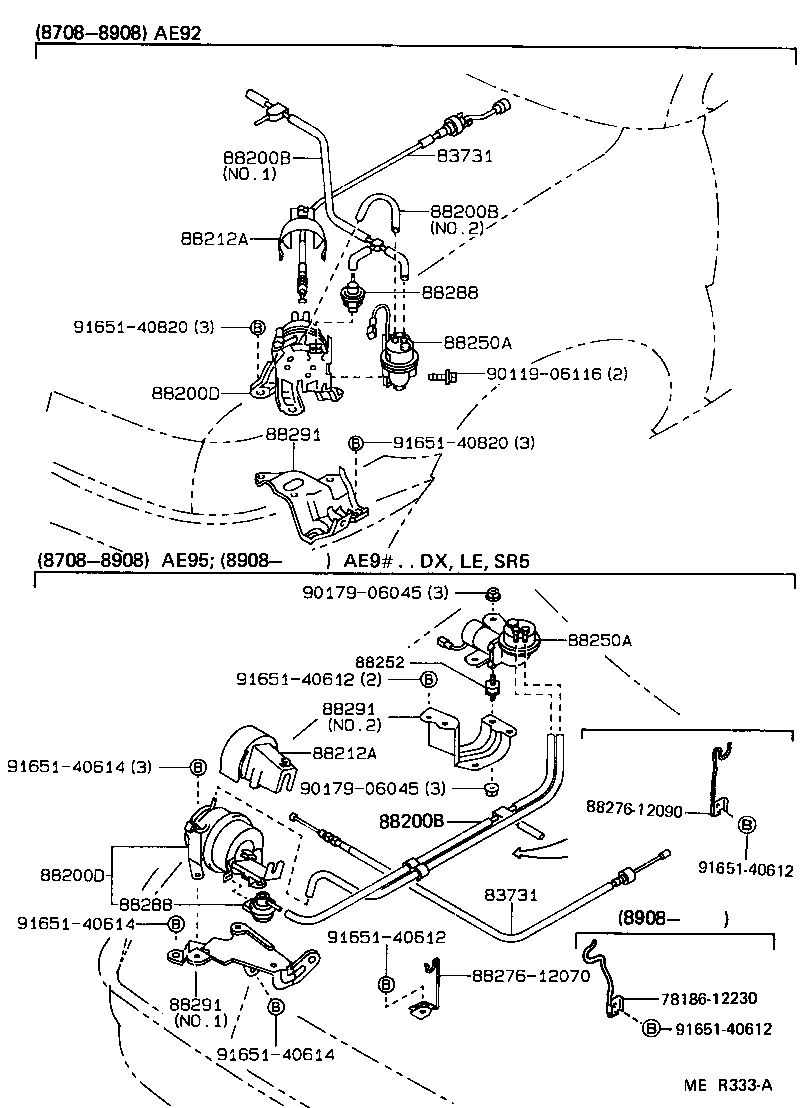

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-12020 |
AE92 |
1 | ||
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-12020 |
AE92 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-12090 |
AE92 NO.1 |
1 | ||
| 90999-92002 |
AE92 *H,L=300,NO.2 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-12090 |
AE92 NO.1 |
1 | ||
| 90999-92002 |
AE92 *H,L=300,NO.2 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-12090 |
AE92 NO.1 |
1 | ||
| 90999-92002 |
AE92 *H,L=300,NO.2 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-12081 |
AE92 |
1 | ||
| 88200-12080 |
AE92 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-12081 |
AE92 |
1 | ||
| 88200-12080 |
AE92 |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-12070 |
AE9# |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-12070 |
AE9# |
1 | ||
| 88250A - PUMP ASSY, CRUISE CONTROL | ||||
| 88251-12100 |
AE92 |
1 | ||
| 88250A - PUMP ASSY, CRUISE CONTROL | ||||
| 88251-12100 |
AE92 |
1 | ||
| 88288 - SWITCH, VACUUM SPEED CONTROL | ||||
| 88288-12010 |
AE9# |
1 | ||
| 88288 - SWITCH, VACUUM SPEED CONTROL | ||||
| 88288-12010 |
AE9# |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-12090 |
AE92 |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-12090 |
AE92 |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-12090 |
AE92 |
1 | ||
| Common parts | ||||
| 78186-12230 | ||||
| 88276-12070 | ||||
| 88276-12090 | ||||
| 90119-06116 | ||||
| 90179-06045 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40820 | ||||

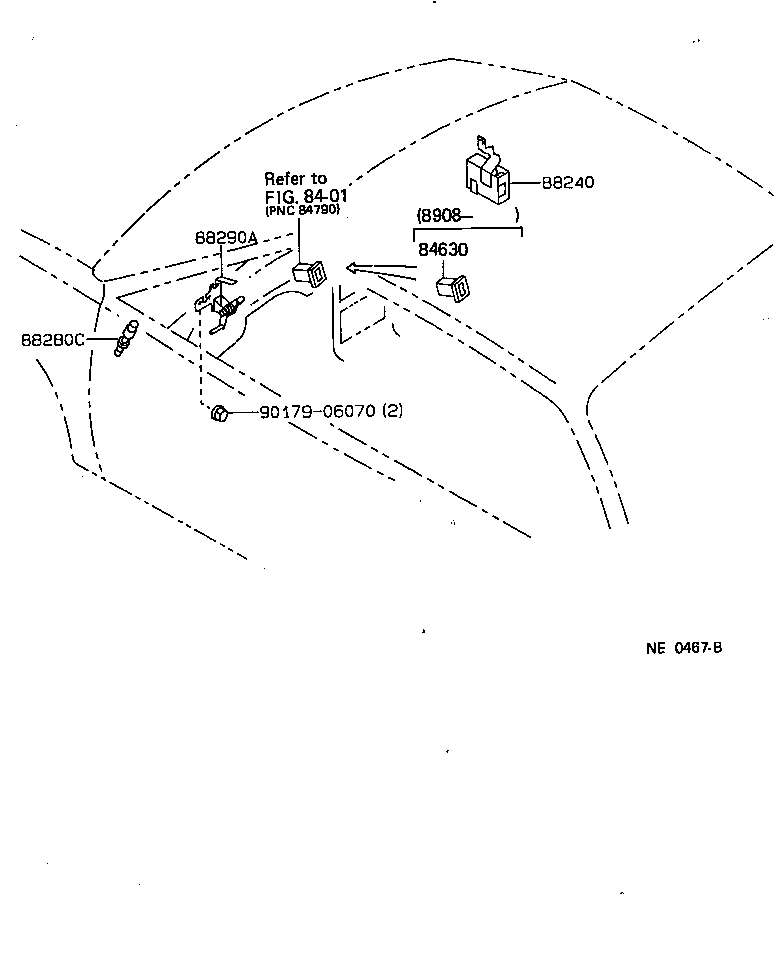

ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-12140 |
AE9# |
1 | ||
| 88290A - BELLCRANK ASSY, CRUISE CONTROL | ||||
| 88290-12020 |
AE9# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| Linked diagrams | ||||
| 8401 | ||||
