AE102L-AWPNKA (1992)

Toyota Corolla Jpp

Production Jun 1992 - Aug 1996
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )JPP..WG

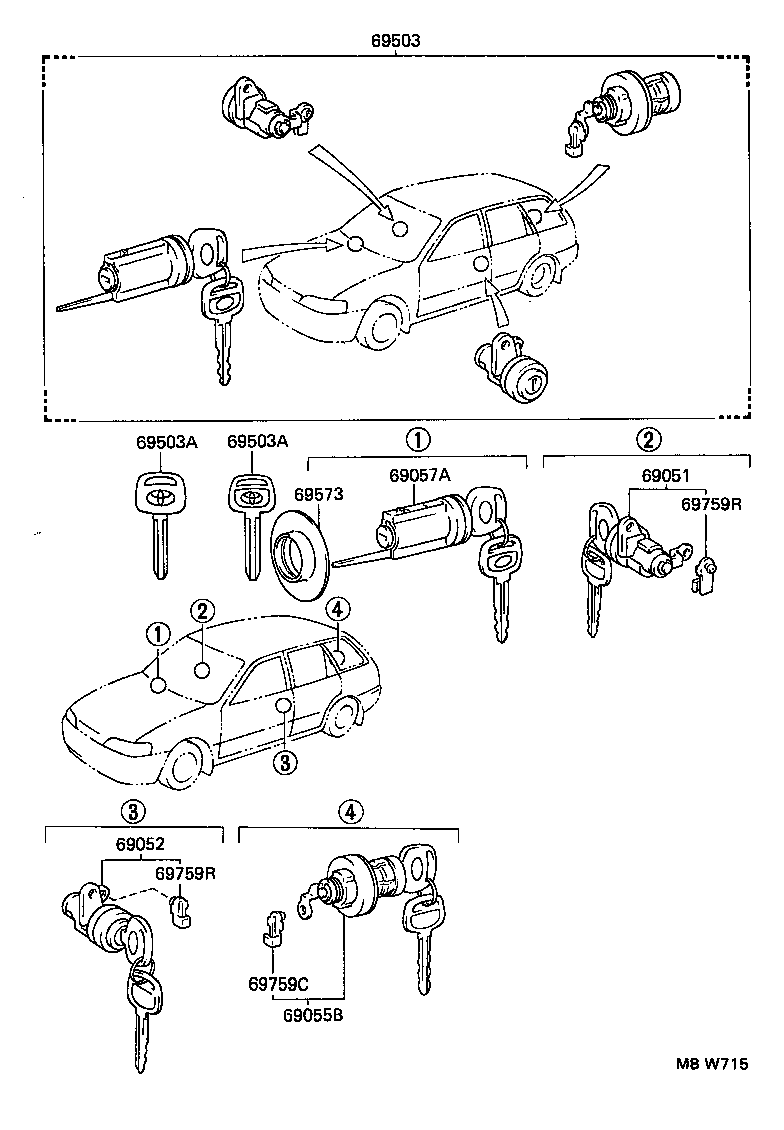

Click highlighted areas on diagram

diagram 69051 69052 69055B 69057A 69503 69503A 69503A 69573 69759C 69759R 69759R
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-13150

AE102..JPP..WG

 1
69051-13160

AE102..JPP..WG..USA

W(ANTI-THEFT DEVICE)

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-13160

AE102..JPP..WG..USA

W(ANTI-THEFT DEVICE)

 1
69052-13150

AE102..JPP..WG

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-13160

AE102..JPP..WG

 1
69055-13170

AE102..JPP..WG..USA

W(ANTI-THEFT DEVICE)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-13140

AE102..JPP..WG

 1
69057-13160

AE102..JPP..WG

W(TILT STEERING)

 1
69057-12250

AE102..JPP..E;AE102..JPP..SED..CND

 1
69503 - CYLINDER SET, LOCK
69005-13280

AE102..JPP..WG..USA

W(ANTI-THEFT DEVICE)

 1
69005-1A640

AE102..JPP..E;AE102..JPP..SED..CND

 1
69005-13320

AE102..JPP..WG..USA

W(TILT STEERING & ANTI-THEFT DEVICE)

 1
69005-13310

AE102..JPP..WG

W(TILT STEERING)

 1
69005-13240

AE102..JPP..WG

 1
69503A - KEY, BLANK
90999-00193

AE102..JPP..WG

MASTER KEY,W(*68)

 1
90999-00192

AE102..JPP..WG

MASTER KEY

 1
69503A - KEY, BLANK
90999-00193

AE102..JPP..WG

MASTER KEY,W(*68)

 1
90999-00192

AE102..JPP..WG

MASTER KEY

 1
69573 - PAD, IGNITION SWITCH LOCK CYLINDER
69573-12010

AE10#..JPP

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24080

AE102..JPP..WG

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AE10#..JPP

LH

 1
69759-12080

AE10#..JPP

RH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AE10#..JPP

LH

 1
69759-12080

AE10#..JPP

RH

 1
