AE102L-AWPNKA (1992)
Toyota Corolla Jpp
Production
Jun 1992
-
Aug 1996
Engine
7AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9206- )JPP..WG

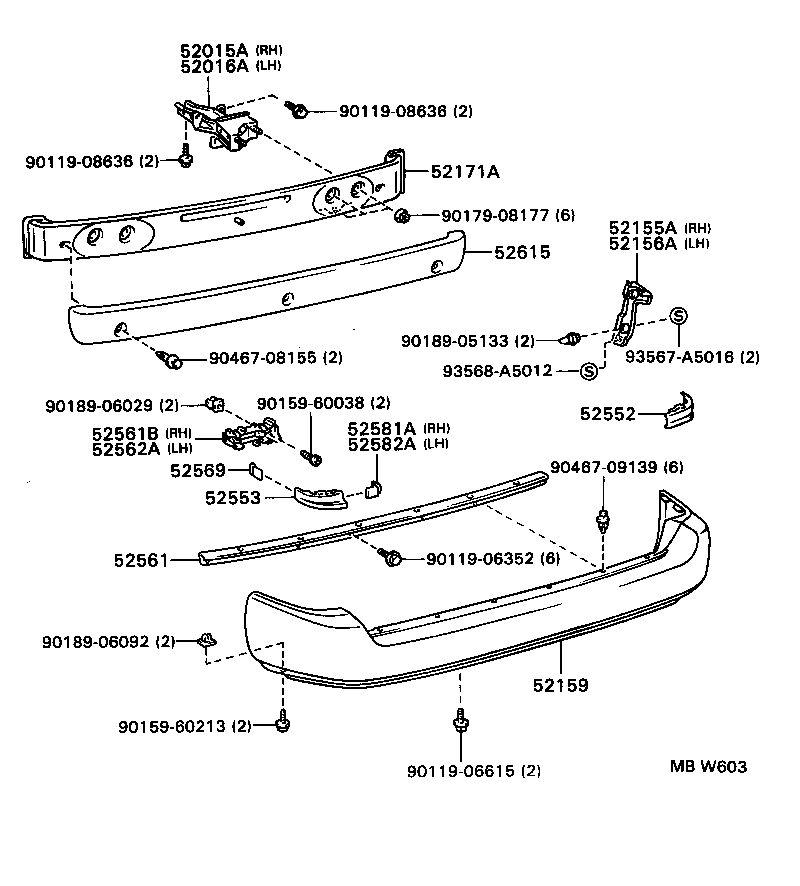

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-13100 |
AE102..JPP..WG |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-13090 |
AE102..JPP..WG |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-13050 |
AE102..JPP..WG |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-13050 |
AE102..JPP..WG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-13900 |
AE102..JPP..WG |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-13050 |
AE102..JPP..WG |
1 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-13020 |
AE102..JPP..WG |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-13020 |
AE102..JPP..WG |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-13030 |
AE102..JPP..WG |
1 | ||
| 52561B - RETAINER, REAR BUMPER FILLER, NO.1 | ||||
| 52561-13040 |
AE102..JPP..WG |
1 | ||
| 52561-13041 |
AE102..JPP..WG |
1 | ||
| 52562A - RETAINER, REAR BUMPER FILLER, NO.2 | ||||
| 52562-13020 |
AE102..JPP..WG |
1 | ||
| 52562-13021 |
AE102..JPP..WG |
1 | ||
| 52569 - PAD, REAR BUMPER FILLER | ||||
| 52569-13010 |
AE102..JPP..WG |
2 | ||
| 52581A - PROTECTOR, REAR BUMPER FILLER | ||||
| 52581-13020 |
AE102..JPP..WG |
1 | ||
| 52582A - PROTECTOR, REAR BUMPER FILLER, LH | ||||
| 52582-13020 |
AE102..JPP..WG |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-13030 |
AE102..JPP..WG |
1 | ||
| Common parts | ||||
| 90119-06352 | ||||
| 90119-06615 | ||||
| 90119-08636 | ||||
| 90159-60038 | ||||
| 90159-60213 | ||||
| 90179-08177 | ||||
| 90189-05133 | ||||
| 90189-06029 | ||||
| 90189-06092 | ||||
| 90467-08155 | ||||
| 90467-09139 | ||||
| 93567-A5016 | ||||
| 93568-A5012 | ||||
