AE102L-AWMNKA (1992)
Toyota Corolla Jpp

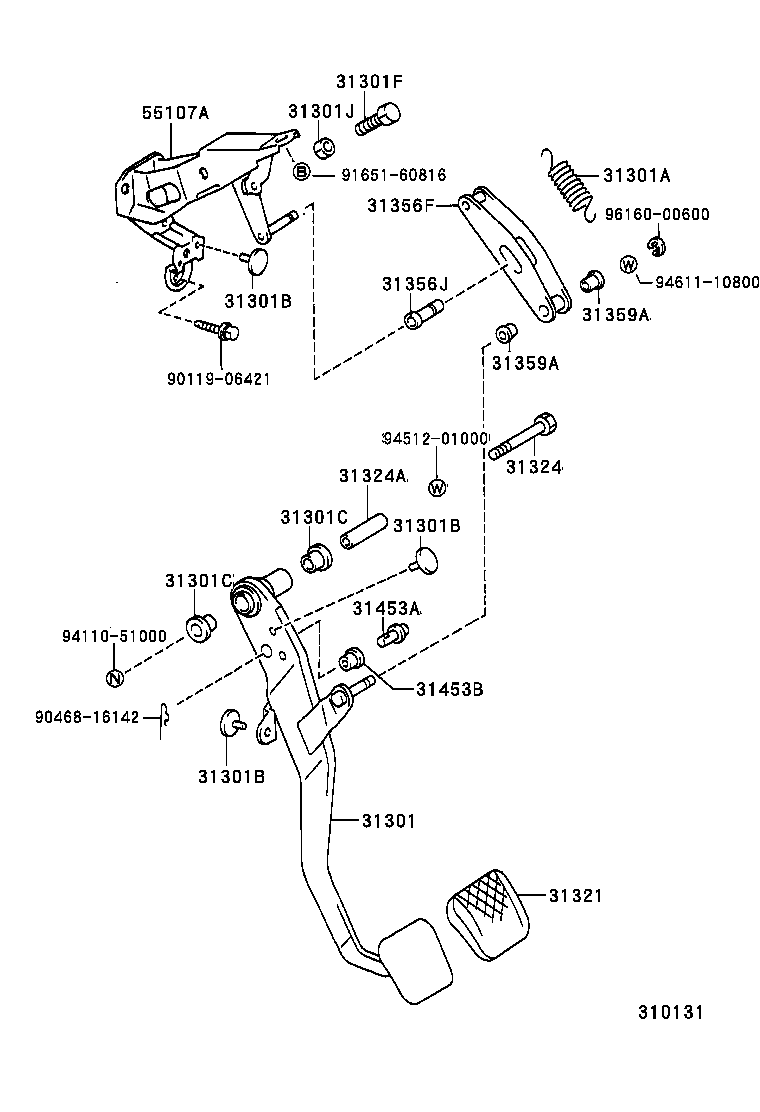

ILLUST NO. 1 OF 2(9206- )JPP..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12400 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 31301-12400 |
AE10#..JPP..5F |
1 | ||
| 31310-12050 |
AE102..JPP..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06007 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 90905-06007 |
AE10#..JPP..5F |
1 | ||
| 90506-23045 |
AE102..JPP..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE10#..JPP..5F |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE10#..JPP..5F |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE10#..JPP..5F |
3 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AE10#..JPP..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AE10#..JPP..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AE10#..JPP..5F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-41000 |
AE10#..JPP..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12040 |
AE10#..JPP..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
AE102..JPP..5F |
1 | ||
| 90101-10015 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 90101-10015 |
AE10#..JPP..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
AE10#..JPP..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-12010 |
AE10#..JPP..5F |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AE10#..JPP..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12160 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 55107-12190 |
AE102..JPP..5F |
1 | ||
| 55107-12160 |
AE10#..JPP..5F |
1 | ||
| Common parts | ||||
| 90119-06421 | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
ILLUST NO. 1 OF 2(9206- )AE102..JPP..5F
W(TURN OVER TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12400 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 31301-12400 |
AE10#..JPP..5F |
1 | ||
| 31310-12050 |
AE102..JPP..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06007 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 90905-06007 |
AE10#..JPP..5F |
1 | ||
| 90506-23045 |
AE102..JPP..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE10#..JPP..5F |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE10#..JPP..5F |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE10#..JPP..5F |
3 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AE10#..JPP..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AE10#..JPP..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AE10#..JPP..5F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-41000 |
AE10#..JPP..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12040 |
AE10#..JPP..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
AE102..JPP..5F |
1 | ||
| 90101-10015 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 90101-10015 |
AE10#..JPP..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
AE10#..JPP..5F |
1 | ||
| 31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1 | ||||
| 31356-12020 |
AE102..JPP..5F |
1 | ||
| 31356J - COLLAR(FOR CLUTCH PEDAL OVER CENTER PLATE NO.1) | ||||
| 90386-08055 |
AE102..JPP..5F |
1 | ||
| 31359A - BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN) | ||||
| 90386-08002 |
AE102..JPP..5F |
2 | ||
| 31359A - BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN) | ||||
| 90386-08002 |
AE102..JPP..5F |
2 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-12010 |
AE10#..JPP..5F |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AE10#..JPP..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12160 |
AE102..JPP..WG..5F..USA W(ABS) OR W(ANTI-THEFT DEVICE) |
1 | ||
| 55107-12190 |
AE102..JPP..5F |
1 | ||
| 55107-12160 |
AE10#..JPP..5F |
1 | ||
| Common parts | ||||
| 90119-06421 | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
| 94611-10800 | ||||
| 96160-00600 | ||||

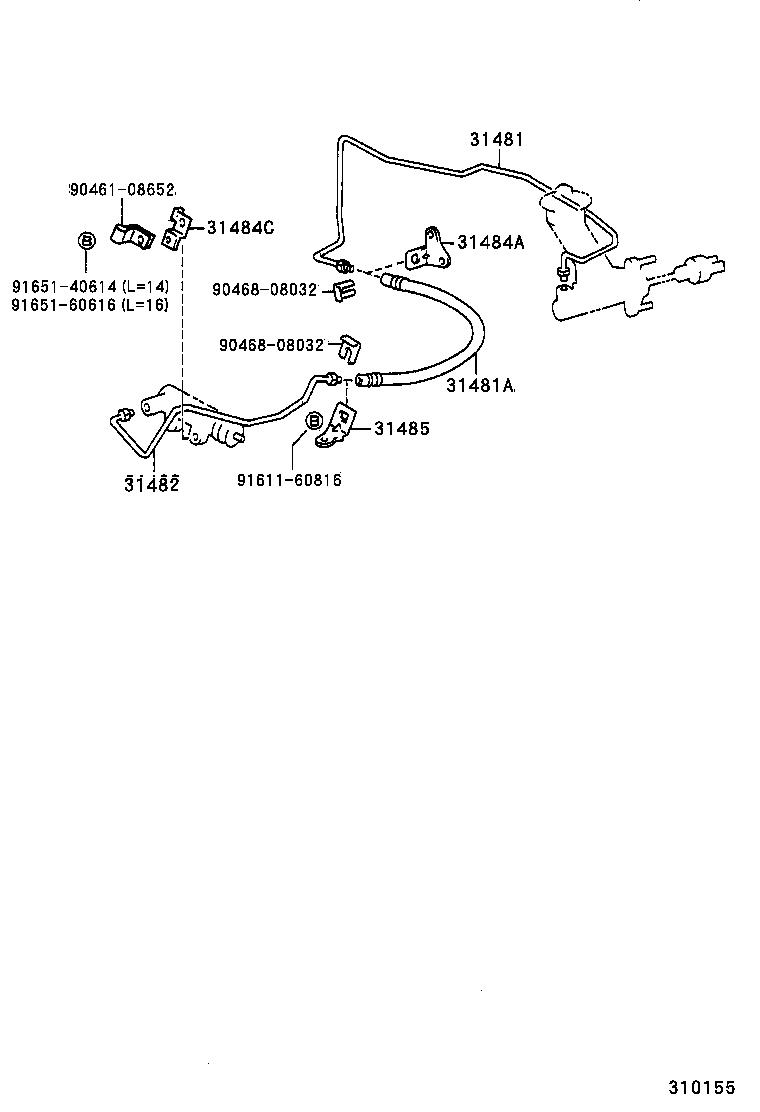

ILLUST NO. 2 OF 2(9206- )JPP..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12231 |
AE10#..JPP..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01102 |
AE10#..JPP..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-12060 |
AE10#..JPP..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-12240 |
AE10#..JPP..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-12110 |
AE10#..JPP..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-12180 |
AE10#..JPP..5F |
1 | ||
| Common parts | ||||
| 90461-08652 | ||||
| 90468-08032 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 91651-60616 | ||||
