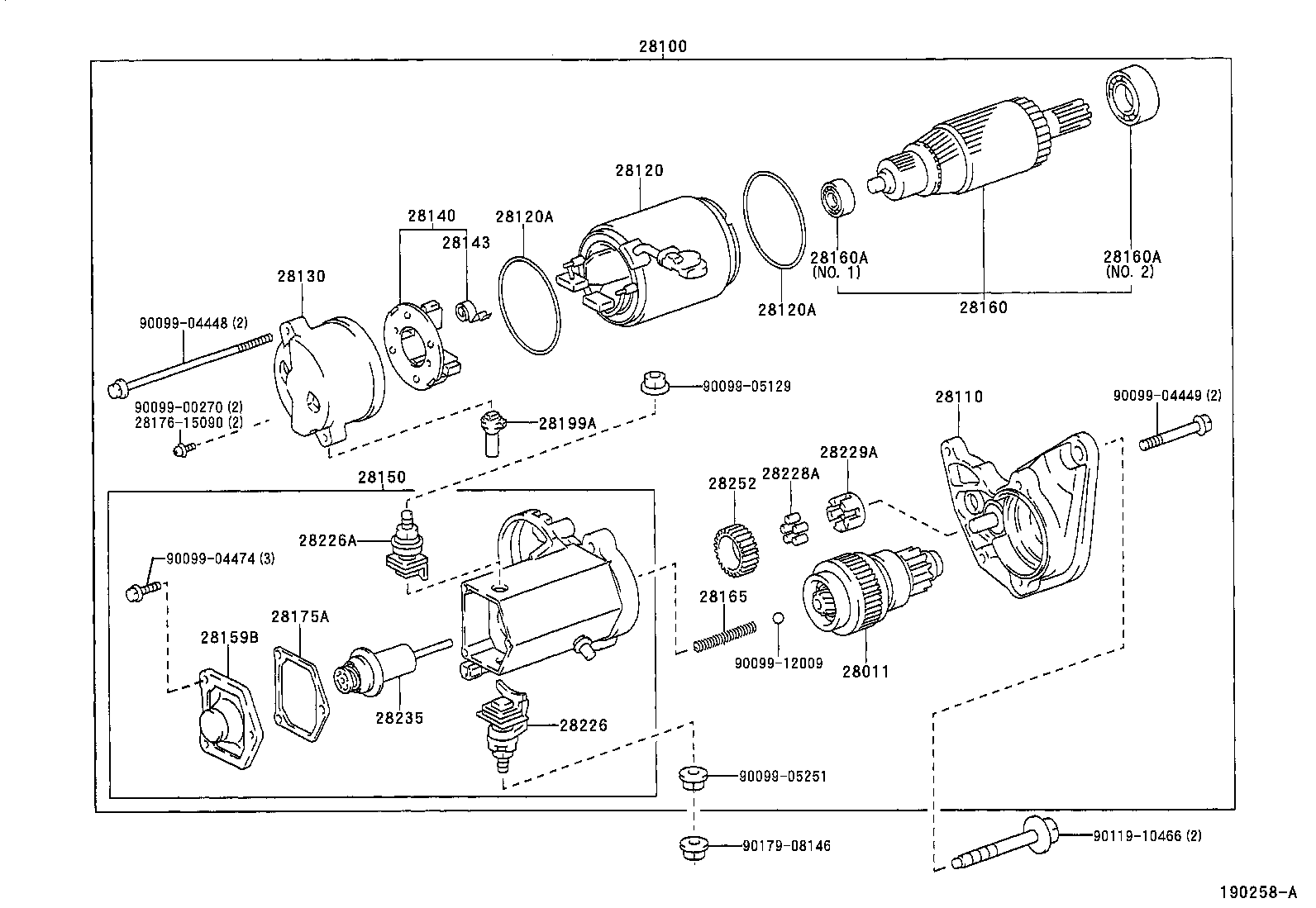

AE102L-AWMNKA (1992)
Toyota Corolla Jpp
(9206- )JPP
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28011-26042 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28011-01020 |
7AFE..AE102..JPP;4AFE..AE101..JPP..D (L) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-02050 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,*ND TENNESSEE |
1 | ||
| 28100-16210 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.0KW |
1 | ||
| 28100-02060 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,*ND TENNESSEE |
1 | ||
| 28100-16270 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,NIPPONDENSO |
1 | ||
| 28100-16220 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,NIPPONDENSO |
1 | ||
| 28100-16150 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16150 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28110-02040 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28110-16220 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-01020 |
4AFE,7AFE..AE10#..JPP (L) |
1 | ||
| 28120-74070 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28120-01030 |
4AFE,7AFE..AE10#..JPP (L) |
1 | ||
| 28120-66040 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28120-26071 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-35060 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28130-02040 |
7AFE..AE102..JPP;4AFE..AE101..JPP..D (L) |
1 | ||
| 28130-10040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28140-26070 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28140-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AFE,7AFE..AE10#..JPP |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28150-01040 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28150-16210 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28150-16130 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28150-16270 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28150-16271 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28150-01030 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28150-16150 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28159-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28159-07010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28160-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28160-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4AFE,7AFE..AE10#..JPP..USA NO.1 |
1 | ||
| 90099-10197 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10196 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
4AFE,7AFE..AE10#..JPP..USA NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4AFE,7AFE..AE10#..JPP..USA NO.1 |
1 | ||
| 90099-10197 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10196 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
4AFE,7AFE..AE10#..JPP..USA NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28165-26040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28165-76070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28175-10040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-01030 |
4AFE,7AFE..AE10#..JPP (L) |
1 | ||
| 28199-74110 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28226-70040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28226-16130 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28226-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28226-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
4AFE,7AFE..AE10#..JPP (J) |
5 | ||
| 28228-01010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28229-26040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28229-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28235-07010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28235-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-03010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28254-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28254-45020 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||

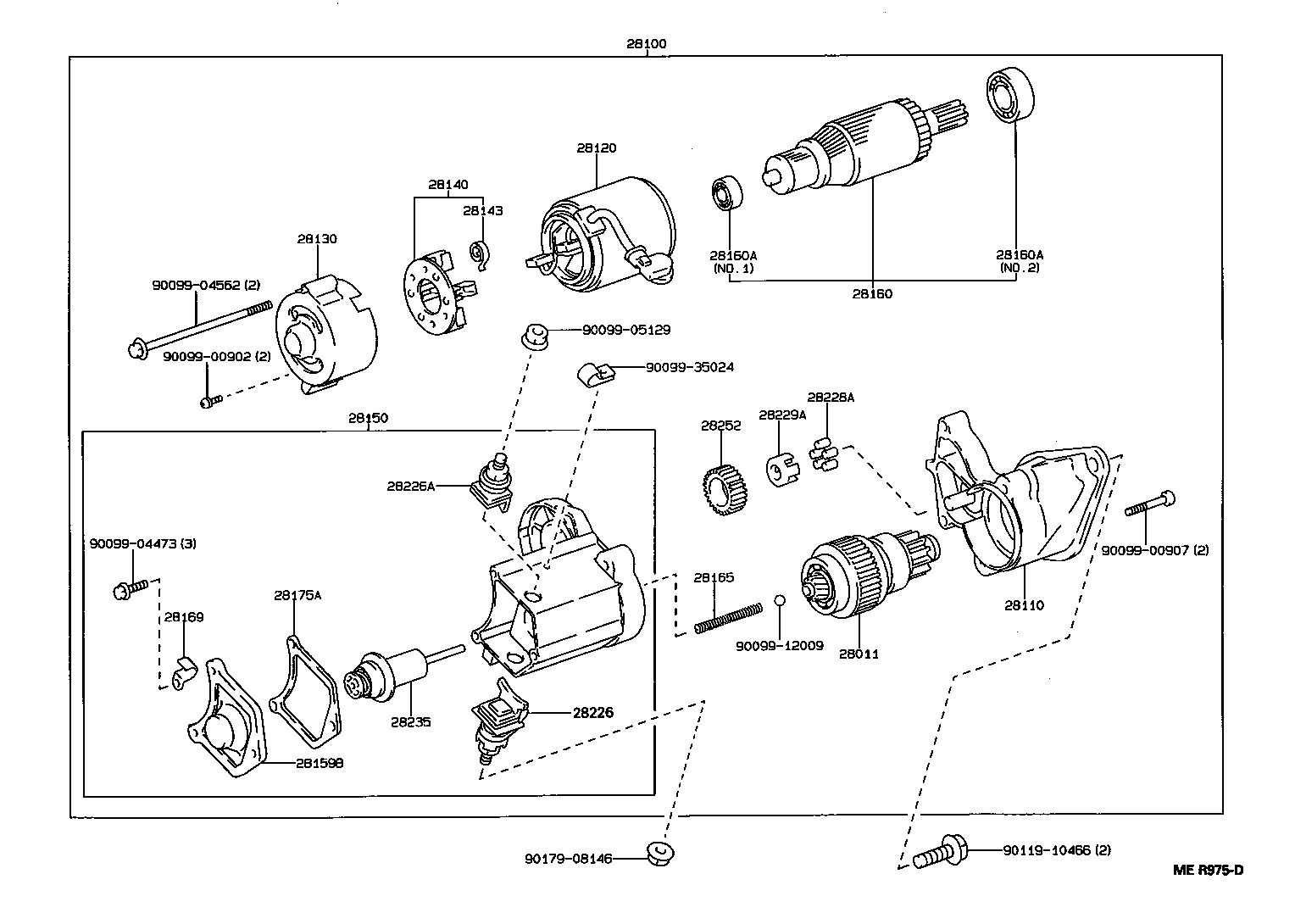

(9206- )4AFE,7AFE..JPP..USA
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28011-26042 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28011-01020 |
7AFE..AE102..JPP;4AFE..AE101..JPP..D (L) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-02050 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,*ND TENNESSEE |
1 | ||
| 28100-16210 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.0KW |
1 | ||
| 28100-02060 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,*ND TENNESSEE |
1 | ||
| 28100-16270 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,NIPPONDENSO |
1 | ||
| 28100-16220 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.4KW,COLD SPEC,NIPPONDENSO |
1 | ||
| 28100-16150 |
4AFE,7AFE..AE10#..JPP..USA 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16150 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28110-02040 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28110-16220 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-01020 |
4AFE,7AFE..AE10#..JPP (L) |
1 | ||
| 28120-74070 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28120-01030 |
4AFE,7AFE..AE10#..JPP (L) |
1 | ||
| 28120-66040 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28120-26071 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-35060 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 28130-02040 |
7AFE..AE102..JPP;4AFE..AE101..JPP..D (L) |
1 | ||
| 28130-10040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28140-26070 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28140-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AFE,7AFE..AE10#..JPP |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28150-01040 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28150-16210 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28150-16130 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28150-16270 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28150-16271 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28150-01030 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28150-16150 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28159-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28159-07010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28160-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28160-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4AFE,7AFE..AE10#..JPP..USA NO.1 |
1 | ||
| 90099-10197 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10196 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
4AFE,7AFE..AE10#..JPP..USA NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4AFE,7AFE..AE10#..JPP..USA NO.1 |
1 | ||
| 90099-10197 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10196 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
4AFE,7AFE..AE10#..JPP..USA NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28165-26040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28165-76070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28169-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28175-10040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28226-70040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28226-16130 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28226-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28226-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
4AFE,7AFE..AE10#..JPP (J) |
5 | ||
| 28228-01010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-01020 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28229-26040 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28229-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| 28235-07010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28235-55050 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-03010 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(L) |
1 | ||
| 28254-74070 |
4AFE,7AFE..AE10#..JPP..USA COLD SPEC,(J) |
1 | ||
| 28254-45020 |
4AFE,7AFE..AE10#..JPP..USA |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-35024 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
