AE102L-AEPNKA (1992)

Toyota Corolla Jpp

Production Jun 1992 - Aug 1996
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

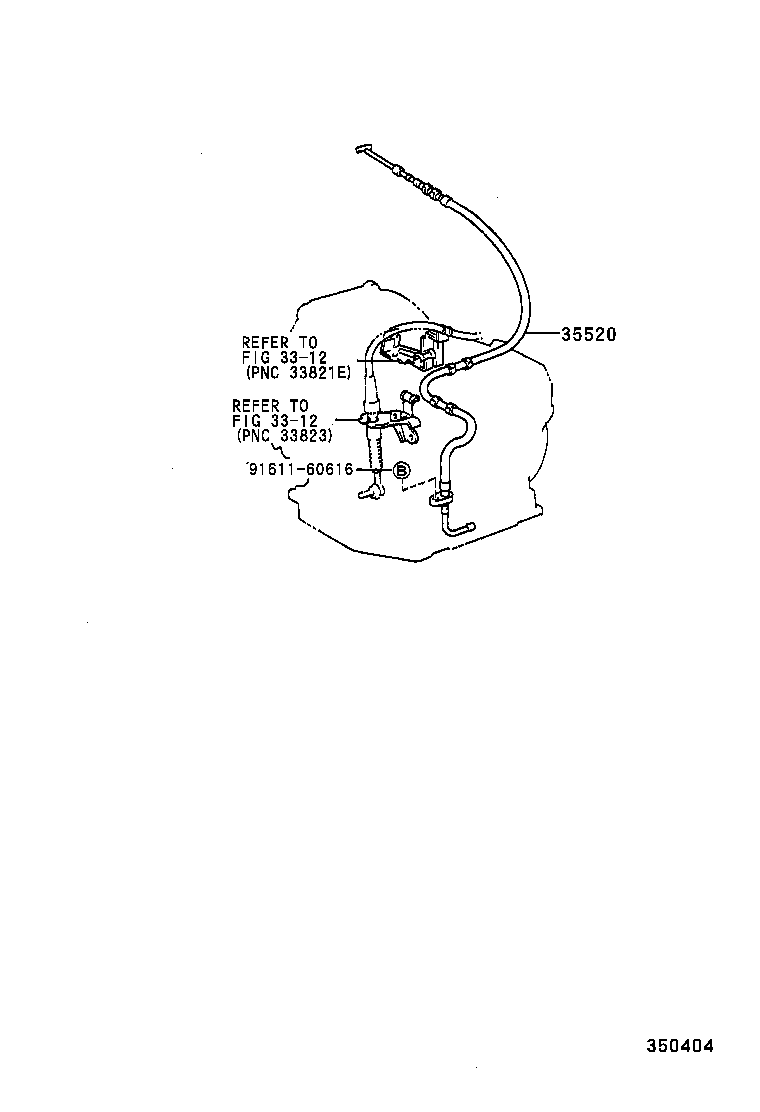

ILLUST NO. 2 OF 2(9206- )JPP..4FC

Click highlighted areas on diagram

A245E

diagram 3312 3312 35520 9161160616
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-12390

AE102..JPP..4FC

 1
Common parts
91611-60616
Linked diagrams
3312

ILLUST NO. 1 OF 2(9206- )JPP..4FC

Click highlighted areas on diagram

A245E

diagram 35501 35505 35505B 35505G 35506F 35506J 35506P 35556 35557 35557A 35558 35561 35572A 35593 35596 35596A 35596A 35597 35598 9161160610 9411050800 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-12010

AE102..JPP..4FC

 1
35501-12010

AE102..JPP..4FC..N

 1
35501-12020

AE102..JPP..4FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-12050

AE102..JPP..4FC

 1
35505-12070

AE102..JPP..4FC

 1
35505-12070

AE102..JPP..4FC..N

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

AE10#..JPP..ATM

 1
90560-20006

AE10#..JPP..ATM..(D,N)

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

AE10#..JPP..ATM..(D,N)

 1
90254-04011

AE10#..JPP..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

AE10#..JPP..ATM

 1
90311-12002

AE10#..JPP..ATM..(D,N)

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-11001

AE102..JPP..4FC..N

 1
90524-11001

AE102..JPP..4FC

 1
35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)
90201-12028

AE102..JPP..4FC

 1
90201-12028

AE102..JPP..4FC..N

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-12020

AE102..JPP..4FC..N

 1
35556-12020

AE102..JPP..4FC

 1
35557 - PAWL, PARKING LOCK
35557-12020

AE102..JPP..4FC..N

 1
35557-12020

AE102..JPP..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21003

AE102..JPP..4FC..N

 1
90508-21003

AE102..JPP..4FC

 1
35558 - CLAMP, PAWL SHAFT
35558-12010

AE102..JPP..4FC

 1
35558-12010

AE102..JPP..4FC..N

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-12030

AE102..JPP..4FC..N

 1
35561-12030

AE102..JPP..4FC

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-12130

AE102..JPP..4FC

 1
35572-12130

AE102..JPP..4FC..N

 1
35593 - SLEEVE, CAM GUIDE
35593-12010

AE102..JPP..4FC

 1
35593-12010

AE102..JPP..4FC..N

 1
35596 - PLATE, PAWL STOPPER
35596-12010

AE102..JPP..4FC..N

 1
35596-12010

AE102..JPP..4FC

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068

AE102..JPP..4FC..N

*8-1.25PX35-30

 1
90105-08068

AE102..JPP..4FC

*8-1.25PX35-30

 1
90105-08070

AE102..JPP..4FC..N

*8-1.25PX17-13.5

 1
90105-08070

AE102..JPP..4FC

*8-1.25PX17-13.5

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068

AE102..JPP..4FC..N

*8-1.25PX35-30

 1
90105-08068

AE102..JPP..4FC

*8-1.25PX35-30

 1
90105-08070

AE102..JPP..4FC..N

*8-1.25PX17-13.5

 1
90105-08070

AE102..JPP..4FC

*8-1.25PX17-13.5

 1
35597 - SLEEVE, SPRING GUIDE
35597-12010

AE102..JPP..4FC..N

 1
35597-12010

AE102..JPP..4FC

 1
35598 - SLEEVE, PARKING LOCK
35598-12010

AE102..JPP..4FC

 1
35598-12010

AE102..JPP..4FC..N

 1
Common parts
91611-60610
94110-50800
94512-00800
