AE102L-AEMNKK (1992)
Toyota Corolla Jpp

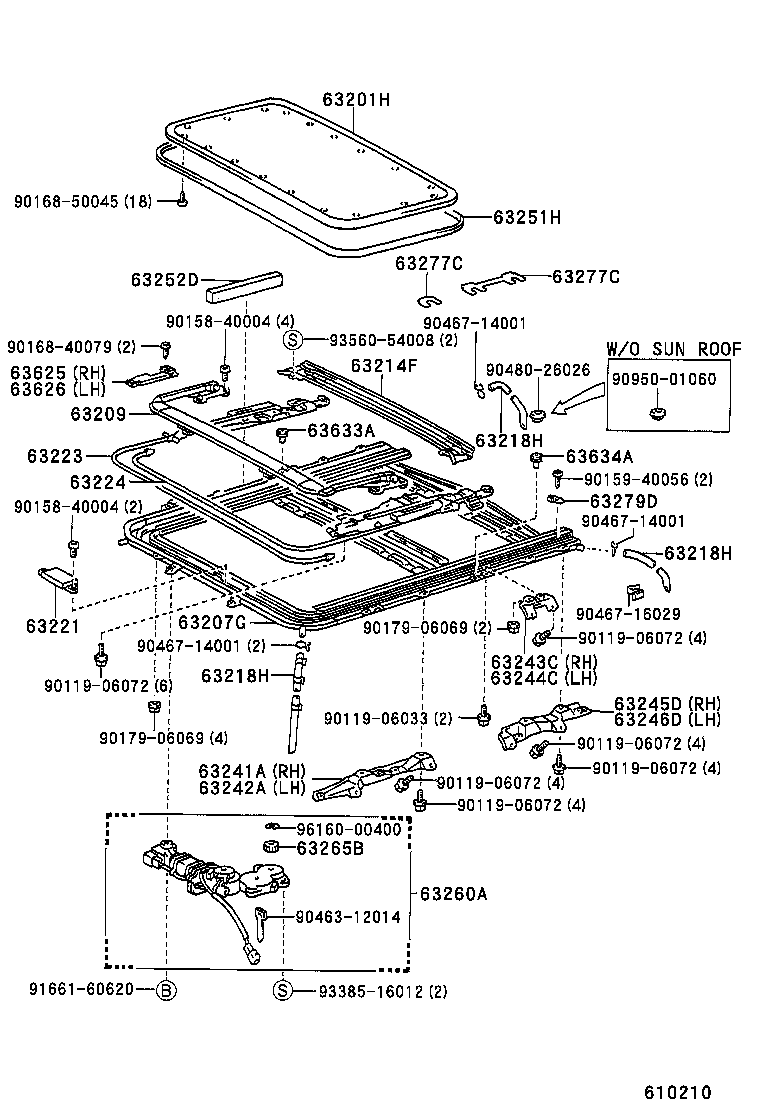

ILLUST NO. 2 OF 2(9206- )JPP..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-12190 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE | ||||
| 63207-12111 |
AE102..JPP..SED |
1 | ||
| 63207-12112 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-12080 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-12040 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12160 |
AE10#..JPP..SED..(E,N) REAR |
2 | ||
| 63249-12210 |
AE10#..JPP..SED..(E,N) FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12160 |
AE10#..JPP..SED..(E,N) REAR |
2 | ||
| 63249-12210 |
AE10#..JPP..SED..(E,N) FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12160 |
AE10#..JPP..SED..(E,N) REAR |
2 | ||
| 63249-12210 |
AE10#..JPP..SED..(E,N) FRONT |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-12070 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-12080 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-12070 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-12040 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-12020 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-12060 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-12060 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-12030 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-12020 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63250-12020 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-12030 |
AE10#..JPP..SED..(E,N) |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12070 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12020 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20050 |
AE10#..JPP..SED..(E,N) T=2.0,28X30 |
1 | ||
| 63277-20040 |
AE10#..JPP..SED..(E,N) T=2.0,124X30 |
1 | ||
| 63277-20030 |
AE10#..JPP..SED..(E,N) T=1.0,28X30 |
1 | ||
| 63277-20020 |
AE10#..JPP..SED..(E,N) T=1.0,124X30 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20050 |
AE10#..JPP..SED..(E,N) T=2.0,28X30 |
1 | ||
| 63277-20040 |
AE10#..JPP..SED..(E,N) T=2.0,124X30 |
1 | ||
| 63277-20030 |
AE10#..JPP..SED..(E,N) T=1.0,28X30 |
1 | ||
| 63277-20020 |
AE10#..JPP..SED..(E,N) T=1.0,124X30 |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12020 |
AE10#..JPP..SED..(E,N) |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-12010 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-12010 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63633A - BUSH, SLIDING ROOF HOUSING, NO.1 | ||||
| 63633-12010 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63634A - BUSH, SLIDING ROOF HOUSING, NO.2 | ||||
| 63634-12010 |
AE10#..JPP..SED..(E,N) |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90119-06072 | ||||
| 90158-40004 | ||||
| 90159-40056 | ||||
| 90168-40079 | ||||
| 90168-50045 | ||||
| 90179-06069 | ||||
| 90463-12014 | ||||
| 90467-14001 | ||||
| 90467-16029 | ||||
| 90480-26026 | ||||
| 90950-01060 | ||||
| 91661-60620 | ||||
| 93385-16012 | ||||
| 93560-54008 | ||||
| 96160-00400 | ||||

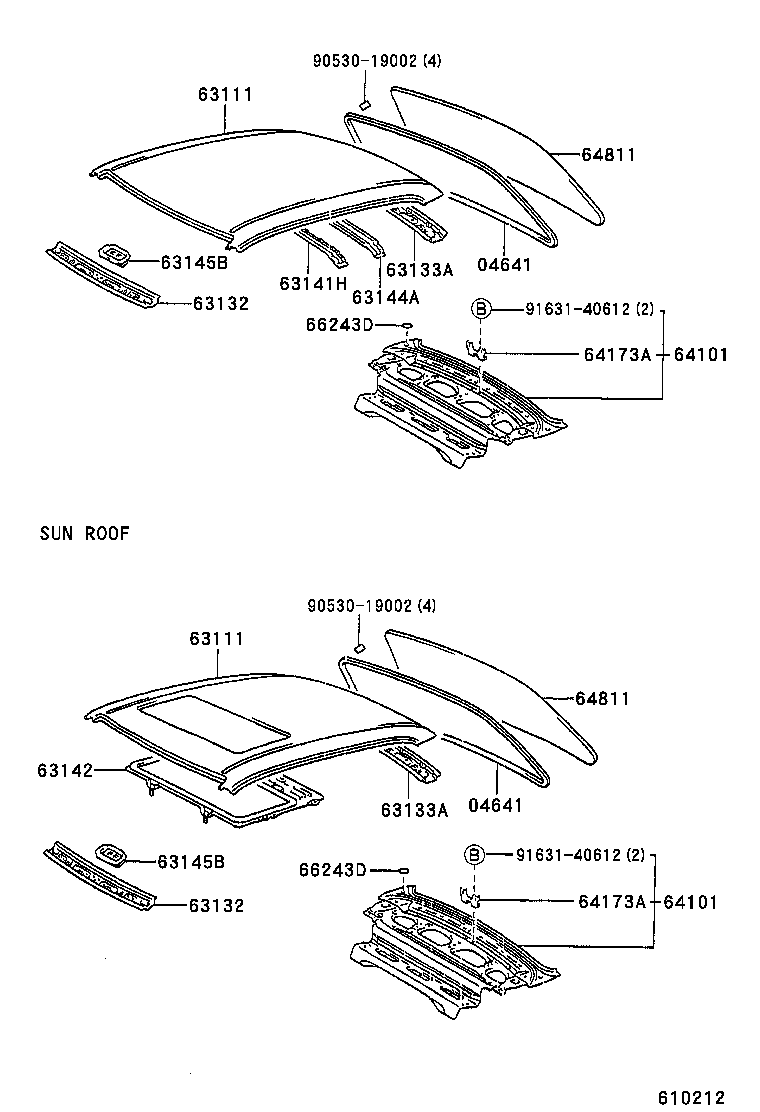

ILLUST NO. 1 OF 2(9206- )JPP..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AE10#..JPP..SED |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AE10#..JPP..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12540 |
AE10#..JPP..SED..(E,N) W(*SNR) |
1 | ||
| 63111-12530 |
AE10#..JPP..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12540 |
AE10#..JPP..SED..(E,N) W(*SNR) |
1 | ||
| 63111-12530 |
AE10#..JPP..SED |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12170 |
AE10#..JPP..SED |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12170 |
AE10#..JPP..SED |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12190 |
AE10#..JPP..SED |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12190 |
AE10#..JPP..SED |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-12160 |
AE10#..JPP..SED |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12060 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12020 |
AE10#..JPP..SED |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-12100 |
AE10#..JPP..SED |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-12100 |
AE10#..JPP..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12470 |
AE101..JPP..CND;AE102..JPP..SED |
1 | ||
| 64101-12470 |
AE10#..JPP..SED..N |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-12470 |
AE101..JPP..CND;AE102..JPP..SED |
1 | ||
| 64101-12470 |
AE10#..JPP..SED..N |
1 | ||
| 64173A - BRACKET, HIGH MOUNTING STOP LAMP | ||||
| 64173-12050 |
AE10#..JPP..SED |
1 | ||
| 64173A - BRACKET, HIGH MOUNTING STOP LAMP | ||||
| 64173-12050 |
AE10#..JPP..SED |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A430 |
AE10#..JPP..SED..CND *EHTT,T=3.5,BLUE |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-1A430 |
AE10#..JPP..SED..CND *EHTT,T=3.5,BLUE |
1 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AE10#..JPP..SED |
2 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AE10#..JPP..SED |
2 | ||
| Common parts | ||||
| 90530-19002 | ||||
| 91631-40612 | ||||
