AE101L-AEMDKA (1992)

Toyota Corolla Jpp

Production Jun 1992 - Aug 1996
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9206- )JPP

Click highlighted areas on diagram

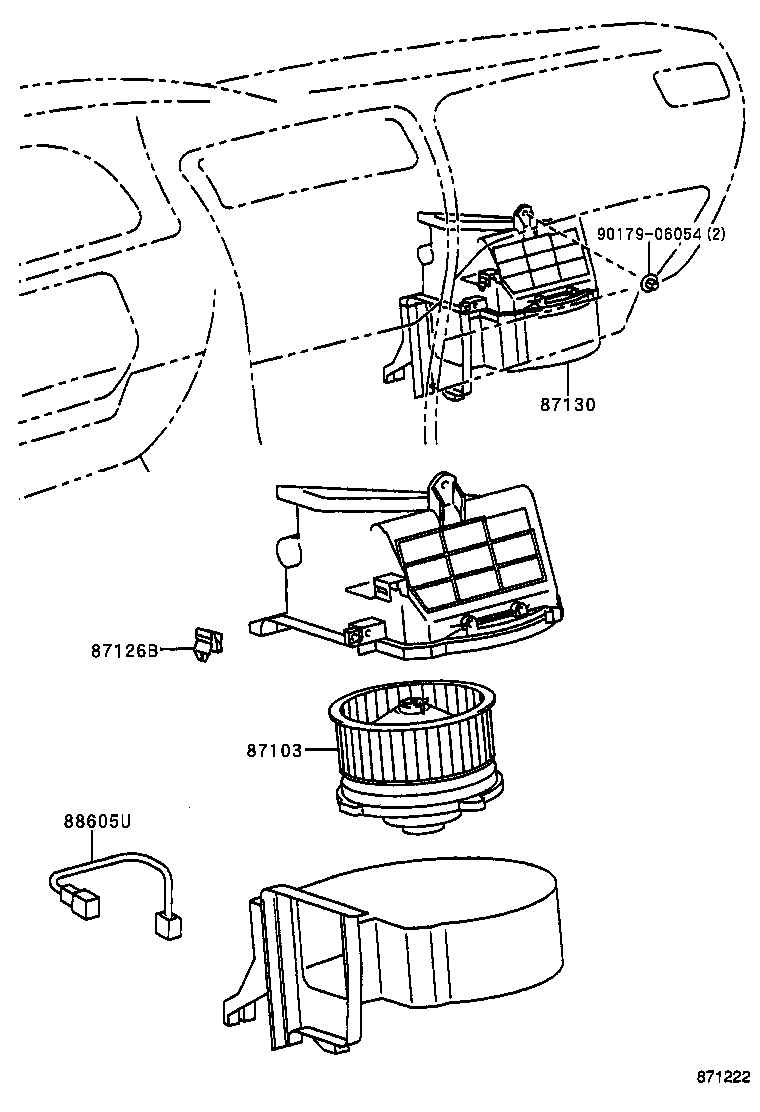

BLOWER

diagram 87103 87126B 87130 88605U 9017906054
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-12040

AE10#..JPP

 1
87126B - CLAMP, HEATER CONTROL
87126-12040

AE10#..JPP

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12300

AE10#..JPP

 1
87130-02011

AE10#..JPP

PART NUMBER LABEL=87130-02011

 1
88605U - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-1H100

AE10#..JPP

 1
Common parts
90179-06054

ILLUST NO. 1 OF 2(9206- )JPP

Click highlighted areas on diagram

RADIATOR

diagram 87107 87126A 87150 87201D 87211F 9017906054
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12480

AE10#..JPP..USA

 1
87107-12491

AE10#..JPP..USA

COLD SPEC,(J)

 1
87107-12490

AE10#..JPP..USA

COLD SPEC

 1
87107-02041

AE10#..JPP..USA

COLD SPEC,(L)

 1
87126A - CLAMP, HEATER CONTROL
87126-12050

AE10#..JPP

 2
87150 - RADIATOR ASSY, HEATER
87150-12700

AE10#..JPP..USA

 1
87150-02031

AE10#..JPP..USA

PART NUMBER LABEL=87150-02031

 1
87150-12712

AE10#..JPP..USA

COLD SPEC,PART NUMBER LABEL=87150-12712

 1
87150-02041

AE10#..JPP..USA

COLD SPEC,PART NUMBER LABEL=87150-02041

 1
87150-12701

AE10#..JPP..USA

PART NUMBER LABEL=87150-12701

 1
87150-02042

AE10#..JPP..USA

COLD SPEC,PART NUMBER LABEL=87150-02042

 1
87150-12711

AE10#..JPP..USA

COLD SPEC,PART NUMBER LABEL=87150-12711

 1
87150-12710

AE10#..JPP..USA

COLD SPEC

 1
87201D - DUCT SUB-ASSY, AIR
87201-12410

AE10#..JPP

 1
87211F - DUCT, AIR
87211-12180

AE10#..JPP..USA

 1
87211-12190

AE10#..JPP..USA

COLD SPEC

 1
Common parts
90179-06054
