AE101L-AEHDKK (1992)

Toyota Corolla Jpp

Production Jun 1992 - Apr 1997
Engine 4AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9206- )JPP

Click highlighted areas on diagram

diagram 88431 88446 88595 8889901010 8889920090 9009904950 9010510279 9010510328 9162161025 9162161040 9162261025 9162261040
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12550

AE10#..JPP

 1
88431-12520

AE10#..JPP

 1
88431-12520

AE10#..JPP..SED..CND

CHILE SPEC

 1
88446 - BOLT, IDLE PULLEY
88446-12030

AE10#..JPP

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-17010

AE10#..JPP

 1
Common parts
88899-01010
88899-20090
90099-04950
90105-10279
90105-10328
91621-61025
91621-61040
91622-61025
91622-61040

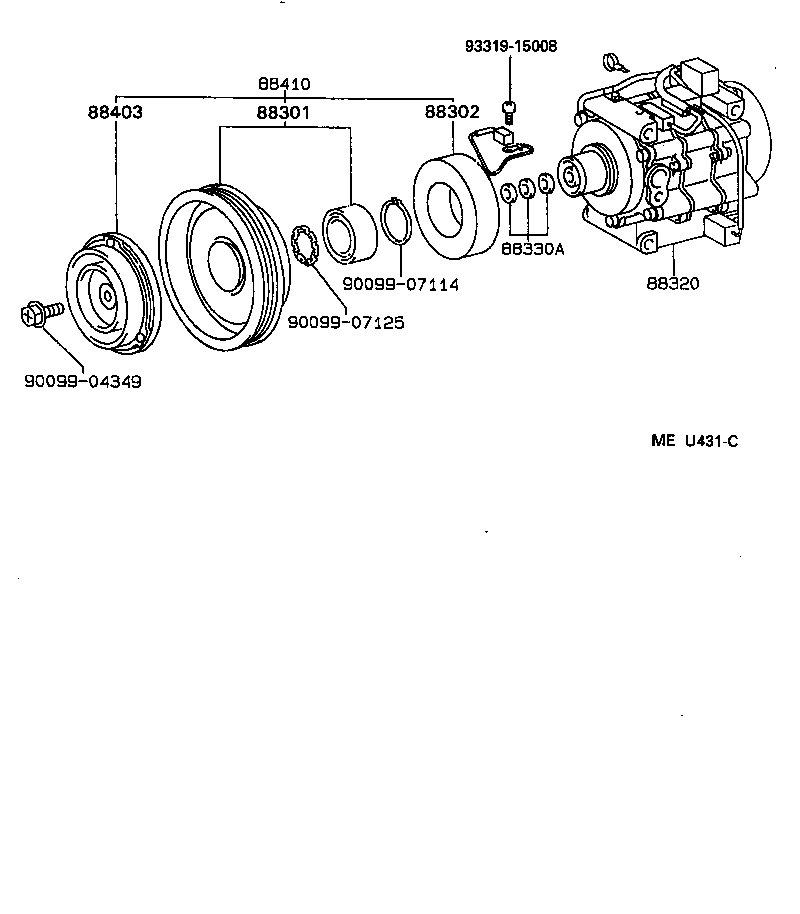

ILLUST NO. 2 OF 3(9206- )JPP

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12190

AE10#..JPP

 1
88412-1A060

AE10#..JPP..SED..CND

CHILE SPEC

 1
88412-1A060

AE10#..JPP

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A020

AE10#..JPP

 1
88320 - COMPRESSOR ASSY, COOLER
88320-1A160

AE10#..JPP

 1
88320-1A420

AE10#..JPP..SED..CND

CHILE SPEC

 1
88320-1A420

AE10#..JPP

 1
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01555

AE10#..JPP

T=0.5

 1
90099-01553

AE10#..JPP

T=0.1

 1
88335-14020

AE10#..JPP

3 PIECE SET

 1
90099-01554

AE10#..JPP

T=0.3

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

AE10#..JPP

 1
88403-30290

AE10#..JPP..SED..CND

CHILE SPEC

 1
88403-16011

AE10#..JPP

 1
88410 - CLUTCH ASSY, MAGNET
88410-1A020

AE10#..JPP

 1
88410-1A110

AE10#..JPP

 1
88410-1A110

AE10#..JPP..SED..CND

CHILE SPEC

 1
Common parts
90099-04349
90099-07114
90099-07125
93319-15008

ILLUST NO. 3 OF 3(9206- )JPP

Click highlighted areas on diagram

diagram 88320A 88321 88321 88321A 88322 88328A 88328A 88329E 88335 88341 88343B 88344C 88344C 88360A 88360C
Part # Description Qty Price
88320A - BOLT, THROUGH
90099-04370

AE10#..JPP

 5
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32040

AE10#..JPP

RR

 1
88321-32010

AE10#..JPP

FR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32040

AE10#..JPP

RR

 1
88321-32010

AE10#..JPP

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88342-22010

AE10#..JPP

 1
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-1A010

AE10#..JPP

 1
88371-12370

AE10#..JPP

 1
88328A - PIN, COMPRESSOR
90099-08058

AE10#..JPP

 4
88328A - PIN, COMPRESSOR
90099-08058

AE10#..JPP

 4
88329E - BOLT, COMPRESSOR, NO.1
90099-04924

AE10#..JPP

 4
88335 - GASKET KIT, OVERHAUL
88335-2B010

AE10#..JPP

 1
88335-14010

AE10#..JPP

 1
88341 - PLATE, FRONT VALVE
88341-22010

AE10#..JPP

 1
88343B - REED, SUCTION VALVE
88343-14020

AE10#..JPP

 1
88343-14020

AE10#..JPP

 2
88344C - REED, DISCHARGE VALVE
88344-22010

AE10#..JPP

 2
88344C - REED, DISCHARGE VALVE
88344-22010

AE10#..JPP

 2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AE10#..JPP

 1
88360C - SEAL ASSY, SHAFT
88360-2B010

AE10#..JPP

 1
88360-14030

AE10#..JPP

 1
