AE101L-AEHDKK (1992)
Toyota Corolla Jpp
ILLUST NO. 8 OF 8(9206- )JPP
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..JPP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32020 |
AE10#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..JPP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32020 |
AE10#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..JPP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32020 |
AE10#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..JPP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32020 |
AE10#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||

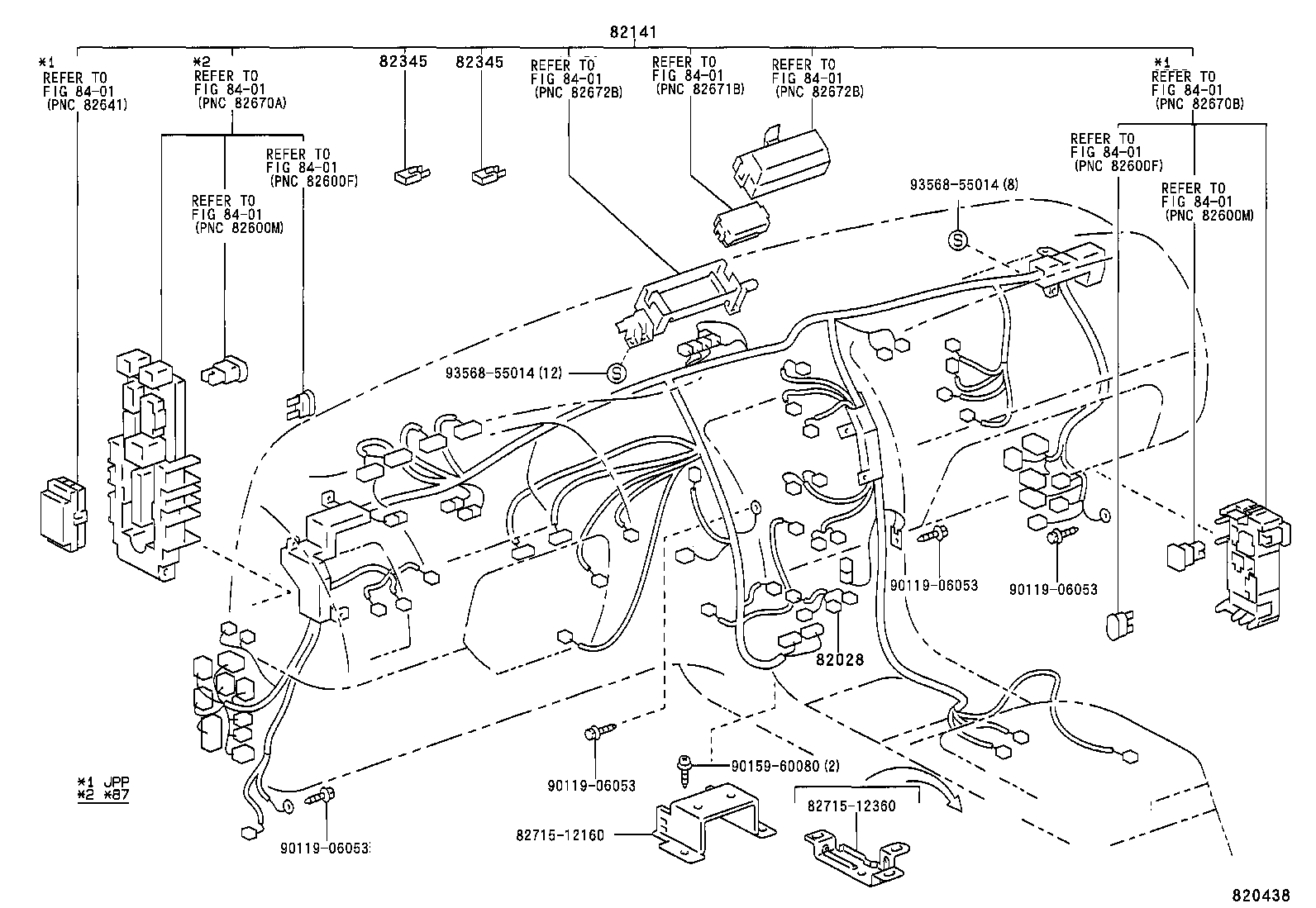

ILLUST NO. 4 OF 8(9206- )JPP
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-12040 |
AE10#..JPP |
1 | ||
| 82028-12050 |
AE10#..JPP |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-12850 |
AE101..JPP..CND FINLAND OR DENMARK SPEC |
1 | ||
| 82141-12860 |
AE101..JPP..CND FINLAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS) |
1 | ||
| 82141-1E050 |
AE101..JPP..CND W(*CRC) |
1 | ||
| 82141-1A040 |
AE101..JPP..CND |
1 | ||
| 82141-1A050 |
AE101..JPP..CND W(ABS) |
1 | ||
| 82141-1E490 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE & *CRC) |
1 | ||
| 82141-1H130 |
AE101..JPP..CND |
1 | ||
| 82141-1E500 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE & ABS) |
1 | ||
| 82141-1E480 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1H150 |
AE101..JPP..CND W(ABS) |
1 | ||
| 82141-1H140 |
AE101..JPP..CND W(*CRC) |
1 | ||
| 82141-1E390 |
AE101..JPP..CND FINLAND OR DENMARK SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1E400 |
AE101..JPP..CND FINLAND OR DENMARK SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE & ABS) |
1 | ||
| 82141-1H240 |
AE101..JPP..CND FINLAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS) |
1 | ||
| 82141-1H230 |
AE101..JPP..CND FINLAND OR DENMARK SPEC |
1 | ||
| 82141-1E481 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1E391 |
AE101..JPP..CND BRAZIL SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1E501 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE & ABS) |
1 | ||
| 82141-1H241 |
AE101..JPP..CND BRAZIL SPEC & W(ABS) |
1 | ||
| 82141-1H151 |
AE101..JPP..CND W(ABS) |
1 | ||
| 82141-1E491 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE & *CRC) |
1 | ||
| 82141-1H231 |
AE101..JPP..CND BRAZIL SPEC |
1 | ||
| 82141-1E401 |
AE101..JPP..CND BRAZIL SPEC & W(ABS & *80:DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1H141 |
AE101..JPP..CND W(*CRC) |
1 | ||
| 82141-1H131 |
AE101..JPP..CND |
1 | ||
| 82141-1H242 |
AE101..JPP..CND BRAZIL SPEC & W(ABS) |
1 | ||
| 82141-1H232 |
AE101..JPP..CND BRAZIL SPEC |
1 | ||
| 82141-1E402 |
AE101..JPP..CND BRAZIL SPEC & W(ABS & *80:DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1E502 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE & ABS) |
1 | ||
| 82141-1E392 |
AE101..JPP..CND BRAZIL SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1E492 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE & *CRC) |
1 | ||
| 82141-1H132 |
AE101..JPP..CND |
1 | ||
| 82141-1E482 |
AE101..JPP..CND W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1H152 |
AE101..JPP..CND W(ABS) |
1 | ||
| 82141-1H142 |
AE101..JPP..CND W(*CRC) |
1 | ||
| 82141-1K480 |
AE101..JPP..CND BRAZIL SPEC |
1 | ||
| 82141-1K490 |
AE101..JPP..CND BRAZIL SPEC & W(ABS) |
1 | ||
| 82141-1K220 |
AE101..JPP..CND BRAZIL SPEC & W(ABS & *80:DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1K210 |
AE101..JPP..CND BRAZIL SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1K310 |
AE101..JPP..N W(*CRC) |
1 | ||
| 82141-1K300 |
AE101..JPP..CND |
1 | ||
| 82141-1K320 |
AE101..JPP..CND W(ABS) |
1 | ||
| 82141-1K210 |
AE101..JPP W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82141-1K220 |
AE101..JPP W(*80,DRIVER SIDE,PASSENGER SIDE & ABS) |
1 | ||
| 82141-1K490 |
AE101..JPP W(ABS) |
1 | ||
| 82141-1K480 |
AE101..JPP |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..JPP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32020 |
AE10#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..JPP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32020 |
AE10#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 82715-12160 | ||||
| 82715-12360 | ||||
| 90119-06053 | ||||
| 90159-60080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

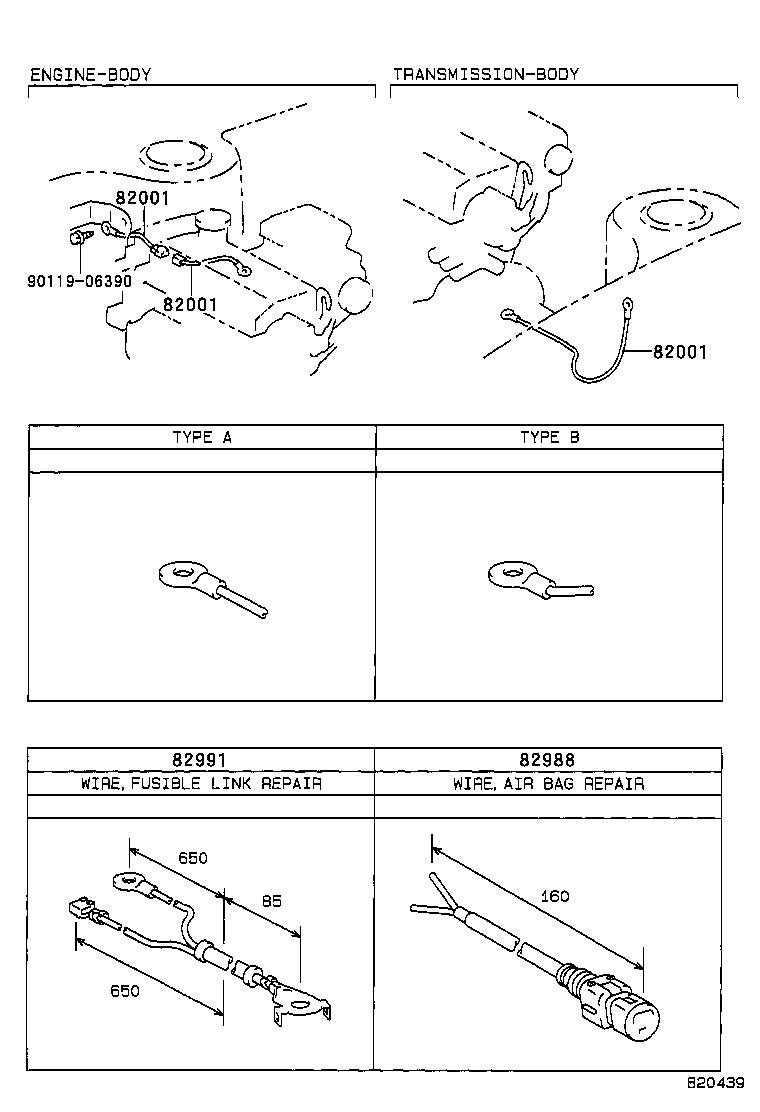

ILLUST NO. 7 OF 8(9206- )JPP
CABLE BOND,REPAIR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AE10#..JPP MANIFOLD |
1 | ||
| 90980-07351 |
AE10#..JPP FENDER-T/M |
1 | ||
| 90980-07206 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 90980-07384 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AE10#..JPP MANIFOLD |
1 | ||
| 90980-07351 |
AE10#..JPP FENDER-T/M |
1 | ||
| 90980-07206 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 90980-07384 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AE10#..JPP MANIFOLD |
1 | ||
| 90980-07351 |
AE10#..JPP FENDER-T/M |
1 | ||
| 90980-07206 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 90980-07384 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION,FENDER |
1 | ||
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-24010 |
AE10#..JPP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12050 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||

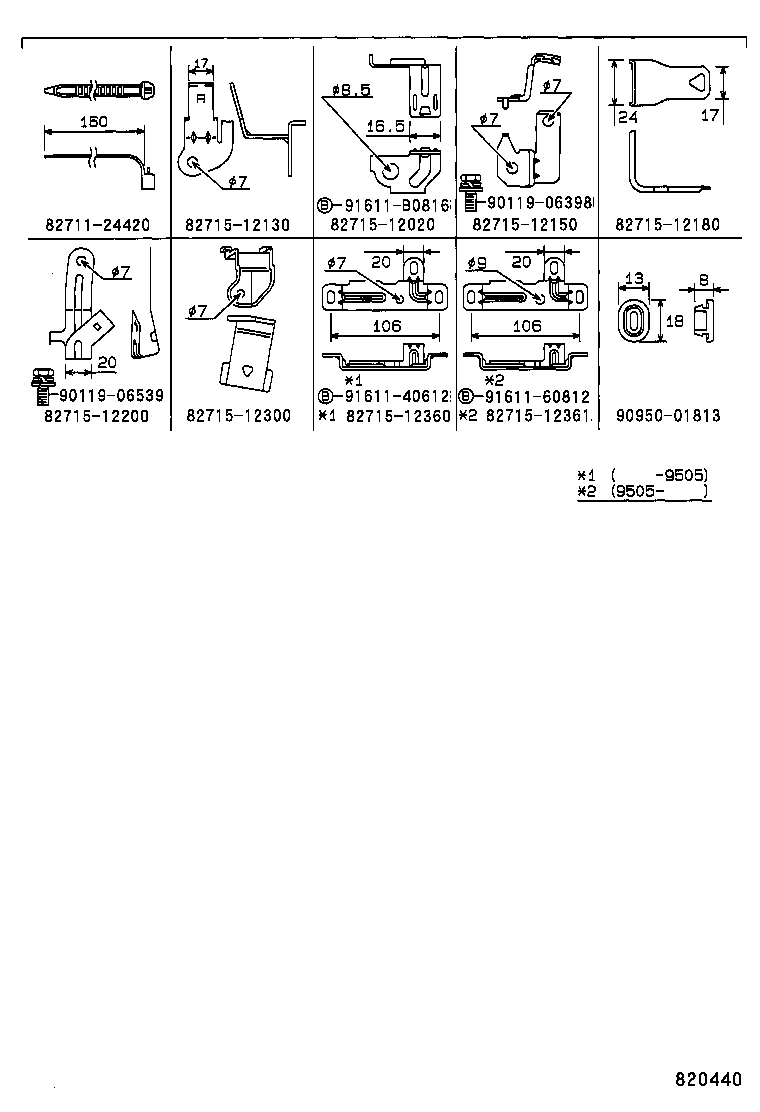

ILLUST NO. 3 OF 8(9206- )JPP
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24420 | ||||
| 82715-12020 | ||||
| 82715-12130 | ||||
| 82715-12150 | ||||
| 82715-12180 | ||||
| 82715-12200 | ||||
| 82715-12300 | ||||
| 82715-12360 | ||||
| 82715-12361 | ||||
| 90119-06398 | ||||
| 90119-06539 | ||||
| 90950-01813 | ||||
| 91611-40612 | ||||
| 91611-60812 | ||||
| 91611-B0816 | ||||

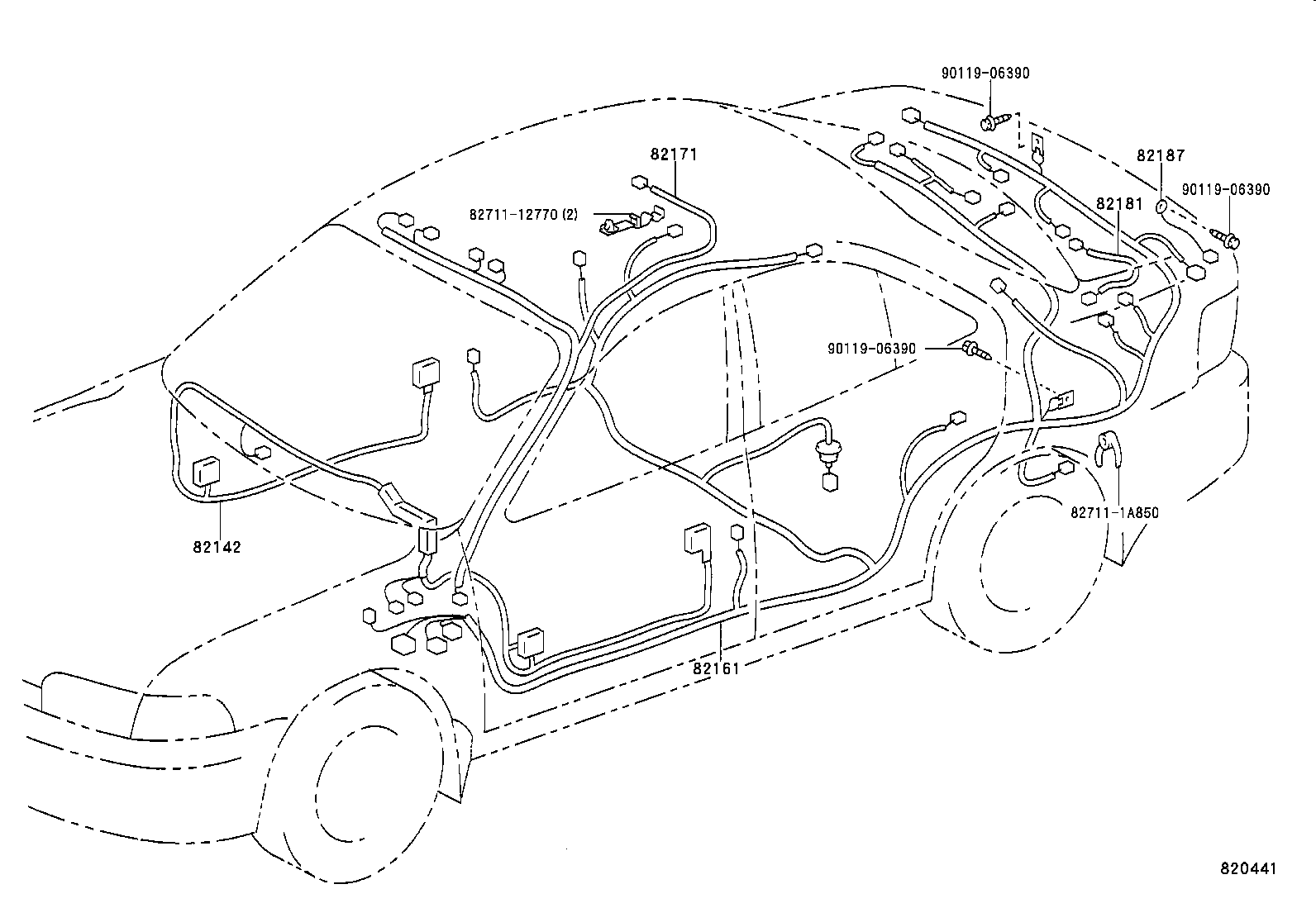

ILLUST NO. 6 OF 8(9206- )JPP..SED
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12231 |
AE102..JPP..E;AE101..JPP..CND |
1 | ||
| 82142-12230 |
AE102..JPP..E;AE101..JPP..CND |
1 | ||
| 82142-12120 |
AE10#..JPP..SED..N W(MOON ROOF) |
1 | ||
| 82142-12231 |
AE10#..JPP..SED..N W(*PW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1K500 |
AE10#..JPP..SED W(ABS) |
1 | ||
| 82161-1K502 |
AE10#..JPP..SED W(ABS) |
1 | ||
| 82161-1K490 |
AE101..JPP..3FC..CND;AE10#..JPP..SED..(4FC,5F) |
1 | ||
| 82161-1K491 |
AE101..JPP..3FC..CND;AE10#..JPP..SED..(4FC,5F) |
1 | ||
| 82161-1K492 |
AE101..JPP..3FC..CND;AE10#..JPP..SED..(4FC,5F) |
1 | ||
| 82161-1K050 |
AE10#..JPP..SED W(ABS) |
1 | ||
| 82161-1H780 |
AE101..JPP..CND;AE102..JPP..SED |
1 | ||
| 82161-1K501 |
AE10#..JPP..SED W(ABS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12570 |
AE10#..JPP..SED |
1 | ||
| 82171-12580 |
AE10#..JPP..SED..(E,N) W(MOON ROOF) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12170 |
AE10#..JPP..SED |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 82711-1A850 | ||||
| 90119-06390 | ||||
ILLUST NO. 2 OF 8(9206- )JPP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1H680 |
AE101..JPP..3FC |
1 | ||
| 82121-1L031 |
AE101..JPP..3FC |
1 | ||
| 82121-1K600 |
AE101..JPP..3FC |
1 | ||
| 82121-1L030 |
AE101..JPP..3FC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..JPP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08228 |
AE101..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
AE101..JPP..3FC 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#..JPP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..JPP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08228 |
AE101..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
AE101..JPP..3FC 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#..JPP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..JPP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08228 |
AE101..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
AE101..JPP..3FC 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#..JPP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE10#..JPP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE10#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32020 |
AE10#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12080 |
AE10#..JPP |
1 | ||
| 82620-12080 |
AE101..JPP |
1 | ||
| 82620-12080 |
AE101..JPP..3FC |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A070 |
AE10#..JPP |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 5 OF 8(9206- )JPP
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12810 |
AE101..JPP..CND;AE102..JPP..WG..CND |
1 | ||
| 82151-12810 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA W(DOOR SPEAKER) |
1 | ||
| 82151-1A131 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND W(*PW & *EL) |
1 | ||
| 82151-12810 |
AE101..JPP;AE102..JPP..N..USA W(DOOR SPEAKER) |
1 | ||
| 82151-1A132 |
AE102..JPP..N;AE101..JPP..CND W(*PW & *EL) |
1 | ||
| 82151-12810 |
AE10#..JPP..N;AE101..JPP..USA W(DOOR SPEAKER) |
1 | ||
| 82151-12810 |
AE101..JPP..D..CND |
1 | ||
| 82151-1A580 |
AE10#..JPP..N W(*PW & *EL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12810 |
AE101..JPP..CND;AE102..JPP..WG..CND |
1 | ||
| 82151-12810 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA W(DOOR SPEAKER) |
1 | ||
| 82152-12871 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND W(*PW & *EL) |
1 | ||
| 82151-12810 |
AE101..JPP..D..CND |
1 | ||
| 82151-12810 |
AE10#..JPP..N;AE101..JPP..USA W(DOOR SPEAKER) |
1 | ||
| 82152-12872 |
AE102..JPP..N;AE101..JPP..CND W(*PW & *EL) |
1 | ||
| 82152-12872 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND W(*PW & *EL) |
1 | ||
| 82152-1A350 |
AE10#..JPP..N W(*PW & *EL) |
1 | ||
| 82151-12810 |
AE101..JPP;AE102..JPP..N..USA W(DOOR SPEAKER) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12250 |
AE101..JPP..CND;AE102..JPP..SED |
1 | ||
| 82153-12250 |
AE102..JPP..4FC..CND;AE10#..JPP..(3FC,5F)..N;AE102..JPP..SED..4FC..USA |
1 | ||
| 82153-12250 |
AE10#..JPP..CND;AE102..JPP..SED..USA |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12250 |
AE101..JPP..CND;AE102..JPP..SED |
1 | ||
| 82154-12250 |
AE10#..JPP..CND;AE102..JPP..SED..USA |
1 | ||
| 82154-12250 |
AE102..JPP..4FC..CND;AE10#..JPP..(3FC,5F)..N;AE102..JPP..SED..4FC..USA |
1 | ||
ILLUST NO. 1 OF 8(9206- )JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1E500 |
AE10#..JPP..SED..CND FINLAND OR DENMARK SPEC |
1 | ||
| 82111-1E550 |
AE10#..JPP..CND W(ABS) |
1 | ||
| 82111-1E530 |
AE10#..JPP..CND |
1 | ||
| 82111-1E520 |
AE10#..JPP..SED..CND FINLAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS) |
1 | ||
| 82111-1H050 |
AE10#..JPP..CND W(ABS) |
1 | ||
| 82111-1E540 |
AE10#..JPP..CND W(*CRC) |
1 | ||
| 82111-1E531 |
AE10#..JPP..CND |
1 | ||
| 82111-1E541 |
AE10#..JPP..CND W(*CRC) |
1 | ||
| 82111-1H040 |
AE10#..JPP..SED..CND FINLAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS) |
1 | ||
| 82111-1H051 |
AE10#..JPP..CND W(ABS) |
1 | ||
| 82111-1H041 |
AE101..JPP..CND BRAZIL SPEC & W(ABS) |
1 | ||
| 82111-1H042 |
AE101..JPP..CND BRAZIL SPEC & W(ABS) |
1 | ||
| 82111-1E501 |
AE10#..JPP..SED..CND BRAZIL SPEC |
1 | ||
| 82111-1E532 |
AE10#..JPP..CND |
1 | ||
| 82111-1H052 |
AE10#..JPP..CND W(ABS) |
1 | ||
| 82111-1E502 |
AE10#..JPP..SED..CND BRAZIL SPEC |
1 | ||
| 82111-1E542 |
AE10#..JPP..CND W(*CRC) |
1 | ||
| 82111-1E200 |
AE10#..JPP..CND W(ABS) |
1 | ||
| 82111-1H043 |
AE101..JPP..CND BRAZIL SPEC & W(ABS) |
1 | ||
| 82111-1H490 |
AE10#..JPP..CND |
1 | ||
| 82111-1H480 |
AE10#..JPP..SED..CND BRAZIL SPEC |
1 | ||
| 82111-1E180 |
AE10#..JPP..SED W(ABS) |
1 | ||
| 82111-1E180 |
AE101..JPP..CND BRAZIL SPEC & W(ABS) |
1 | ||
| 82111-1E190 |
AE10#..JPP..N..CND W(*CRC) |
1 | ||
| 82111-1H053 |
AE10#..JPP..CND W(ABS) |
1 | ||
| 82111-1H480 |
AE10#..JPP..SED |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12240 |
AE101..JPP..3FC |
1 | ||
| 82123-12250 |
AE101..JPP..3FC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..JPP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08228 |
AE101..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
AE101..JPP..3FC 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#..JPP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..JPP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08228 |
AE101..JPP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
AE101..JPP..3FC 50A,TERM.:MALE,RED |
1 | ||
| 90982-08257 |
AE10#..JPP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A090 |
AE10#..JPP |
2 | ||
| Common parts | ||||
| 82715-12140 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 90119-08063 | ||||
| 91656-B0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
