AE101L-AEHDKK (1992)
Toyota Corolla Jpp
Production
Jun 1992
-
Apr 1997
Engine
4AFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9206- )JPP..SED

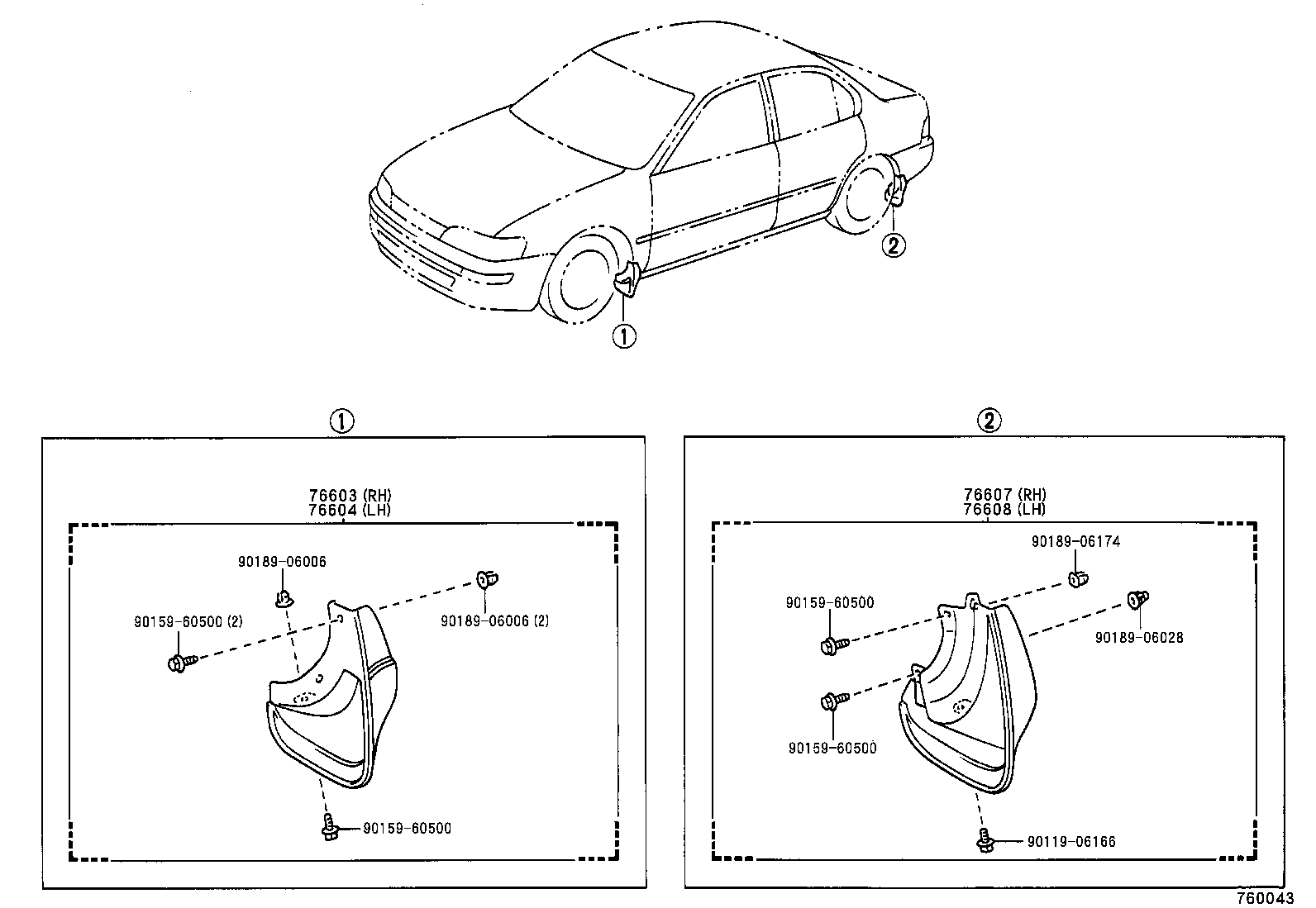

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-19215 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA BLACK TYPE |
1 | ||
| 76621-19215 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..USA BLACK TYPE |
1 | ||
| 76621-19215 |
AE10#..JPP..N BLACK TYPE |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-19215 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA BLACK TYPE |
1 | ||
| 76622-19215 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..USA BLACK TYPE |
1 | ||
| 76622-19215 |
AE10#..JPP..N BLACK TYPE |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-19445 |
AE101..JPP..CND;AE102..JPP..SED..USA |
1 | ||
| 76625-19445 |
AE101..JPP..CND;AE102..JPP..SED..N..USA |
1 | ||
| 76625-19445 |
AE10#..JPP..SED..N |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-19445 |
AE101..JPP..CND;AE102..JPP..SED..N..USA |
1 | ||
| 76626-19445 |
AE101..JPP..CND;AE102..JPP..SED..USA |
1 | ||
| 76626-19445 |
AE10#..JPP..SED..N |
1 | ||
| Common parts | ||||
| 90119-06166 | ||||
| 90159-60500 | ||||
| 90189-06006 | ||||
| 90189-06028 | ||||
| 90189-06174 | ||||
