AE101L-AEHDKK (1992)

Toyota Corolla Jpp

Production Jun 1992 - Apr 1997
Engine 4AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )JPP..SED

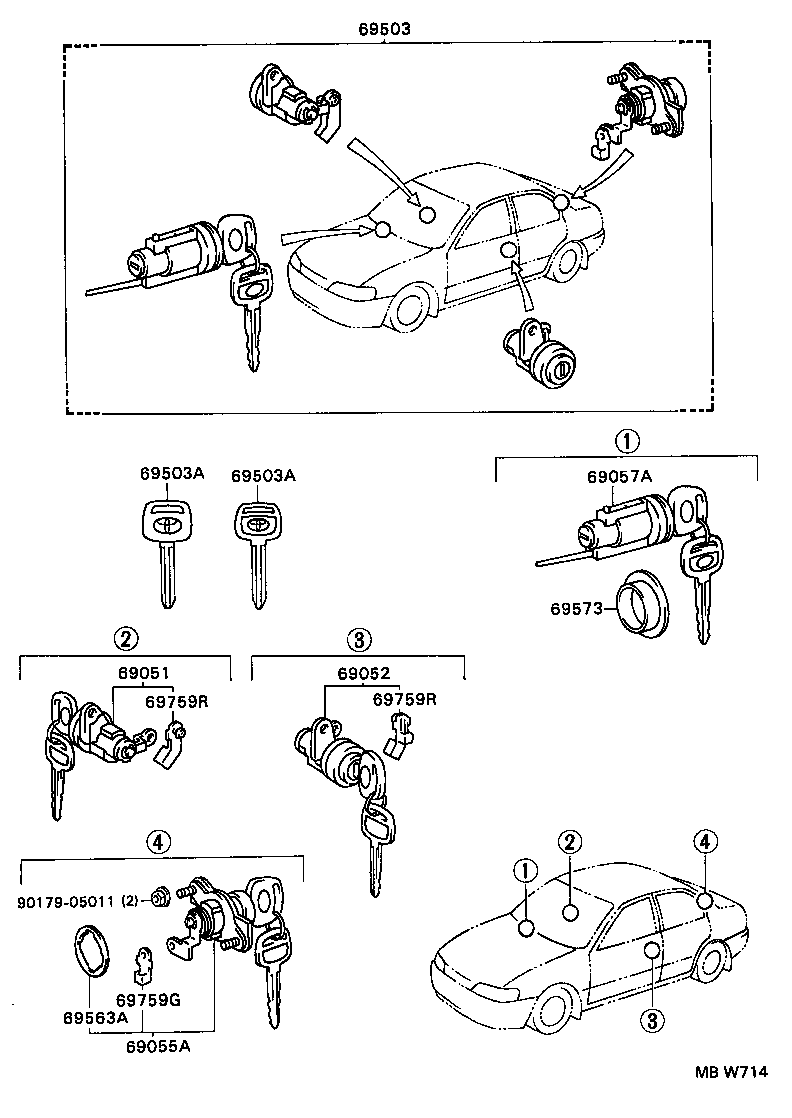

Click highlighted areas on diagram

diagram 69051 69052 69055A 69057A 69503 69503A 69503A 69563A 69573 69759G 69759R 69759R 9017905011
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12340

AE10#..JPP..SED

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12340

AE10#..JPP..SED

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-12710

AE10#..JPP..SED

 1
69055-1A170

AE10#..JPP..SED

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-12200

AE101..JPP;AE102..JPP..SED..N..USA

 1
69057-12200

AE10#..JPP..SED

 1
69057-12250

AE101..JPP..CND;AE102..JPP..SED..N..USA

W(TILT STEERING)

 1
69057-12250

AE10#..JPP..SED..N

W(TILT STEERING)

 1
69503 - CYLINDER SET, LOCK
69005-1E030

AE10#..JPP..SED

 1
69005-1A640

AE101..JPP..CND;AE102..JPP..SED..N..USA

W(TILT STEERING)

 1
69005-1E050

AE10#..JPP..SED..N

W(TILT STEERING)

 1
69005-1A370

AE101..JPP;AE102..JPP..SED..N..USA

 1
69503A - KEY, BLANK
90999-00186

AE10#..JPP..SED

MASTER KEY

 1
90999-00188

AE10#..JPP..SED

SUB KEY

 1
90999-00185

AE10#..JPP..SED

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00186

AE10#..JPP..SED

MASTER KEY

 1
90999-00188

AE10#..JPP..SED

SUB KEY

 1
90999-00185

AE10#..JPP..SED

MASTER KEY,W(*68)

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-12070

AE10#..JPP..SED

 1
69573 - PAD, IGNITION SWITCH LOCK CYLINDER
69573-12010

AE10#..JPP

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24090

AE10#..JPP..SED

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AE10#..JPP

LH

 1
69759-12080

AE10#..JPP

RH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AE10#..JPP

LH

 1
69759-12080

AE10#..JPP

RH

 1
Common parts
90179-05011
