AE101L-AEHDKK (1992)
Toyota Corolla Jpp

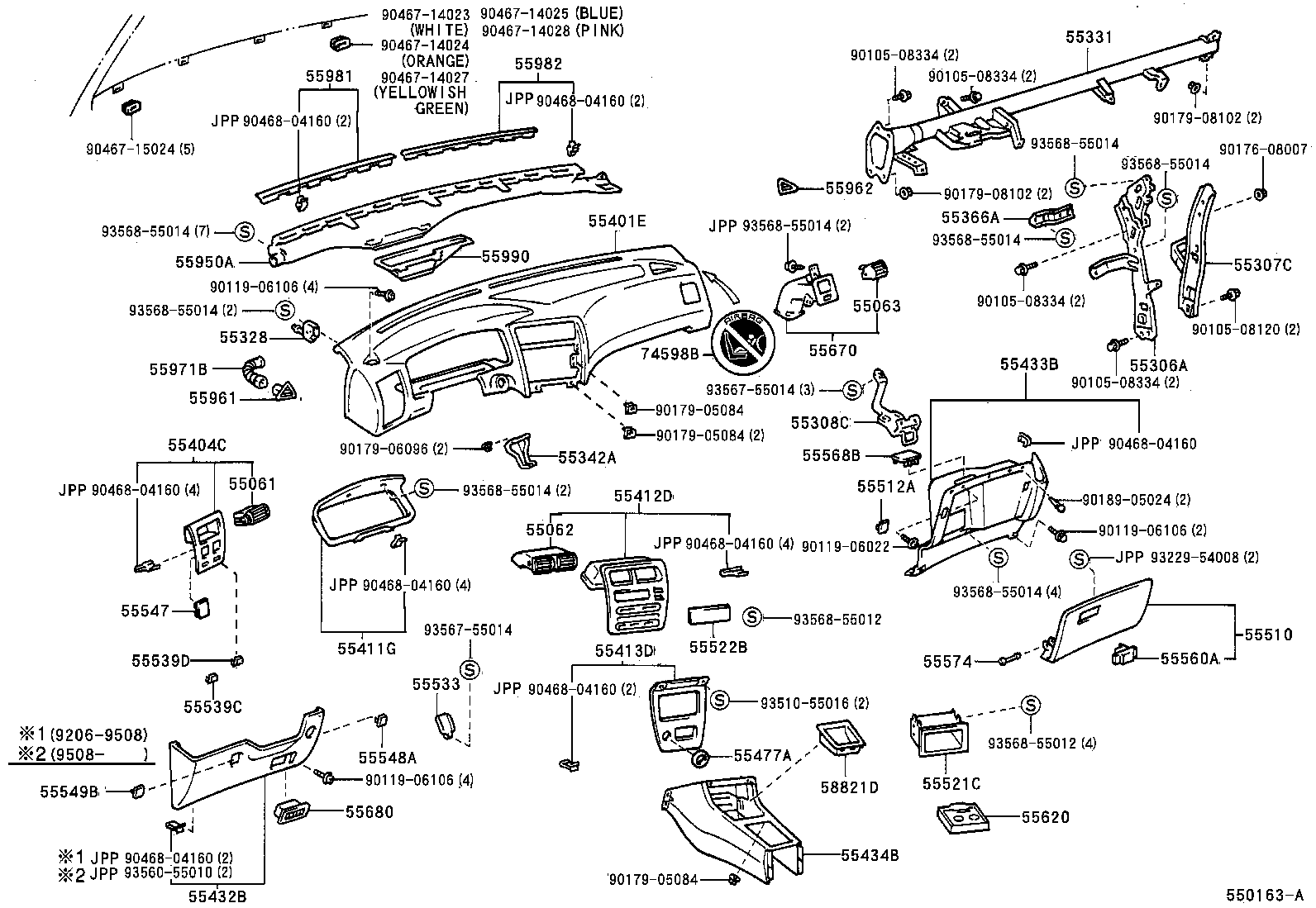

ILLUST NO. 1 OF 2(9206- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12170 |
AE10#..JPP |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-12080 |
AE10#..JPP |
2 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55061-12180K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55061-12180J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55061-12180J0 |
AE10#..JPP..(D,N) DARK BLUE,TRIM8# |
1 | ||
| 55061-12180E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55061-12180K0 |
AE101..JPP..CND TAUPE,TRIM86,9# |
1 | ||
| 55061-12180B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55061-12180E0 |
AE102..JPP..WG;AE10#..JPP..SED..CND OAK,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12170 |
AE10#..JPP |
1 | ||
| 55306-12210 |
AE10#..JPP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12220 |
AE10#..JPP |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12200 |
AE10#..JPP..CND |
1 | ||
| 55308-12240 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)) |
1 | ||
| 55308-12200 |
AE10#..JPP |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-12060 |
AE10#..JPP |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12270 |
AE10#..JPP..CND |
1 | ||
| 55330-12270 |
AE10#..JPP |
1 | ||
| 55330-12291 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)) |
1 | ||
| 55330-12290 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)) |
1 | ||
| 55330-12271 |
AE10#..JPP..CND |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-12040 |
AE10#..JPP |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-12050 |
AE10#..JPP |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-12340K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55401-12360B0 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)),SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12340B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12340B0 |
AE10#..JPP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12360J0 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)),DARK BLUE,TRIM8# |
1 | ||
| 55401-12340J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55401-12340K0 |
AE10#..JPP..CND TAUPE,TRIM9# |
1 | ||
| 55401-12400K0 |
AE10#..JPP..CND TAUPE,TRIM9# |
1 | ||
| 55401-12400B0 |
AE10#..JPP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12340J0 |
AE10#..JPP..CND DARK BLUE,TRIM8# |
1 | ||
| 55401-12450K0 |
AE10#..JPP..CND TAUPE,TRIM9# |
1 | ||
| 55401-12400J0 |
AE10#..JPP..CND DARK BLUE,TRIM8# |
1 | ||
| 55401-12450E0 |
AE10#..JPP..CND OAK,TRIM4# |
1 | ||
| 55401-12450B0 |
AE10#..JPP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12360K0 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)),TAUPE,TRIM9# |
1 | ||
| 55401-12410B0 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)),SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12410J0 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)),DARK BLUE,TRIM8# |
1 | ||
| 55401-12410E0 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)),OAK,TRIM4# |
1 | ||
| 55401-12410K0 |
AE10#..JPP..CND W(*80(DRIVER SIDE & PASSENGER SIDE)),TAUPE,TRIM9# |
1 | ||
| 55401-12450J0 |
AE10#..JPP..CND DARK BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-12630 |
AE10#..JPP |
1 | ||
| 55404-12590 |
AE10#..JPP |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-12890 |
AE10#..JPP |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12850 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 55405-12580 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-12430 |
AE10#..JPP |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-12180K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55045-12180B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55045-12180J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55045-12230E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55045-12230J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55045-12230B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12130B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55433-12140K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55433-12130J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55433-12130K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55433-12140J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55433-12140E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55433-12140B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12120K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55434-12120B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55434-12121K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55434-12120J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55434-12121B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55434-12121E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55434-12121J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-12100 |
AE10#..JPP |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12350B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55550-12350J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55550-12350K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55550-12350E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55550-12350J1 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55550-12350B1 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55550-12350K1 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-12120K0 |
AE10#..JPP TAUPE,TRIM9# |
2 | ||
| 55512-12120B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55512-12120J0 |
AE10#..JPP DARK BLUE,TRIM8# |
2 | ||
| 55512-12120E0 |
AE10#..JPP OAK,TRIM4# |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
AE10#..JPP 2 DIN BOX |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
AE10#..JPP |
1 | ||
| 55522-32010 |
AE10#..JPP..(4FC,5F);AE101..JPP..3FC..CND |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-12130 |
AE101..JPP..D |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12110 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 55539-12110 |
AE10#..JPP |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-12110 |
AE10#..JPP |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-12020 |
AE10#..JPP |
1 | ||
| 55547-12020 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12060K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55548-12060B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55548-12060J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55548-12060E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-12010K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55549-12010B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55549-12010E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55549-12010J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12090B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55560-12090E1 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55560-12090J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55560-12090K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-12010 |
AE10#..JPP |
1 | ||
| 55568-24020 |
AE10#..JPP |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE10#..JPP |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-12040 |
AE10#..JPP (J) |
1 | ||
| 55620-02020 |
AE10#..JPP (L) |
1 | ||
| 55620-02010 |
AE10#..JPP (L) |
1 | ||
| 55620-12060 |
AE10#..JPP |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12200K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55670-12200B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55670-12200E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55670-12200J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-12050K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55680-12050 |
AE10#..JPP |
1 | ||
| 55680-12050P0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55680-12050W3 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12160 |
AE10#..JPP |
1 | ||
| 55950-12180 |
AE10#..JPP |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12200B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55961-12200K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55961-12200J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55961-12200E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12180B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55962-12180K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55962-12180E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 55962-12180J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-12110 |
AE10#..JPP |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-12070 |
AE10#..JPP |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-12070 |
AE10#..JPP |
1 | ||
| 55990 - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-12020 |
AE10#..JPP |
1 | ||
| 58821D - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-12070J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 58821-12070K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 58821-12070B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 58821-12070E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-08334 | ||||
| 90119-06022 | ||||
| 90119-06106 | ||||
| 90176-08007 | ||||
| 90179-05084 | ||||
| 90179-06096 | ||||
| 90179-08102 | ||||
| 90189-05024 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90467-15024 | ||||
| 90468-04160 | ||||
| 93229-54008 | ||||
| 93510-55016 | ||||
| 93560-55010 | ||||
| 93567-55014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||

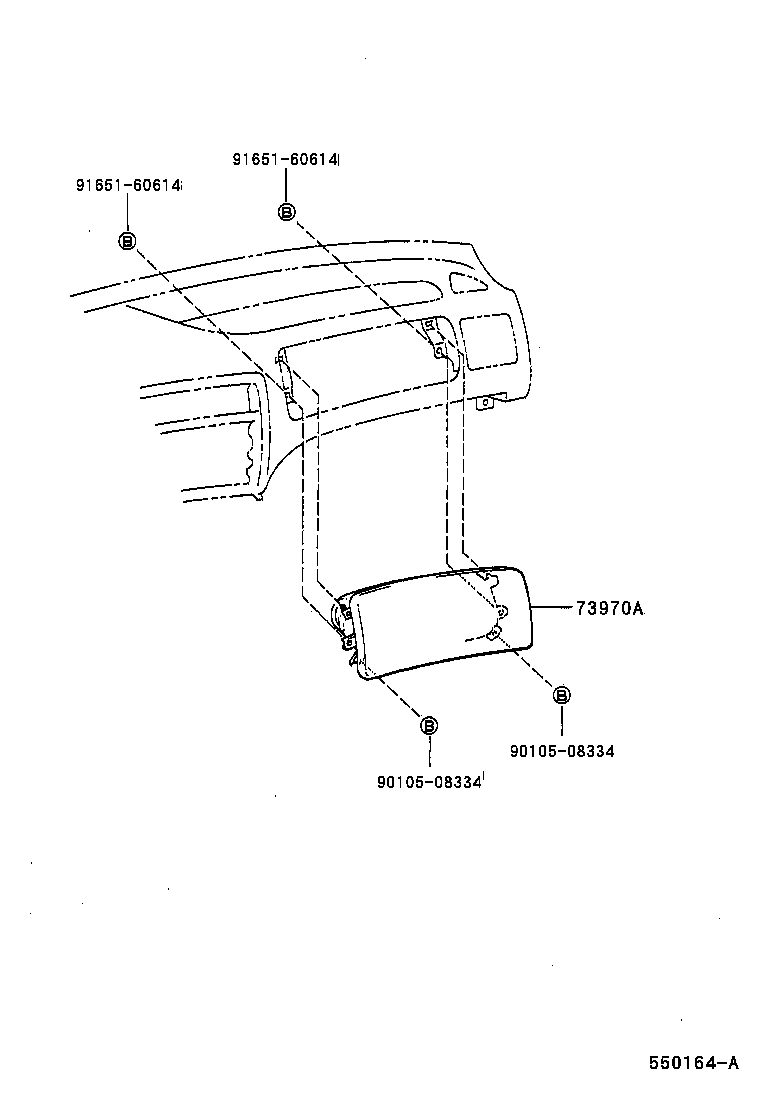

ILLUST NO. 2 OF 2(9308- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-12010B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 73970-12010J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 73970-12010E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 73970-12010K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90105-08334 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
