AE101L-AEHDKK (1992)
Toyota Corolla Jpp

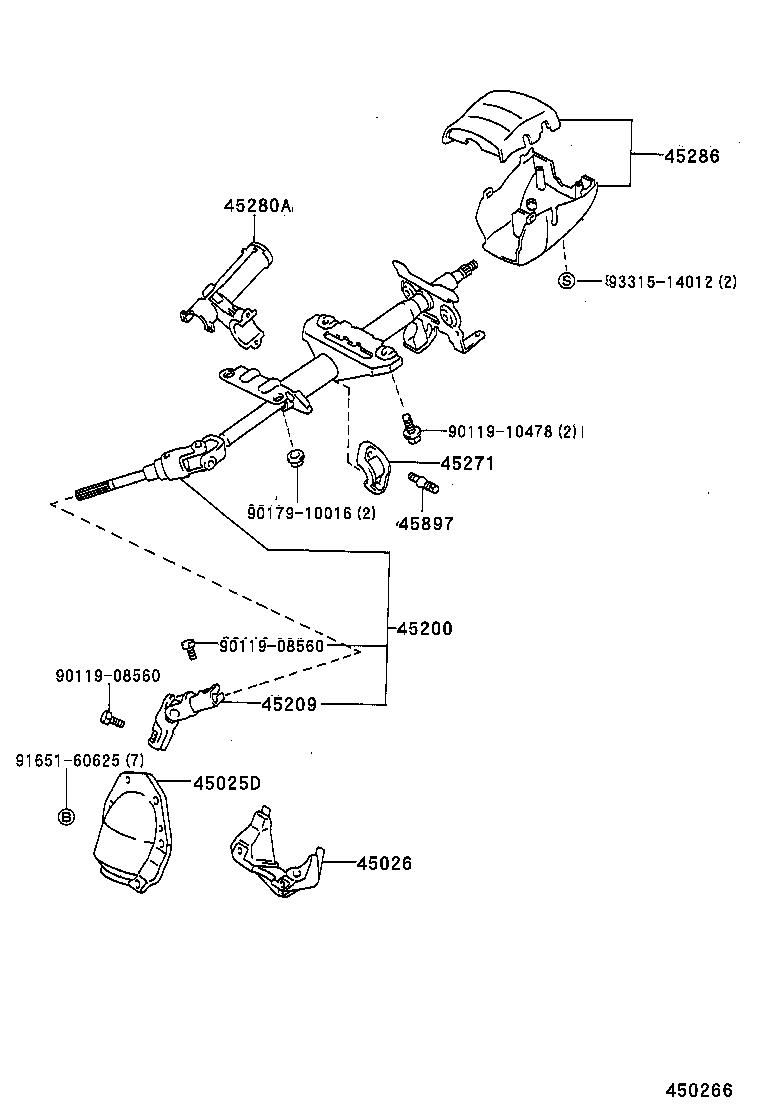

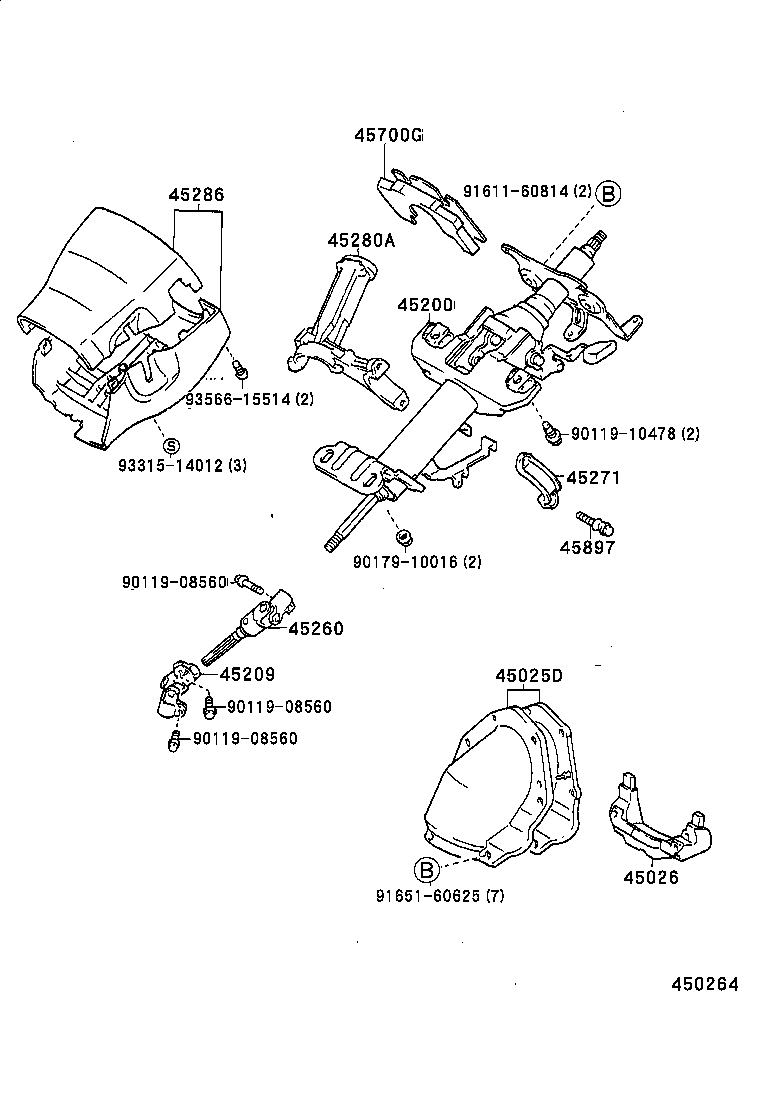

(9206- )JPP
W(TILT STEERING),TOYOTA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45025-12201 |
AE10#..JPP W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45025-12200 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45026-12040 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45200 - POST ASSY, STEERING | ||||
| 45200-02050 |
AE102..JPP..WG;AE101..JPP..CND W(TILT & POWER STEERING),NASTECH |
1 | ||
| 45200-12180 |
AE102..JPP;AE101..JPP..CND TOYOTA |
1 | ||
| 45200-02050 |
AE10#..JPP..SED..(E,N) NASTECH |
1 | ||
| 45200-12180 |
AE10#..JPP..SED..(E,N) TOYOTA |
1 | ||
| 45200-12180 |
AE102..JPP..WG;AE101..JPP..CND W(TILT STEERING),TOYOTA |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12080 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45209-12080 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45209-12060 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12270 |
AE102..JPP..WG;AE101..JPP..CND W(TILT STEERING) |
1 | ||
| 45260-02010 |
AE102..JPP..WG;AE101..JPP..CND W(TILT STEERING) |
1 | ||
| 45260-12280 |
AE102..JPP..WG;AE101..JPP..CND W(TILT & POWER STEERING) |
1 | ||
| 45260-02020 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45260-02020 |
AE102..JPP..WG;AE101..JPP..CND W(TILT & POWER STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 45271-12070 |
AE10#..JPP |
1 | ||
| 45271-33010 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45271-33010 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12260 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45280-12300 |
AE10#..JPP..ATM |
1 | ||
| 45280-12300 |
AE101..JPP..3FC;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..N..USA |
1 | ||
| 45280-12260 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12951K0 |
AE102..JPP;AE101..JPP..CND W(TILT STEERING),TAUPE,TRIM9# |
1 | ||
| 45286-12950K0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 45286-12951J0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12951B0 |
AE10#..JPP..N W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 45286-12951E0 |
AE10#..JPP..N W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45286-12950B0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 45286-12951J0 |
AE10#..JPP..N W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12950E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 45286-12951B0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45700G - DAMPER ASSY, STEERING | ||||
| 45700-12020 |
AE102..JPP..4FC;AE101..JPP..3FC..CND |
1 | ||
| 45700-12020 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 45700-12020 |
AE10#..JPP..ATM..N |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE10#..JPP |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-10016 | ||||
| 91611-60814 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||

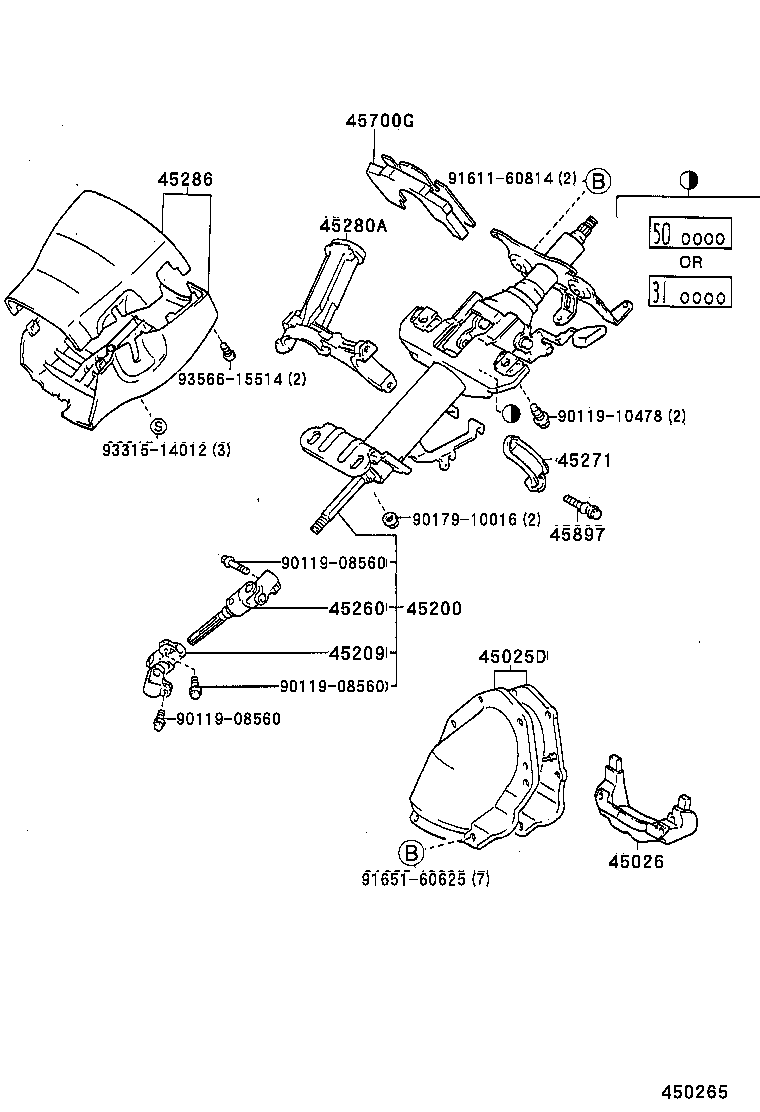

(9301- )JPP
W(TILT STEERING),NASTECH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45025-12201 |
AE10#..JPP W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45025-12200 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45026-12040 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45200 - POST ASSY, STEERING | ||||
| 45200-02050 |
AE102..JPP..WG;AE101..JPP..CND W(TILT & POWER STEERING),NASTECH |
1 | ||
| 45200-12180 |
AE102..JPP;AE101..JPP..CND TOYOTA |
1 | ||
| 45200-02050 |
AE10#..JPP..SED..(E,N) NASTECH |
1 | ||
| 45200-12180 |
AE10#..JPP..SED..(E,N) TOYOTA |
1 | ||
| 45200-12180 |
AE102..JPP..WG;AE101..JPP..CND W(TILT STEERING),TOYOTA |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12080 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45209-12080 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45209-12060 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12270 |
AE102..JPP..WG;AE101..JPP..CND W(TILT STEERING) |
1 | ||
| 45260-02010 |
AE102..JPP..WG;AE101..JPP..CND W(TILT STEERING) |
1 | ||
| 45260-12280 |
AE102..JPP..WG;AE101..JPP..CND W(TILT & POWER STEERING) |
1 | ||
| 45260-02020 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45260-02020 |
AE102..JPP..WG;AE101..JPP..CND W(TILT & POWER STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 45271-12070 |
AE10#..JPP |
1 | ||
| 45271-33010 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45271-33010 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12260 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45280-12300 |
AE10#..JPP..ATM |
1 | ||
| 45280-12300 |
AE101..JPP..3FC;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..N..USA |
1 | ||
| 45280-12260 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12951K0 |
AE102..JPP;AE101..JPP..CND W(TILT STEERING),TAUPE,TRIM9# |
1 | ||
| 45286-12950K0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 45286-12951J0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12951B0 |
AE10#..JPP..N W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 45286-12951E0 |
AE10#..JPP..N W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45286-12950B0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 45286-12951J0 |
AE10#..JPP..N W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12950E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 45286-12951B0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45700G - DAMPER ASSY, STEERING | ||||
| 45700-12020 |
AE102..JPP..4FC;AE101..JPP..3FC..CND |
1 | ||
| 45700-12020 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 45700-12020 |
AE10#..JPP..ATM..N |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE10#..JPP |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-10016 | ||||
| 91611-60814 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||

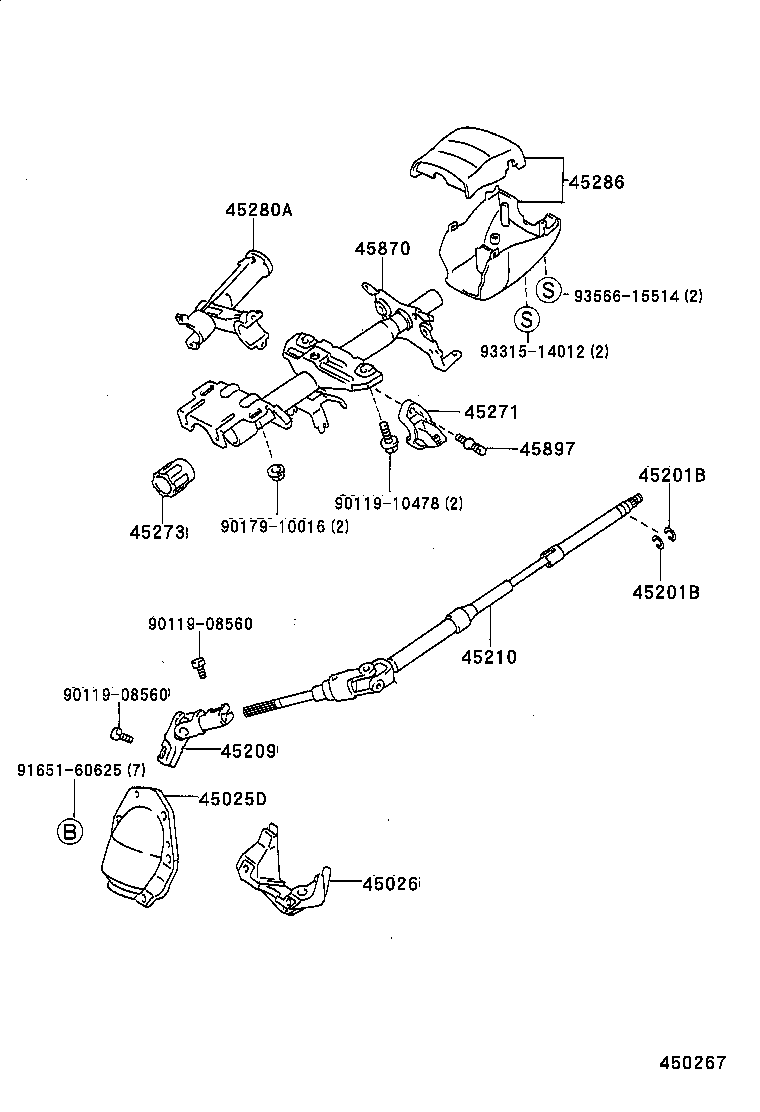

(9209- )JPP..D ; (9209- )JPP..N..USA ; (9508- )JPP..N..CND
NASTEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45025-12201 |
AE10#..JPP W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45025-12200 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45026-12040 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45200 - POST ASSY, STEERING | ||||
| 45200-02050 |
AE102..JPP..WG;AE101..JPP..CND W(TILT & POWER STEERING),NASTECH |
1 | ||
| 45200-12180 |
AE102..JPP;AE101..JPP..CND TOYOTA |
1 | ||
| 45200-02050 |
AE10#..JPP..SED..(E,N) NASTECH |
1 | ||
| 45200-12180 |
AE10#..JPP..SED..(E,N) TOYOTA |
1 | ||
| 45200-12180 |
AE102..JPP..WG;AE101..JPP..CND W(TILT STEERING),TOYOTA |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12080 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45209-12080 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45209-12060 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 45271-12070 |
AE10#..JPP |
1 | ||
| 45271-33010 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45271-33010 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12260 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45280-12300 |
AE10#..JPP..ATM |
1 | ||
| 45280-12300 |
AE101..JPP..3FC;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..N..USA |
1 | ||
| 45280-12260 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12951K0 |
AE102..JPP;AE101..JPP..CND W(TILT STEERING),TAUPE,TRIM9# |
1 | ||
| 45286-12950K0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 45286-12951J0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12951B0 |
AE10#..JPP..N W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 45286-12951E0 |
AE10#..JPP..N W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45286-12950B0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 45286-12951J0 |
AE10#..JPP..N W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12950E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 45286-12951B0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE10#..JPP |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-10016 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
(9206- )JPP..D,N
TOYOTA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45025-12201 |
AE10#..JPP W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45025-12200 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45026-12040 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE10#..JPP T=1.20 |
1 | ||
| 90520-17042 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA T=1.20 |
2 | ||
| 90520-17042 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA T=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE10#..JPP T=1.20 |
1 | ||
| 90520-17042 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA T=1.20 |
2 | ||
| 90520-17042 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA T=1.20 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12080 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45209-12080 |
AE10#..JPP..SED..(E,N) |
1 | ||
| 45209-12060 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12470 |
AE10#..JPP..SED..N |
1 | ||
| 45210-12470 |
AE101..JPP..D;AE102..JPP..WG W(POWER STEERING) |
1 | ||
| 45210-12450 |
AE101..JPP..D;AE102..JPP..WG |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 45271-12070 |
AE10#..JPP |
1 | ||
| 45271-33010 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45271-33010 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20030 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 45273-20030 |
AE10#..JPP |
1 | ||
| 45273-16010 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 45273-16020 |
AE10#..JPP |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12260 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING) |
1 | ||
| 45280-12300 |
AE10#..JPP..ATM |
1 | ||
| 45280-12300 |
AE101..JPP..3FC;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..N..USA |
1 | ||
| 45280-12260 |
AE10#..JPP..N W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12951K0 |
AE102..JPP;AE101..JPP..CND W(TILT STEERING),TAUPE,TRIM9# |
1 | ||
| 45286-12950K0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 45286-12951J0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12951B0 |
AE10#..JPP..N W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 45286-12951E0 |
AE10#..JPP..N W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45286-12950B0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12950J0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 45286-12951J0 |
AE10#..JPP..N W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12950E0 |
AE10#..JPP OAK,TRIM4# |
1 | ||
| 45286-12951B0 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-12320 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 45870-12320 |
AE10#..JPP |
1 | ||
| 45870-12321 |
AE10#..JPP |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE10#..JPP |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-10016 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
