AE101L-AEHDKK (1992)

Toyota Corolla Jpp

Production Jun 1992 - Apr 1997
Engine 4AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )JPP..3FC

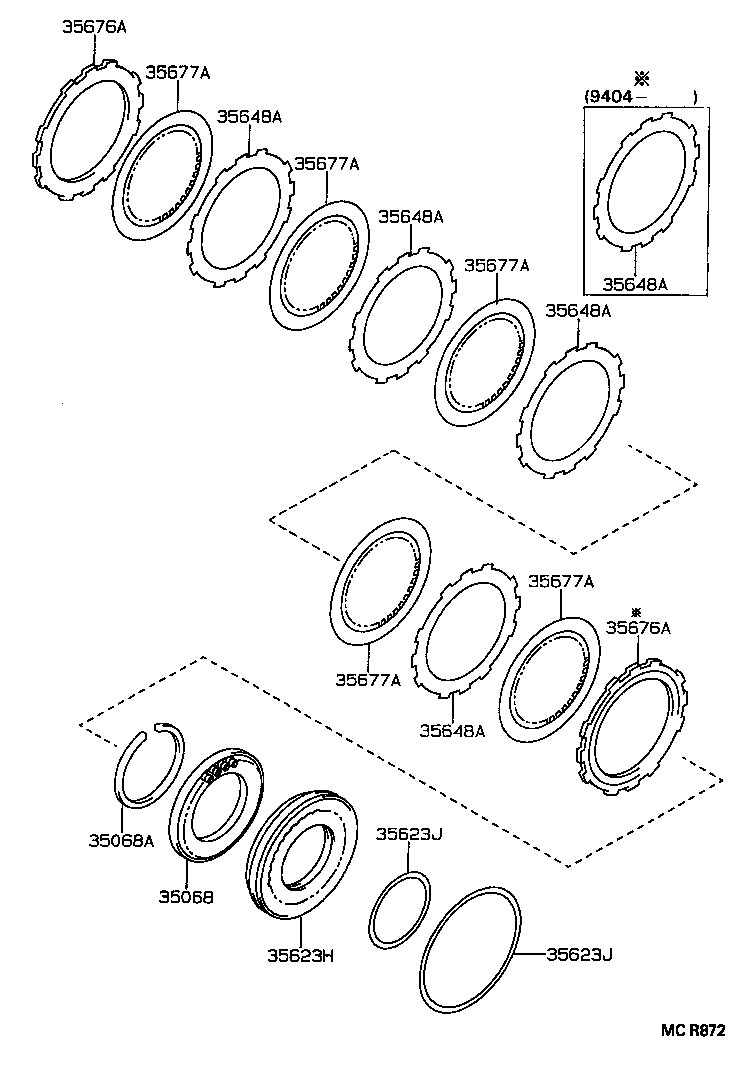

Click highlighted areas on diagram

A131L

diagram 35068 35068A 35623H 35623J 35623J 35648A 35648A 35648A 35648A 35648A 35676A 35676A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-32010

AE101..JPP..3FC

 1
35068-20010

AE101..JPP..3FC

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-90001

AE10#..JPP..ATM

 1
90520-90001

AE10#..JPP..ATM..(D,N)

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-32010

AE101..JPP..3FC..CND

 1
35623-32050

AE101..JPP..3FC..CND

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99022

AE10#..JPP..ATM

OUTER

 1
90301-99022

AE10#..JPP..ATM..(D,N)

OUTER

 1
90301-94001

AE10#..JPP..ATM

INNER

 1
90301-94001

AE10#..JPP..ATM..(D,N)

INNER

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99022

AE10#..JPP..ATM

OUTER

 1
90301-99022

AE10#..JPP..ATM..(D,N)

OUTER

 1
90301-94001

AE10#..JPP..ATM

INNER

 1
90301-94001

AE10#..JPP..ATM..(D,N)

INNER

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AE101..JPP..3FC..CND

 5
35648-32020

AE101..JPP..3FC

 6
35648-32020

AE101..JPP..3FC

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AE101..JPP..3FC..CND

 5
35648-32020

AE101..JPP..3FC

 6
35648-32020

AE101..JPP..3FC

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AE101..JPP..3FC..CND

 5
35648-32020

AE101..JPP..3FC

 6
35648-32020

AE101..JPP..3FC

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AE101..JPP..3FC..CND

 5
35648-32020

AE101..JPP..3FC

 6
35648-32020

AE101..JPP..3FC

 5
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AE101..JPP..3FC..CND

 5
35648-32020

AE101..JPP..3FC

 6
35648-32020

AE101..JPP..3FC

 5
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-32010

AE101..JPP..3FC

T=3.5

 2
35676-32010

AE101..JPP..3FC

T=3.5

 1
35676-32010

AE101..JPP..3FC..CND

T=3.5

 2
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-32010

AE101..JPP..3FC

T=3.5

 2
35676-32010

AE101..JPP..3FC

T=3.5

 1
35676-32010

AE101..JPP..3FC..CND

T=3.5

 2
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-32040

AE101..JPP..3FC..CND

 6
35677-32060

AE101..JPP..3FC..CND

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-32040

AE101..JPP..3FC..CND

 6
35677-32060

AE101..JPP..3FC..CND

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-32040

AE101..JPP..3FC..CND

 6
35677-32060

AE101..JPP..3FC..CND

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-32040

AE101..JPP..3FC..CND

 6
35677-32060

AE101..JPP..3FC..CND

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-32040

AE101..JPP..3FC..CND

 6
35677-32060

AE101..JPP..3FC..CND

 6
