AE101L-AEHDKK (1992)
Toyota Corolla Jpp
Production
Jun 1992
-
Apr 1997
Engine
4AFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9206- )4AFE..JPP..3FC

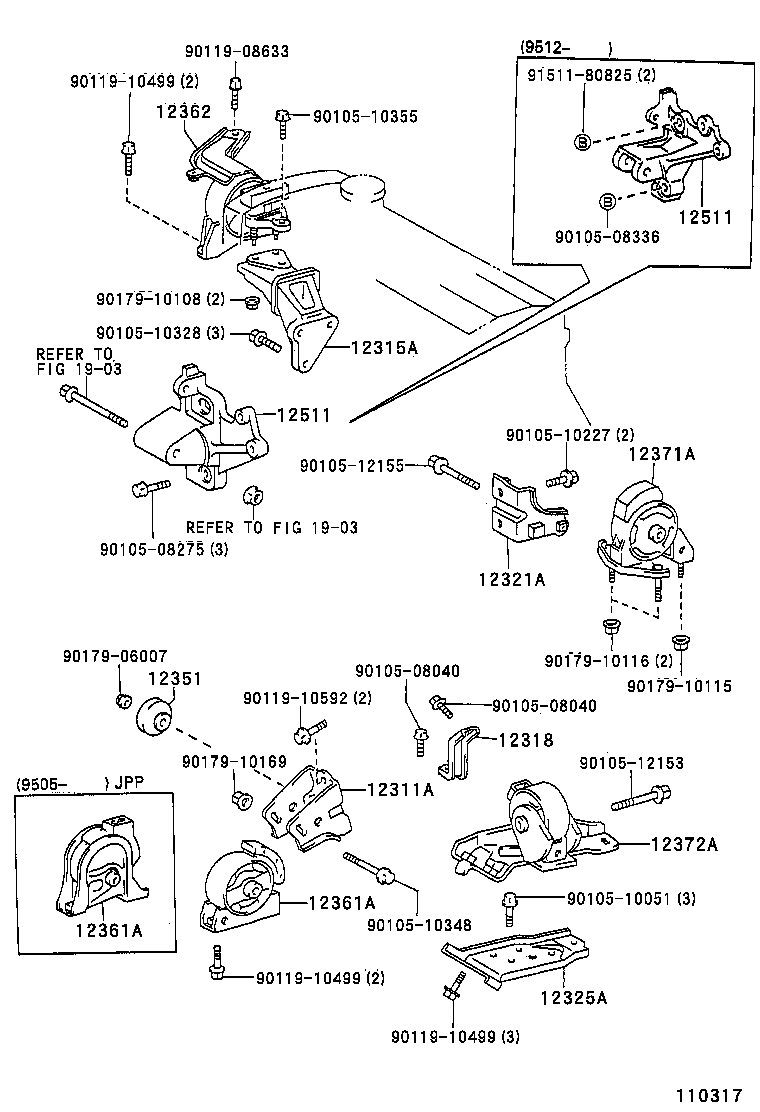

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-15130 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-15080 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 12315-15081 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-15030 |
4AFE..AE101..JPP..3FC |
1 | ||
| 12318-15060 |
4AFE..AE101..JPP..3FC |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-15130 |
4AFE..AE101..JPP..3FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-11130 |
4AFE..AE101..JPP..3FC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-15060 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-11170 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 12361-15180 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-11170 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 12361-15180 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-16080 |
4AFE..AE101..JPP |
1 | ||
| 12305-15040 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64210 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-15171 |
4AFE,7AFE..AE10#..JPP..(3FC,5F) |
1 | ||
| 12372-15160 |
4AFE,7AFE..AE10#..JPP..(3FC,5F) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-15050 |
4AFE..AE101..JPP |
1 | ||
| 12511-15060 |
4AFE..AE101..JPP |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-15050 |
4AFE..AE101..JPP |
1 | ||
| 12511-15060 |
4AFE..AE101..JPP |
1 | ||
| Common parts | ||||
| 90105-08040 | ||||
| 90105-08275 | ||||
| 90105-08336 | ||||
| 90105-10051 | ||||
| 90105-10227 | ||||
| 90105-10328 | ||||
| 90105-10348 | ||||
| 90105-10355 | ||||
| 90105-12153 | ||||
| 90105-12155 | ||||
| 90119-08633 | ||||
| 90119-10499 | ||||
| 90119-10592 | ||||
| 90179-06007 | ||||
| 90179-10108 | ||||
| 90179-10115 | ||||
| 90179-10116 | ||||
| 90179-10169 | ||||
| 91511-80825 | ||||
| Linked diagrams | ||||
| 1903 | ||||
