ZZE123R-DHFGFW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - May 2004
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )2ZZGE..UKP

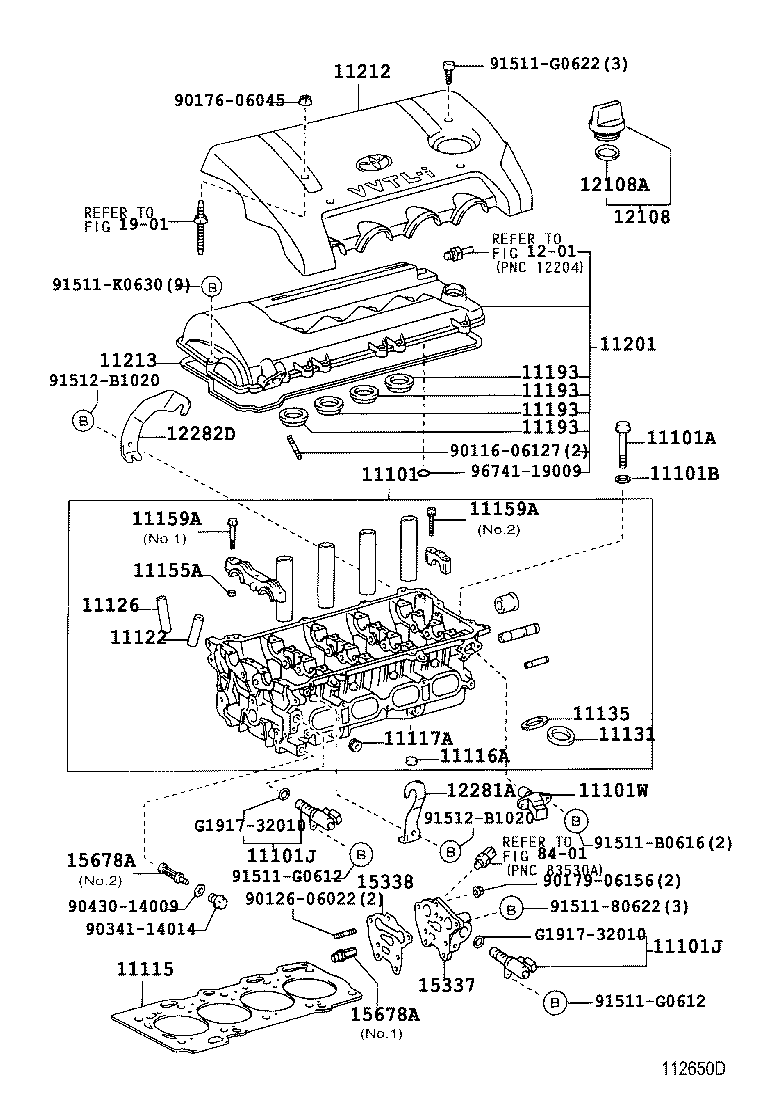

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101J 11101J 11101W 11115 11116A 11117A 11122 11126 11131 11135 11155A 11159A 11159A 11193 11193 11193 11193 11201 11212 11213 1201 12108 12108A 12281A 12282D 15337 15338 15678A 15678A 1901 8401 9011606127 9012606022 9017606045 9017906156 9034114014 9043014009 9151180622 91511B0616 91511G0612 91511G0612 91511G0622 91511K0630 91512B1020 91512B1020 9674119009 G191732010 G191732010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-29446

2ZZGE..ZZE123..UKP

 1
11101-29465

2ZZGE..ZZE123..UKP

 1
11101-29475

2ZZGE..ZZE123..UKP

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02140

2ZZGE..ZZE123..UKP

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 10
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-22040

2ZZGE..ZZE123..UKP

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-22040

2ZZGE..ZZE123..UKP

 1
11101W - SENSOR, CRANK POSITION, NO.1
90919-05007

2ZZGE..ZZE123..UKP

 1
11115 - GASKET, CYLINDER HEAD
11115-22060

2ZZGE..ZZE123..UKP

 1
11116A - PLUG, TIGHT, NO.1
96411-41800

2ZZGE..ZZE123..UKP

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-27003

2ZZGE..ZZE123..UKP

 6
11122 - BUSH, INTAKE VALVE GUIDE
11122-88600

2ZZGE..ZZE123..UKP

STD

 8
11123-88600

2ZZGE..ZZE123..UKP

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-88600

2ZZGE..ZZE123..UKP

STD

 8
11123-88600

2ZZGE..ZZE123..UKP

O/S 0.05

 8
11131 - SEAT, INTAKE VALVE
11131-88600

2ZZGE..ZZE123..UKP

STD

 8
11132-88600

2ZZGE..ZZE123..UKP

O/S 0.03

 8
11131-88601

2ZZGE..ZZE123..UKP

STD

 8
11132-88601

2ZZGE..ZZE123..UKP

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11135-88600

2ZZGE..ZZE123..UKP

STD

 8
11135-88601

2ZZGE..ZZE123..UKP

STD

 8
11136-88601

2ZZGE..ZZE123..UKP

O/S 0.03

 8
11136-88600

2ZZGE..ZZE123..UKP

O/S 0.03

 8
11155A - PIN, RING W/HEAD
90250-05021

2ZZGE..ZZE123..UKP

 18
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07001

2ZZGE..ZZE123..UKP

NO.1

 4
90119-07002

2ZZGE..ZZE123..UKP

NO.2

 16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07001

2ZZGE..ZZE123..UKP

NO.1

 4
90119-07002

2ZZGE..ZZE123..UKP

NO.2

 16
11193 - GASKET, SPARK PLUG TUBE
11193-15010

2ZZGE..ZZE123..UKP

 4
11193 - GASKET, SPARK PLUG TUBE
11193-15010

2ZZGE..ZZE123..UKP

 4
11193 - GASKET, SPARK PLUG TUBE
11193-15010

2ZZGE..ZZE123..UKP

 4
11193 - GASKET, SPARK PLUG TUBE
11193-15010

2ZZGE..ZZE123..UKP

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-88600

2ZZGE..ZZE123..UKP

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-22080

2ZZGE..ZZE123..UKP

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-88600

2ZZGE..ZZE123..UKP

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

2ZZGE..ZZE123..UKP

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2ZZGE..ZZE123..UKP

 1
12281A - HANGER, ENGINE, NO.1
12281-88600

2ZZGE..ZZE123..UKP

 1
12282D - HANGER, ENGINE, NO.2
12282-88600

2ZZGE..ZZE123..UKP

 1
15337 - HOUSING, CAM TIMING CONTROL VALVE
15337-88600

2ZZGE..ZZE123..UKP

 1
15338 - GASKET, CAM TIMING OIL CONTROL VALVE HOUSING
15338-88600

2ZZGE..ZZE123..UKP

 1
15338-22010

2ZZGE..ZZE123..UKP

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

2ZZGE..ZZE123..UKP

NO.2

 1
15678-46010

2ZZGE..ZZE123..UKP

NO.1

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

2ZZGE..ZZE123..UKP

NO.2

 1
15678-46010

2ZZGE..ZZE123..UKP

NO.1

 1
Common parts
90116-06127
90126-06022
90176-06045
90179-06156
90341-14014
90430-14009
91511-80622
91511-B0616
91511-G0612
91511-G0622
91511-K0630
91512-B1020
96741-19009
G1917-32010
Linked diagrams
1201
1901
8401
