Toyota Corolla hb (ukp) ZZE123 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-88601	2ZZGE..ZZE123..UKP	11/2001 - 05/2004	1
17111-88601	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17118 - STAY, MANIFOLD
17118-22010	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17118-22010	2ZZGE..ZZE123..UKP	11/2001 - 05/2004	1
17125 - STAY, SURGE TANK, NO.1
17125-88600	2ZZGE..ZZE123..UKP	11/2001 - 05/2004	1
17125-88600	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17129 - TANK, INTAKE AIR SURGE
17109-22020	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17109-22020	2ZZGE..ZZE123..UKP	08/2003 - 05/2004	1
17109-88602	2ZZGE..ZZE123..UKP	11/2001 - 08/2003	1
17129B - PLUG
96411-43000	2ZZGE..ZZE123..UKP	05/2004 - 11/2005	1
96411-43000	2ZZGE..ZZE123..UKP	11/2001 - 08/2003	1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-88600	2ZZGE..ZZE123..UKP	11/2001 - 04/2002	1
17136-88601	2ZZGE..ZZE123..UKP	04/2002 - 05/2004	1
17136-88601	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17140-88600	2ZZGE..ZZE123..UKP	11/2001 - 02/2003	1
17140-88601	2ZZGE..ZZE123..UKP	02/2003 - 05/2004	1
17140-88601	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10169	2ZZGE..ZZE123..UKP NO.2	11/2001 - 05/2004	2
92122-80822	2ZZGE..ZZE123..UKP NO.1	11/2001 - 05/2004	1
90116-10169	2ZZGE..ZZE123..UKP NO.2	05/2004 - 12/2999	2
92122-80822	2ZZGE..ZZE123..UKP NO.1	05/2004 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10169	2ZZGE..ZZE123..UKP NO.2	11/2001 - 05/2004	2
92122-80822	2ZZGE..ZZE123..UKP NO.1	11/2001 - 05/2004	1
90116-10169	2ZZGE..ZZE123..UKP NO.2	05/2004 - 12/2999	2
92122-80822	2ZZGE..ZZE123..UKP NO.1	05/2004 - 12/2999	1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-88603	2ZZGE..ZZE123..UKP	11/2001 - 05/2004	1
17167-88603	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-88600	2ZZGE..ZZE123..UKP	11/2001 - 05/2004	1
17168-88600	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-22040	2ZZGE..ZZE123..UKP	06/2003 - 05/2004	1
17171-22040	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17171-88600	2ZZGE..ZZE123..UKP	11/2001 - 06/2003	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-88600	2ZZGE..ZZE123..UKP	11/2001 - 03/2003	1
17173-88601	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17173-88601	2ZZGE..ZZE123..UKP	03/2003 - 05/2004	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-22010	2ZZGE..ZZE123..UKP	06/2003 - 05/2004	1
17177-22010	2ZZGE..ZZE123..UKP	05/2004 - 12/2999	1
17177-88600	2ZZGE..ZZE123..UKP	11/2001 - 06/2003	1
Common parts
17361-88600
90105-08101
90105-08176
90105-08234
90105-10489
90116-08401
90119-10656
90126-10026
90179-08087
90179-08090
90179-08233
90179-10088
91511-C0825
91512-61030
91641-80825
91641-H0818
91641-H0820
91642-81028
92132-60818
92132-C0825

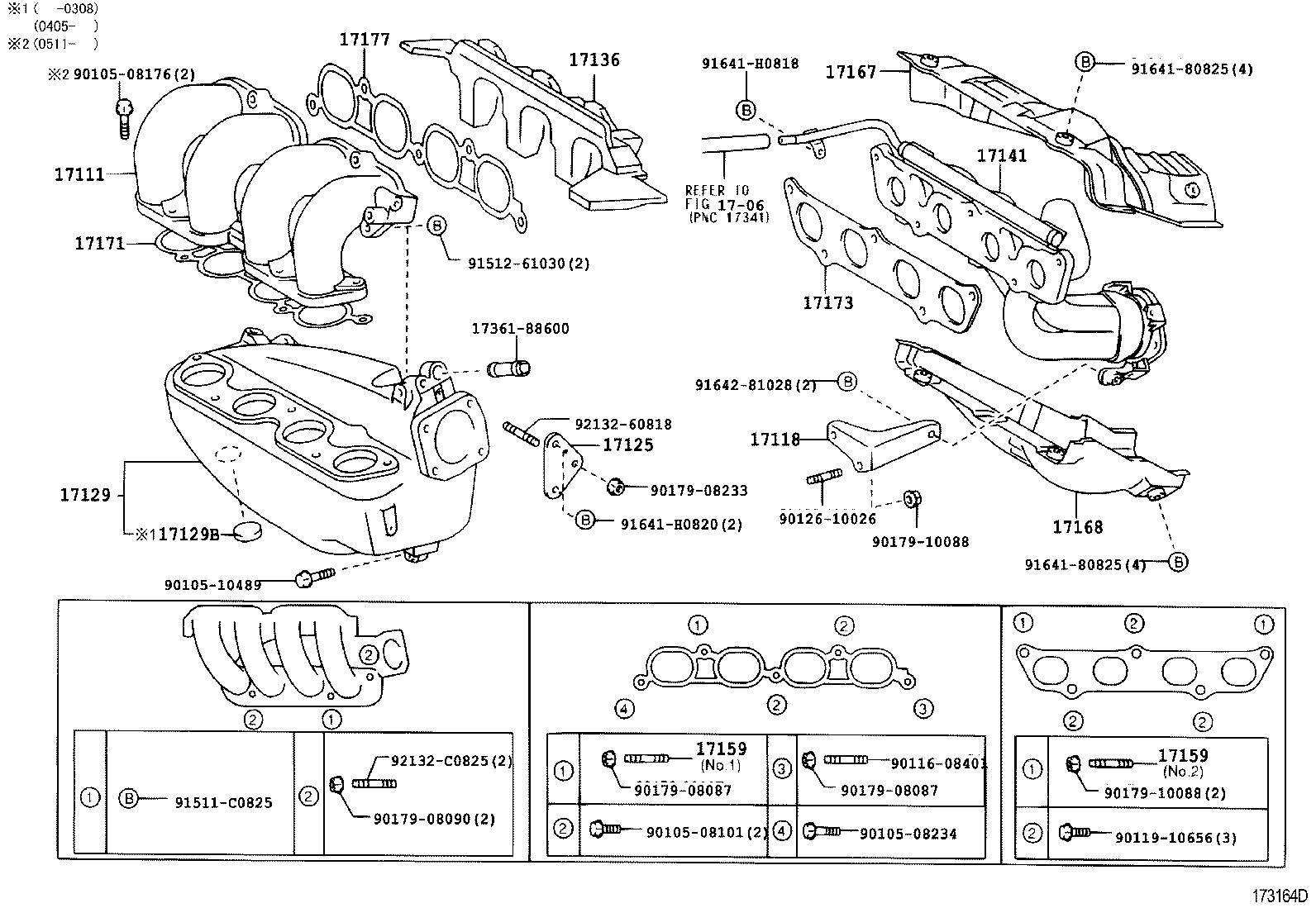

Linked diagrams
1706

ZZE123R-DGFGFW (2001)

(0111- )2ZZGE..UKP
