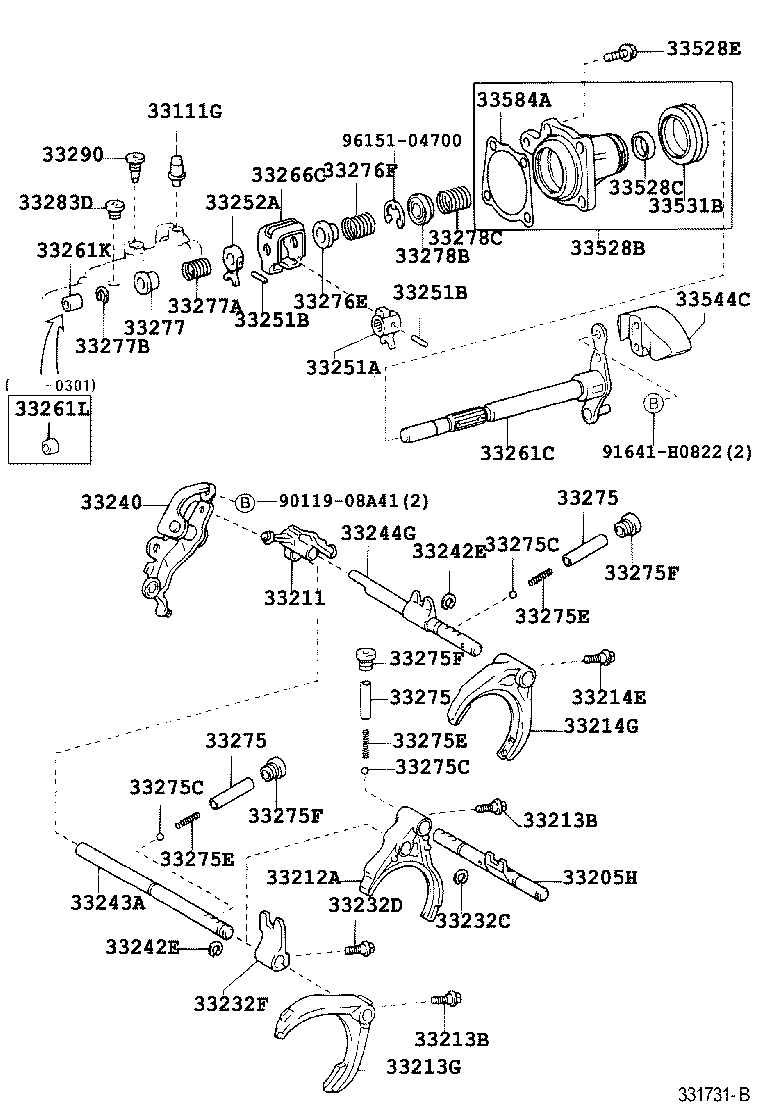

ZZE123L-DHFGFW (2001)
Toyota Corolla Hb (Ukp)
(0111- )ZZE123..UKP
C64
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 90930-03133 |
ZZE12#..UKP..MTM |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-20021 |
ZZE123..UKP |
1 | ||
| 33205-20021 |
ZZE123..UKP |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12050 |
ZZE123..UKP |
1 | ||
| 33211-12050 |
ZZE123..UKP |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-10013 |
NDE120,ZZE123..UKP..(5FS,6F) |
1 | ||
| 33212-10013 |
ZZE12#..UKP..MTM |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
ZZE123..UKP |
2 | ||
| 90105-06115 |
ZZE123..UKP |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
ZZE123..UKP |
2 | ||
| 90105-06115 |
ZZE123..UKP |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-20050 |
ZZE12#..UKP..MTM |
1 | ||
| 33213-20050 |
NDE120,ZZE123..UKP..(5FS,6F) |
1 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 90105-06115 |
ZZE12#..UKP..MTM |
1 | ||
| 90105-06115 |
NDE120,ZZE12#..UKP..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-20010 |
ZZE123..UKP |
1 | ||
| 33230-20010 |
ZZE123..UKP |
1 | ||
| 33232C - RING, SNAP (FOR 1ST & 2ND SHIFT HEAD) | ||||
| 90520-12003 |
NDE120,ZZE123..UKP |
1 | ||
| 90520-12003 |
ZZE12#..UKP..MTM |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-06115 |
ZZE123..UKP |
1 | ||
| 90105-06115 |
ZZE123..UKP |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-20020 |
ZZE123..UKP |
1 | ||
| 33232-20020 |
ZZE123..UKP |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-20030 |
ZZE123..UKP |
1 | ||
| 33240-20030 |
ZZE123..UKP |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
ZZE123..UKP |
2 | ||
| 90520-12003 |
ZZE123..UKP |
2 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
ZZE123..UKP |
2 | ||
| 90520-12003 |
ZZE123..UKP |
2 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-20070 |
ZZE121,123..UKP..MTM |
1 | ||
| 33243-20070 |
NDE120,ZZE123..UKP..(5FS,6F) |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-20051 |
ZZE123..UKP |
1 | ||
| 33244-20051 |
ZZE123..UKP |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20080 |
ZZE123..UKP |
1 | ||
| 33251-20080 |
ZZE123..UKP |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
ZZE12#..UKP..MTM L=25.5 |
2 | ||
| 90254-05016 |
NDE120,ZZE121,123..UKP..(5F,6F) L=25.5 |
2 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
ZZE12#..UKP..MTM L=25.5 |
2 | ||
| 90254-05016 |
NDE120,ZZE121,123..UKP..(5F,6F) L=25.5 |
2 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-20040 |
ZZE123..UKP |
1 | ||
| 33252-20040 |
ZZE123..UKP |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-12140 |
ZZE123..UKP |
1 | ||
| 33261-12141 |
ZZE123..UKP |
1 | ||
| 33261-12141 |
ZZE123..UKP |
1 | ||
| 33261K - BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90369-15001 |
ZZE123..UKP T=34.8 |
1 | ||
| 90369-15001 |
NDE120,ZZE121,123..UKP..(5F,6F) |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-15002 |
ZZE123..UKP T=10.4 |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-20040 |
ZZE123..UKP |
1 | ||
| 33266-20040 |
ZZE123..UKP |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NDE120,ZZE12#..UKP..(5F,6F) OD=10.7 |
3 | ||
| 33275-12041 |
ZZE12#..UKP..MTM OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NDE120,ZZE12#..UKP..(5F,6F) OD=10.7 |
3 | ||
| 33275-12041 |
ZZE12#..UKP..MTM OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NDE120,ZZE12#..UKP..(5F,6F) OD=10.7 |
3 | ||
| 33275-12041 |
ZZE12#..UKP..MTM OD=10.7 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZZE12#..UKP..MTM |
3 | ||
| 90360-10003 |
ZZE123..UKP |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZZE12#..UKP..MTM |
3 | ||
| 90360-10003 |
ZZE123..UKP |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZZE12#..UKP..MTM |
3 | ||
| 90360-10003 |
ZZE123..UKP |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12173 |
ZZE123..UKP |
3 | ||
| 90501-12173 |
ZZE123..UKP |
3 | ||
| 90501-12187 |
ZZE123..UKP |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12173 |
ZZE123..UKP |
3 | ||
| 90501-12173 |
ZZE123..UKP |
3 | ||
| 90501-12187 |
ZZE123..UKP |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12173 |
ZZE123..UKP |
3 | ||
| 90501-12173 |
ZZE123..UKP |
3 | ||
| 90501-12187 |
ZZE123..UKP |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZZE12#..UKP..MTM |
3 | ||
| 90341-12004 |
NDE120,ZZE12#..UKP..(5F,6F) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZZE12#..UKP..MTM |
3 | ||
| 90341-12004 |
NDE120,ZZE12#..UKP..(5F,6F) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZZE12#..UKP..MTM |
3 | ||
| 90341-12004 |
NDE120,ZZE12#..UKP..(5F,6F) |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-12030 |
ZZE123..UKP |
1 | ||
| 33276-12030 |
ZZE123..UKP |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-18126 |
ZZE123..UKP |
1 | ||
| 90501-18126 |
ZZE123..UKP |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-12020 |
ZZE123..UKP |
1 | ||
| 33277-12020 |
ZZE123..UKP |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-18123 |
ZZE123..UKP |
1 | ||
| 90501-18123 |
ZZE123..UKP |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
ZZE12#..UKP..MTM |
1 | ||
| 90523-12003 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 33278B - SUPPORT, SHIFT & SELECT LEVER SHAFT | ||||
| 33278-12020 |
ZZE123..UKP |
1 | ||
| 33278-12020 |
ZZE123..UKP |
1 | ||
| 33278C - SPRING, SHIFT & SELECT LEVER SHAFT | ||||
| 90501-26087 |
ZZE123..UKP |
1 | ||
| 90501-26087 |
ZZE123..UKP |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-14008 |
ZZE123..UKP |
1 | ||
| 90341-14008 |
ZZE123..UKP |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-33011 |
ZZE123..UKP |
1 | ||
| 33290-52040 |
ZZE123..UKP |
1 | ||
| 33290-33011 |
ZZE123..UKP |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-12121 |
ZZE123..UKP |
1 | ||
| 33506-12122 |
ZZE123..UKP |
1 | ||
| 33506-12122 |
ZZE123..UKP |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
CDE120,NDE120,ZZE120,123..UKP..(5F,6F) |
1 | ||
| 90311-18013 |
CDE120,ZZE123..UKP..(HDCR,TWC) |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
ZZE12#..UKP..MTM *10-1.25PX25-19.8 |
2 | ||
| 91612-61025 |
ZZE12#..UKP..MTM *10-1.25PX25-25 |
2 | ||
| 91612-61025 |
ZZE12#..UKP..MTM *10-1.25PX25-25 |
2 | ||
| 90119-10288 |
NDE120,ZZE12#..UKP..(5F,6F) *10-1.25PX25-19.8 |
2 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12030 |
ZZE123..UKP |
1 | ||
| 33531-12030 |
ZZE123..UKP |
1 | ||
| 33544C - DAMPER, SHIFT LEVER | ||||
| 33183-12020 |
ZZE123..UKP |
1 | ||
| 33183-12021 |
ZZE123..UKP |
1 | ||
| 33183-12021 |
ZZE123..UKP |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-12060 |
ZZE123..UKP |
1 | ||
| 33584-12060 |
NDE120,ZZE123..UKP..(5F,6F) |
1 | ||
| Common parts | ||||
| 90119-08A41 | ||||
| 91641-H0822 | ||||
| 96151-04700 | ||||
