ZZE123L-DGFGFW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )2ZZGE..UKP

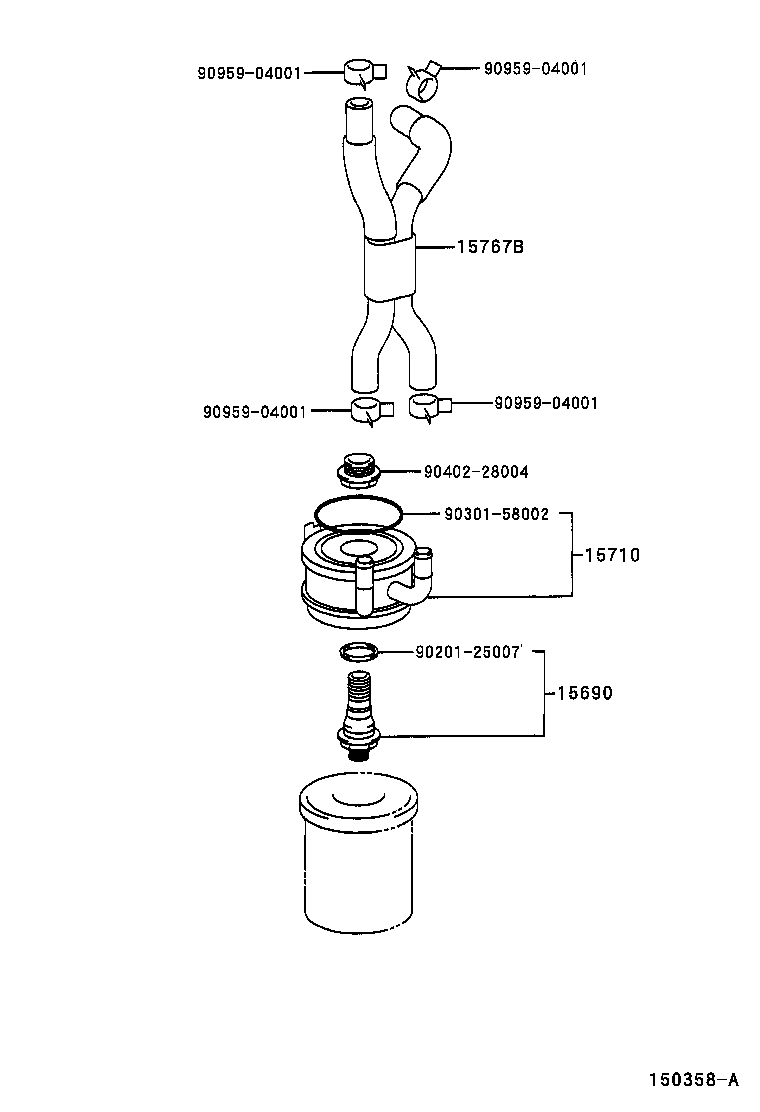

Click highlighted areas on diagram

diagram 15690 15710 15767B 9020125007 9030158002 9040228004 9095904001 9095904001 9095904001 9095904001
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15695-88411

2ZZGE..ZZE123..UKP

 1
15695-88411

2ZZGE..ZZE123..UKP

 1
15710 - COOLER ASSY, OIL
15710-88610

2ZZGE..ZZE123..UKP

 1
15710-88610

2ZZGE..ZZE123..UKP

 1
15767B - HOSE, WATER BY-PASS, NO.4
16281-88600

2ZZGE..ZZE123..UKP

 1
16281-88600

2ZZGE..ZZE123..UKP

 1
Common parts
90201-25007
90301-58002
90402-28004
90959-04001
