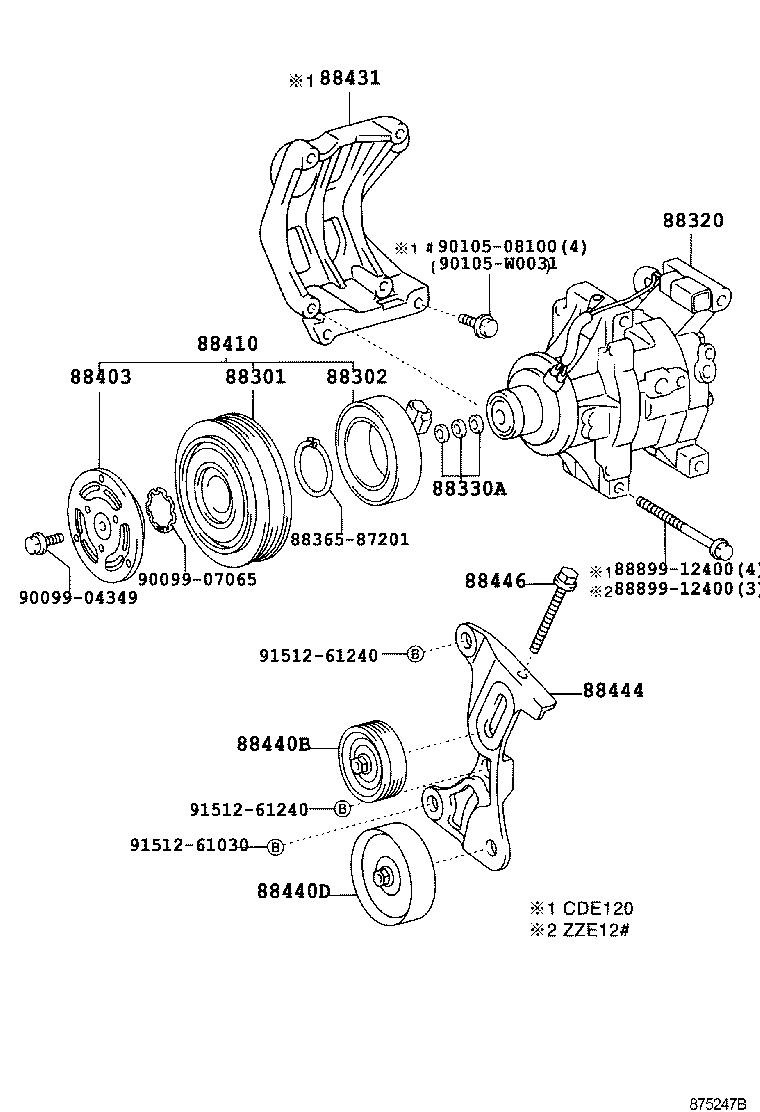

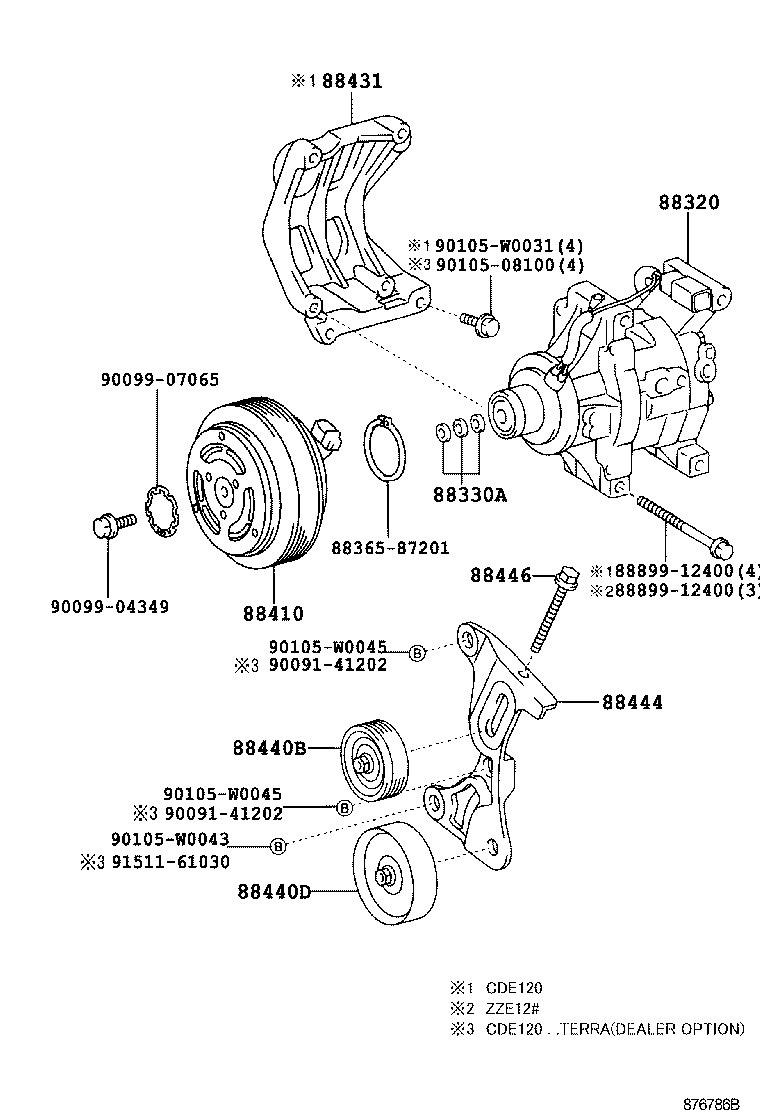

Toyota Corolla hb (ukp) ZZE121 HEATING & AIR CONDITIONING - COMPRESSOR

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-1A170	ZZE12#..UKP	11/2001 - 05/2004	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A050	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88320 - COMPRESSOR ASSY, COOLER
88320-1A550	ZZE12#..UKP	01/2003 - 09/2003	1
88320-1A481	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
88320-1A481	CDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88320-1A481	ZZE12#..UKP	09/2003 - 05/2004	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	ZZE12#..UKP	01/2003 - 05/2004	1
88335-14020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-1A020	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88410 - CLUTCH ASSY, MAGNET
88410-1A220	ZZE12#..UKP	11/2001 - 01/2003	1
88410-1A260	ZZE12#..UKP MAKER OPTION	01/2003 - 09/2003	1
88410-1A290	ZZE12#..UKP	05/2004 - 12/2999	1
88410-1A290	ZZE12#..UKP MAKER OPTION	09/2003 - 05/2004	1
Common parts
88365-87201
88899-12400
90099-04349
90099-07065
90105-08100
90105-W0031
91512-61030
91512-61240

ZZE121R-DHPDKW (2001)
