ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

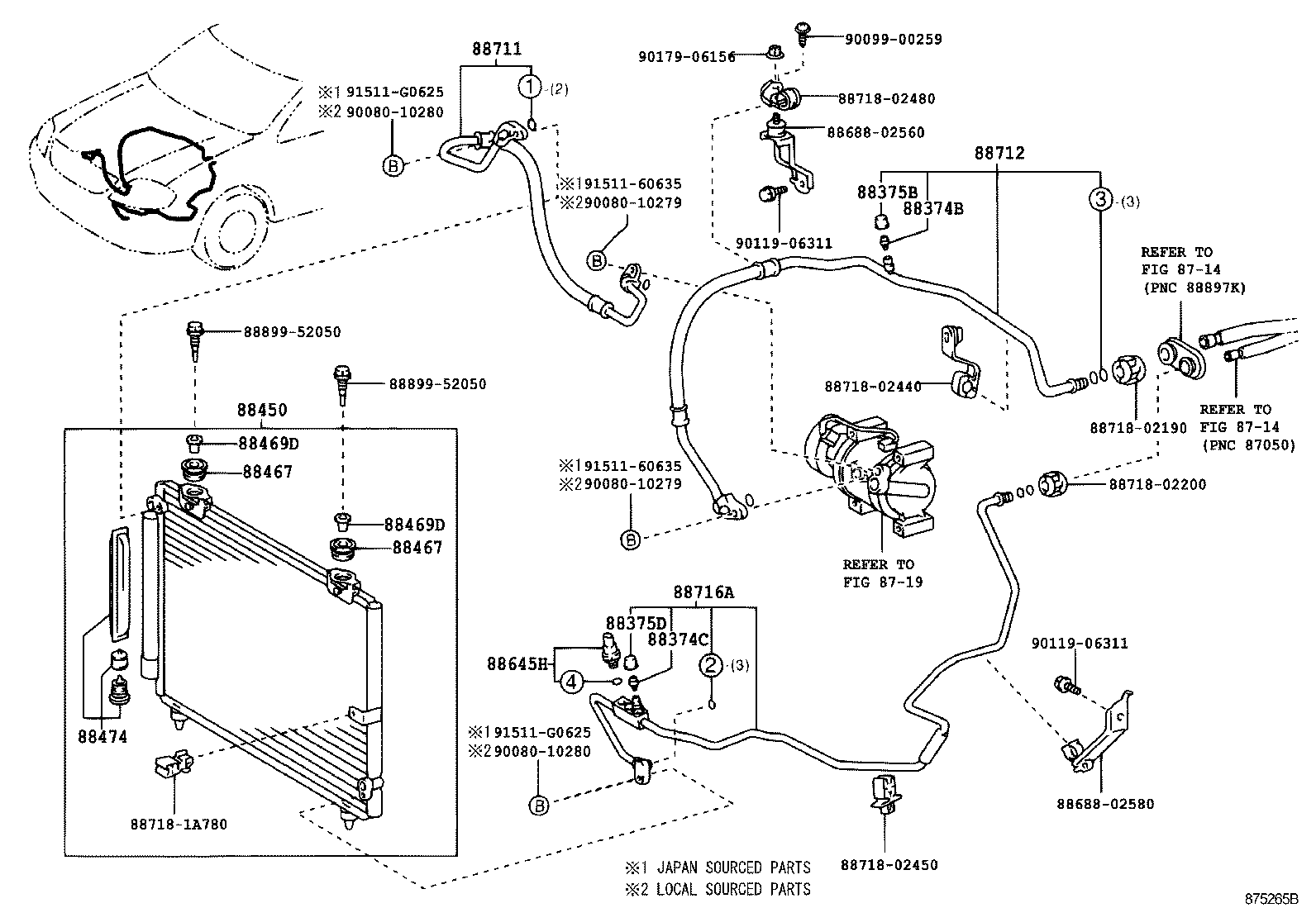

ILLUST NO. 1 OF 2(0111-0405)ZZE12#..UKP..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88469D 88469D 88474 88645H 8868802560 8868802580 88711 88712 88716A 8871802190 8871802200 8871802440 8871802450 8871802480 887181A780 8889952050 8889952050 9008010279 9008010279 9008010280 9008010280 9009900259 9011906311 9011906311 9017906156 9151160635 9151160635 91511G0625 91511G0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CDE120,NDE120,ZZE12#..UKP

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

CDE120,NDE120,ZZE12#..UKP

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02140

CDE120,ZZE12#..UKP..RHD

 1
88450-02240

CDE120,NDE120,ZZE12#..UKP

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88474 - DRYER, COOLER
88474-17010

CDE120,ZZE12#..UKP

 1
88474-47010

CDE120,NDE120,ZZE12#..UKP

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

CDE120,ZZE12#..UKP..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02170

ZZE12#..UKP

MAKER OPTION

 1
88703-02090

ZZE120,121..UKP

DEALER OPTION

 1
88703-02090

ZZE12#..UKP

 1
88703-02240

ZZE12#..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02180

ZZE12#..UKP..RHD

 1
88704-02390

ZZE12#..UKP..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02280

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02370

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88710-02730

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

 1
88716-02480

CDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)

MAKER OPTION

 1
Common parts
88688-02560
88688-02580
88718-02190
88718-02200
88718-02440
88718-02450
88718-02480
88718-1A780
88899-52050
90080-10279
90080-10280
90099-00259
90119-06311
90179-06156
91511-60635
91511-G0625
Linked diagrams
8714
8719

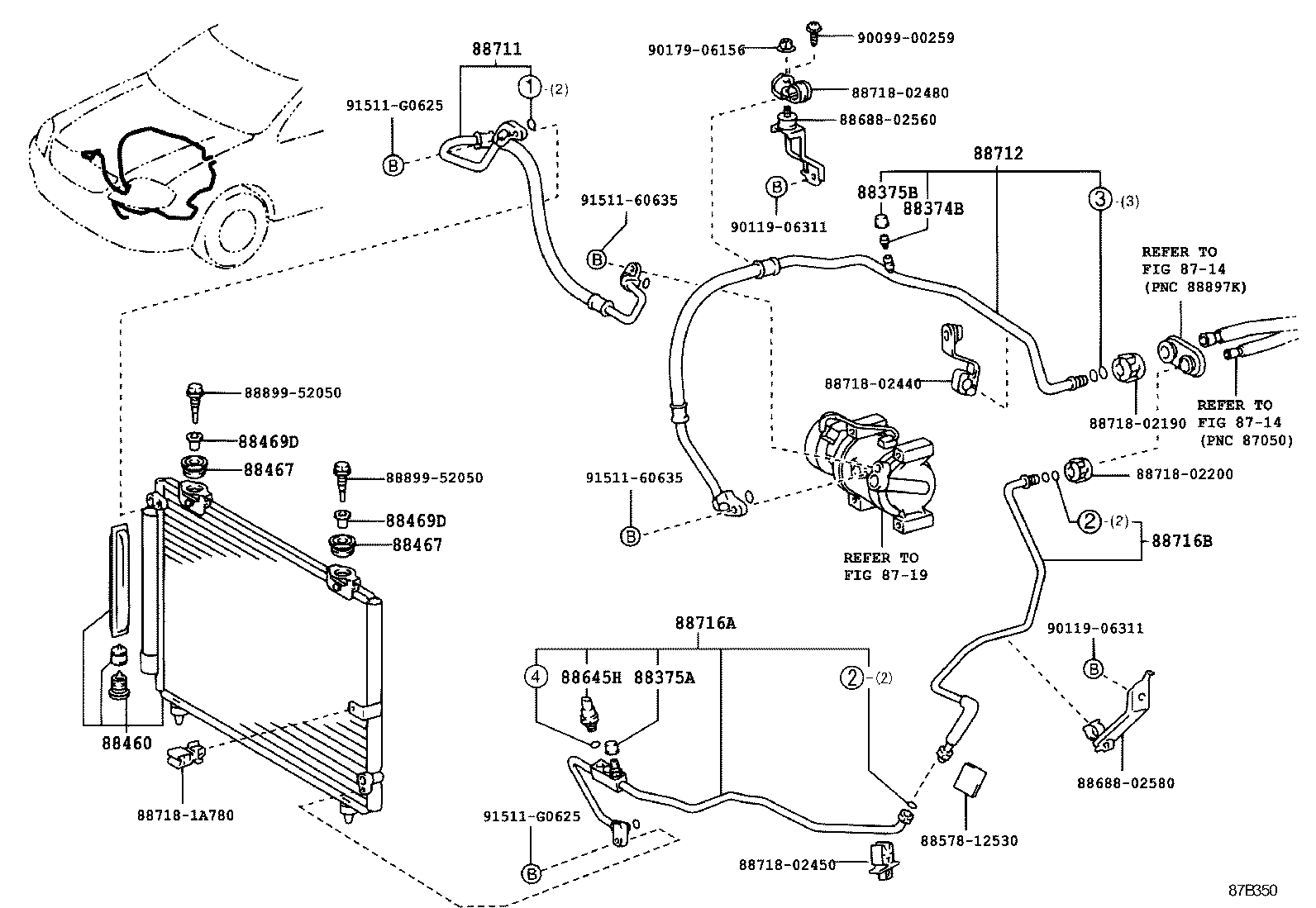

ILLUST NO. 1 OF 2(0111-0301)ZZE12#..UKP..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 88374B 88375A 88375B 88460 88467 88467 88469D 88469D 8857812530 88645H 8868802560 8868802580 88711 88712 88716A 88716B 8871802190 8871802200 8871802440 8871802450 8871802480 887181A780 8889952050 8889952050 9009900259 9011906311 9011906311 9017906156 9151160635 9151160635 91511G0625 91511G0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CDE120,ZZE120,121..UKP..(DCR,HDCR,HTWC)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CDE120,NDE120,ZZE12#..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-02100

CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88645H - SWITCH, PRESSURE NO.1
88645-60030

CDE120,ZZE12#..UKP..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02170

ZZE12#..UKP

MAKER OPTION

 1
88703-02090

ZZE120,121..UKP

DEALER OPTION

 1
88703-02090

ZZE12#..UKP

 1
88703-02240

ZZE12#..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02180

ZZE12#..UKP..RHD

 1
88704-02390

ZZE12#..UKP..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02280

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02370

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88710-02730

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

 1
88716-02480

CDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02500

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02680

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

 1
88716-02500

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88716-02310

CDE120,ZZE120,121..UKP..RHD

 1
Common parts
88578-12530
88688-02560
88688-02580
88718-02190
88718-02200
88718-02440
88718-02450
88718-02480
88718-1A780
88899-52050
90099-00259
90119-06311
90179-06156
91511-60635
91511-G0625
Linked diagrams
8714
8719

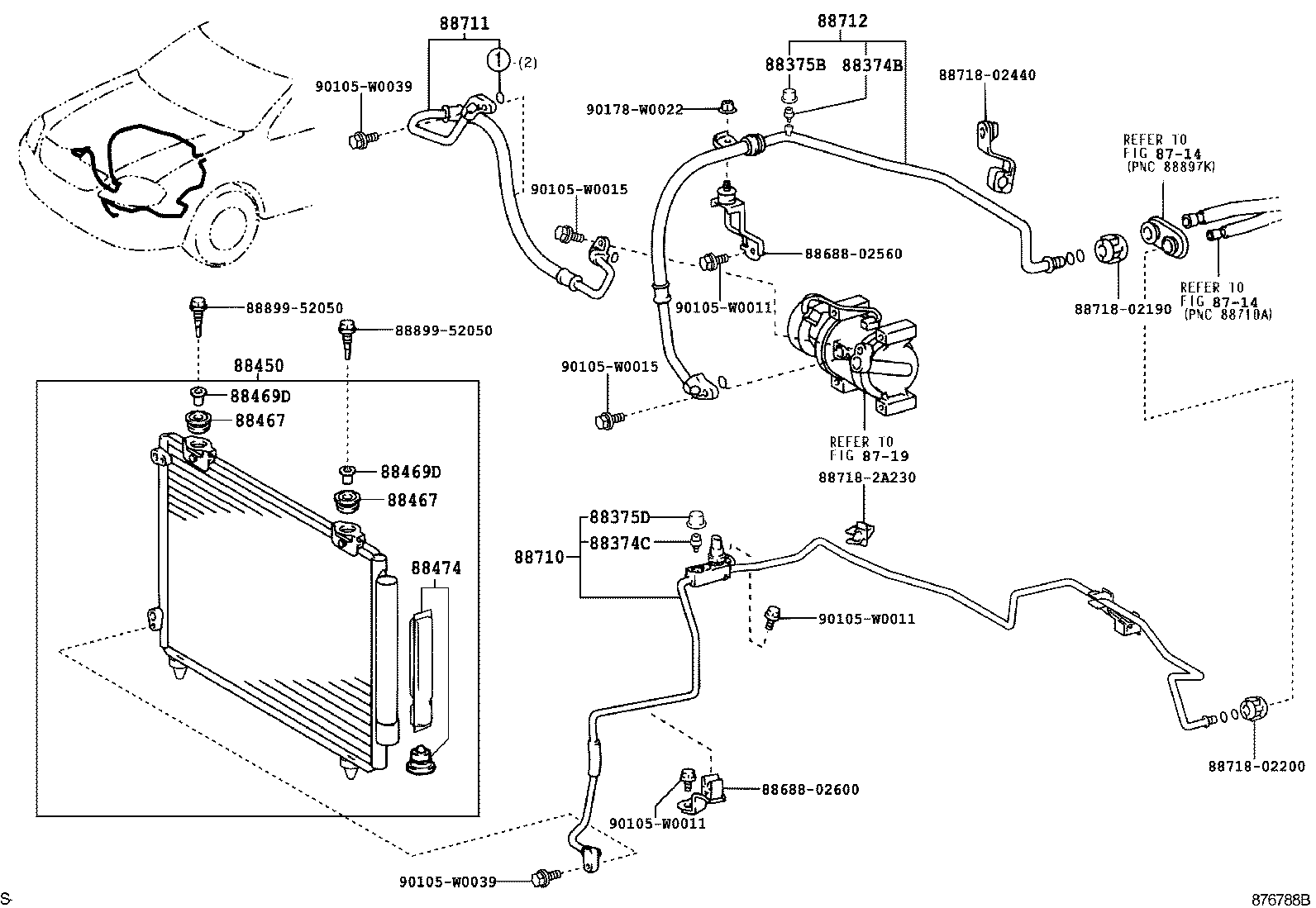

ILLUST NO. 1 OF 2(0405- )ZZE12#..UKP..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88469D 88469D 88474 8868802560 8868802600 88710 88711 88712 8871802190 8871802200 8871802440 887182A230 8889952050 8889952050 90105W0011 90105W0011 90105W0011 90105W0015 90105W0015 90105W0039 90105W0039 90178W0022
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CDE120,NDE120,ZZE12#..UKP

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

CDE120,NDE120,ZZE12#..UKP

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02140

CDE120,ZZE12#..UKP..RHD

 1
88450-02240

CDE120,NDE120,ZZE12#..UKP

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88474 - DRYER, COOLER
88474-17010

CDE120,ZZE12#..UKP

 1
88474-47010

CDE120,NDE120,ZZE12#..UKP

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-02610

CDE120,NDE120,ZZE12#..UKP..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02170

ZZE12#..UKP

MAKER OPTION

 1
88703-02090

ZZE120,121..UKP

DEALER OPTION

 1
88703-02090

ZZE12#..UKP

 1
88703-02240

ZZE12#..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02180

ZZE12#..UKP..RHD

 1
88704-02390

ZZE12#..UKP..RHD

 1
Common parts
88688-02560
88688-02600
88718-02190
88718-02200
88718-02440
88718-2A230
88899-52050
90105-W0011
90105-W0015
90105-W0039
90178-W0022
Linked diagrams
8714
8719

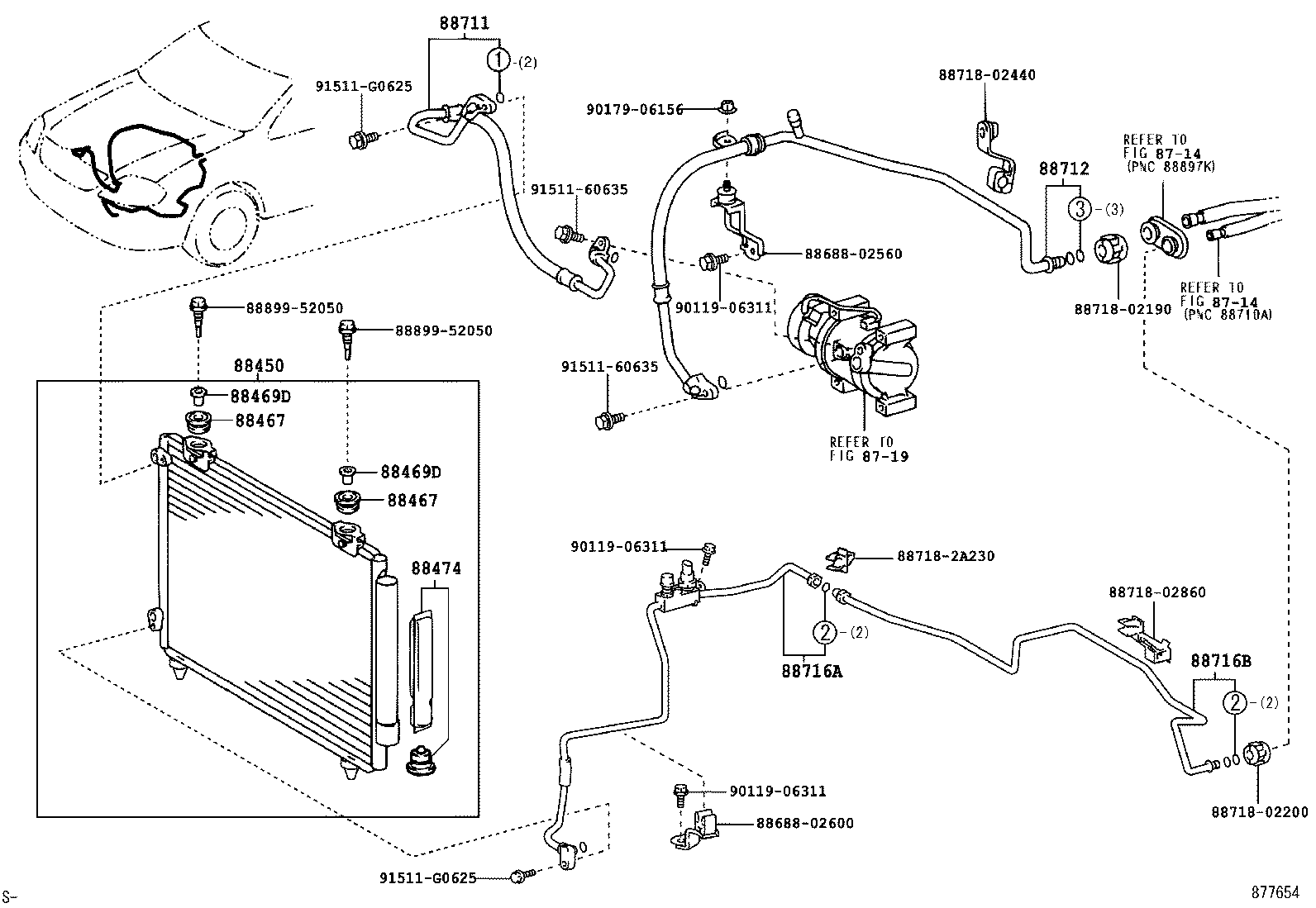

ILLUST NO. 1 OF 2(0405- )ZZE12#..UKP..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 88450 88467 88467 88469D 88469D 88474 8868802560 8868802600 88711 88712 88716A 88716B 8871802190 8871802200 8871802440 8871802860 887182A230 8889952050 8889952050 9011906311 9011906311 9011906311 9017906156 9151160635 9151160635 91511G0625 91511G0625
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-02140

CDE120,ZZE12#..UKP..RHD

 1
88450-02240

CDE120,NDE120,ZZE12#..UKP

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88474 - DRYER, COOLER
88474-17010

CDE120,ZZE12#..UKP

 1
88474-47010

CDE120,NDE120,ZZE12#..UKP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02170

ZZE12#..UKP

MAKER OPTION

 1
88703-02090

ZZE120,121..UKP

DEALER OPTION

 1
88703-02090

ZZE12#..UKP

 1
88703-02240

ZZE12#..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02180

ZZE12#..UKP..RHD

 1
88704-02390

ZZE12#..UKP..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02280

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02370

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88710-02730

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

 1
88716-02480

CDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02500

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02680

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

 1
88716-02500

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88716-02310

CDE120,ZZE120,121..UKP..RHD

 1
Common parts
88688-02560
88688-02600
88718-02190
88718-02200
88718-02440
88718-02860
88718-2A230
88899-52050
90119-06311
90179-06156
91511-60635
91511-G0625
Linked diagrams
8714
8719

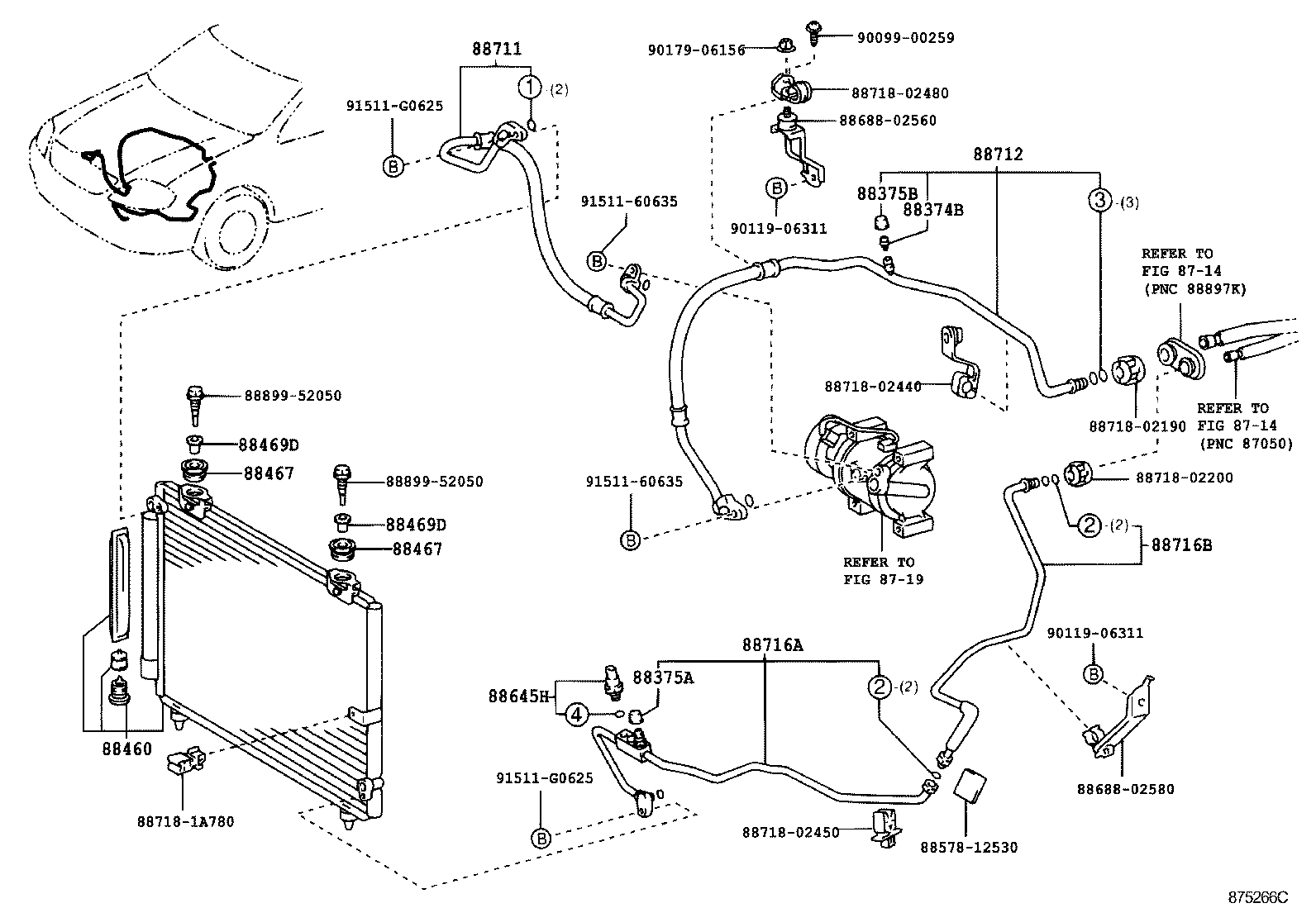

ILLUST NO. 1 OF 2(0301-0405)ZZE12#..UKP..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 88374B 88375A 88375B 88460 88467 88467 88469D 88469D 8857812530 88645H 8868802560 8868802580 88711 88712 88716A 88716B 8871802190 8871802200 8871802440 8871802450 8871802480 887181A780 8889952050 8889952050 9009900259 9011906311 9011906311 9017906156 9151160635 9151160635 91511G0625 91511G0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CDE120,ZZE120,121..UKP..(DCR,HDCR,HTWC)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CDE120,NDE120,ZZE12#..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-02100

CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467-12180

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469-52010

CDE120,NDE120,ZZE120,121..UKP..TERRA

 2
88645H - SWITCH, PRESSURE NO.1
88645-60030

CDE120,ZZE12#..UKP..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02170

ZZE12#..UKP

MAKER OPTION

 1
88703-02090

ZZE120,121..UKP

DEALER OPTION

 1
88703-02090

ZZE12#..UKP

 1
88703-02240

ZZE12#..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02180

ZZE12#..UKP..RHD

 1
88704-02390

ZZE12#..UKP..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02280

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02370

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88710-02730

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

 1
88716-02480

CDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02500

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02680

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

 1
88716-02500

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88716-02310

CDE120,ZZE120,121..UKP..RHD

 1
Common parts
88578-12530
88688-02560
88688-02580
88718-02190
88718-02200
88718-02440
88718-02450
88718-02480
88718-1A780
88899-52050
90099-00259
90119-06311
90179-06156
91511-60635
91511-G0625
Linked diagrams
8714
8719
