ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
Production
Nov 2001
-
Feb 2007
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

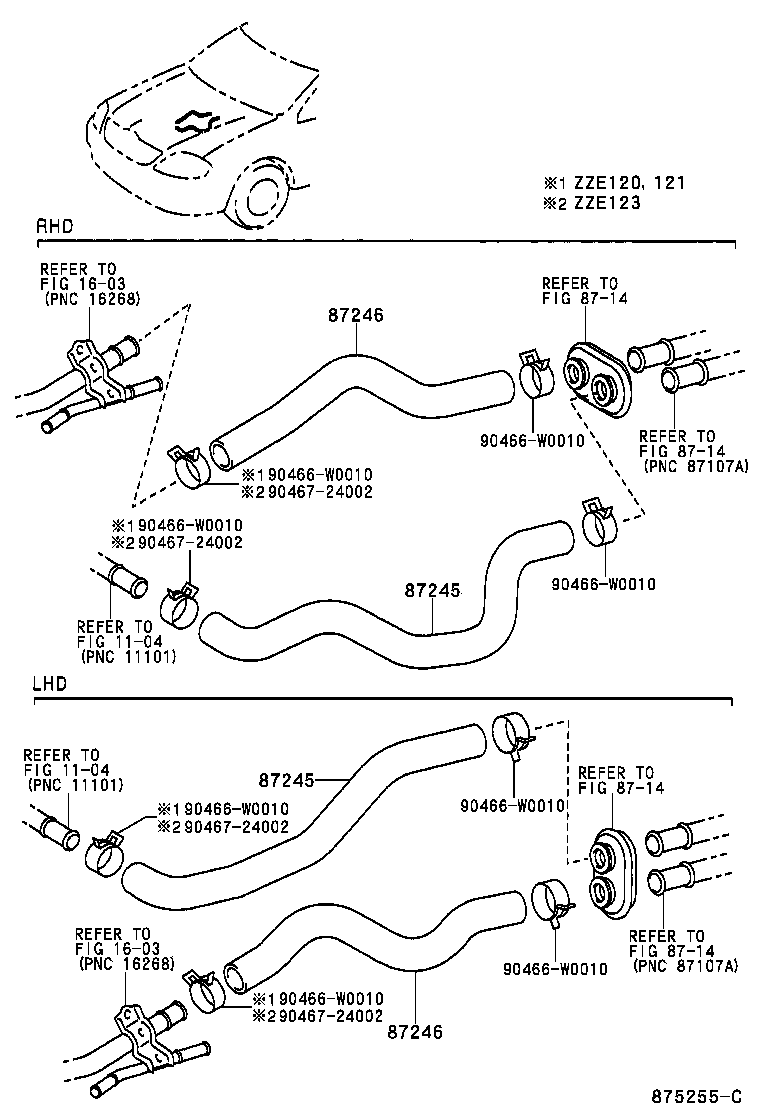

(0111- )ZZE12#..UKP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-02890 |
ZZE120,121..UKP..RHD |
1 | ||
| 87245-02370 |
ZZE120,121..UKP..RHD |
1 | ||
| 87245-02371 |
ZZE120,121..UKP..RHD |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-02890 |
ZZE120,121..UKP..RHD |
1 | ||
| 87245-02370 |
ZZE120,121..UKP..RHD |
1 | ||
| 87245-02371 |
ZZE120,121..UKP..RHD |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02380 |
ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL |
1 | ||
| 87245-02380 |
ZZE120,121..UKP..RHD |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02380 |
ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL |
1 | ||
| 87245-02380 |
ZZE120,121..UKP..RHD |
1 | ||
| Common parts | ||||
| 90466-W0010 | ||||
| 90467-24002 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
