COROLLA HB (UKP)
ZZE121R-DHPDKW (2001)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0111-0405)UKP

Click highlighted areas on diagram

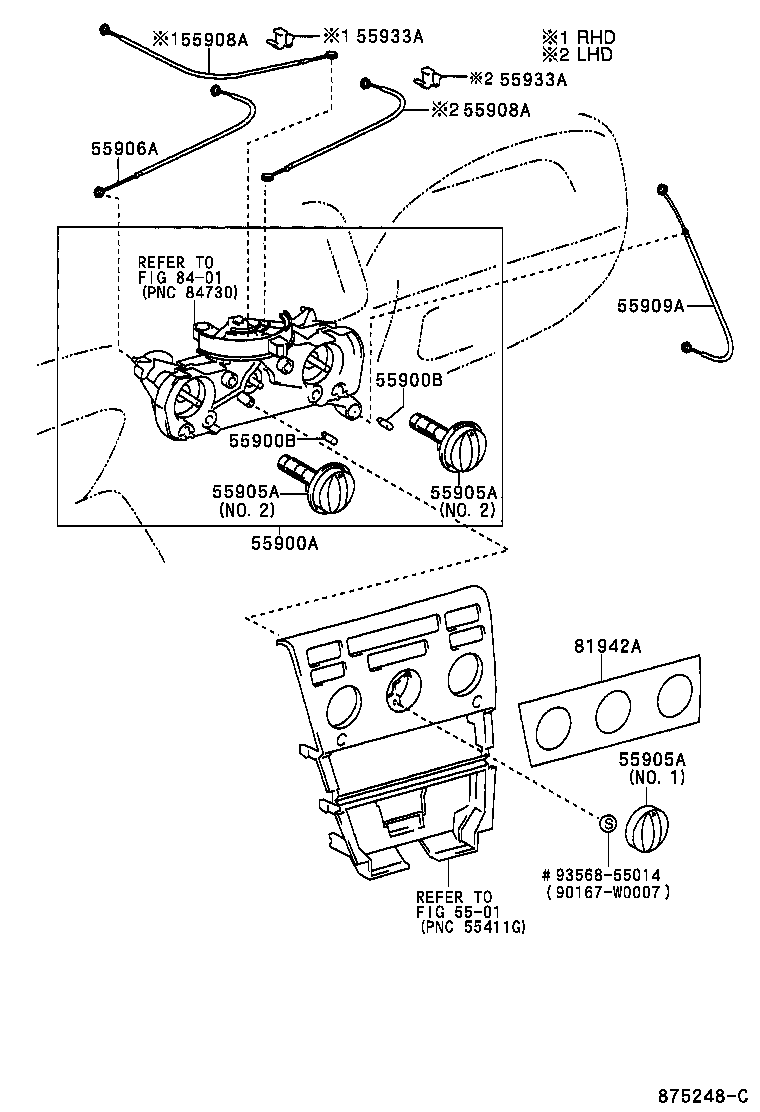

CONTROL PANEL

Part #	Description	Period	Qty
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-02141	CDE120,NDE120,ZZE120,121..UKP..TERRA	08/2004 - 12/2999	1
55900-02140	CDE120,ZZE120,121..UKP..TERRA	05/2004 - 08/2004	1
55900-02180	CDE120,ZZE120,121..UKP	11/2001 - 04/2004	1
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	CDE120,ZZE120,121..UKP	11/2001 - 04/2004	2
90981-WB011	CDE120,NDE120,ZZE120,121..UKP..TERRA	08/2004 - 12/2999	2
90069-98005	CDE120,ZZE120,121..UKP..TERRA	05/2004 - 07/2004	2
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	CDE120,ZZE120,121..UKP	11/2001 - 04/2004	2
90981-WB011	CDE120,NDE120,ZZE120,121..UKP..TERRA	08/2004 - 12/2999	2
90069-98005	CDE120,ZZE120,121..UKP..TERRA	05/2004 - 07/2004	2
55905A - KNOB, HEATER CONTROL
55905-02160	CDE120,ZZE120,121..UKP NO.1	11/2001 - 05/2004	1
55905-02270	CDE120,ZZE120,121..UKP NO.2	11/2001 - 04/2004	2
55905-0F030	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1	05/2004 - 12/2999	1
55905-02270	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2	05/2004 - 12/2999	2
55905A - KNOB, HEATER CONTROL
55905-02160	CDE120,ZZE120,121..UKP NO.1	11/2001 - 05/2004	1
55905-02270	CDE120,ZZE120,121..UKP NO.2	11/2001 - 04/2004	2
55905-0F030	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1	05/2004 - 12/2999	1
55905-02270	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2	05/2004 - 12/2999	2
55905A - KNOB, HEATER CONTROL
55905-02160	CDE120,ZZE120,121..UKP NO.1	11/2001 - 05/2004	1
55905-02270	CDE120,ZZE120,121..UKP NO.2	11/2001 - 04/2004	2
55905-0F030	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1	05/2004 - 12/2999	1
55905-02270	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2	05/2004 - 12/2999	2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-02110	CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
55906-02050	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-02050	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-02050	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-02050	ZZE120;ZZE121..5D..SOL;CDE120..5D..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;CDE120..LHD..3D..DCRL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA	11/2001 - 05/2004	1
55909-02080	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
55933A - CLAMP, HEATER CONTROL CABLE
55933-0D010	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	2
55933-0D010	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
55933A - CLAMP, HEATER CONTROL CABLE
55933-0D010	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	2
55933-0D010	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-02190	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
Common parts
90167-W0007
93568-55014
Linked diagrams
5501
8401

ILLUST NO. 1 OF 3(0111- )UKP

Click highlighted areas on diagram

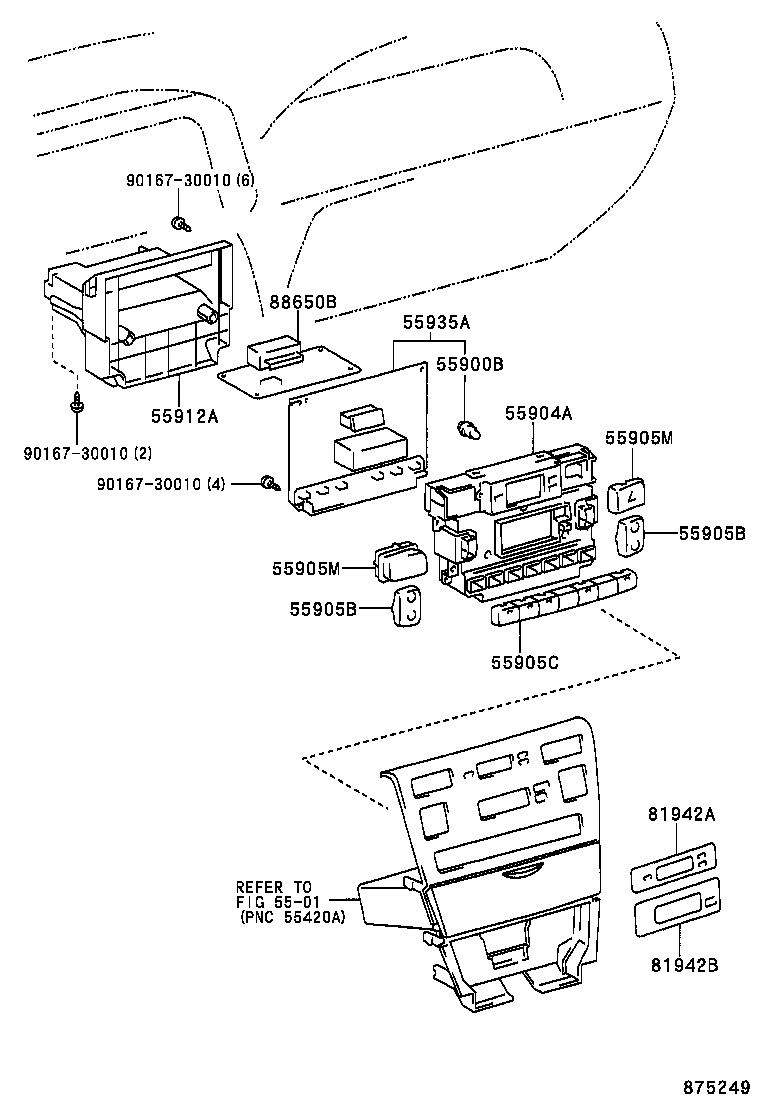

CONTROL PANEL--PUSH TYPE

Part #	Description	Period	Qty
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	CDE120,ZZE120,121..UKP	11/2001 - 04/2004	2
90981-WB011	CDE120,NDE120,ZZE120,121..UKP..TERRA	08/2004 - 12/2999	2
90069-98005	CDE120,ZZE120,121..UKP..TERRA	05/2004 - 07/2004	2
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-02190	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
Common parts
90167-30010
Linked diagrams
5501

ILLUST NO. 3 OF 3(0111- )UKP..RHD

Click highlighted areas on diagram

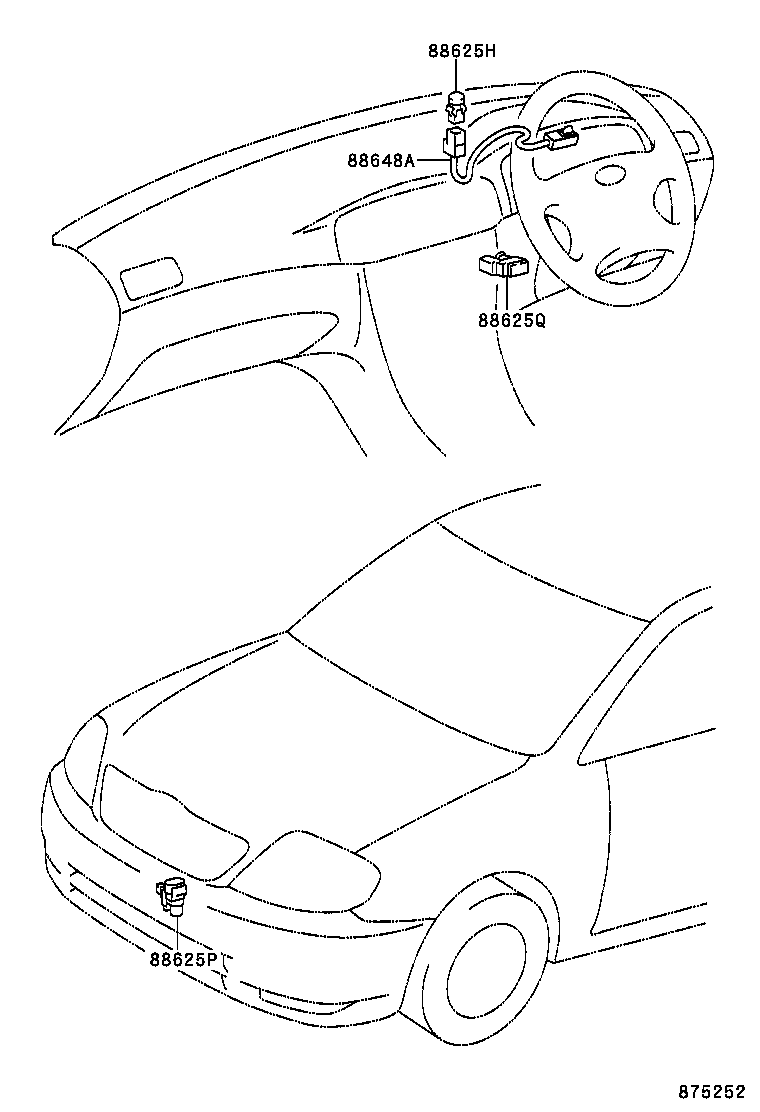

SENSOR

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF 3(0405- )UKP

Click highlighted areas on diagram

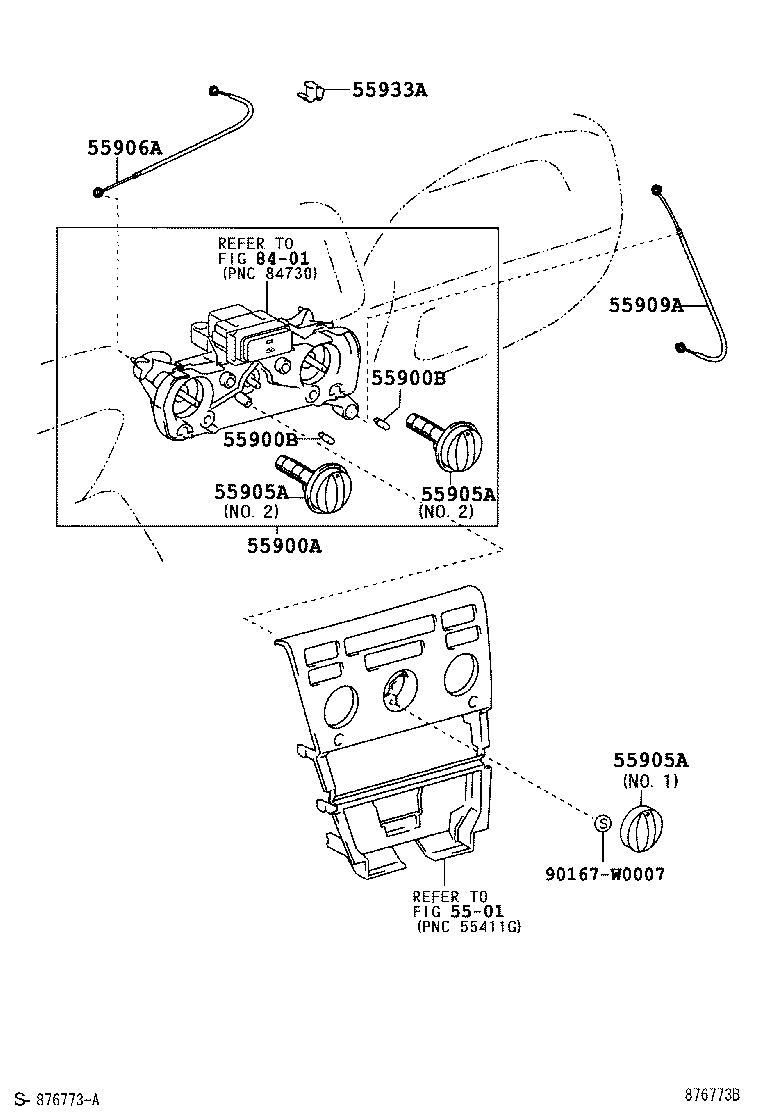

CONTROL PANEL

Part #	Description	Period	Qty
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-02141	CDE120,NDE120,ZZE120,121..UKP..TERRA	08/2004 - 12/2999	1
55900-02140	CDE120,ZZE120,121..UKP..TERRA	05/2004 - 08/2004	1
55900-02180	CDE120,ZZE120,121..UKP	11/2001 - 04/2004	1
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	CDE120,ZZE120,121..UKP	11/2001 - 04/2004	2
90981-WB011	CDE120,NDE120,ZZE120,121..UKP..TERRA	08/2004 - 12/2999	2
90069-98005	CDE120,ZZE120,121..UKP..TERRA	05/2004 - 07/2004	2
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	CDE120,ZZE120,121..UKP	11/2001 - 04/2004	2
90981-WB011	CDE120,NDE120,ZZE120,121..UKP..TERRA	08/2004 - 12/2999	2
90069-98005	CDE120,ZZE120,121..UKP..TERRA	05/2004 - 07/2004	2
55905A - KNOB, HEATER CONTROL
55905-02160	CDE120,ZZE120,121..UKP NO.1	11/2001 - 05/2004	1
55905-02270	CDE120,ZZE120,121..UKP NO.2	11/2001 - 04/2004	2
55905-0F030	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1	05/2004 - 12/2999	1
55905-02270	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2	05/2004 - 12/2999	2
55905A - KNOB, HEATER CONTROL
55905-02160	CDE120,ZZE120,121..UKP NO.1	11/2001 - 05/2004	1
55905-02270	CDE120,ZZE120,121..UKP NO.2	11/2001 - 04/2004	2
55905-0F030	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1	05/2004 - 12/2999	1
55905-02270	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2	05/2004 - 12/2999	2
55905A - KNOB, HEATER CONTROL
55905-02160	CDE120,ZZE120,121..UKP NO.1	11/2001 - 05/2004	1
55905-02270	CDE120,ZZE120,121..UKP NO.2	11/2001 - 04/2004	2
55905-0F030	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.1	05/2004 - 12/2999	1
55905-02270	CDE120,NDE120,ZZE120,121..UKP..TERRA NO.2	05/2004 - 12/2999	2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-02110	CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
55906-02050	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-02050	ZZE120;ZZE121..5D..SOL;CDE120..5D..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;CDE120..LHD..3D..DCRL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA	11/2001 - 05/2004	1
55909-02080	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
55933A - CLAMP, HEATER CONTROL CABLE
55933-0D010	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	2
55933-0D010	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
Common parts
90167-W0007
Linked diagrams
5501
8401

ILLUST NO. 2 OF 3(0111- )UKP..RHD

Click highlighted areas on diagram

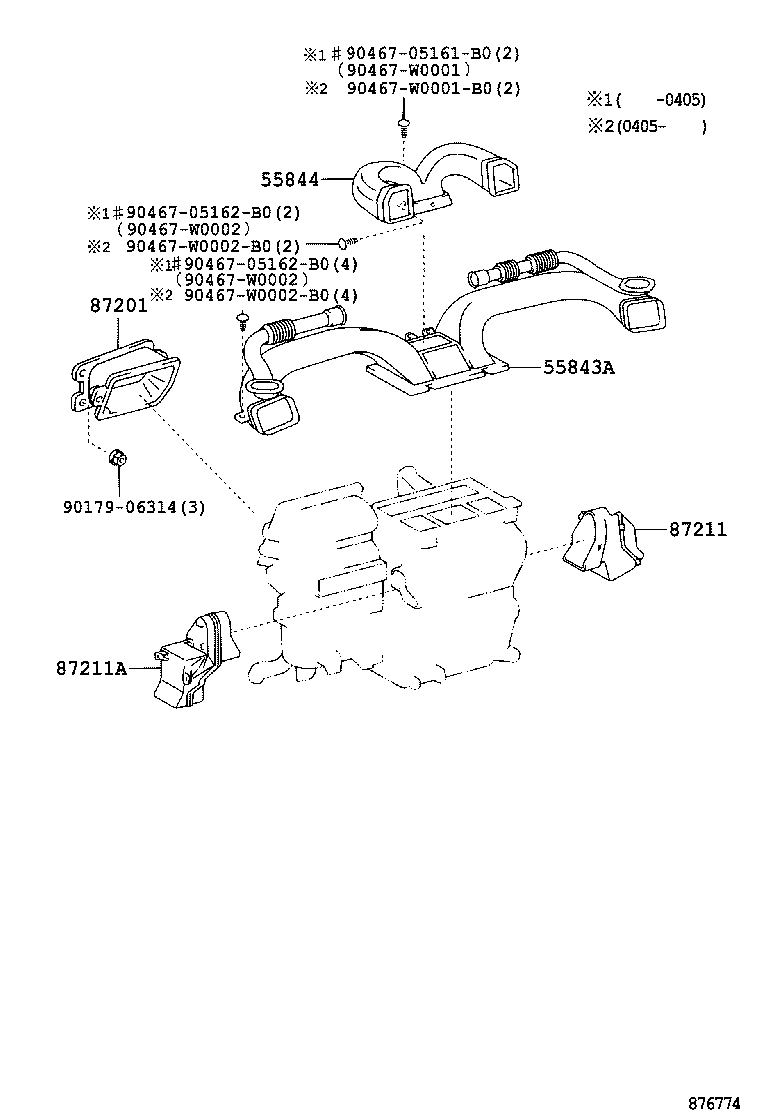

AIR DUCT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-02090	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
55843-02090	ZZE120..RHD;ZZE123..RHD..3D;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-02120	ZZE120..RHD;ZZE123..RHD..3D;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	1
55844-02120	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-02140	ZZE120..RHD;ZZE123..RHD..3D;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL	11/2001 - 05/2004	1
87201-02140	ZZE12#..UKP..RHD	05/2004 - 12/2999	1
87211 - DUCT, AIR, NO.1
87211-02110	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
87211-02110	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
87211A - DUCT, AIR, NO.2
87211-02120	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
87211-02180	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
Common parts
90179-06314
90467-05161B0
90467-05162B0
90467-W0001
90467-W0001B0
90467-W0002
90467-W0002B0

ZZE121R-DHPDKW (2001)

ILLUST NO. 1 OF 3(0111-0405)UKP

ILLUST NO. 1 OF 3(0111- )UKP

ILLUST NO. 3 OF 3(0111- )UKP..RHD

ILLUST NO. 1 OF 3(0405- )UKP

ILLUST NO. 2 OF 3(0111- )UKP..RHD

Part Price Details
