Toyota Corolla hb (ukp) ZZE121 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
COROLLA HB (UKP)
ZZE121R-DHPDKW (2001)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

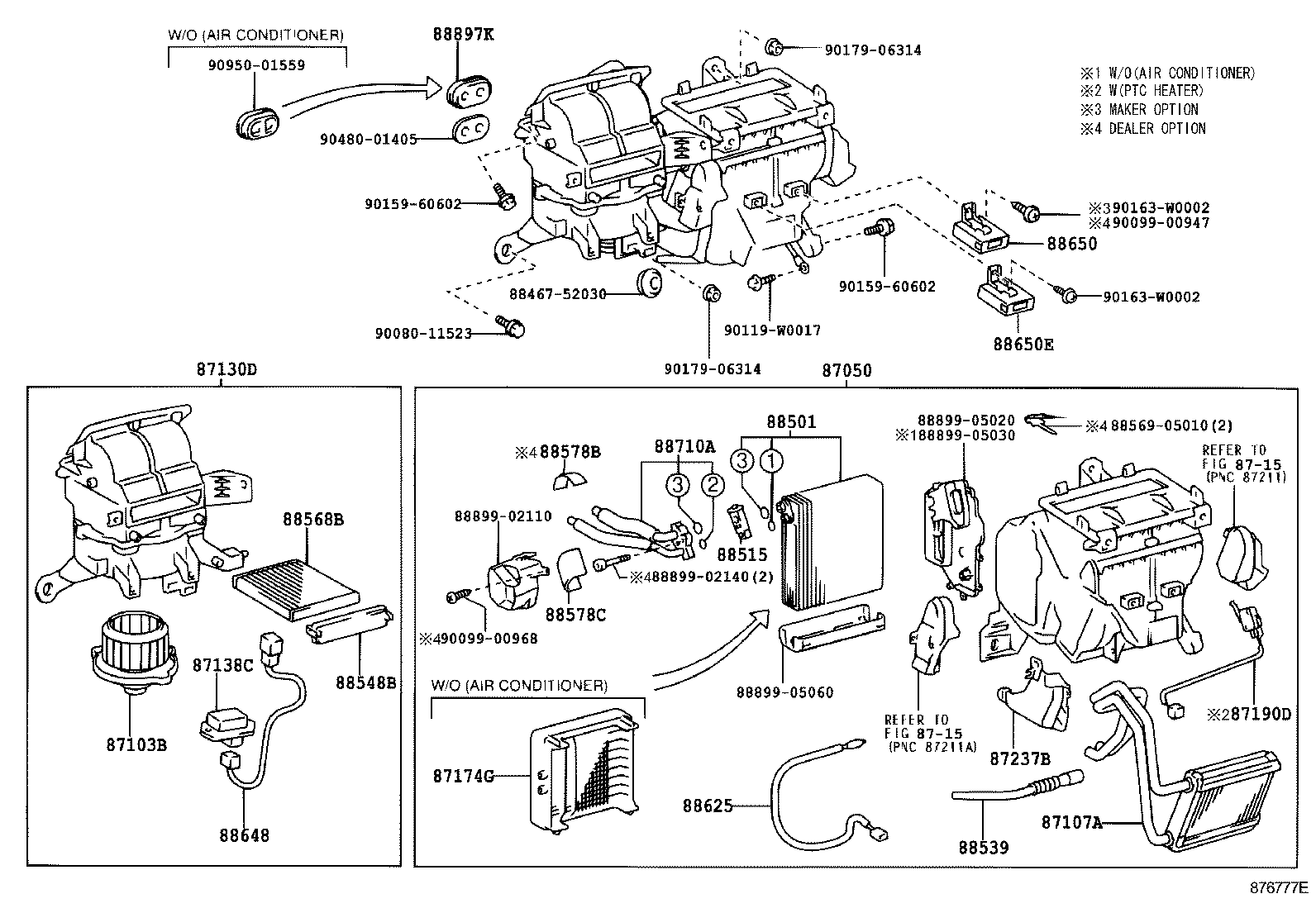

ILLUST NO. 1 OF 2(0111-0405)UKP..RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02010	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	11/2001 - 01/2003	1
87050-02030	ZZE120,121..UKP..RHD W/O(AIR CONDITIONER)	11/2001 - 01/2003	1
87050-02210	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	01/2003 - 05/2004	1
87050-02230	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL W/O(AIR CONDITIONER)	01/2003 - 05/2004	1
87050-02540	ZZE120,121..UKP..RHD..TERRA W/O(AIR CONDITIONER)	05/2004 - 12/2999	1
87050-02520	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	05/2004 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02070	ZZE12#..UKP..RHD;CDE120..UKP..RHD..SOL	05/2004 - 12/2999	1
87103-02070	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-05090	ZZE12#..UKP..RHD	01/2003 - 05/2004	1
87107-05090	ZZE12#..UKP..RHD	05/2004 - 12/2999	1
87107-02110	ZZE12#..UKP..RHD	11/2001 - 01/2003	1
87130D - BLOWER ASSY
87130-02070	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
87130-02190	ZZE120,121..UKP..RHD..TERRA	05/2004 - 02/2007	1
87138C - RESISTOR, BLOWER
87138-02040	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
87138-02040	ZZE120,121..UKP..TERRA;CDE120,NDE120..UKP..LHD..5F..TERRA	05/2004 - 12/2999	1
87174G - GUIDE, AIR HEATER
87174-02020	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
87174-02020	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
87237B - COVER, HEATER PIPING
87237-05050	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) W(AIR CONDITIONER)	01/2003 - 05/2004	1
87237-02020	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
87237-05050	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-05070	CDE120,ZZE12#..UKP..RHD MAKER OPTION	01/2003 - 05/2004	1
88501-02050	CDE120,ZZE12#..UKP..RHD	11/2001 - 01/2003	1
88501-05070	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02070	CDE120,ZZE12#..UKP	11/2001 - 04/2003	1
88515-02070	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	04/2003 - 05/2004	1
88515-02090	CDE120,ZZE12#..UKP MAKER OPTION	04/2003 - 08/2003	1
88515-02091	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88515-02091	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	08/2003 - 05/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-02070	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88539-02070	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88548B - CASE, AIR FILTER
88548-02040	CDE120..UKP..LHD..HDCR;CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
88548-02040	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88568B - FILTER, AIR
88568-02030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88568-02030	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	CDE120,ZZE12#..UKP MAKER OPTION	11/2001 - 04/2003	1
88625-02060	ZZE12#..UKP;CDE120..UKP..SOL;CDE120,NDE120..UKP..LHD..(TERRA,TSP) MAKER OPTION	05/2004 - 12/2999	1
88625-52090	NDE120..UKP..RHD;CDE120,ZZE120,121..UKP..TERRA DEALER OPTION	05/2004 - 12/2999	1
88625-52020	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	11/2001 - 05/2004	1
88625-02060	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	04/2003 - 05/2004	1
88648 - WIRING, COOLER, NO.1
88648-02150	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
88648-02260	ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-02351	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 02/2007	1
88650-02351	CDE120,ZZE120,121..UKP..TERRA MAKER OPTION	01/2003 - 05/2004	1
88650-02350	CDE120,ZZE120,121..UKP..(DCR,HTWC)	11/2001 - 05/2004	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-05360	CDE120,ZZE12#..UKP..RHD	01/2003 - 05/2004	1
88710-05360	CDE120,NDE120,ZZE120,121..UKP..RHD MAKER OPTION	05/2004 - 12/2999	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90480-01434	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)	11/2001 - 05/2004	1
Common parts
88467-52030
88578-12520
88891-02020
88899-02060
88899-02100
88899-02110
88899-05020
88899-05030
88899-05060
90080-11523
90099-00968
90099-04492
90119-06390
90119-06833
90119-W0017
90159-60383
90163-W0002
90179-06314
90480-01405
90950-01559
Linked diagrams
8715

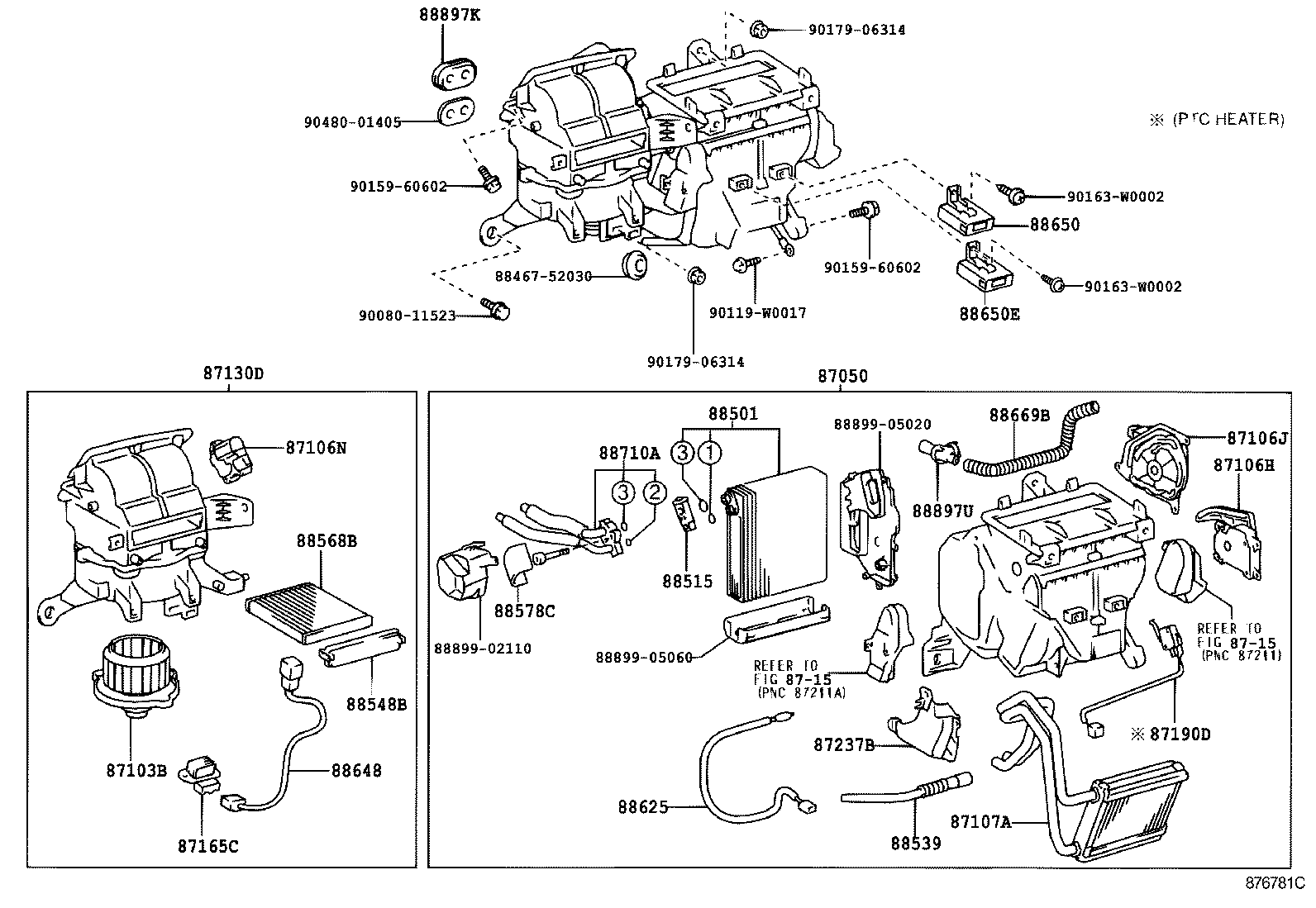

ILLUST NO. 1 OF 2(0111-0405)UKP..RHD

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02010	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	11/2001 - 01/2003	1
87050-02030	ZZE120,121..UKP..RHD W/O(AIR CONDITIONER)	11/2001 - 01/2003	1
87050-02210	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	01/2003 - 05/2004	1
87050-02230	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL W/O(AIR CONDITIONER)	01/2003 - 05/2004	1
87050-02540	ZZE120,121..UKP..RHD..TERRA W/O(AIR CONDITIONER)	05/2004 - 12/2999	1
87050-02520	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	05/2004 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02070	ZZE12#..UKP..RHD;CDE120..UKP..RHD..SOL	05/2004 - 12/2999	1
87103-02070	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-05090	ZZE12#..UKP..RHD	01/2003 - 05/2004	1
87107-05090	ZZE12#..UKP..RHD	05/2004 - 12/2999	1
87107-02110	ZZE12#..UKP..RHD	11/2001 - 01/2003	1
87130D - BLOWER ASSY
87130-02070	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
87130-02190	ZZE120,121..UKP..RHD..TERRA	05/2004 - 02/2007	1
87237B - COVER, HEATER PIPING
87237-05050	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) W(AIR CONDITIONER)	01/2003 - 05/2004	1
87237-02020	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
87237-05050	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-05070	CDE120,ZZE12#..UKP..RHD MAKER OPTION	01/2003 - 05/2004	1
88501-02050	CDE120,ZZE12#..UKP..RHD	11/2001 - 01/2003	1
88501-05070	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02070	CDE120,ZZE12#..UKP	11/2001 - 04/2003	1
88515-02070	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	04/2003 - 05/2004	1
88515-02090	CDE120,ZZE12#..UKP MAKER OPTION	04/2003 - 08/2003	1
88515-02091	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88515-02091	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	08/2003 - 05/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-02070	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88539-02070	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88548B - CASE, AIR FILTER
88548-02040	CDE120..UKP..LHD..HDCR;CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
88548-02040	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88568B - FILTER, AIR
88568-02030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88568-02030	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	CDE120,ZZE12#..UKP MAKER OPTION	11/2001 - 04/2003	1
88625-02060	ZZE12#..UKP;CDE120..UKP..SOL;CDE120,NDE120..UKP..LHD..(TERRA,TSP) MAKER OPTION	05/2004 - 12/2999	1
88625-52090	NDE120..UKP..RHD;CDE120,ZZE120,121..UKP..TERRA DEALER OPTION	05/2004 - 12/2999	1
88625-52020	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	11/2001 - 05/2004	1
88625-02060	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	04/2003 - 05/2004	1
88648 - WIRING, COOLER, NO.1
88648-02150	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
88648-02260	ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-05360	CDE120,ZZE12#..UKP..RHD	01/2003 - 05/2004	1
88710-05360	CDE120,NDE120,ZZE120,121..UKP..RHD MAKER OPTION	05/2004 - 12/2999	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90480-01434	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)	11/2001 - 05/2004	1
Common parts
88467-52030
88578-12520
88899-02060
88899-02100
88899-02110
88899-05020
88899-05060
90080-11523
90099-04492
90119-06390
90119-06833
90119-W0017
90159-60383
90179-06314
90480-01405
Linked diagrams
8715

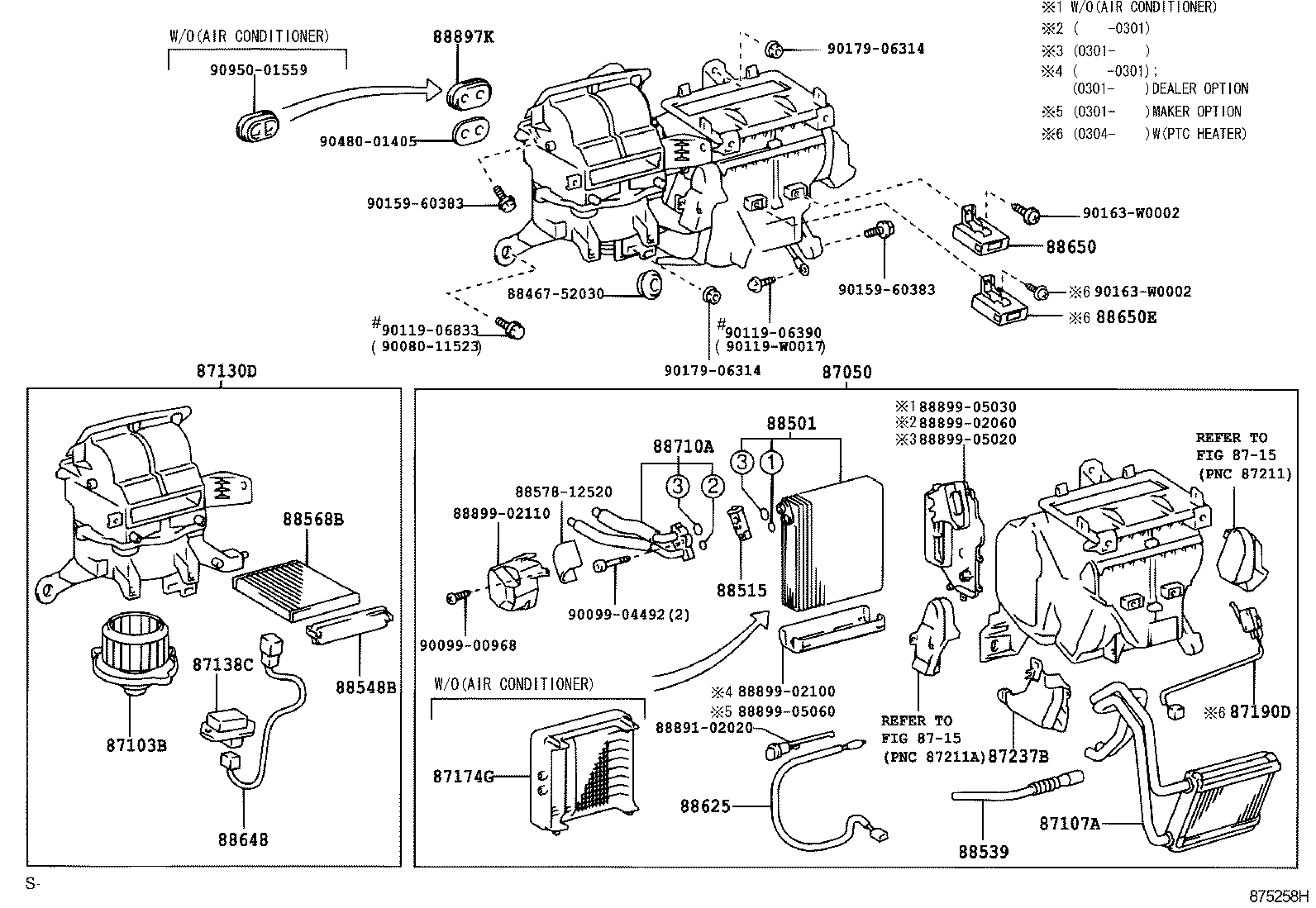

ILLUST NO. 1 OF 2(0405- )UKP..RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02010	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	11/2001 - 01/2003	1
87050-02030	ZZE120,121..UKP..RHD W/O(AIR CONDITIONER)	11/2001 - 01/2003	1
87050-02210	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	01/2003 - 05/2004	1
87050-02230	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL W/O(AIR CONDITIONER)	01/2003 - 05/2004	1
87050-02540	ZZE120,121..UKP..RHD..TERRA W/O(AIR CONDITIONER)	05/2004 - 12/2999	1
87050-02520	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	05/2004 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02070	ZZE12#..UKP..RHD;CDE120..UKP..RHD..SOL	05/2004 - 12/2999	1
87103-02070	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-05090	ZZE12#..UKP..RHD	01/2003 - 05/2004	1
87107-05090	ZZE12#..UKP..RHD	05/2004 - 12/2999	1
87107-02110	ZZE12#..UKP..RHD	11/2001 - 01/2003	1
87130D - BLOWER ASSY
87130-02070	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
87130-02190	ZZE120,121..UKP..RHD..TERRA	05/2004 - 02/2007	1
87138C - RESISTOR, BLOWER
87138-02040	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
87138-02040	ZZE120,121..UKP..TERRA;CDE120,NDE120..UKP..LHD..5F..TERRA	05/2004 - 12/2999	1
87174G - GUIDE, AIR HEATER
87174-02020	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
87174-02020	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 12/2999	1
87237B - COVER, HEATER PIPING
87237-05050	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) W(AIR CONDITIONER)	01/2003 - 05/2004	1
87237-02020	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
87237-05050	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-05070	CDE120,ZZE12#..UKP..RHD MAKER OPTION	01/2003 - 05/2004	1
88501-02050	CDE120,ZZE12#..UKP..RHD	11/2001 - 01/2003	1
88501-05070	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02070	CDE120,ZZE12#..UKP	11/2001 - 04/2003	1
88515-02070	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	04/2003 - 05/2004	1
88515-02090	CDE120,ZZE12#..UKP MAKER OPTION	04/2003 - 08/2003	1
88515-02091	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88515-02091	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	08/2003 - 05/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-02070	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88539-02070	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88548B - CASE, AIR FILTER
88548-02040	CDE120..UKP..LHD..HDCR;CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
88548-02040	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88568B - FILTER, AIR
88568-02030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88568-02030	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	CDE120,ZZE12#..UKP..LHD..(SOL,TSP);CDE120,NDE120,ZZE120,121..UKP..(TERRA,TSP)	05/2004 - 12/2999	1
88578C - PACKING, COOLING UNIT, NO.2
88578-12520	ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	CDE120,ZZE12#..UKP MAKER OPTION	11/2001 - 04/2003	1
88625-02060	ZZE12#..UKP;CDE120..UKP..SOL;CDE120,NDE120..UKP..LHD..(TERRA,TSP) MAKER OPTION	05/2004 - 12/2999	1
88625-52090	NDE120..UKP..RHD;CDE120,ZZE120,121..UKP..TERRA DEALER OPTION	05/2004 - 12/2999	1
88625-52020	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	11/2001 - 05/2004	1
88625-02060	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	04/2003 - 05/2004	1
88648 - WIRING, COOLER, NO.1
88648-02150	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
88648-02260	ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-02351	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 02/2007	1
88650-02351	CDE120,ZZE120,121..UKP..TERRA MAKER OPTION	01/2003 - 05/2004	1
88650-02350	CDE120,ZZE120,121..UKP..(DCR,HTWC)	11/2001 - 05/2004	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-05360	CDE120,ZZE12#..UKP..RHD	01/2003 - 05/2004	1
88710-05360	CDE120,NDE120,ZZE120,121..UKP..RHD MAKER OPTION	05/2004 - 12/2999	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90480-01434	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)	11/2001 - 05/2004	1
Common parts
88467-52030
88569-05010
88899-02110
88899-02140
88899-05020
88899-05030
88899-05060
90080-11523
90099-00947
90099-00968
90119-W0017
90159-60602
90163-W0002
90179-06314
90480-01405
90950-01559
Linked diagrams
8715

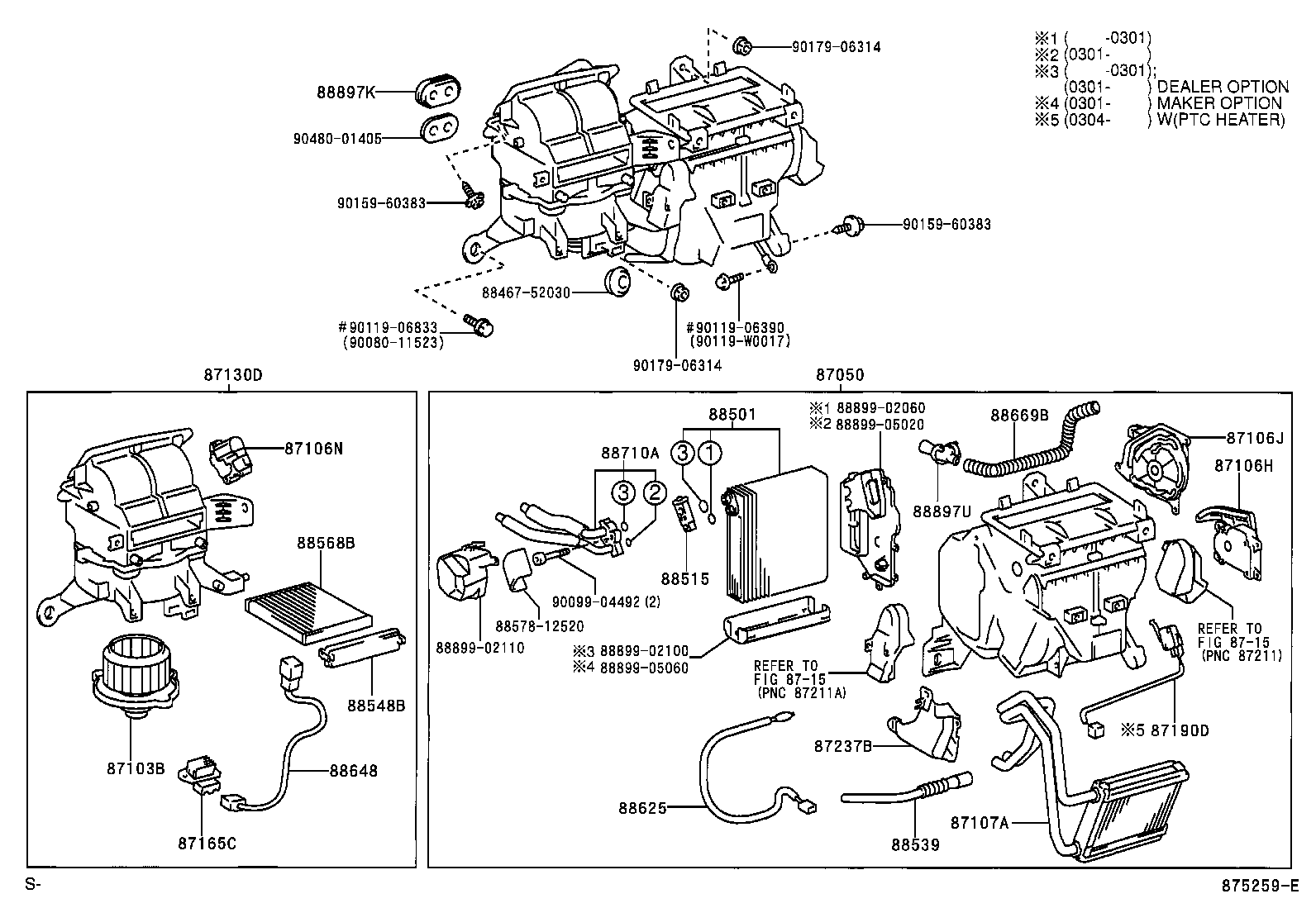

ILLUST NO. 1 OF 2(0405- )UKP..RHD

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02010	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	11/2001 - 01/2003	1
87050-02030	ZZE120,121..UKP..RHD W/O(AIR CONDITIONER)	11/2001 - 01/2003	1
87050-02210	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	01/2003 - 05/2004	1
87050-02230	ZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL W/O(AIR CONDITIONER)	01/2003 - 05/2004	1
87050-02540	ZZE120,121..UKP..RHD..TERRA W/O(AIR CONDITIONER)	05/2004 - 12/2999	1
87050-02520	ZZE120,121..UKP..RHD..TERRA MANUAL AIR CONDITIONER	05/2004 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02070	ZZE12#..UKP..RHD;CDE120..UKP..RHD..SOL	05/2004 - 12/2999	1
87103-02070	CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-05090	ZZE12#..UKP..RHD	01/2003 - 05/2004	1
87107-05090	ZZE12#..UKP..RHD	05/2004 - 12/2999	1
87107-02110	ZZE12#..UKP..RHD	11/2001 - 01/2003	1
87130D - BLOWER ASSY
87130-02070	CDE120,ZZE120,121..UKP..RHD	11/2001 - 05/2004	1
87130-02190	ZZE120,121..UKP..RHD..TERRA	05/2004 - 02/2007	1
87237B - COVER, HEATER PIPING
87237-05050	CDE120,ZZE12#..UKP..RHD..(DCR,DCRL,HTWC,TWC) W(AIR CONDITIONER)	01/2003 - 05/2004	1
87237-02020	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
87237-05050	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-05070	CDE120,ZZE12#..UKP..RHD MAKER OPTION	01/2003 - 05/2004	1
88501-02050	CDE120,ZZE12#..UKP..RHD	11/2001 - 01/2003	1
88501-05070	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02070	CDE120,ZZE12#..UKP	11/2001 - 04/2003	1
88515-02070	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	04/2003 - 05/2004	1
88515-02090	CDE120,ZZE12#..UKP MAKER OPTION	04/2003 - 08/2003	1
88515-02091	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88515-02091	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	08/2003 - 05/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-02070	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
88539-02070	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88548B - CASE, AIR FILTER
88548-02040	CDE120..UKP..LHD..HDCR;CDE120,ZZE12#..UKP..RHD	11/2001 - 05/2004	1
88548-02040	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88568B - FILTER, AIR
88568-02030	CDE120,ZZE12#..UKP	11/2001 - 05/2004	1
88568-02030	ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F	05/2004 - 02/2007	1
88578C - PACKING, COOLING UNIT, NO.2
88578-12520	ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	CDE120,ZZE12#..UKP MAKER OPTION	11/2001 - 04/2003	1
88625-02060	ZZE12#..UKP;CDE120..UKP..SOL;CDE120,NDE120..UKP..LHD..(TERRA,TSP) MAKER OPTION	05/2004 - 12/2999	1
88625-52090	NDE120..UKP..RHD;CDE120,ZZE120,121..UKP..TERRA DEALER OPTION	05/2004 - 12/2999	1
88625-52020	ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION	11/2001 - 05/2004	1
88625-02060	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION	04/2003 - 05/2004	1
88648 - WIRING, COOLER, NO.1
88648-02150	CDE120,ZZE120,121..UKP	11/2001 - 05/2004	1
88648-02260	ZZE120,121..UKP..RHD..TERRA	05/2004 - 12/2999	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-02351	CDE120,NDE120,ZZE120,121..UKP..TERRA	05/2004 - 02/2007	1
88650-02351	CDE120,ZZE120,121..UKP..TERRA MAKER OPTION	01/2003 - 05/2004	1
88650-02350	CDE120,ZZE120,121..UKP..(DCR,HTWC)	11/2001 - 05/2004	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-05360	CDE120,ZZE12#..UKP..RHD	01/2003 - 05/2004	1
88710-05360	CDE120,NDE120,ZZE120,121..UKP..RHD MAKER OPTION	05/2004 - 12/2999	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
90480-01434	ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP)	11/2001 - 05/2004	1
Common parts
88467-52030
88899-02110
88899-05020
88899-05060
90080-11523
90119-W0017
90159-60602
90163-W0002
90179-06314
90480-01405
Linked diagrams
8715

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

0-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121

ZZE121R-DHPDKW (2001)

ILLUST NO. 1 OF 2(0111-0405)UKP..RHD

ILLUST NO. 1 OF 2(0111-0405)UKP..RHD

ILLUST NO. 1 OF 2(0405- )UKP..RHD

ILLUST NO. 1 OF 2(0405- )UKP..RHD

ILLUST NO. 2 OF 2(0111- )UKP

Part Price Details
