ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

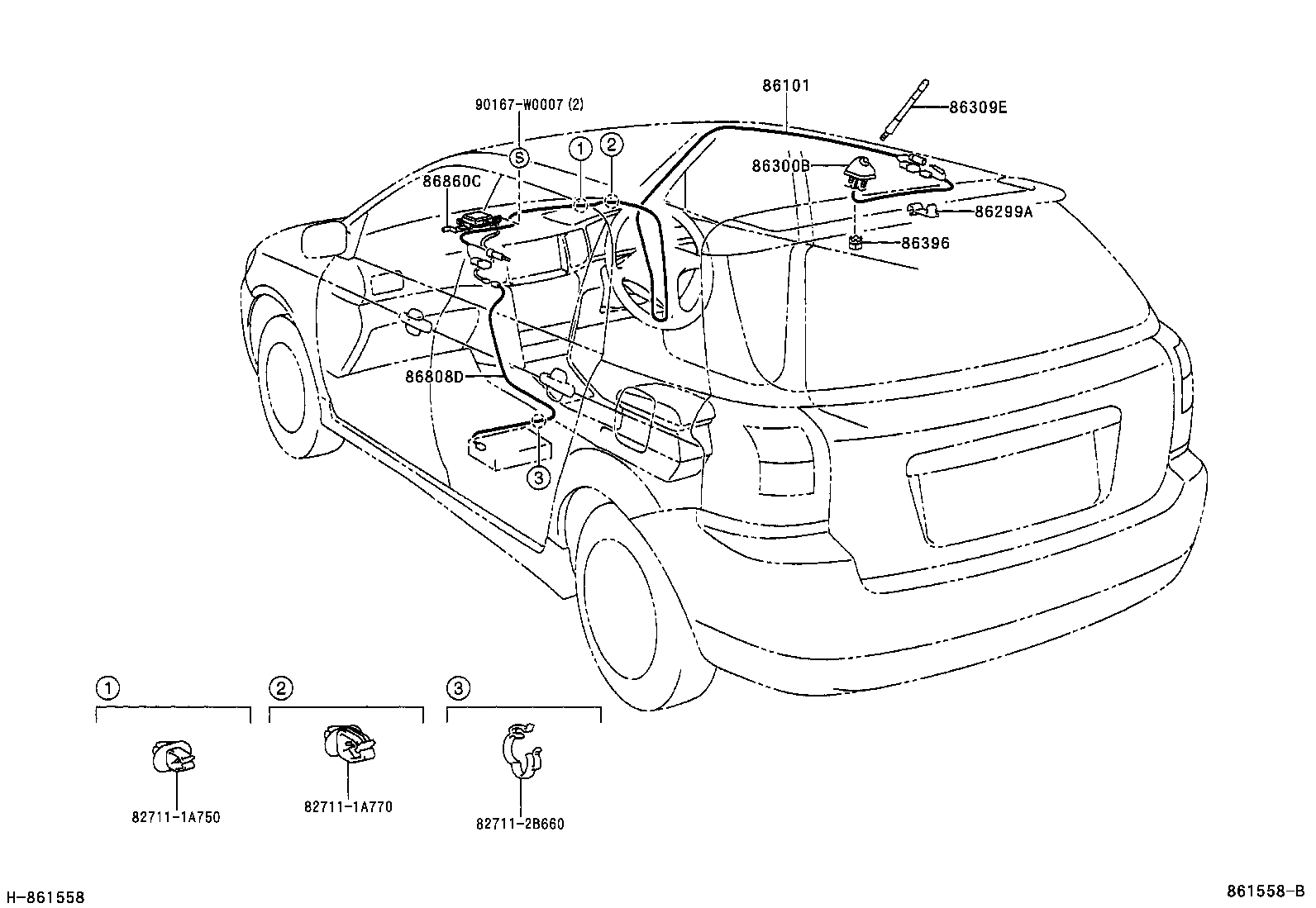

Click highlighted areas on diagram

diagram 827111A750 827111A770 827112B660 86101 86299A 86300B 86309E 86396 86808D 86860C 90167W0007
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12340

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

W(MAP NAVIGATION SYSTEM)

 1
86101-02060

CDE120,ZZE12#..UKP

 1
86101-02060

CDE120,NDE120,ZZE12#..UKP

 1
86101-12340

CDE120,ZZE121,123..UKP

W(MAP NAVIGATION SYSTEM)

 1
86299A - CLIP, RADIO TO ANTENNA WIRE
86299-12010

CDE120,ZZE12#..UKP

 1
86299-12010

CDE120,NDE120,ZZE12#..UKP

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-02070

CDE120,ZZE12#..UKP

 1
86300-02071

CDE120,NDE120,ZZE12#..UKP

 1
86300-12750

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

W(MAP NAVIGATION SYSTEM)

 1
86300-02070

CDE120,NDE120,ZZE12#..UKP

 1
86300-12750

CDE120,ZZE121,123..UKP

W(MAP NAVIGATION SYSTEM)

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-13010

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

W(MAP NAVIGATION SYSTEM)

 1
86309-02040

CDE120,NDE120,ZZE12#..UKP

 1
86309-13010

CDE120,ZZE121,123..UKP

W(MAP NAVIGATION SYSTEM)

 1
86309-02040

CDE120,ZZE12#..UKP

 1
86396 - NUT, ANTENNA
86396-02020

CDE120,ZZE12#..UKP

 1
86396-12030

CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA

W(MAP NAVIGATION SYSTEM)

 1
86396-12030

CDE120,ZZE121,123..UKP

W(MAP NAVIGATION SYSTEM)

 1
86396-02020

CDE120,NDE120,ZZE12#..UKP

 1
86808D - CORD SUB-ASSY, NAVIGATION ANTENNA
86808-13020

CDE120,ZZE12#..UKP

W(TURN BY TURN NAVIGATION SYSTEM)

 1
86808-13020

CDE120,NDE120,ZZE120,121..UKP..RHD

W(TURN BY TURN NAVIGATION SYSTEM)

 1
86808-13010

CDE120,ZZE121,123..UKP

W(MAP NAVIGATION SYSTEM)

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-13030

CDE120,NDE120,ZZE120,121..UKP..RHD

W(TURN BY TURN NAVIGATION SYSTEM)

 1
86860-13030

CDE120,ZZE12#..UKP

 1
Common parts
82711-1A750
82711-1A770
82711-2B660
90167-W0007
