ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
Production
Nov 2001
-
Feb 2007
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0111- )UKP

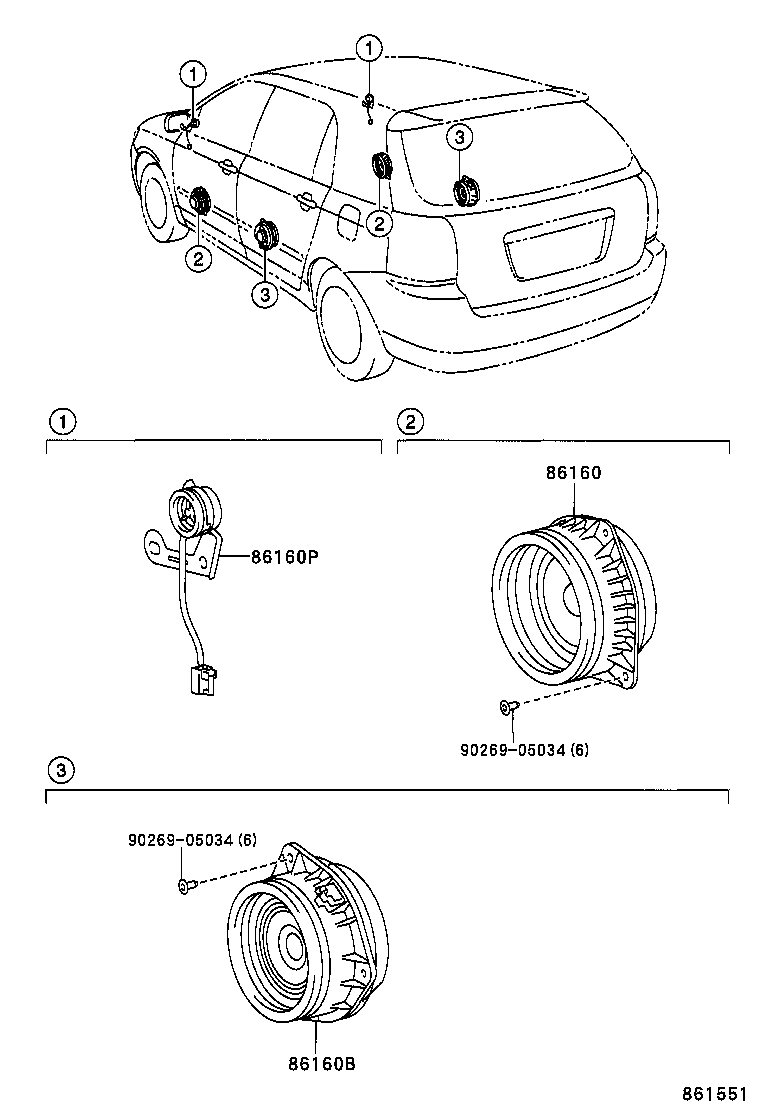

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-02370 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 86160-02370 |
CDE120,ZZE12#..UKP |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-02380 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 86160-02380 |
CDE120,ZZE12#..UKP |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-02400 |
ZZE121;CDE120..TERRA..DCRL;CDE120,ZZE120,123..SOL,TSP LH |
1 | ||
| 86160-02390 |
ZZE121;CDE120..TERRA..DCRL;CDE120,ZZE120,123..SOL,TSP RH |
1 | ||
| Common parts | ||||
| 90269-05034 | ||||
