ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

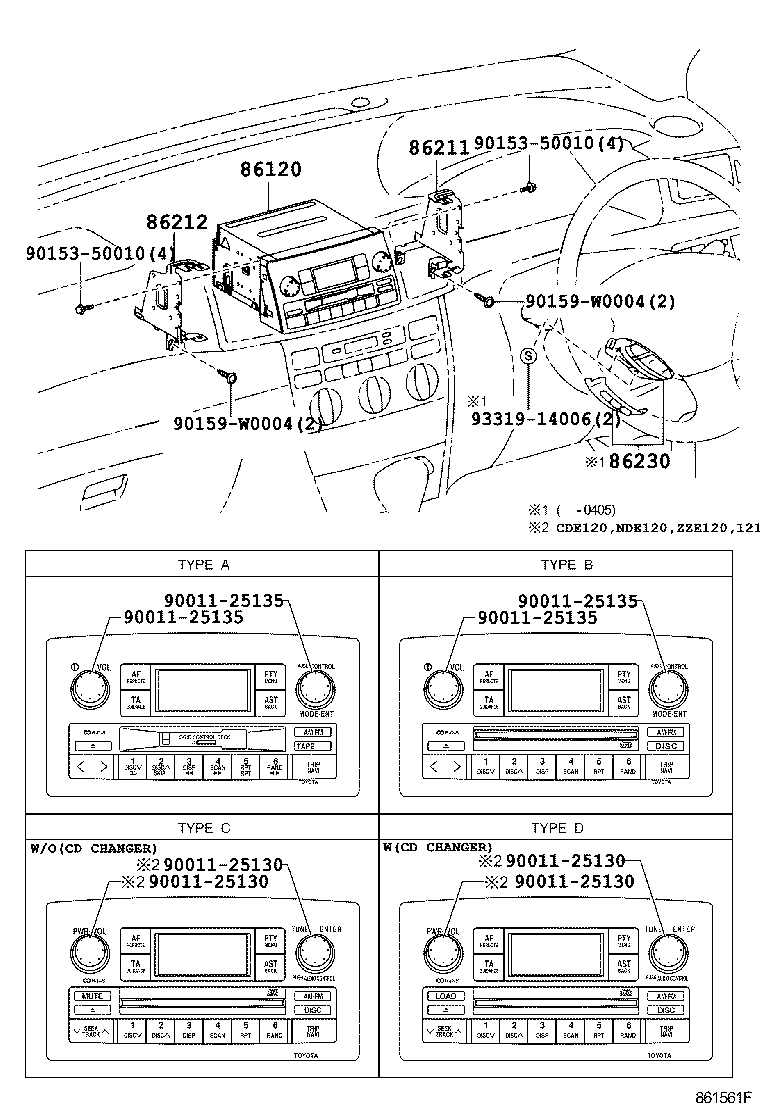

ILLUST NO. 1 OF 2(0111- )UKP

Click highlighted areas on diagram

diagram 86120 86211 86212 86230 9001125130 9001125130 9001125130 9001125130 9001125135 9001125135 9001125135 9001125135 9015350010 9015350010 90159W0004 90159W0004 9331914006
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02250

CDE120,ZZE12#..UKP

MATSUSHITA,ID=W58300,TYPE A:REFER TO ILLUSTRATION

 1
86120-02260

CDE120,ZZE12#..UKP

MATSUSHITA,ID=W58802,TYPE B:REFER TO ILLUSTRATION

 1
86120-02380

CDE120,NDE120,ZZE120,121..UKP

MATSUSHITA,ID=W58814,TYPE C:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-12370

CDE120,ZZE12#..UKP

 1
86211-02100

CDE120,NDE120,ZZE12#..UKP

 1
86211-02100

CDE120,ZZE12#..UKP

 1
86212 - BRACKET, RADIO, NO.2
86212-12350

CDE120,ZZE12#..UKP

 1
86212-02100

CDE120,ZZE12#..UKP

 1
86212-02100

CDE120,NDE120,ZZE12#..UKP

 1
86230 - CONTROLLER ASSY, STEREO COMPONENT
86230-13010

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
Common parts
90011-25130
90011-25135
90153-50010
90159-W0004
93319-14006

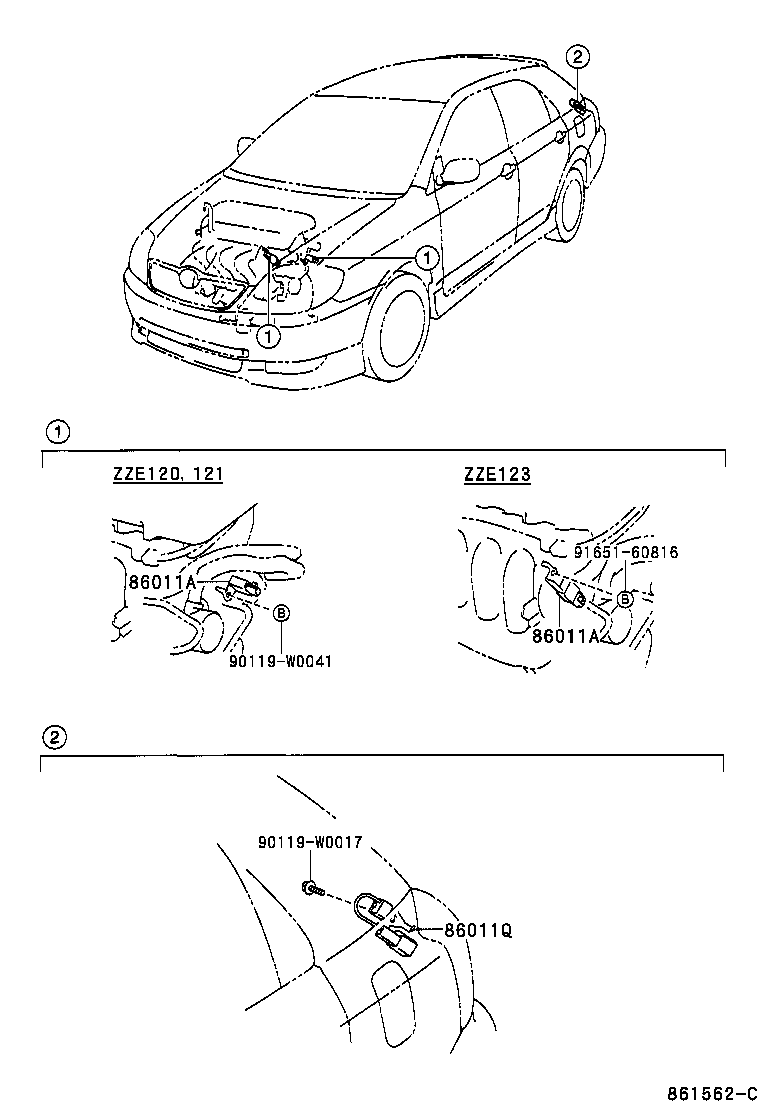

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 90119W0017 90119W0041 9165160816
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04165

ZZE120,121..UKP

 1
90980-04165

ZZE120,121..UKP

 1
86011A - CONDENSER, RADIO SETTING
90980-04165

ZZE120,121..UKP

 1
90980-04165

ZZE120,121..UKP

 1
86011Q - CONDENSER, RADIO SETTING
90980-04163

CDE120,ZZE12#..UKP

 1
90980-04163

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
90119-W0017
90119-W0041
91651-60816
