ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

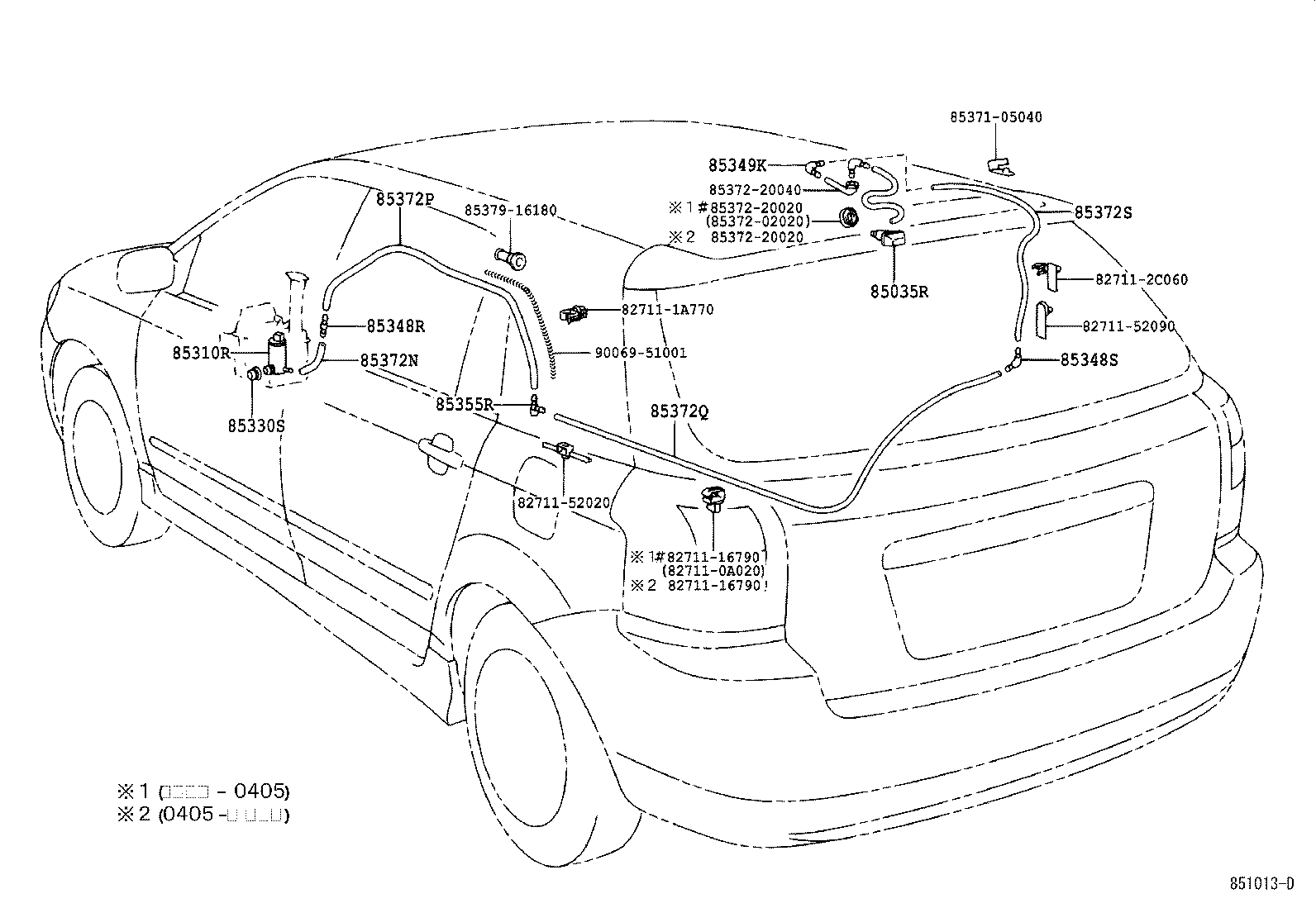

Click highlighted areas on diagram

diagram 827110A020 8271116790 8271116790 827111A770 827112C060 8271152020 8271152090 85035R 85310R 85330S 85348R 85348S 85349K 85355R 8537105040 8537202020 8537220020 8537220020 8537220040 85372N 85372P 85372Q 85372S 8537916180 9006951001
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-0D010

CDE120,ZZE12#..UKP

 1
85391-0D010

CDE120,NDE120,ZZE12#..UKP

 1
85310R - MOTOR ASSY, REAR WASHER
85340-05010

CDE120,NDE120,ZZE12#..UKP

 1
85340-05010

CDE120,ZZE12#..UKP

 1
85340-05011

CDE120,NDE120,ZZE12#..UKP

 1
85330S - BUSH, REAR WASHER JAR
90069-20005

CDE120,NDE120,ZZE12#..UKP

 1
90069-20005

CDE120,NDE120,ZZE12#..UKP

 1
85336-05070

CDE120,ZZE12#..UKP

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-05050

CDE120,ZZE12#..UKP

 1
85375-05050

CDE120,NDE120,ZZE12#..UKP

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85395-05020

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
85395-05020

CDE120,NDE120,ZZE12#..UKP

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85395-05020

CDE120,NDE120,ZZE12#..UKP

 1
85395-05020

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
85355R - VALVE, REAR WASHER HOSE
85321-02010

CDE120,NDE120,ZZE12#..UKP

 1
85321-02010

CDE120,ZZE12#..UKP

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90069-46011

CDE120,NDE120,ZZE12#..UKP

*H,L=50

 1
90069-46011

CDE120,ZZE12#..UKP

*H,L=50

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90069-46012

CDE120,ZZE12#..UKP

*H,L=1445

 1
90069-46012

CDE120,NDE120,ZZE12#..UKP

*H,L=1445

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90069-46012

CDE120,NDE120,ZZE12#..UKP

*H,L=2590

 1
90069-46012

CDE120,ZZE12#..UKP

*H,L=2590

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90069-46011

CDE120,ZZE12#..UKP

*H,L=620

 1
90069-46011

CDE120,NDE120,ZZE12#..UKP

*H,L=620

 1
Common parts
82711-0A020
82711-16790
82711-1A770
82711-2C060
82711-52020
82711-52090
85371-05040
85372-02020
85372-20020
85372-20040
85379-16180
90069-51001
