ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

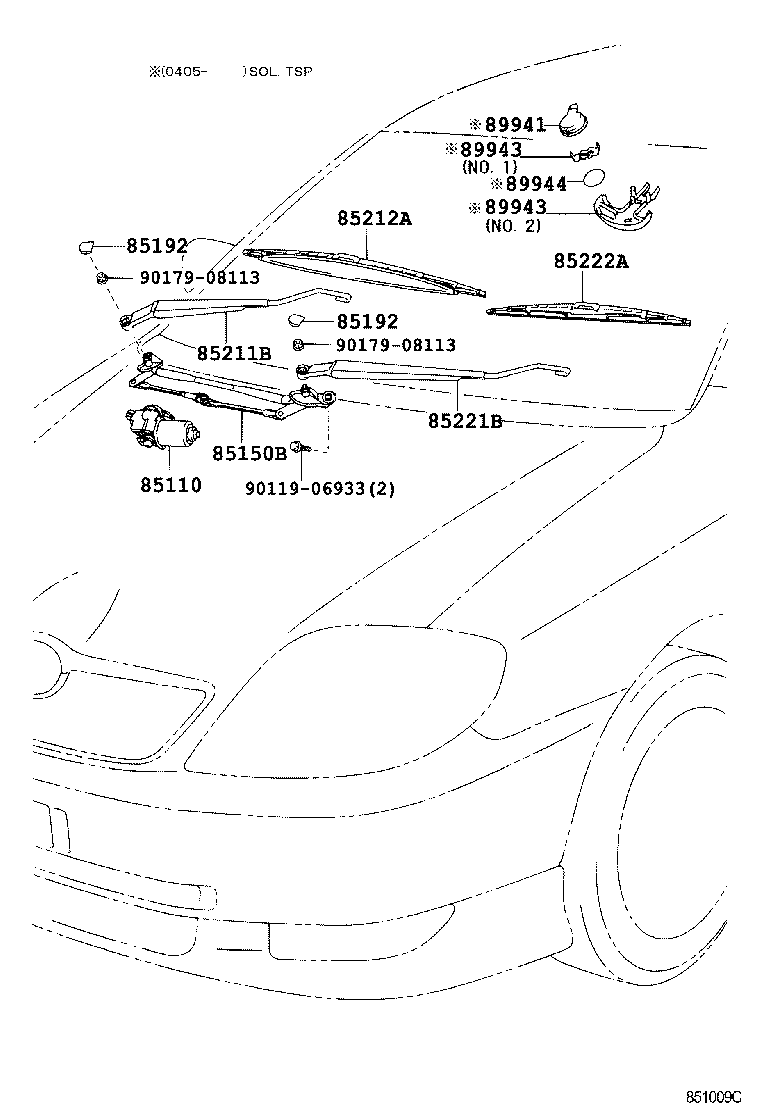

Click highlighted areas on diagram

diagram 85110 85150B 85192 85192 85211B 85212A 85221B 85222A 89941 89943 89943 89944 9011906933 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-02090

CDE120,ZZE12#..UKP..RHD

 1
85110-02090

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85110-02140

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85110-02090

CDE120,ZZE12#..UKP..RHD

VALEO

 1
85110-02090

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85150B - LINK ASSY, WIPER
85150-02070

CDE120,ZZE12#..UKP..RHD

VALEO

 1
85150-02120

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85150-02070

CDE120,ZZE12#..UKP..RHD

 1
85150-02071

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85150-02070

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-02010

CDE120,ZZE12#..UKP

 2
85292-02010

CDE120,NDE120,ZZE12#..UKP

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-02010

CDE120,ZZE12#..UKP

 2
85292-02010

CDE120,NDE120,ZZE12#..UKP

 2
85211B - ARM, FRONT WIPER, RH
85211-02100

CDE120,ZZE12#..UKP..RHD

 1
85211-02100

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-02100

CDE120,ZZE12#..UKP..RHD

 1
85212-02100

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-02110

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85221-02110

CDE120,ZZE12#..UKP..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-05090

CDE120,ZZE12#..UKP..RHD

 1
85222-05090

CDE120,NDE120,ZZE12#..UKP..RHD

 1
Common parts
90119-06933
90179-08113
