ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
Production
Nov 2001
-
Feb 2007
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

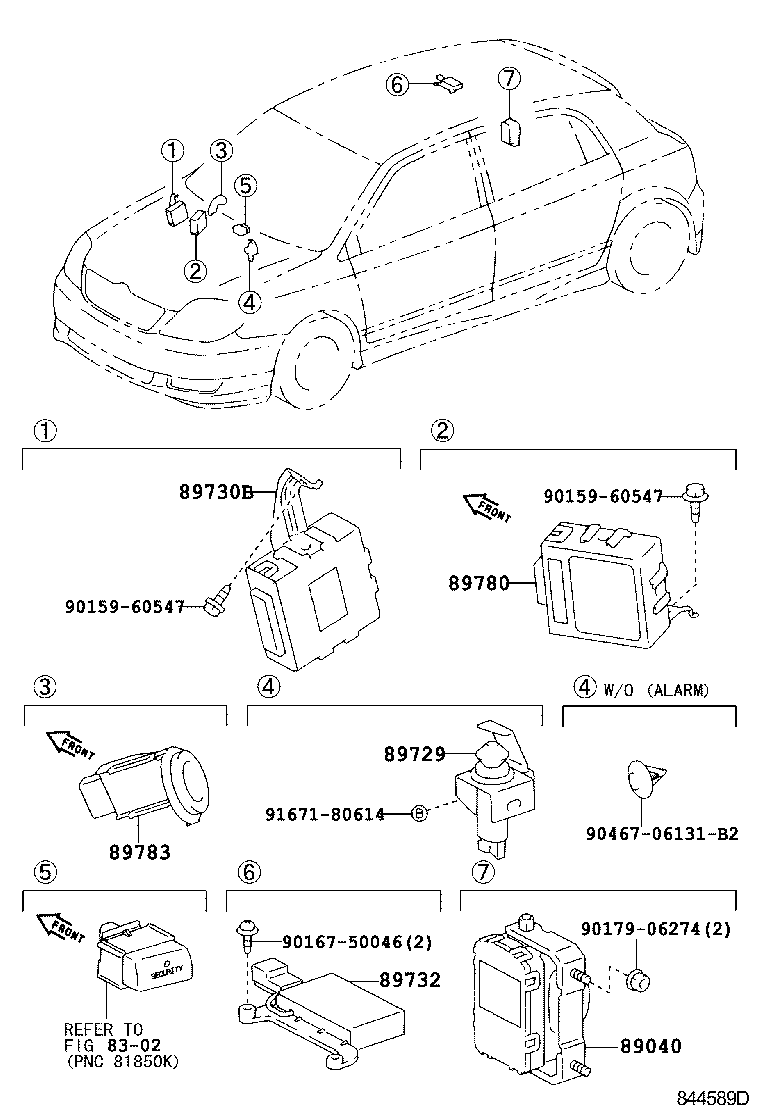

(0111-0405)UKP..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89780 - COMPUTER ASSY, TRANSPONDER KEY | ||||
| 89780-12160 |
CDE120,NDE120,ZZE121..UKP..RHD |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 89783-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90159-60547 | ||||
| 90167-50046 | ||||
| 90179-06274 | ||||
| 90467-06131B2 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8302 | ||||

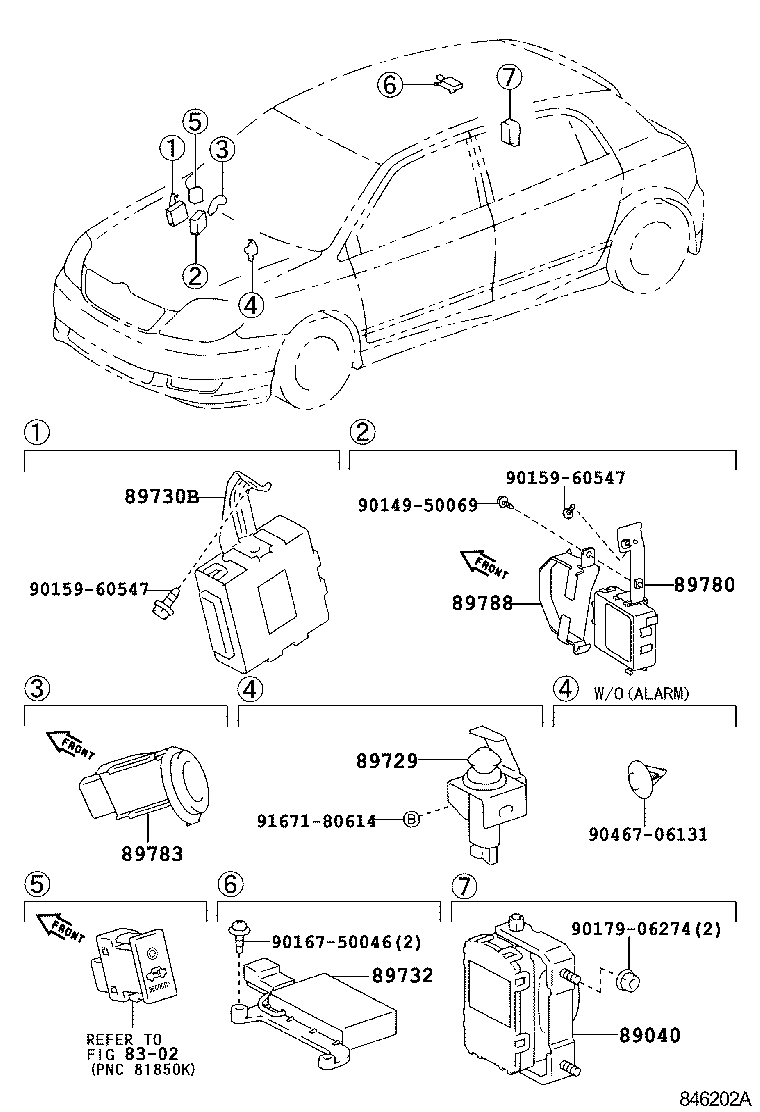

(0405- )UKP..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89780 - COMPUTER ASSY, TRANSPONDER KEY | ||||
| 89780-12160 |
CDE120,NDE120,ZZE121..UKP..RHD |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 89783-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 89788 - BRACKET, TRANSPONDER KEY | ||||
| 89788-12010 |
CDE120,NDE120,ZZE121..UKP..RHD |
1 | ||
| Common parts | ||||
| 90149-50069 | ||||
| 90159-60547 | ||||
| 90167-50046 | ||||
| 90179-06274 | ||||
| 90467-06131 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8302 | ||||
