Toyota Corolla hb (ukp) ZZE121 AIR BAG

ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

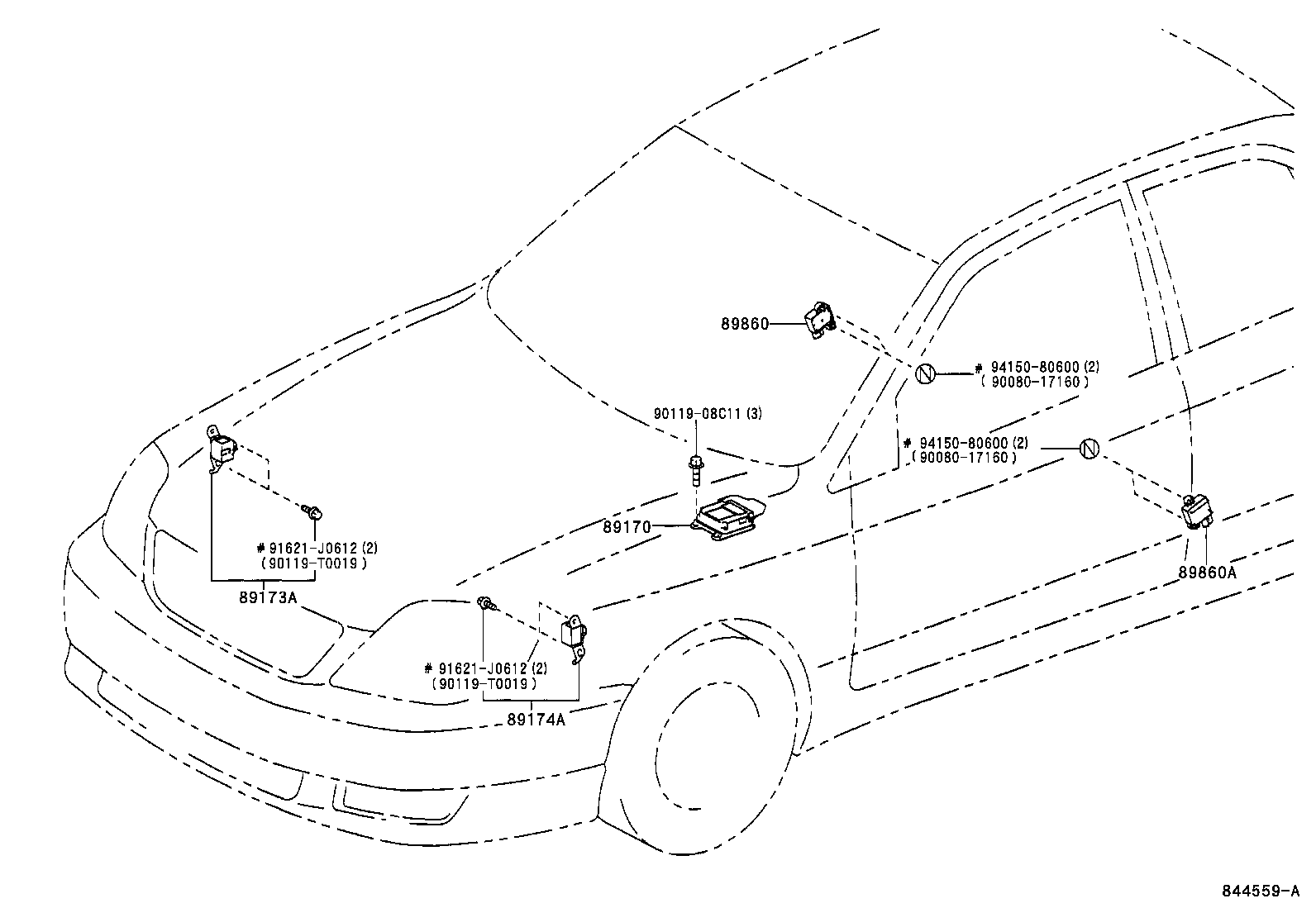

(0111-0301)UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-02160	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89170-02180	CDE120,ZZE12#..UKP W(SRS SIDE AIR BAG)	11/2001 - 01/2003	1
89170-02290	CDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)	01/2003 - 05/2004	1
89170-02510	CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(SRS CURTAIN SHIELD AIR BAG)	05/2004 - 04/2006	1
89170-02270	CDE120,ZZE12#..UKP..5D W(SRS SIDE AIR BAG)	01/2003 - 05/2004	1
89170-02250	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89170-02491	CDE120,NDE120,ZZE120,121..UKP..RHD..5D	05/2006 - 12/2999	1
89170-02490	CDE120,NDE120,ZZE120,121..UKP..RHD..5D	05/2004 - 04/2006	1
89170-02511	CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(SRS CURTAIN SHIELD AIR BAG)	05/2006 - 12/2999	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09170	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
89173-69126	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89173-19285	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19085	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89174-69126	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89173-09170	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-02030	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
89831-05010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89831-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-05010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89860-02030	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
89831-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90080-17160
90119-08C11
90119-T0019
91621-J0612
94150-80600

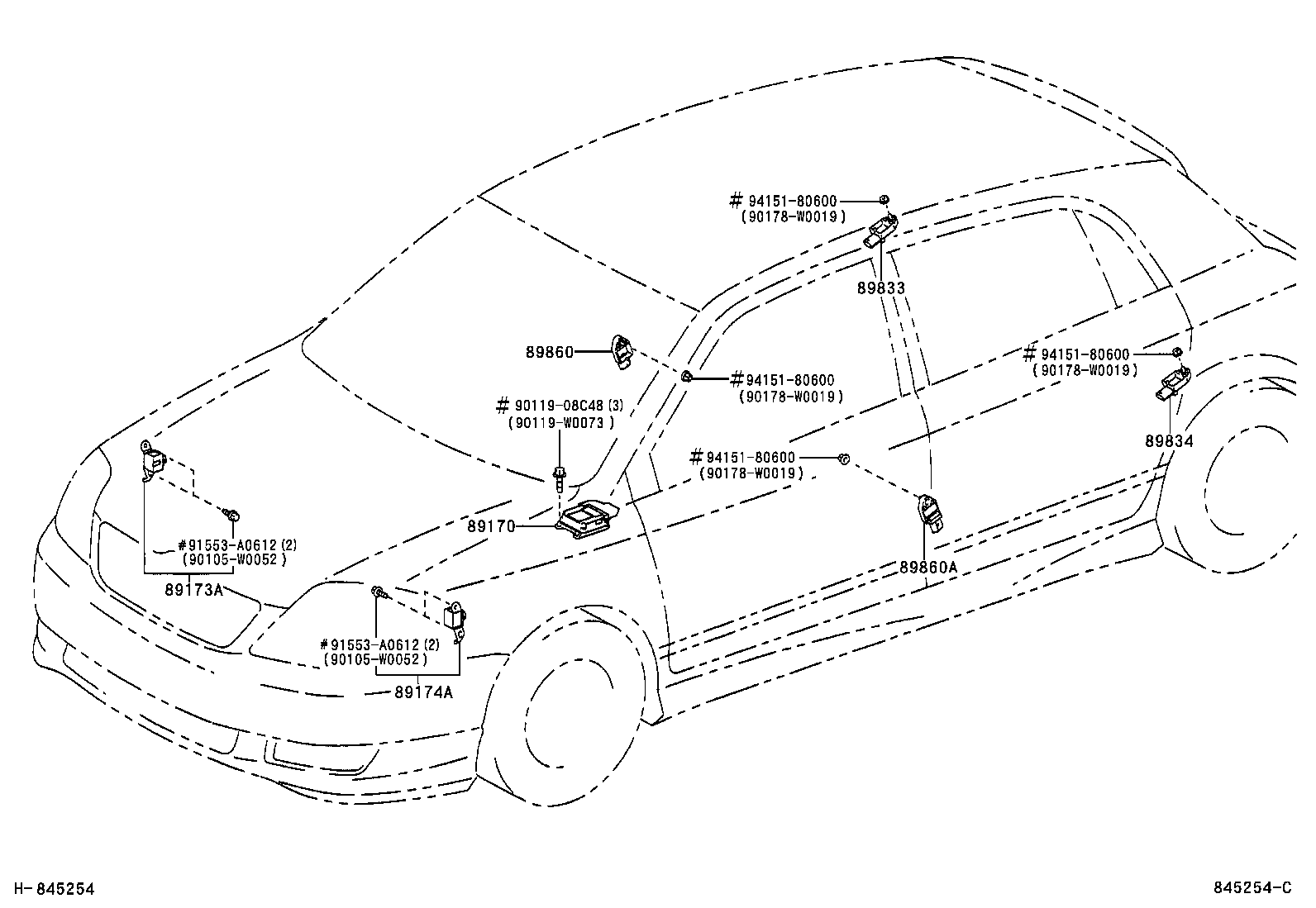

(0301-0405)UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-02160	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89170-02180	CDE120,ZZE12#..UKP W(SRS SIDE AIR BAG)	11/2001 - 01/2003	1
89170-02290	CDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)	01/2003 - 05/2004	1
89170-02510	CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(SRS CURTAIN SHIELD AIR BAG)	05/2004 - 04/2006	1
89170-02270	CDE120,ZZE12#..UKP..5D W(SRS SIDE AIR BAG)	01/2003 - 05/2004	1
89170-02250	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89170-02491	CDE120,NDE120,ZZE120,121..UKP..RHD..5D	05/2006 - 12/2999	1
89170-02490	CDE120,NDE120,ZZE120,121..UKP..RHD..5D	05/2004 - 04/2006	1
89170-02511	CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(SRS CURTAIN SHIELD AIR BAG)	05/2006 - 12/2999	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09170	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
89173-69126	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89173-19285	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19085	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89174-69126	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89173-09170	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
89833 - SENSOR, AIR BAG, REAR RH
89831-02010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89831-02050	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
89834 - SENSOR, AIR BAG, REAR LH
89831-02010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89831-02050	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-02030	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
89831-05010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89831-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-05010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89860-02030	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
89831-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90105-W0052
90119-08C48
90119-W0073
90178-W0019
91553-A0612
94151-80600

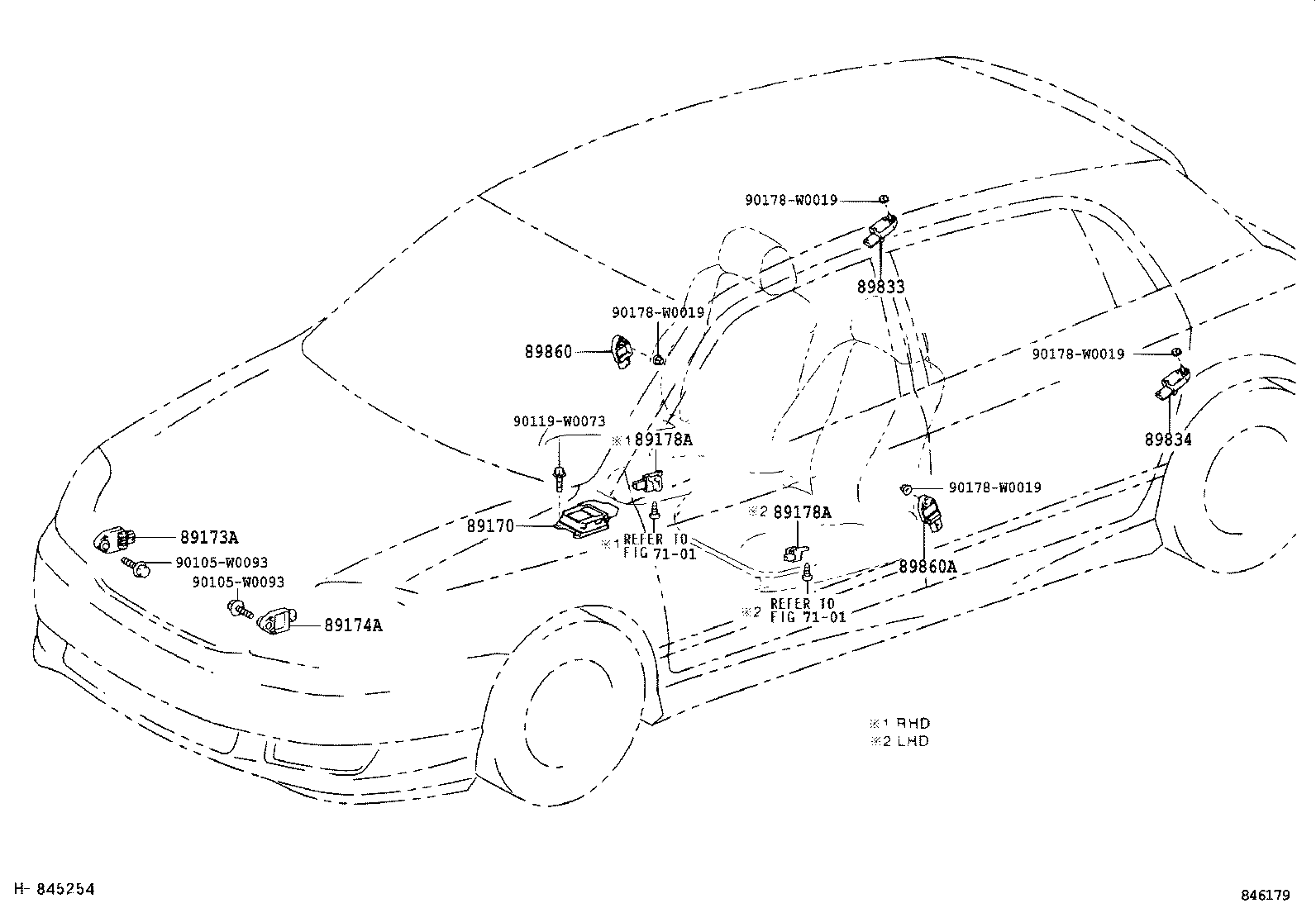

(0405- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-02160	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89170-02180	CDE120,ZZE12#..UKP W(SRS SIDE AIR BAG)	11/2001 - 01/2003	1
89170-02290	CDE120,ZZE12#..UKP..5D W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)	01/2003 - 05/2004	1
89170-02510	CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(SRS CURTAIN SHIELD AIR BAG)	05/2004 - 04/2006	1
89170-02270	CDE120,ZZE12#..UKP..5D W(SRS SIDE AIR BAG)	01/2003 - 05/2004	1
89170-02250	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89170-02491	CDE120,NDE120,ZZE120,121..UKP..RHD..5D	05/2006 - 12/2999	1
89170-02490	CDE120,NDE120,ZZE120,121..UKP..RHD..5D	05/2004 - 04/2006	1
89170-02511	CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(SRS CURTAIN SHIELD AIR BAG)	05/2006 - 12/2999	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09170	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
89173-69126	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89173-19285	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19085	CDE120,ZZE12#..UKP	11/2001 - 01/2003	1
89174-69126	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89173-09170	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-0W010	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 02/2007	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-0W010	CDE120,NDE120,ZZE12#..UKP..RHD	05/2004 - 02/2007	1
89833 - SENSOR, AIR BAG, REAR RH
89831-02010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89831-02050	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
89834 - SENSOR, AIR BAG, REAR LH
89831-02010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89831-02050	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-02030	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
89831-05010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89831-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-05010	CDE120,ZZE12#..UKP	01/2003 - 05/2004	1
89860-02030	CDE120,ZZE12#..UKP..5D	11/2001 - 01/2003	1
89831-02020	CDE120,NDE120,ZZE12#..UKP	05/2004 - 12/2999	1
Common parts
90105-W0093
90119-W0073
90178-W0019
Linked diagrams
7101

ZZE121R-DHPDKW (2001)

(0111-0301)UKP

(0301-0405)UKP

(0405- )UKP
