ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

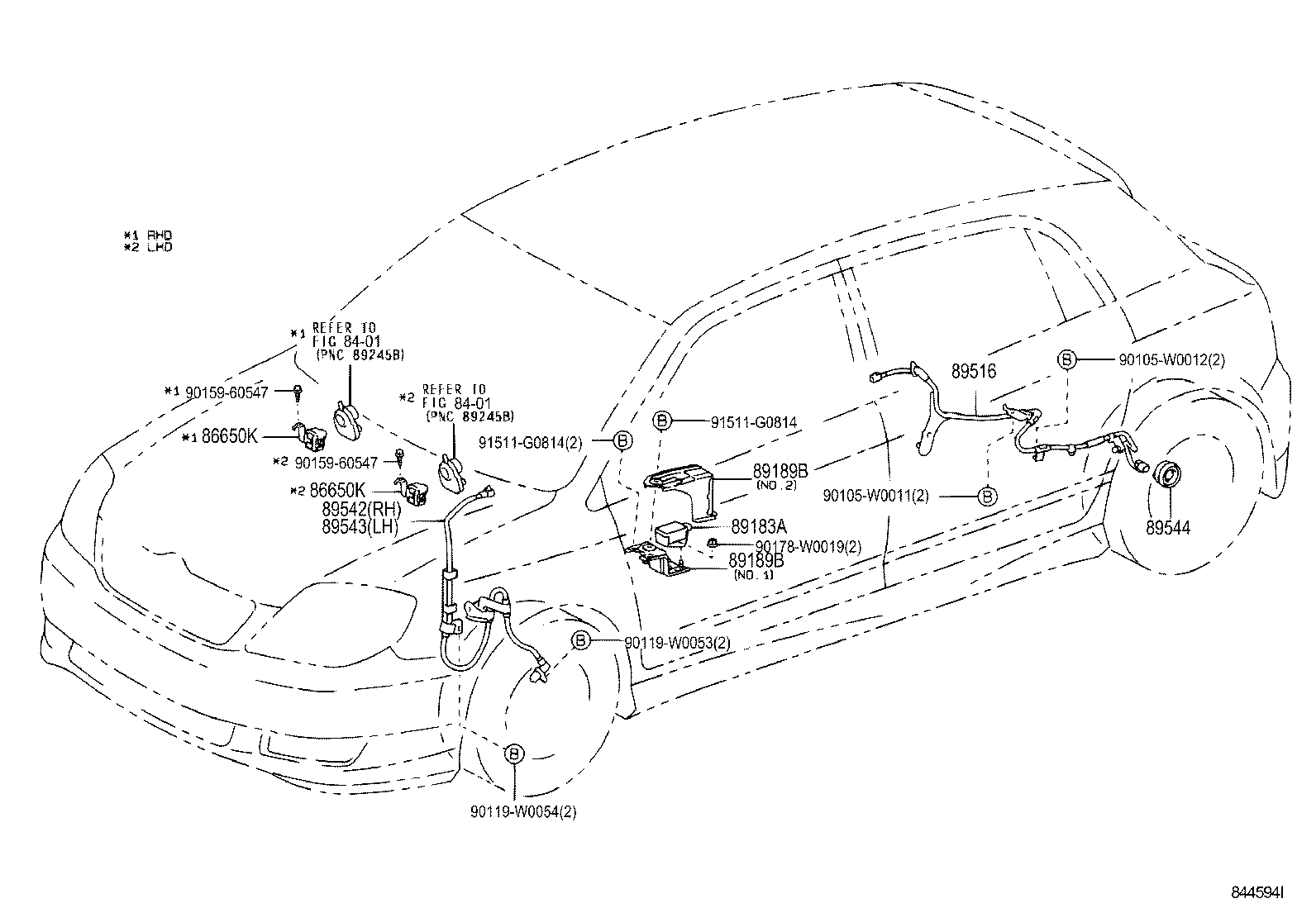

(0111-0405)UKP

Click highlighted areas on diagram

diagram 8401 8401 86650K 86650K 89183A 89189B 89189B 89516 89542 89543 89544 90105W0011 90105W0012 90119W0053 90119W0054 9015960547 9015960547 90178W0019 91511G0814 91511G0814
Part # Description Qty Price
86650K - BUZZER ASSY, SKID CONTROL
86650-13010

CDE120,NDE120,ZZE120,121..UKP..RHD

 1
86650-13010

ZZE121,123..UKP

 1
86650K - BUZZER ASSY, SKID CONTROL
86650-13010

CDE120,NDE120,ZZE120,121..UKP..RHD

 1
86650-13010

ZZE121,123..UKP

 1
89183A - SENSOR, YAWRATE
89183-02020

CDE120,NDE120,ZZE120,121..UKP..RHD

 1
89183-02010

ZZE121,123..UKP

 1
89183-05020

ZZE121,123..UKP

 1
89189B - BRACKET, YAWRATE SENSOR
89189-13020

ZZE121,123..UKP

NO.2

 1
89189-13010

ZZE121,123..UKP

NO.1

 1
89189-20040

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.1

 1
89189-12070

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.2

 1
89189B - BRACKET, YAWRATE SENSOR
89189-13020

ZZE121,123..UKP

NO.2

 1
89189-13010

ZZE121,123..UKP

NO.1

 1
89189-20040

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.1

 1
89189-12070

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.2

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-02010

CDE120,ZZE12#..UKP

RH

 1
89516-02020

CDE120,ZZE12#..UKP

LH

 1
89516-02010

CDE120,NDE120,ZZE12#..UKP

RH

 1
89516-02020

CDE120,NDE120,ZZE12#..UKP

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12070

CDE120,ZZE12#..UKP

DENSO

 1
89542-02040

CDE120,NDE120,ZZE12#..UKP

 1
89542-02040

CDE120,ZZE12#..UKP

BOSCH

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02040

CDE120,NDE120,ZZE12#..UKP

 1
89543-12070

CDE120,ZZE12#..UKP

DENSO

 1
89543-02040

CDE120,ZZE12#..UKP

BOSCH

 1
89544 - SENSOR, SKID CONTROL
89544-02010

CDE120,ZZE12#..UKP

 2
89544-02010

CDE120,NDE120,ZZE12#..UKP

 2
Common parts
90105-W0011
90105-W0012
90119-W0053
90119-W0054
90159-60547
90178-W0019
91511-G0814
Linked diagrams
8401

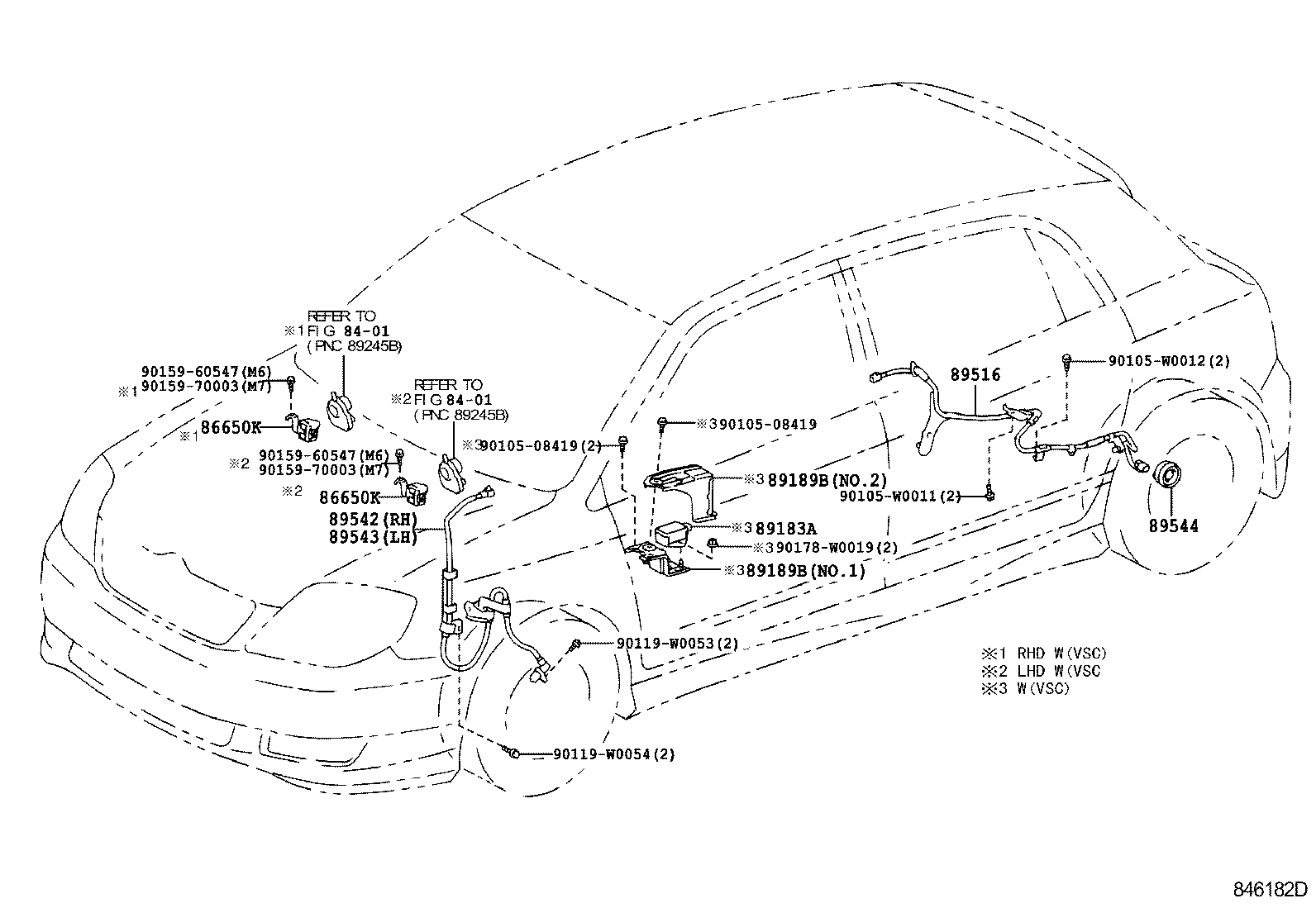

(0405- )UKP

Click highlighted areas on diagram

diagram 8401 8401 86650K 86650K 89183A 89189B 89189B 89516 89542 89543 89544 9010508419 9010508419 90105W0011 90105W0012 90119W0053 90119W0054 9015960547 9015960547 9015970003 9015970003 90178W0019
Part # Description Qty Price
86650K - BUZZER ASSY, SKID CONTROL
86650-13010

CDE120,NDE120,ZZE120,121..UKP..RHD

 1
86650-13010

ZZE121,123..UKP

 1
86650K - BUZZER ASSY, SKID CONTROL
86650-13010

CDE120,NDE120,ZZE120,121..UKP..RHD

 1
86650-13010

ZZE121,123..UKP

 1
89183A - SENSOR, YAWRATE
89183-02020

CDE120,NDE120,ZZE120,121..UKP..RHD

 1
89183-02010

ZZE121,123..UKP

 1
89183-05020

ZZE121,123..UKP

 1
89189B - BRACKET, YAWRATE SENSOR
89189-13020

ZZE121,123..UKP

NO.2

 1
89189-13010

ZZE121,123..UKP

NO.1

 1
89189-20040

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.1

 1
89189-12070

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.2

 1
89189B - BRACKET, YAWRATE SENSOR
89189-13020

ZZE121,123..UKP

NO.2

 1
89189-13010

ZZE121,123..UKP

NO.1

 1
89189-20040

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.1

 1
89189-12070

CDE120,NDE120,ZZE120,121..UKP..RHD

NO.2

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-02010

CDE120,ZZE12#..UKP

RH

 1
89516-02020

CDE120,ZZE12#..UKP

LH

 1
89516-02010

CDE120,NDE120,ZZE12#..UKP

RH

 1
89516-02020

CDE120,NDE120,ZZE12#..UKP

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12070

CDE120,ZZE12#..UKP

DENSO

 1
89542-02040

CDE120,NDE120,ZZE12#..UKP

 1
89542-02040

CDE120,ZZE12#..UKP

BOSCH

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02040

CDE120,NDE120,ZZE12#..UKP

 1
89543-12070

CDE120,ZZE12#..UKP

DENSO

 1
89543-02040

CDE120,ZZE12#..UKP

BOSCH

 1
89544 - SENSOR, SKID CONTROL
89544-02010

CDE120,ZZE12#..UKP

 2
89544-02010

CDE120,NDE120,ZZE12#..UKP

 2
Common parts
90105-08419
90105-W0011
90105-W0012
90119-W0053
90119-W0054
90159-60547
90159-70003
90178-W0019
Linked diagrams
8401
