ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0405)ZZE12#..UKP..RHD

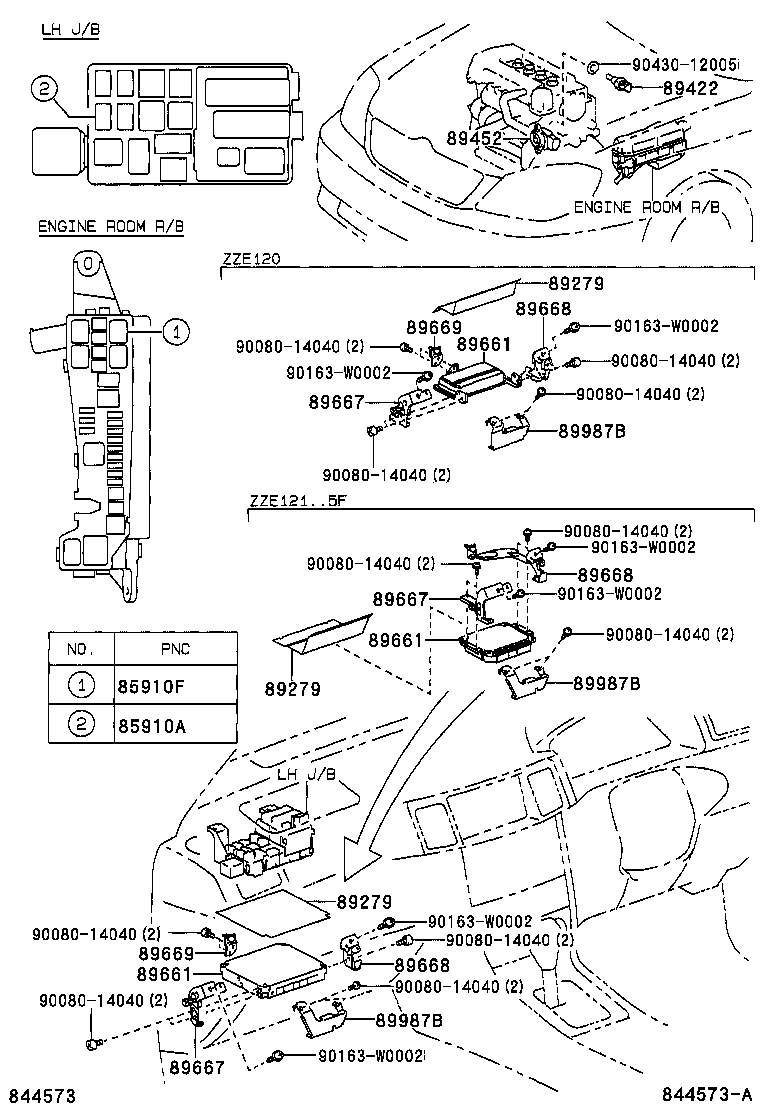

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89279 89279 89422 89452 89661 89661 89661 89667 89667 89667 89668 89668 89668 89669 89669 89987B 89987B 89987B 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 90163W0002 90163W0002 90163W0002 90163W0002 90163W0002 90163W0002 9043012005
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87019

ZZE12#..UKP

 1
90080-87019

ZZE12#..UKP

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87019

ZZE12#..UKP

 1
90080-87019

ZZE12#..UKP

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150

ZZE121,123..UKP

 1
89279-12150

ZZE121,123..UKP..(4FC,6F)

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150

ZZE121,123..UKP

 1
89279-12150

ZZE121,123..UKP..(4FC,6F)

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150

ZZE121,123..UKP

 1
89279-12150

ZZE121,123..UKP..(4FC,6F)

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ZZE12#..UKP

 1
89422-35010

ZZE12#..UKP

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

ZZE120,121..UKP

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02080

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02080

 1
89666-02070

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02070

 1
89661-02B50

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B50

 1
89661-02B70

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B70

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02080

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02080

 1
89666-02070

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02070

 1
89661-02B50

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B50

 1
89661-02B70

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B70

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02080

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02080

 1
89666-02070

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02070

 1
89661-02B50

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B50

 1
89661-02B70

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B70

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-13150

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89667-02130

ZZE121..UKP;ZZE123..UKP..LHD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-13150

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89667-02130

ZZE121..UKP;ZZE123..UKP..LHD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-13150

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89667-02130

ZZE121..UKP;ZZE123..UKP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-13060

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89668-02090

ZZE121..UKP;ZZE123..UKP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-13060

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89668-02090

ZZE121..UKP;ZZE123..UKP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-13060

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89668-02090

ZZE121..UKP;ZZE123..UKP..LHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-02040

ZZE121,123..UKP

 1
89669-12030

ZZE121,123..UKP..(4FC,6F)

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-02040

ZZE121,123..UKP

 1
89669-12030

ZZE121,123..UKP..(4FC,6F)

 1
89987B - BRACKET, COMPUTER, NO.1
89987-13010

ZZE121,123..UKP..RHD

 1
89987B - BRACKET, COMPUTER, NO.1
89987-13010

ZZE121,123..UKP..RHD

 1
89987B - BRACKET, COMPUTER, NO.1
89987-13010

ZZE121,123..UKP..RHD

 1
Common parts
90080-14040
90163-W0002
90430-12005

(0405- )ZZE12#..UKP..RHD

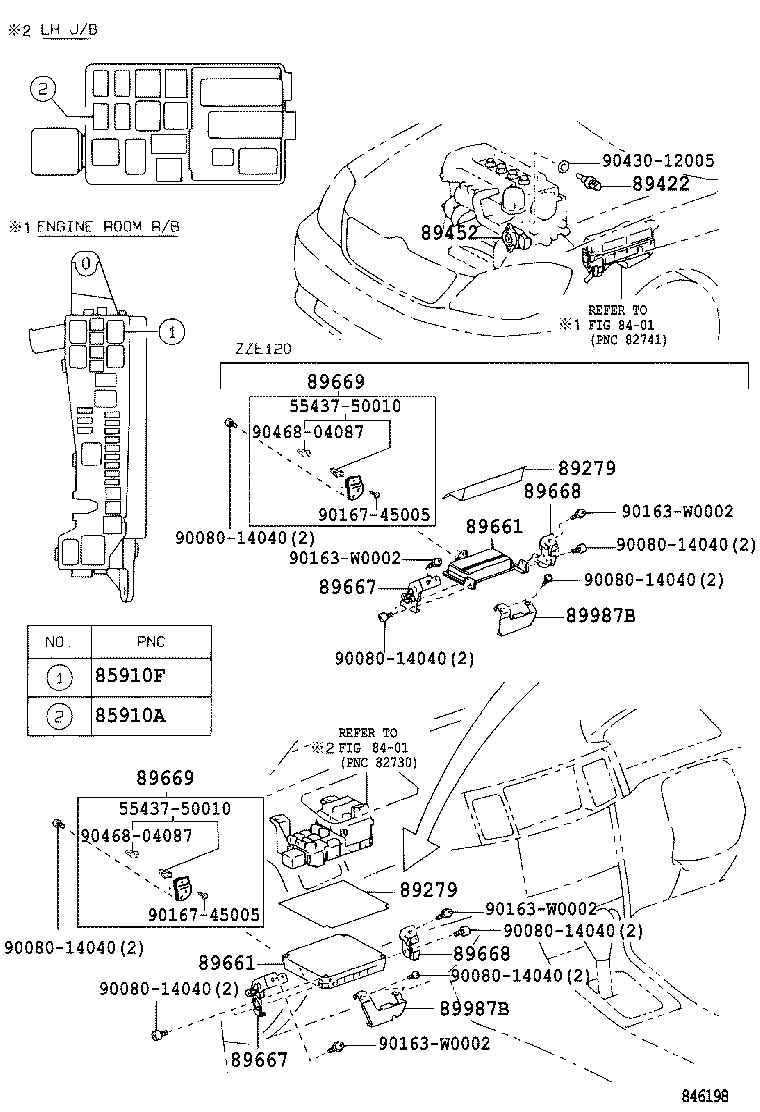

Click highlighted areas on diagram

diagram 5543750010 5543750010 8401 8401 85910A 85910F 89279 89279 89422 89452 89661 89661 89667 89667 89668 89668 89669 89669 89987B 89987B 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 9008014040 90163W0002 90163W0002 90163W0002 90163W0002 9016745005 9016745005 9043012005 9046804087 9046804087
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87019

ZZE12#..UKP

 1
90080-87019

ZZE12#..UKP

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87019

ZZE12#..UKP

 1
90080-87019

ZZE12#..UKP

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150

ZZE121,123..UKP

 1
89279-12150

ZZE121,123..UKP..(4FC,6F)

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12150

ZZE121,123..UKP

 1
89279-12150

ZZE121,123..UKP..(4FC,6F)

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ZZE12#..UKP

 1
89422-35010

ZZE12#..UKP

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

ZZE120,121..UKP

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02080

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02080

 1
89666-02070

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02070

 1
89661-02B50

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B50

 1
89661-02B70

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B70

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02080

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02080

 1
89666-02070

ZZE121..UKP..4FC

PART NUMBER LABEL=89666-02070

 1
89661-02B50

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B50

 1
89661-02B70

ZZE121..UKP..RHD..4FC

PART NUMBER LABEL=89661-02B70

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-13150

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89667-02130

ZZE121..UKP;ZZE123..UKP..LHD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-13150

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89667-02130

ZZE121..UKP;ZZE123..UKP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-13060

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89668-02090

ZZE121..UKP;ZZE123..UKP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-13060

ZZE121,123..UKP..RHD..(4FC,6F)

 1
89668-02090

ZZE121..UKP;ZZE123..UKP..LHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-02040

ZZE121,123..UKP

 1
89669-12030

ZZE121,123..UKP..(4FC,6F)

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-02040

ZZE121,123..UKP

 1
89669-12030

ZZE121,123..UKP..(4FC,6F)

 1
89987B - BRACKET, COMPUTER, NO.1
89987-13010

ZZE121,123..UKP..RHD

 1
89987B - BRACKET, COMPUTER, NO.1
89987-13010

ZZE121,123..UKP..RHD

 1
Common parts
55437-50010
90080-14040
90163-W0002
90167-45005
90430-12005
90468-04087
Linked diagrams
8401
