ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

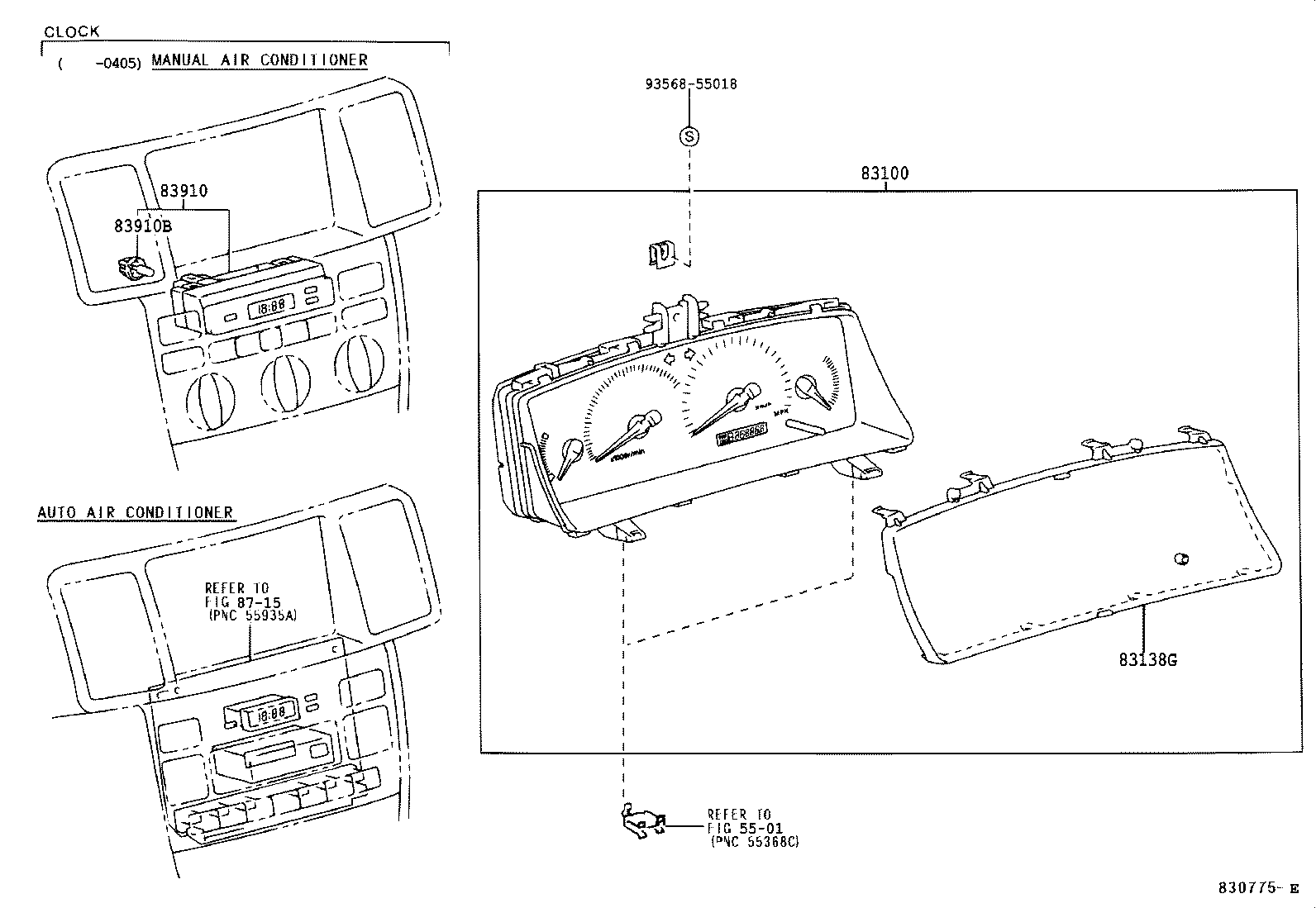

Click highlighted areas on diagram

diagram 5501 83100 83138G 83910 83910B 8715 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-02750

ZZE120,121..UKP

OPTITRON METER,KM/H

 1
83800-02820

ZZE120,121..UKP..RHD..TERRA

ANALOGUE METER,MILE/H+KM/H

 1
83800-02800

ZZE120,121..UKP..TERRA

ANALOGUE METER,KM/H

 1
83800-02D20

ZZE120,121..UKP..RHD..TERRA

ANALOGUE METER,MILE/H+KM/H

 1
83800-02C80

ZZE120,121..UKP..RHD

OPTITRON METER,MILE/H+KM/H

 1
83800-02C50

ZZE120,121..UKP

OPTITRON METER,KM/H

 1
83800-02780

ZZE120,121..UKP..RHD

OPTITRON METER,MILE/H+KM/H

 1
83800-02D00

ZZE120,121..UKP..TERRA

ANALOGUE METER,KM/H

 1
83138G - GLASS, COMBINATION METER
83852-02800

CDE120,ZZE120,121..UKP..TERRA

ANALOGUE METER

 1
83852-02740

CDE120,ZZE12#..UKP

OPTITRON METER

 1
83852-02740

CDE120,NDE120,ZZE120,121..UKP..(4FC,5F)

OPTITRON METER

 1
83852-02800

NDE120..UKP..5F..TERRA;CDE120,ZZE12#..UKP..(TERRA,TSP)

ANALOGUE METER

 1
83910 - CLOCK ASSY
83910-12580

CDE120,ZZE121..UKP

 1
83910B - BULB, CLOCK INDICATOR
90010-07020

CDE120,ZZE121..UKP

14V 1.12W

 1
Common parts
93568-55018
Linked diagrams
5501
8715
