ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
ILLUST NO. 1 OF 7(0111- )ZZE12#..UKP

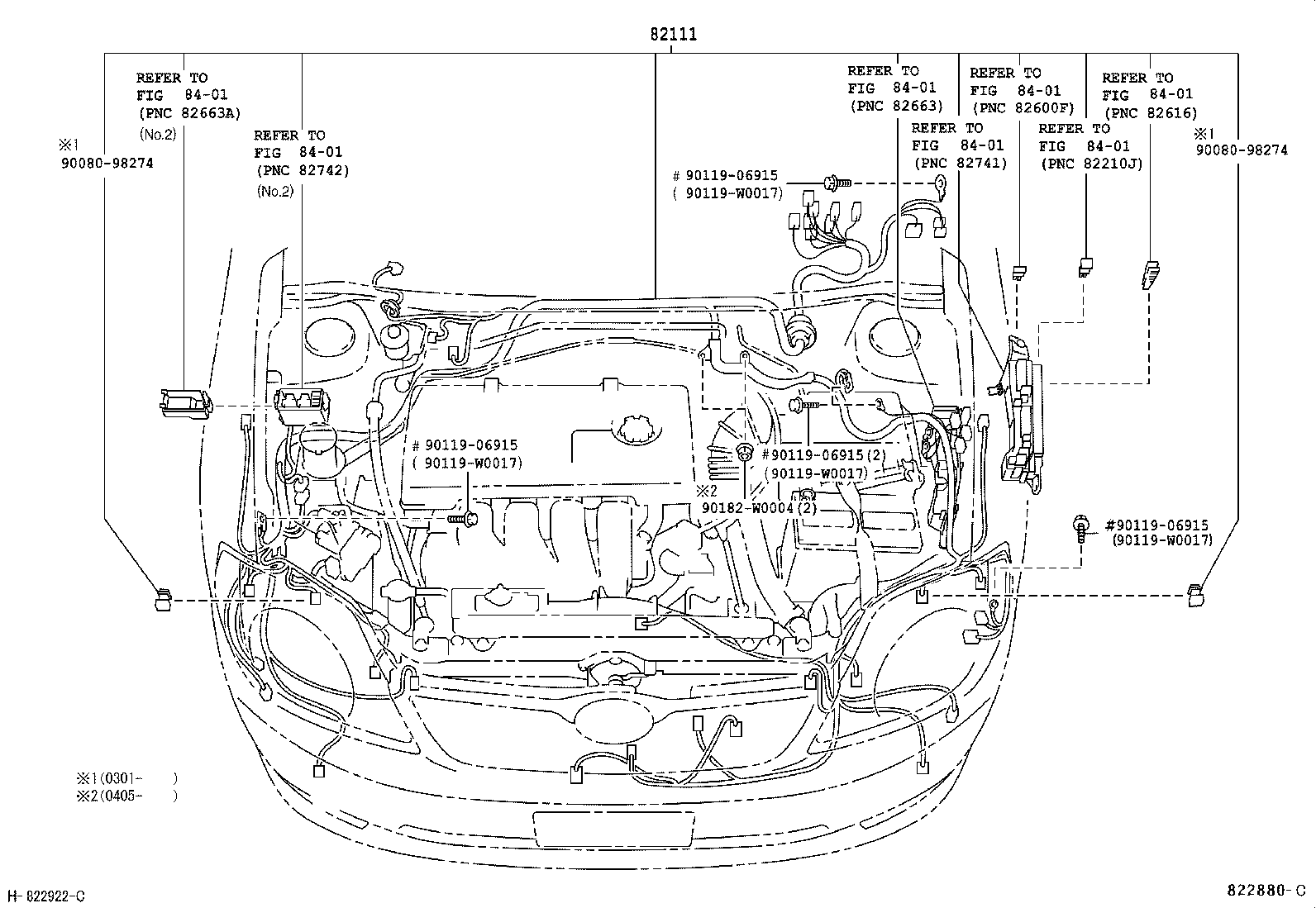

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-02850 |
ZZE120,121..UKP..RHD |
1 | ||
| 82115-02860 |
ZZE121..UKP..RHD W(VSC) |
1 | ||
| 82115-02851 |
ZZE120,121..UKP..RHD |
1 | ||
| 82115-02861 |
ZZE121..UKP..RHD W(VSC) |
1 | ||
| 82111-02G40 |
ZZE120,121..UKP..RHD W(VSC) |
1 | ||
| 82111-02G30 |
ZZE120,121..UKP..RHD |
1 | ||
| Common parts | ||||
| 90080-98274 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90182-W0004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 7(0111- )UKP..RHD

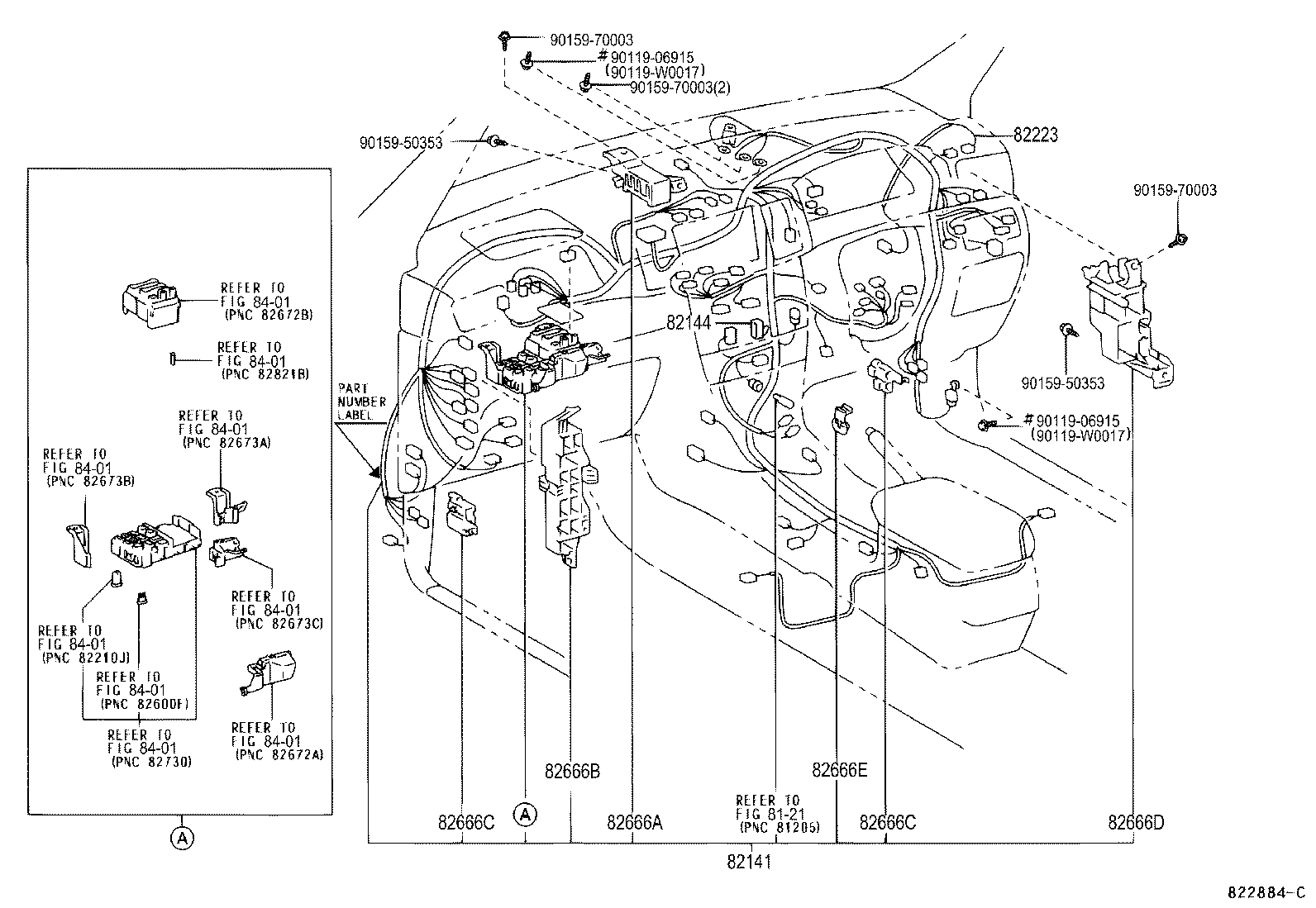

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82201-02150 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82201-02150 |
1 | ||
| 82201-02160 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82201-02160 |
1 | ||
| 82118-02410 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02410 |
1 | ||
| 82118-02420 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02420 |
1 | ||
| 82118-02430 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02430 |
1 | ||
| 82118-02440 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02440 |
1 | ||
| 82201-02161 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82201-02161 |
1 | ||
| 82201-02151 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82201-02151 |
1 | ||
| 82118-02421 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02421 |
1 | ||
| 82118-02411 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02411 |
1 | ||
| 82118-02431 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02431 |
1 | ||
| 82118-02441 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82118-02441 |
1 | ||
| 82201-02152 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82201-02152 |
1 | ||
| 82201-02162 |
ZZE121..UKP..RHD..4FC PART NUMBER LABEL=82201-02162 |
1 | ||
| 82141-02T80 |
ZZE121..UKP..RHD..4FC..TERRA PART NUMBER LABEL=82141-02T80 |
1 | ||
| 82141-02U00 |
ZZE121..UKP..RHD..4FC..TERRA PART NUMBER LABEL=82141-02U00 |
1 | ||
| 82141-02T90 |
ZZE121..UKP..RHD..4FC..TERRA PART NUMBER LABEL=82141-02T90 |
1 | ||
| 82141-02T70 |
ZZE121..UKP..RHD..4FC..TERRA PART NUMBER LABEL=82141-02T70 |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-02060 |
CDE120,ZZE120,121..UKP |
1 | ||
| 82144-02060 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-02060 |
CDE120,ZZE12#..UKP..RHD..(DCR,HDCR,HTWC,TWC) |
1 | ||
| 82223-02060 |
ZZE12#..UKP..RHD;NDE120..UKP..RHD..5FS |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12240 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666-12240 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12250 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666-12340 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
CDE120,ZZE12#..UKP |
2 | ||
| 82666-02070 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
CDE120,ZZE12#..UKP |
2 | ||
| 82666-02070 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12290 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666-12290 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82666-02110 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90159-50353 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 7(0111- )UKP

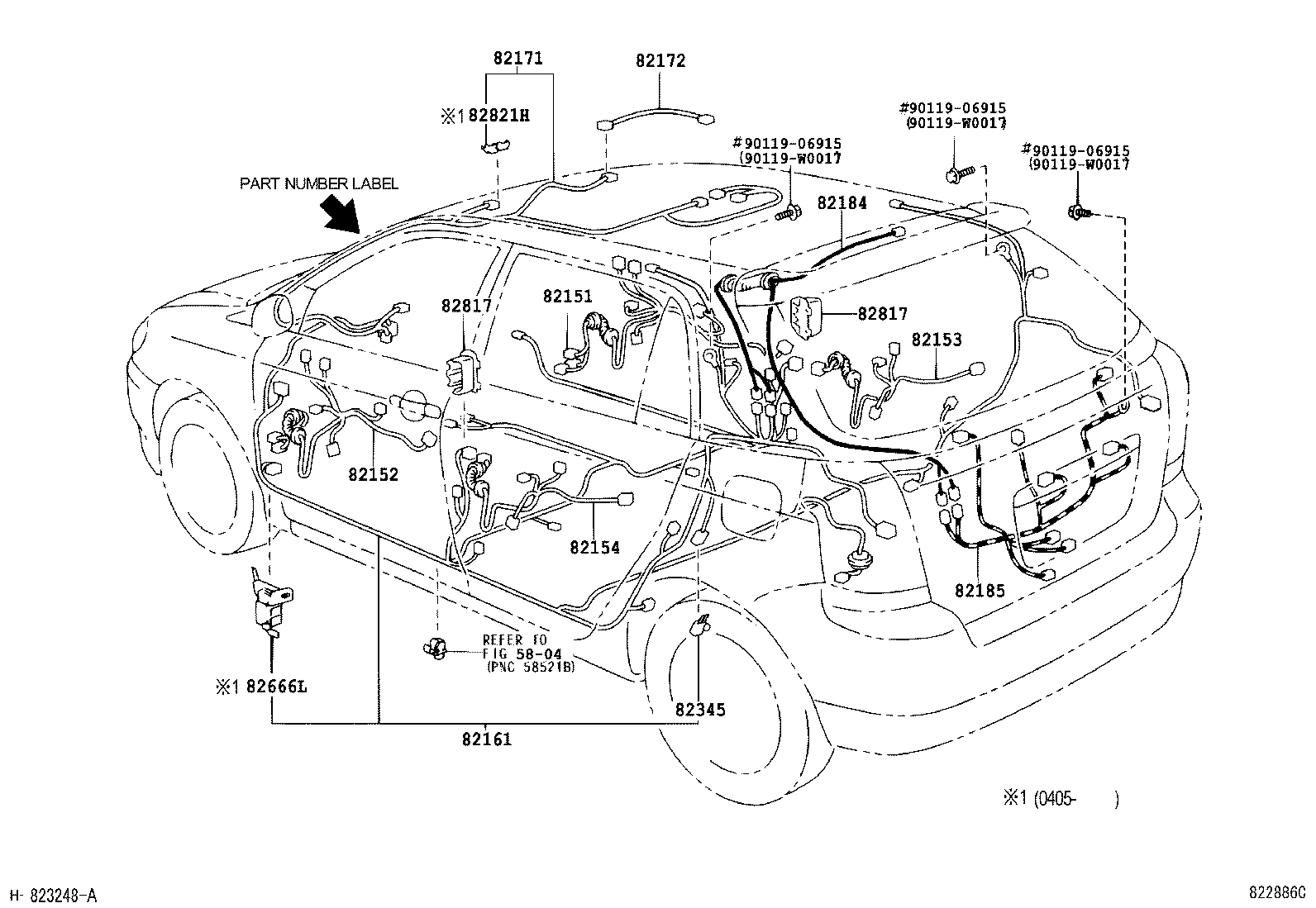

DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-02640 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82151-02660 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-02630 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA |
1 | ||
| 82151-02670 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| 82151-02650 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82151-02631 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA |
1 | ||
| 82151-02651 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82151-02641 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82151-02671 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| 82151-02661 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA |
1 | ||
| 82151-02661 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-02671 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82151-02691 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82151-02680 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02550 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-02560 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-02540 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA |
1 | ||
| 82152-02570 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-02580 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| 82152-02551 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-02571 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-02581 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| 82152-02541 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA |
1 | ||
| 82152-02561 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-02571 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA |
1 | ||
| 82152-02581 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-02601 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152-02590 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02200 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-02180 |
CDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 82153-02190 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 82153-02190 |
CDE120,ZZE120,121..UKP..5D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82153-02201 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-02221 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-02210 |
CDE120,NDE120,ZZE12#..UKP..5D W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-02201 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02170 |
CDE120,NDE120,ZZE120,121..UKP..5D..TERRA W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 82153-02180 |
CDE120,ZZE120,121..UKP..5D..TERRA |
1 | ||
| 82154-02180 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82154-02190 |
CDE120,NDE120,ZZE12#..UKP..5D W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82154-02181 |
CDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82154-02181 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82154-02170 |
CDE120,ZZE120,121..UKP..5D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82154-02201 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-02651 |
CDE120,ZZE12#..UKP..RHD..5D |
1 | ||
| 82161-02660 |
CDE120,ZZE12#..UKP..RHD..5D W(*80,SIDE) |
1 | ||
| 82161-02661 |
CDE120,ZZE12#..UKP..RHD..5D W(*80,SIDE) |
1 | ||
| 82161-02650 |
CDE120,ZZE12#..UKP..RHD..5D |
1 | ||
| 82161-02662 |
CDE120,ZZE12#..UKP..RHD..5D W(*80,SIDE) |
1 | ||
| 82161-0Z220 |
CDE120,ZZE12#..UKP..RHD..5D W(*80,CURTAIN SHIELD & SIDE) |
1 | ||
| 82161-02E40 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..(4FC,5F) |
1 | ||
| 82161-02E90 |
CDE120,NDE120,ZZE120,121..UKP..RHD..5D..(4FC,5F) W(*80,CURTAIN SHIELD & SIDE) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02280 |
CDE120,ZZE120,121..UKP..RHD..TERRA PART NUMBER LABEL=82171-02280 |
1 | ||
| 82171-02290 |
CDE120,ZZE12#..UKP..RHD PART NUMBER LABEL=82171-02290 |
1 | ||
| 82171-02300 |
CDE120,ZZE120,121..UKP..RHD..TERRA PART NUMBER LABEL=82171-02300 |
1 | ||
| 82171-02310 |
CDE120,ZZE12#..UKP..RHD PART NUMBER LABEL=82171-02310 |
1 | ||
| 82171-02800 |
CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA PART NUMBER LABEL=82171-02800 |
1 | ||
| 82171-02810 |
CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA PART NUMBER LABEL=82171-02810 |
1 | ||
| 82171-02790 |
CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA PART NUMBER LABEL=82171-02790 |
1 | ||
| 82171-02780 |
CDE120,NDE120,ZZE120,121..UKP..RHD..TERRA PART NUMBER LABEL=82171-02780 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82172-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02050 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82184-02050 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-02100 |
CDE120,NDE120,ZZE12#..UKP W(POWER DOOR LOCK) |
1 | ||
| 82185-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82345-12050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 82666-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02140 |
CDE120,NDE120,ZZE12#..UKP..5D RH |
1 | ||
| 82817-02250 |
CDE120,ZZE12#..UKP..5D LH |
1 | ||
| 82817-02250 |
CDE120,NDE120,ZZE12#..UKP..5D LH |
1 | ||
| 82817-02140 |
CDE120,ZZE12#..UKP..5D RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02140 |
CDE120,NDE120,ZZE12#..UKP..5D RH |
1 | ||
| 82817-02250 |
CDE120,ZZE12#..UKP..5D LH |
1 | ||
| 82817-02250 |
CDE120,NDE120,ZZE12#..UKP..5D LH |
1 | ||
| 82817-02140 |
CDE120,ZZE12#..UKP..5D RH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 5804 | ||||

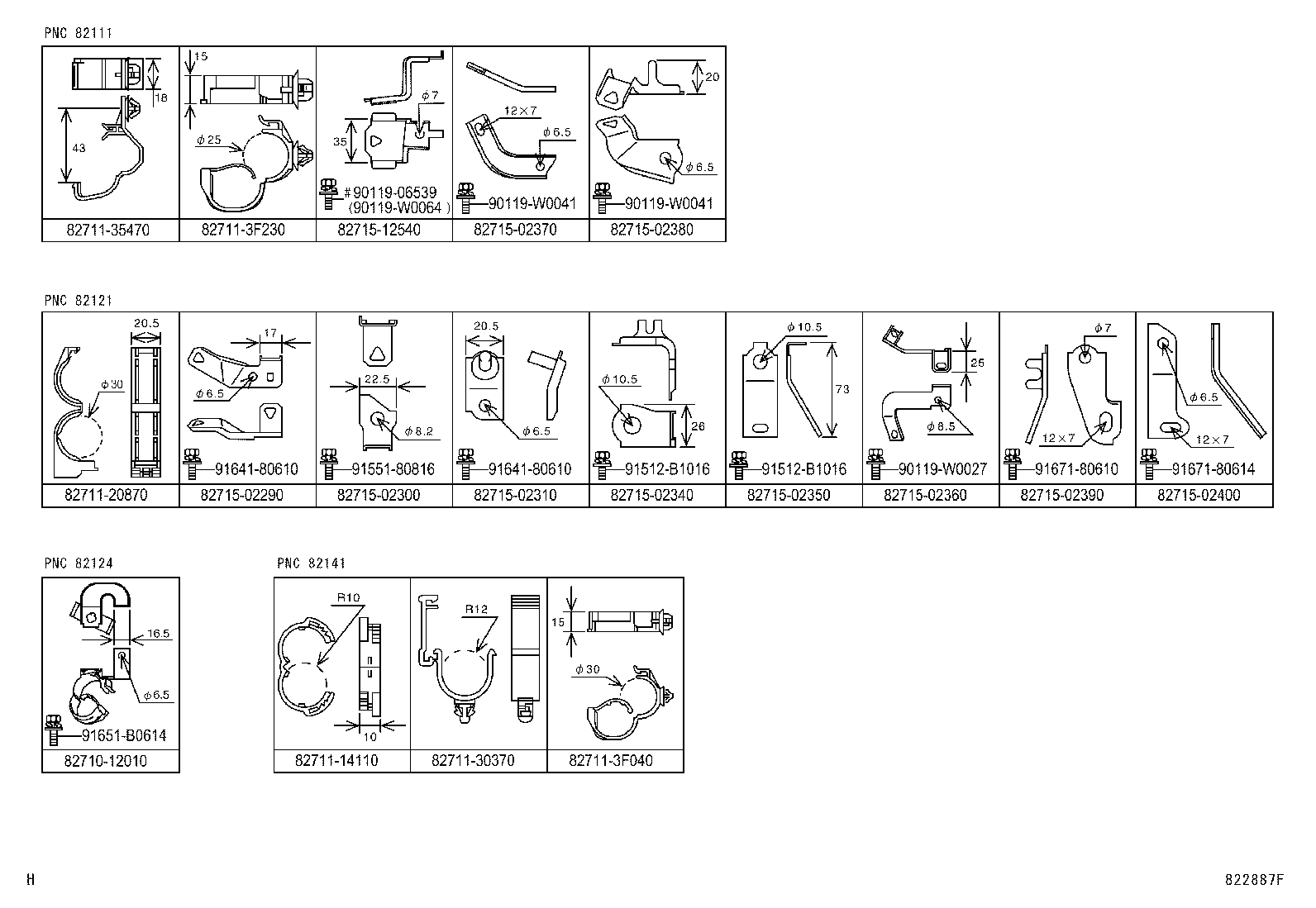

ILLUST NO. 5 OF 7(0111- )UKP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-12010 | ||||
| 82711-14110 | ||||
| 82711-20870 | ||||
| 82711-30370 | ||||
| 82711-35470 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82715-02290 | ||||
| 82715-02300 | ||||
| 82715-02310 | ||||
| 82715-02340 | ||||
| 82715-02350 | ||||
| 82715-02360 | ||||
| 82715-02370 | ||||
| 82715-02380 | ||||
| 82715-02390 | ||||
| 82715-02400 | ||||
| 82715-12540 | ||||
| 90119-06539 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90119-W0064 | ||||
| 91512-B1016 | ||||
| 91551-80816 | ||||
| 91641-80610 | ||||
| 91651-B0614 | ||||
| 91671-80610 | ||||
| 91671-80614 | ||||

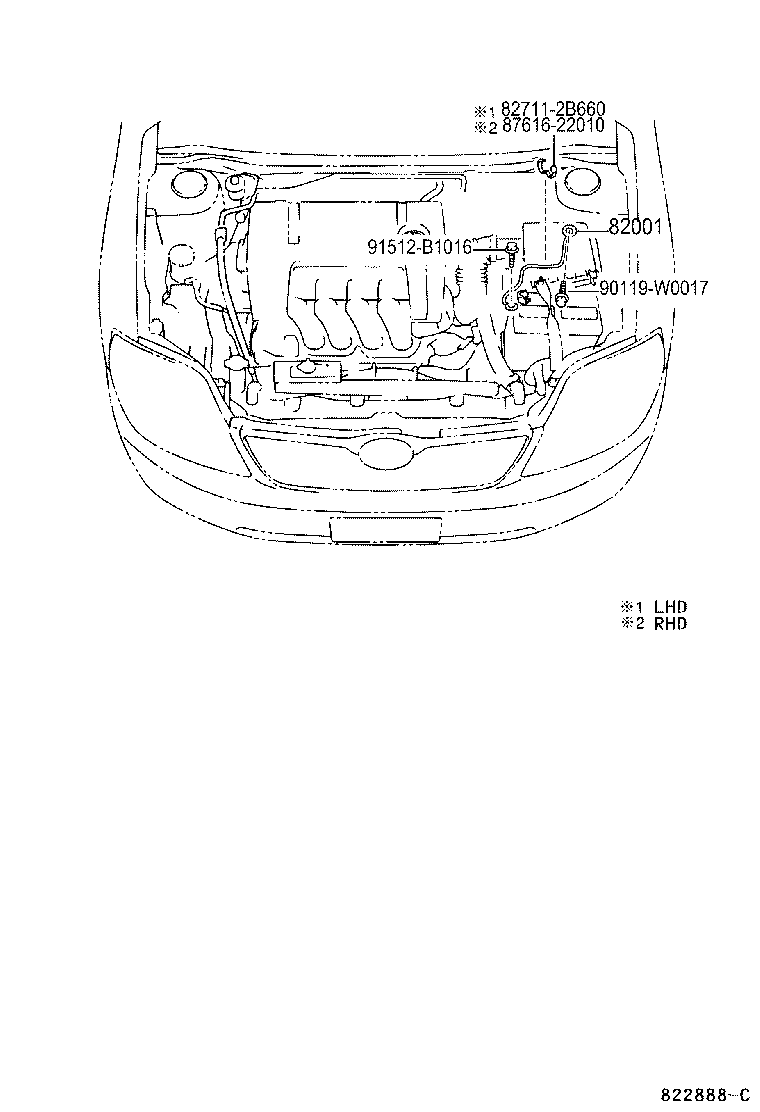

ILLUST NO. 6 OF 7(0111- )ZZE12#..UKP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82046-12200 |
ZZE121..UKP..4FC |
1 | ||
| 82046-12200 |
ZZE121..UKP..4FC |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 87616-22010 | ||||
| 90119-W0017 | ||||
| 91512-B1016 | ||||

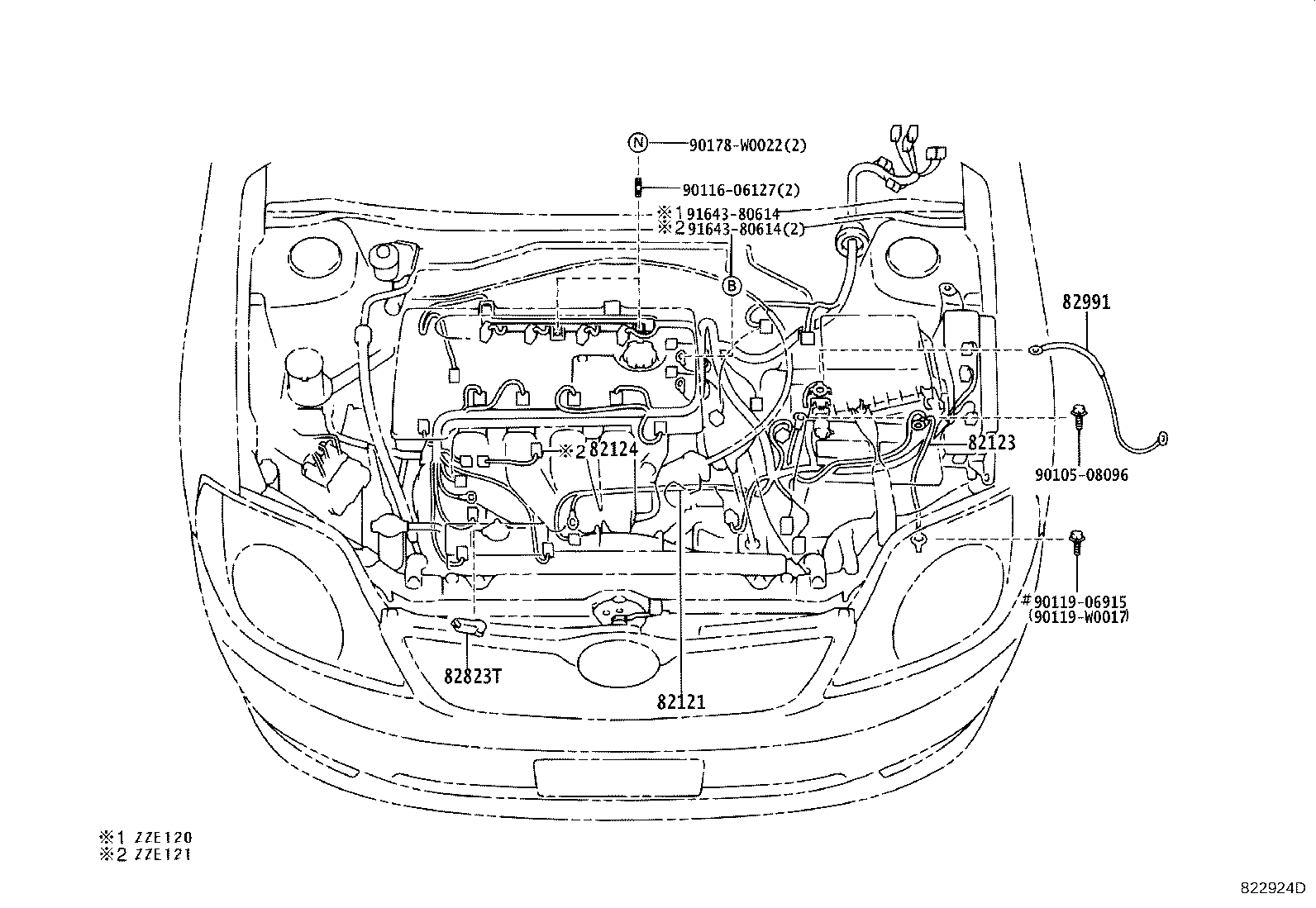

ILLUST NO. 2 OF 7(0111- )ZZE120,121..UKP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02690 |
ZZE121..UKP..RHD..4FC |
1 | ||
| 82121-02691 |
ZZE121..UKP..RHD..4FC |
1 | ||
| 82121-02D40 |
ZZE121..UKP..RHD..4FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02200 |
ZZE12#..UKP |
1 | ||
| 82123-02200 |
ZZE12#..UKP |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZZE121..UKP |
1 | ||
| 82124-02090 |
ZZE121..UKP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82823-22050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12070 |
ZZE12#..UKP |
1 | ||
| 82991-12070 |
ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90178-W0022 | ||||
| 91643-80614 | ||||

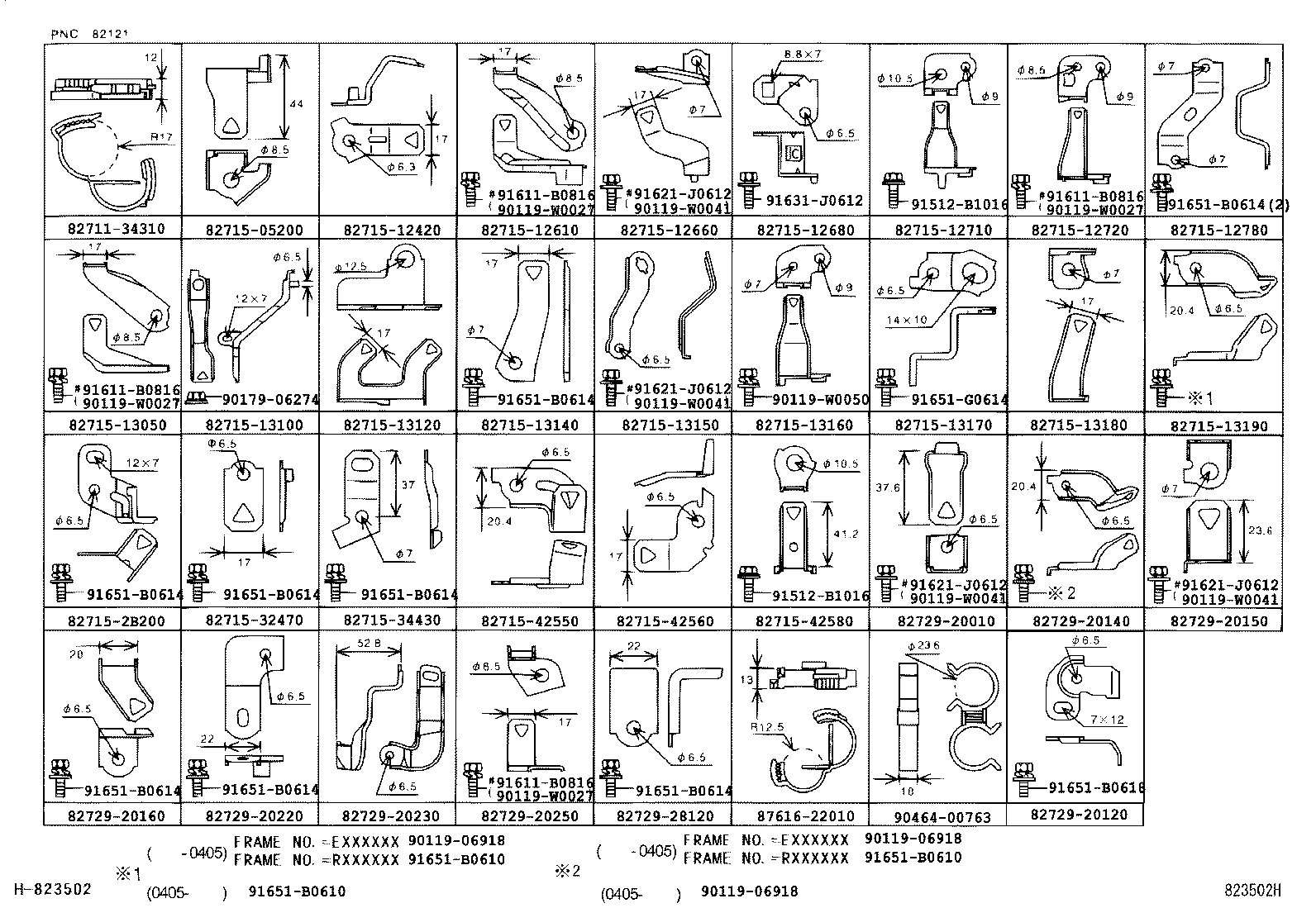

ILLUST NO. 5 OF 7(0111- )UKP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-34310 | ||||
| 82715-05200 | ||||
| 82715-12420 | ||||
| 82715-12610 | ||||
| 82715-12660 | ||||
| 82715-12680 | ||||
| 82715-12710 | ||||
| 82715-12720 | ||||
| 82715-12780 | ||||
| 82715-13050 | ||||
| 82715-13100 | ||||
| 82715-13120 | ||||
| 82715-13140 | ||||
| 82715-13150 | ||||
| 82715-13160 | ||||
| 82715-13170 | ||||
| 82715-13180 | ||||
| 82715-13190 | ||||
| 82715-2B200 | ||||
| 82715-32470 | ||||
| 82715-34430 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42580 | ||||
| 82729-20010 | ||||
| 82729-20120 | ||||
| 82729-20140 | ||||
| 82729-20150 | ||||
| 82729-20160 | ||||
| 82729-20220 | ||||
| 82729-20230 | ||||
| 82729-20250 | ||||
| 82729-28120 | ||||
| 87616-22010 | ||||
| 90119-06918 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90119-W0050 | ||||
| 90179-06274 | ||||
| 90464-00763 | ||||
| 91512-B1016 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91651-B0610 | ||||
| 91651-B0614 | ||||
| 91651-B0618 | ||||
| 91651-G0614 | ||||
ILLUST NO. 7 OF 7(0111- )UKP

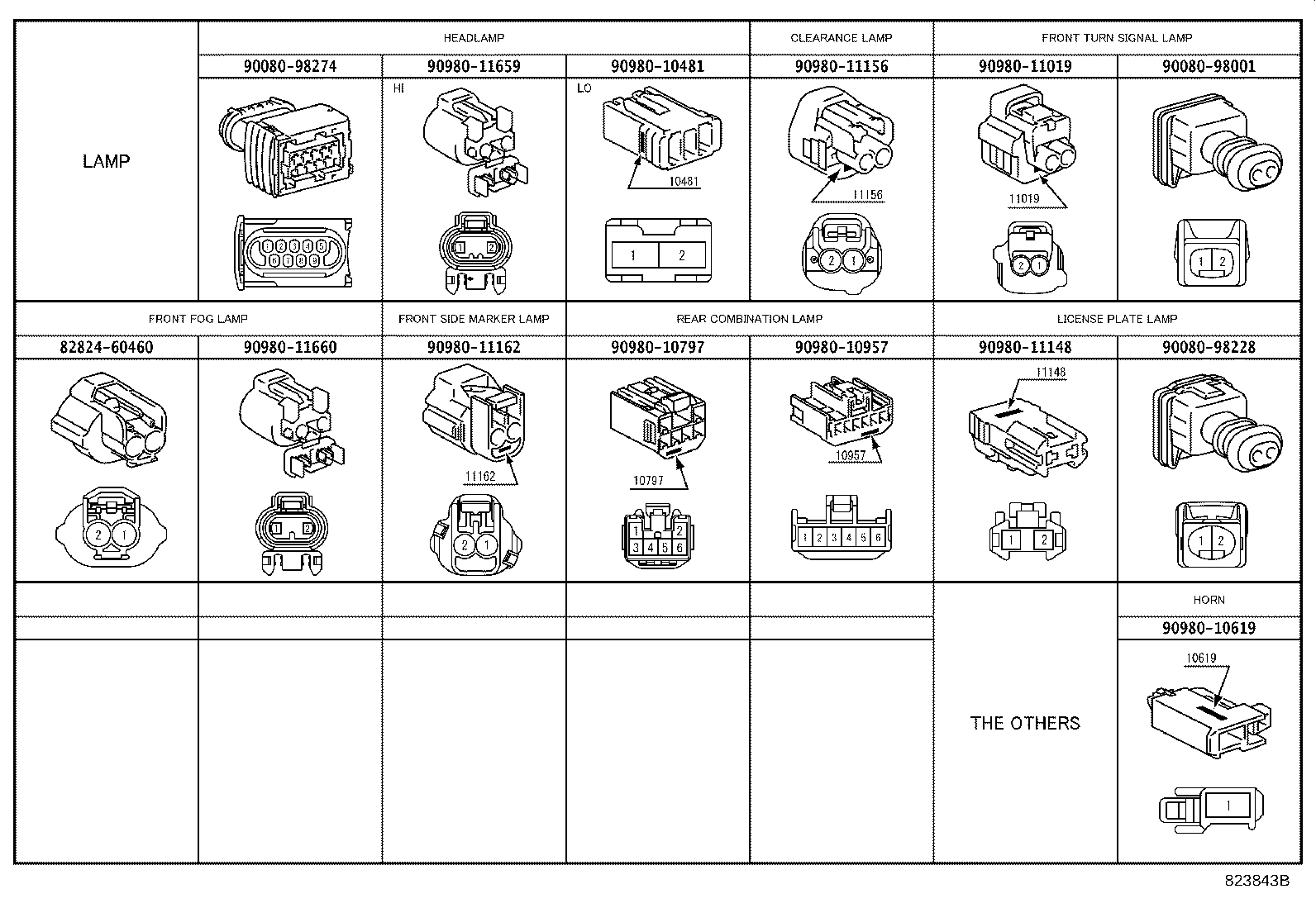

CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90080-98228 | ||||
| 90080-98274 | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10957 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
