ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

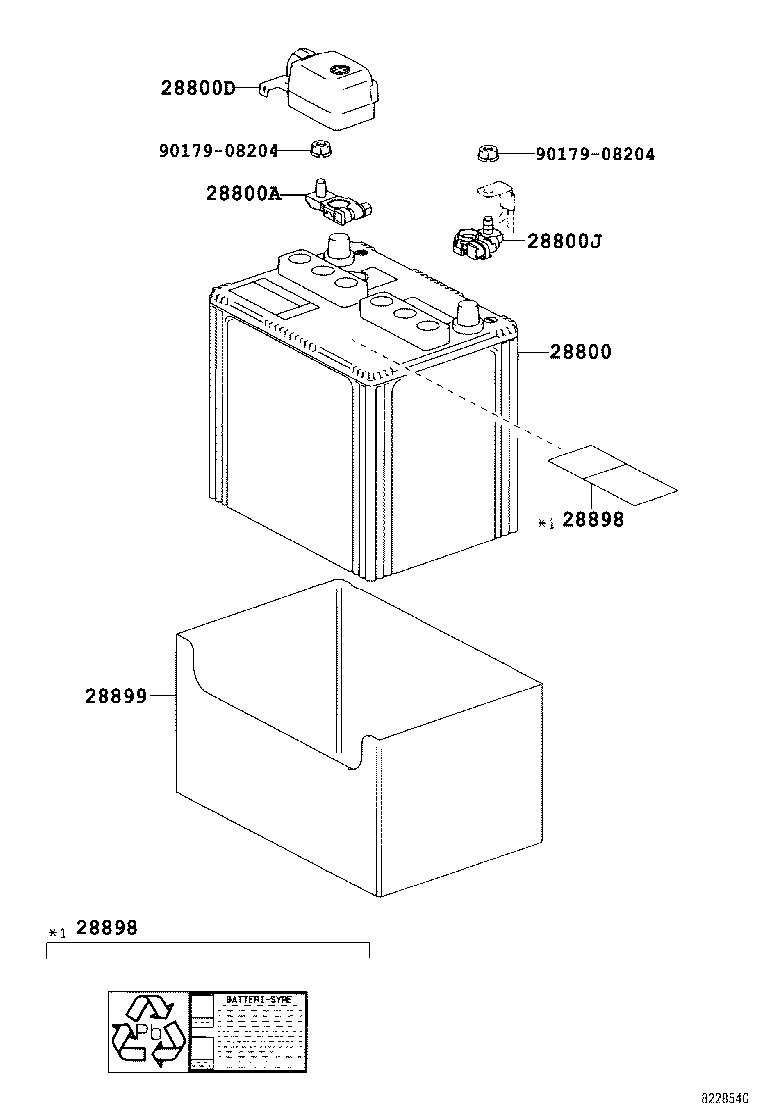

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28898 28898 28899 9017908204 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-0D200

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

LN1

 1
28800-0D080

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

LN1

 1
28800-0D200

3ZZFE,4ZZFE..ZZE120,121..UKP

LN1

 1
28800-0D210

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

LN2

 1
28800-0D090

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

LN2

 1
28800-0D210

1NDTV,3ZZFE,4ZZFE..NDE120,ZZE120,121..UKP

LN2

 1
28800-0D310

3ZZFE,4ZZFE..ZZE120,121..UKP

LN1

 1
28800-0D380

1NDTV,2ZZGE,3ZZFE,4ZZFE..NDE120,ZZE12#..UKP

LN2

 1
28800-0D350

1NDTV,2ZZGE,3ZZFE,4ZZFE..NDE120,ZZE12#..UKP

LN2,VARTA

 1
28800-0N030

1NDTV,3ZZFE,4ZZFE..NDE120,ZZE120,121..UKP

LN2

 1
28800-0D380

1NDTV,2ZZGE,3ZZFE,4ZZFE..NDE120,ZZE12#..UKP

LN2,DELPHI

 1
28800-0D310

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

LN1,DELPHI

 1
28800-0D340

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

LN1,VARTA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP

 1
90982-05056

1CDFTV,1NDTV,2ZZGE,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12500

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
82821-12500

2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056

1CDFTV,1NDTV,2ZZGE,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP

 1
90982-06028

1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP

 1
90982-06028

1CDFTV,1NDTV,2ZZGE,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP

 1
Common parts
90179-08204
