ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

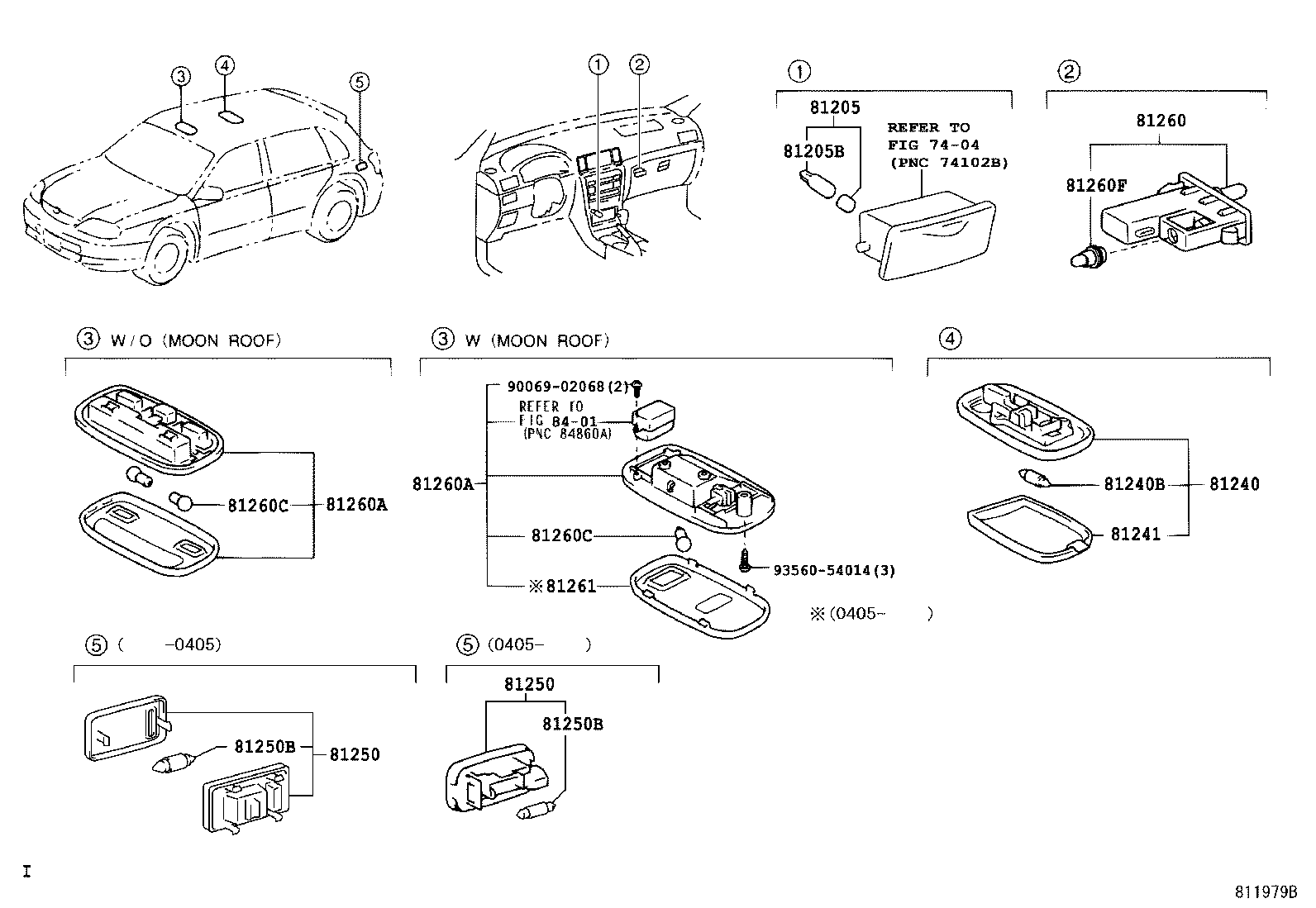

Click highlighted areas on diagram

diagram 81205 81205B 81240 81240B 81241 81250 81250 81250B 81250B 81260 81260A 81260A 81260C 81260C 81260F 81261 8401 9006902068 9356054014
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81205-12050

CDE120,NDE120,ZZE120,121..UKP

 1
81205-12050

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

CDE120,NDE120,ZZE12#..UKP

12V 1.2W W/O SOCKET

 1
90981-11018

CDE120,ZZE12#..UKP

12V 1.2W W/O SOCKET

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-13030B0

CDE120,NDE120,ZZE12#..UKP

LT.GRAY,TRIM1#

 1
81240-13030B0

CDE120,ZZE120,121..UKP..TERRA

LT.GRAY,TRIM1#,8#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

CDE120,ZZE12#..UKP

12V 8W

 1
90981-14011

CDE120,NDE120,ZZE12#..UKP

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12070

CDE120,ZZE12#..UKP

 1
81241-12070B0

ZZE121..UKP..RHD;ZZE121..UKP..LHD..3D;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,123..UKP;ZZE121..UKP..LHD..5D..5F..TERRA

LT.GRAY,TRIM1#

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-05051

CDE120,NDE120,ZZE12#..UKP

 1
81250-05010B2

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#

 1
81240-05050

CDE120,ZZE12#..UKP

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-05051

CDE120,NDE120,ZZE12#..UKP

 1
81250-05010B2

CDE120,ZZE120,121..UKP..TERRA

DK.GRAY,TRIM1#,8#

 1
81240-05050

CDE120,ZZE12#..UKP

 1
81250B - BULB, ROOM LAMP, NO.2
90981-WE002

CDE120,NDE120,ZZE12#..UKP

12V 5W

 1
90080-81049

CDE120,ZZE12#..UKP

12V 5W

 1
90080-81049

CDE120,ZZE12#..UKP

12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
90981-WE002

CDE120,NDE120,ZZE12#..UKP

12V 5W

 1
90080-81049

CDE120,ZZE12#..UKP

12V 5W

 1
90080-81049

CDE120,ZZE12#..UKP

12V 5W

 1
81260 - LAMP ASSY, GLOVE BOX
81260-13040

CDE120,NDE120,ZZE12#..UKP

 1
81260-13040

CDE120,ZZE12#..UKP

 1
81260A - LAMP ASSY, MAP
81260-12110B0

CDE120,ZZE120,121..UKP..TERRA

W/O(MOON ROOF),LT.GRAY,TRIM1#,8#

 1
81260-05050B2

CDE120,ZZE12#..UKP

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-05050B2

CDE120,ZZE120,121..UKP..TERRA

W(MOON ROOF),LT.GRAY,TRIM1#,8#

 1
81260-05051B2

CDE120,NDE120,ZZE120,121..UKP

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-05052B2

CDE120,NDE120,ZZE12#..UKP

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-12110B0

CDE120,NDE120,ZZE120,121..UKP

W/O(MOON ROOF),LT.GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-12110B0

CDE120,ZZE120,121..UKP..TERRA

W/O(MOON ROOF),LT.GRAY,TRIM1#,8#

 1
81260-05050B2

CDE120,ZZE12#..UKP

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-05050B2

CDE120,ZZE120,121..UKP..TERRA

W(MOON ROOF),LT.GRAY,TRIM1#,8#

 1
81260-05051B2

CDE120,NDE120,ZZE120,121..UKP

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-05052B2

CDE120,NDE120,ZZE12#..UKP

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-12110B0

CDE120,NDE120,ZZE120,121..UKP

W/O(MOON ROOF),LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

CDE120,ZZE12#..UKP

12V 8W,W/O(MOON ROOF)

 2
90981-WC009

CDE120,NDE120,ZZE12#..UKP

12V 5W,W(MOON ROOF)

 1
90011-11006

CDE120,ZZE12#..UKP

12V 5W,W(MOON ROOF)

 1
90011-11006

CDE120,ZZE12#..UKP

12V 5W,W(MOON ROOF)

 1
90981-12005

CDE120,NDE120,ZZE12#..UKP

12V 8W,W/O(MOON ROOF)

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

CDE120,ZZE12#..UKP

12V 8W,W/O(MOON ROOF)

 2
90981-WC009

CDE120,NDE120,ZZE12#..UKP

12V 5W,W(MOON ROOF)

 1
90011-11006

CDE120,ZZE12#..UKP

12V 5W,W(MOON ROOF)

 1
90011-11006

CDE120,ZZE12#..UKP

12V 5W,W(MOON ROOF)

 1
90981-12005

CDE120,NDE120,ZZE12#..UKP

12V 8W,W/O(MOON ROOF)

 2
81260F - BULB(FOR GLOVE BOX LAMP)
90981-11018

CDE120,ZZE12#..UKP

12V 1.2W W/O SOCKET

 1
90981-11018

CDE120,NDE120,ZZE12#..UKP

12V 1.2W W/O SOCKET

 1
81261 - LENS AND COVER, MAP LAMP
81261-05050B4

CDE120,ZZE12#..UKP

LT.GRAY,TRIM1#

 1
Common parts
90069-02068
93560-54014
Linked diagrams
8401
