ZZE121R-DHPDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP

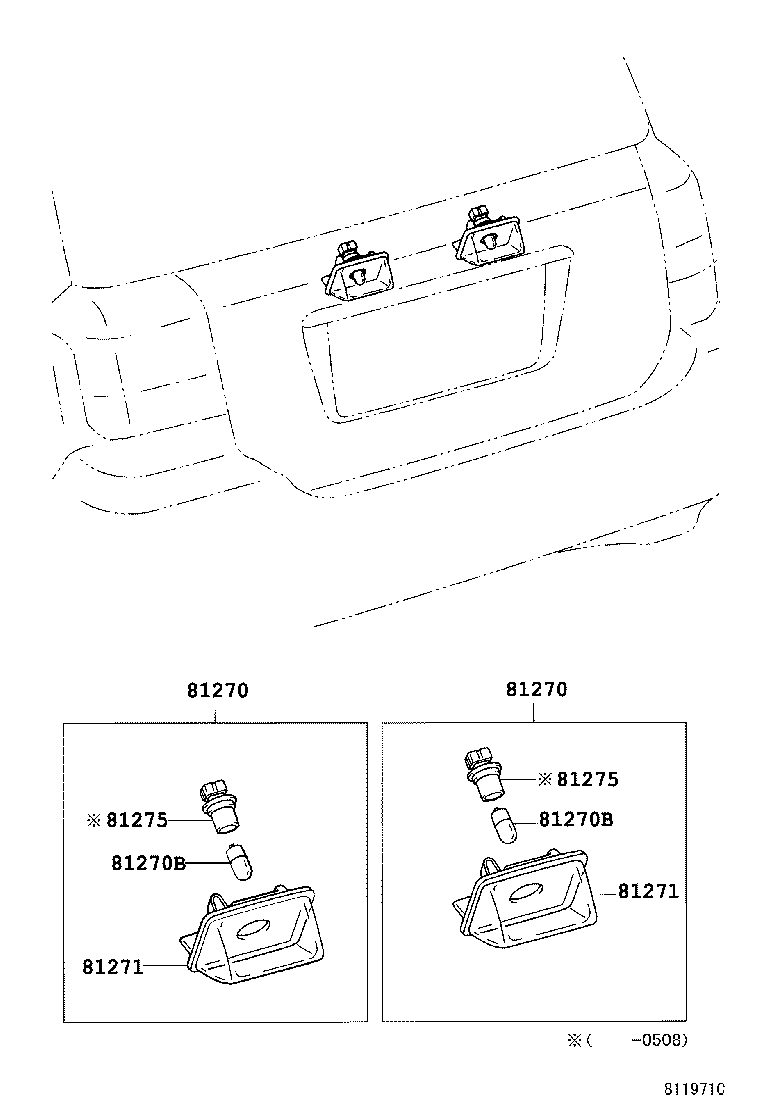

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81275 81275
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-02070

CDE120,ZZE12#..UKP

 2
81270-02070

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 2
81270-02071

CDE120,NDE120,ZZE12#..UKP

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-02070

CDE120,ZZE12#..UKP

 2
81270-02070

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 2
81270-02071

CDE120,NDE120,ZZE12#..UKP

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81030

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

12V 5W

 2
90080-81030

CDE120,ZZE12#..UKP

12V 5W

 2
90981-WB005

CDE120,NDE120,ZZE12#..UKP

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81030

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

12V 5W

 2
90080-81030

CDE120,ZZE12#..UKP

12V 5W

 2
90981-WB005

CDE120,NDE120,ZZE12#..UKP

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-02070

CDE120,ZZE12#..UKP

 2
81271-02070

CDE120,ZZE12#..UKP

 2
81271-02070

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 2
81271 - LENS, LICENSE PLATE LAMP
81271-02070

CDE120,ZZE12#..UKP

 2
81271-02070

CDE120,ZZE12#..UKP

 2
81271-02070

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-02070

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 2
81275-02070

CDE120,ZZE12#..UKP

 2
81275-02070

CDE120,ZZE12#..UKP

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-02070

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 2
81275-02070

CDE120,ZZE12#..UKP

 2
81275-02070

CDE120,ZZE12#..UKP

 2
