ZZE121R-DHPDKW (2001)
Toyota Corolla Hb (Ukp)
Production
Nov 2001
-
Feb 2007
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0111- )UKP

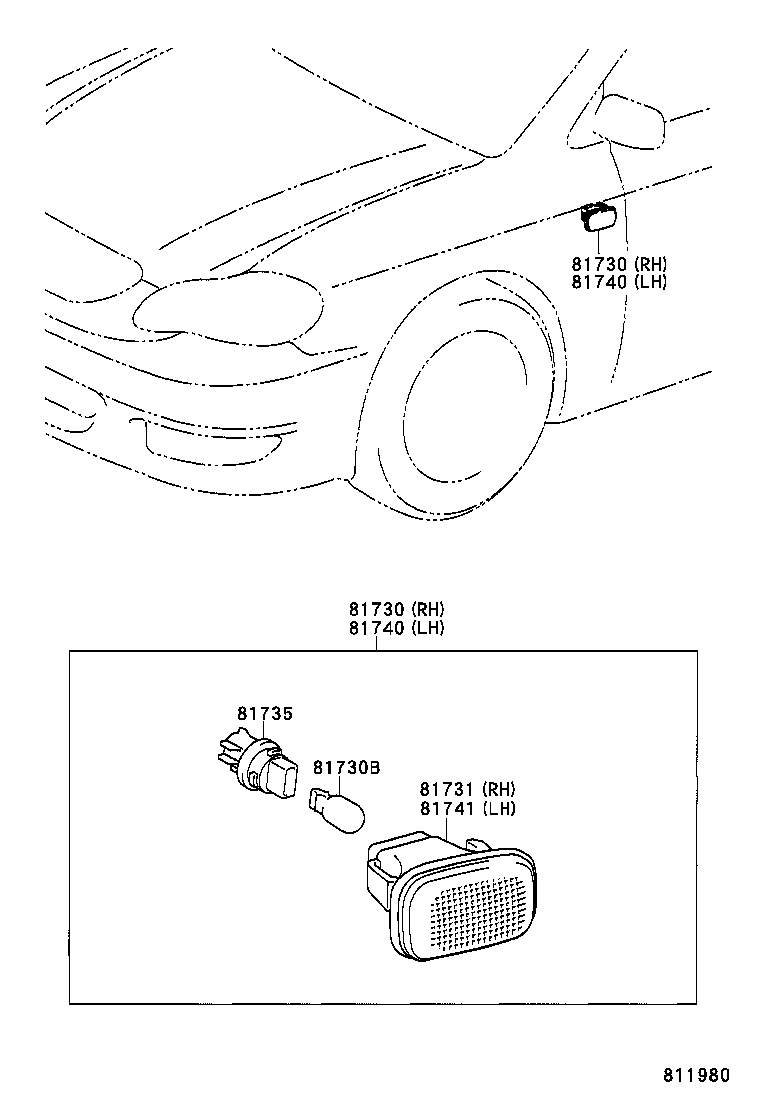

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81730-02023 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81730-02023 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90080-81083 |
CDE120,ZZE12#..UKP 12V 5W |
2 | ||
| 90080-81083 |
CDE120,ZZE12#..UKP 12V 5W |
2 | ||
| 90981-WF004 |
CDE120,NDE120,ZZE12#..UKP 12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81731-02022 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 81731-02020 |
CDE120,ZZE12#..UKP |
2 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 90069-81005 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-81005 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-02023 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-02023 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81730-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81731-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 81731-02020 |
CDE120,ZZE12#..UKP |
2 | ||
| 81731-02022 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
